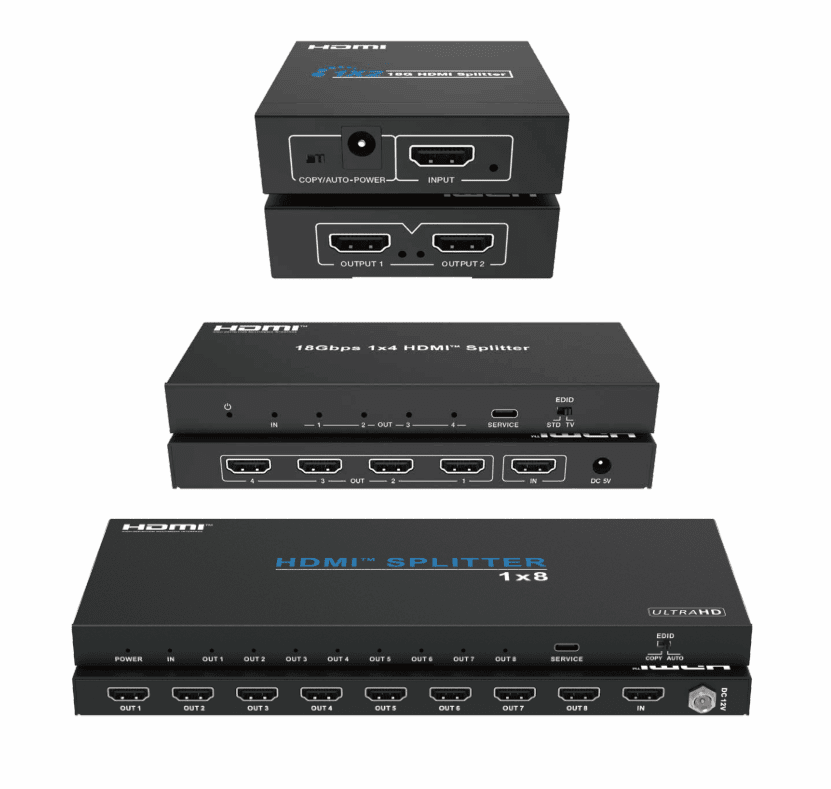

Promotion 4K60 4:4:4 18Gbps HDMI 2.0 1×2 1X4 1×8 Splitter,1×2/8 with auto downscaling,EDID,CEC HDR10
4K60 1×2 1×4 1×8 HDMI Splitter with EDID, 1×8 with auto downscale,Plug and Play, with Certificate Power adapter, 5 Years Warranty.
| Weight | 264 g |
|---|---|
| Dimensions | 16.3 × 6.3 × 1.6 cm |
| HDMI Version | 4K60 HDMI 2.0, 18Gbps,HDCP 2.3,2.2,1.4 and DVI 1.0 compliant |
| Interface | 1 HDMI IN, 2/4/8 HDMI Out, EDID |
| Video Bandwidth | 18Gbps |
| Color space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Color Depth | 8-bit,10-bit,12-bit |
| Audio Formats | HDMI™ IN/OUT: |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| 3D Audio Format | Yes |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
Detailes About Promotion 4K60 4:4:4 18Gbps HDMI 2.0 1×2 1X4 1×8 Splitter,1×2/8 with auto downscaling,EDID,CEC HDR10
18Gbps 1×2,1×4,1×8 HDMI 4K60 Splitter with EDID,CEC,Auto downscaling
This HDMI™ 1×2 1×4 1×8 Splitter designed with 1x HDMI™ input and 2/4/8 x HDMI™ output, can distribute 1x HD source signal to 2/4/8 x display devices simultaneously and quickly. Video resolution is up to 4K2K@60Hz YCbCr 4:4:4, and digital audio format is up to LPCM 7.1CH. It supports advanced EDID management,including two EDID modes: copy and auto. Each signal is designed in strict accordance with industry standards to prevent cross-talk between signals and minimize signal attenuation. This ensures the high-quality output of every HD signal after distribution, achieving perfect transmission.
The device is widely used in multimedia conference halls, television teaching, large-screen display and other applications.
Features
☆ HDCP 2.2 compliant, HDCP 2.3/2.2/1.4 and DVI 1.0 compliant
☆ Video resolution is up to 4K@60Hz 4:4:4, as specified in HDMI™ 2.0
☆ Audio format up to PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ Support resolution downscaling from 4K to 1080p on each output
☆ Support CEC on HDMI™ OUT 1 port
☆ Advanced EDID management ,including STD 1080P Mode and TV copy out1 mode
☆ Compact design for easy and flexible installation
Packing list
① 1× 18Gbps HDMI 1×2 (1×4,1×8) Splitter
② 1× 5V/1A (1×8 12V/1A) Multinational Power Supply
③ 1× User Manual
Specification

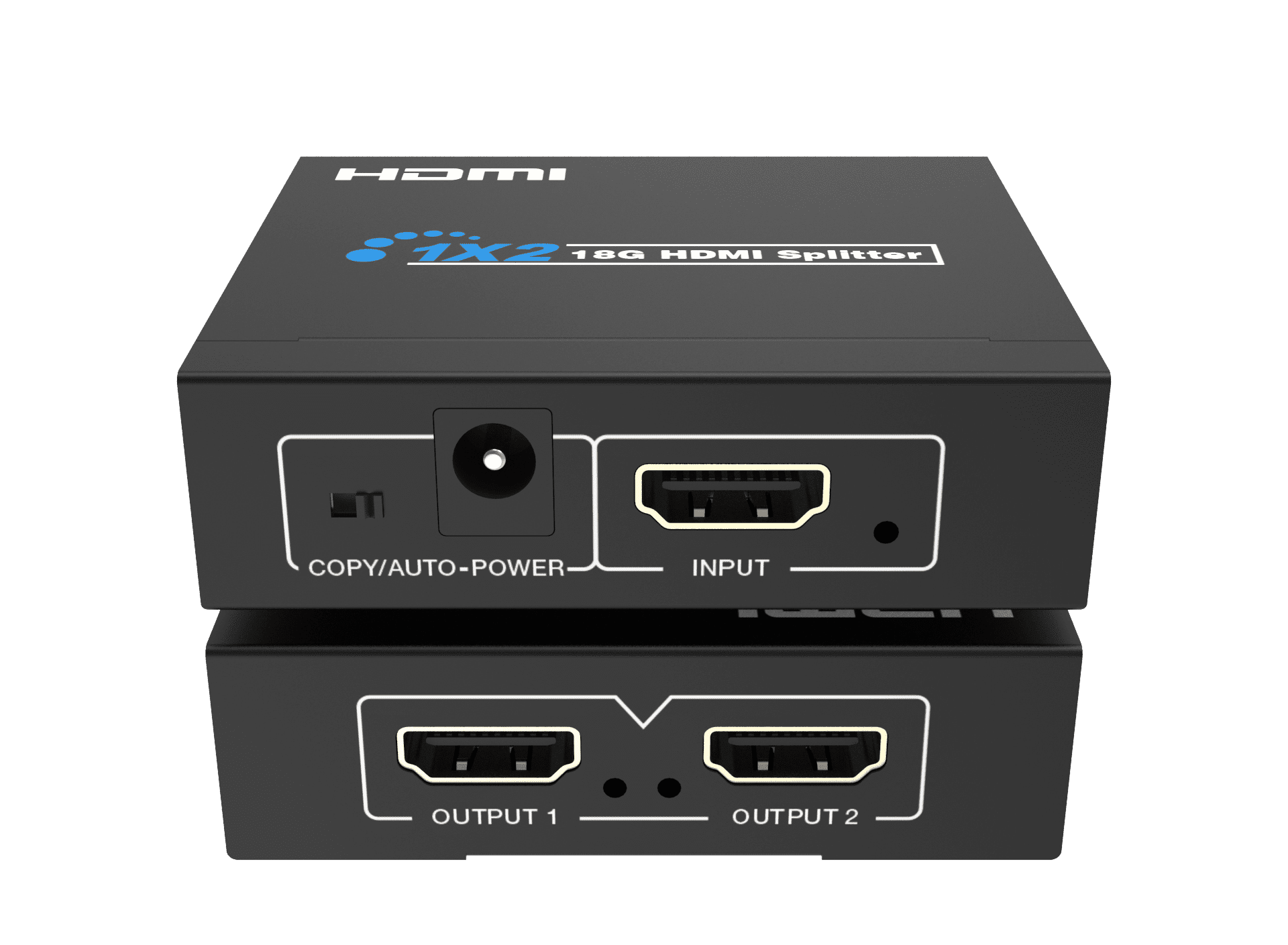

1×2

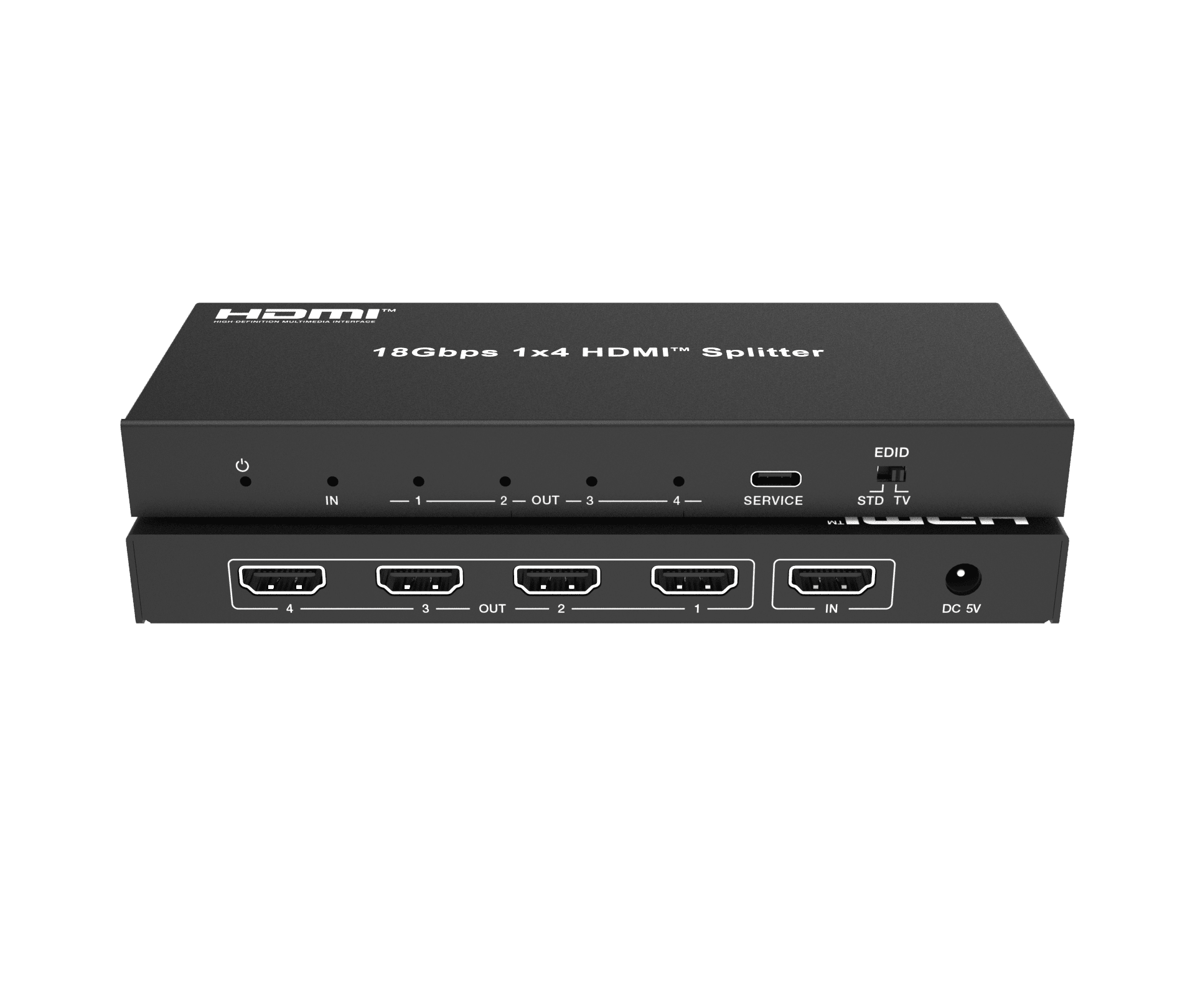

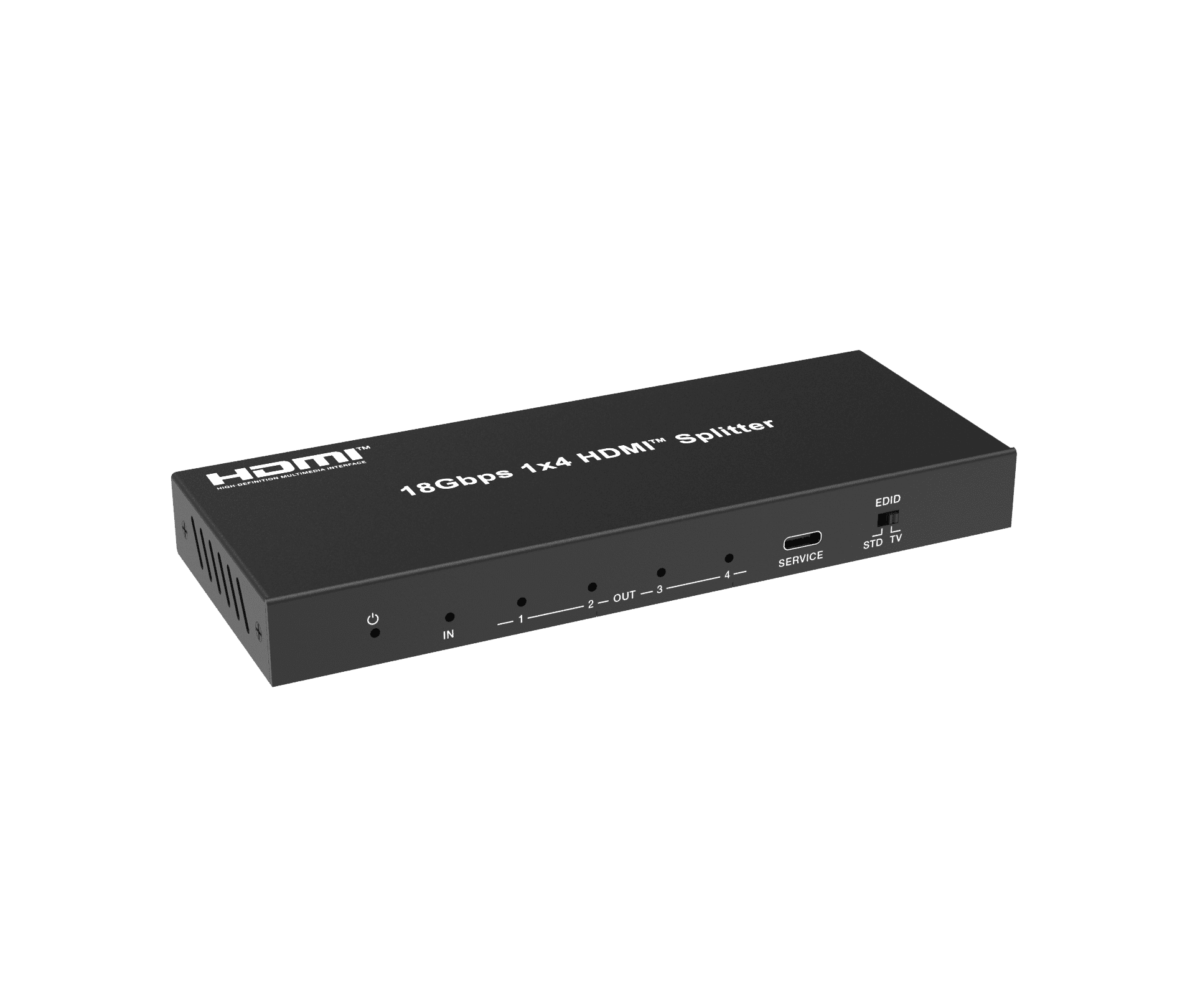

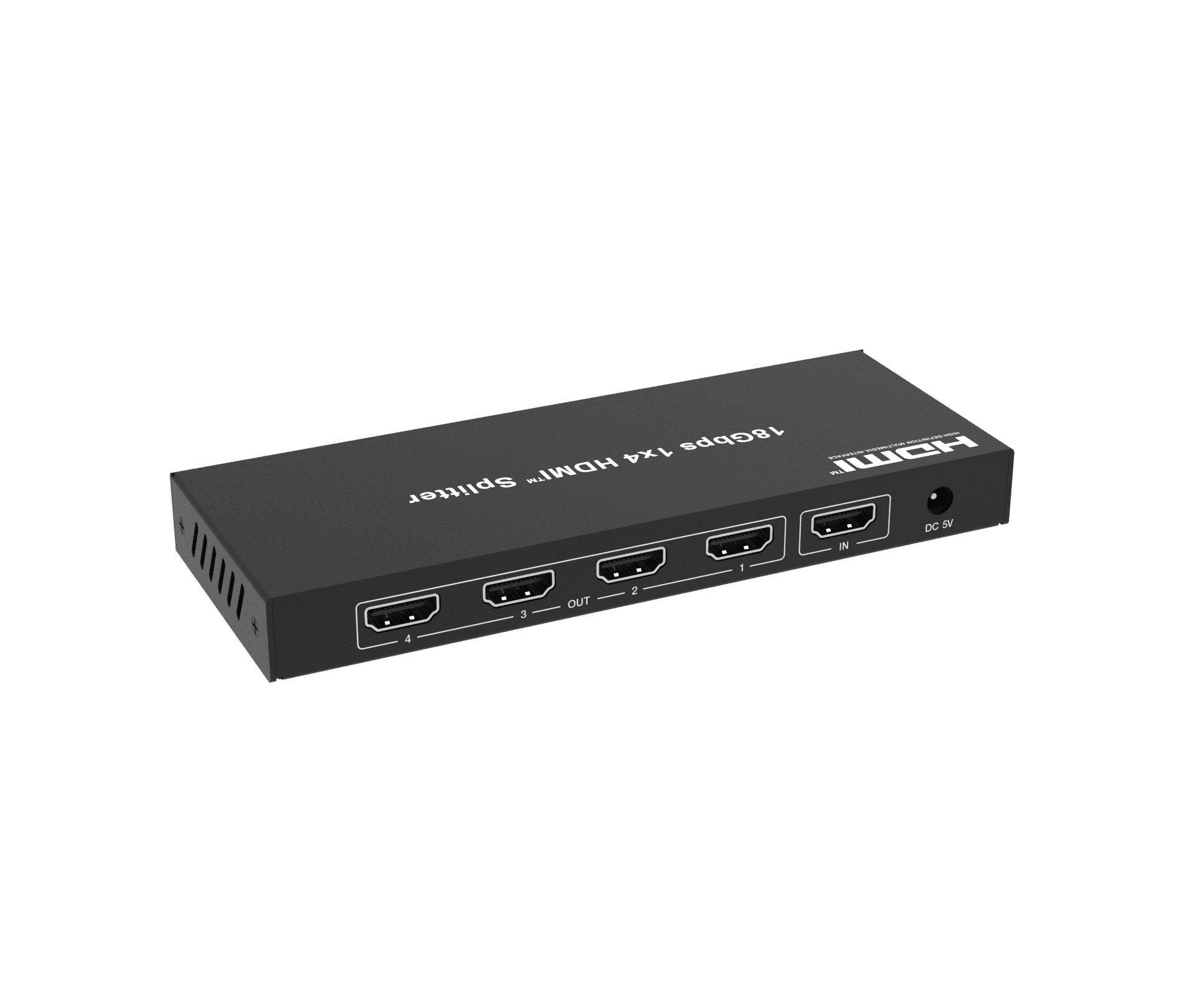

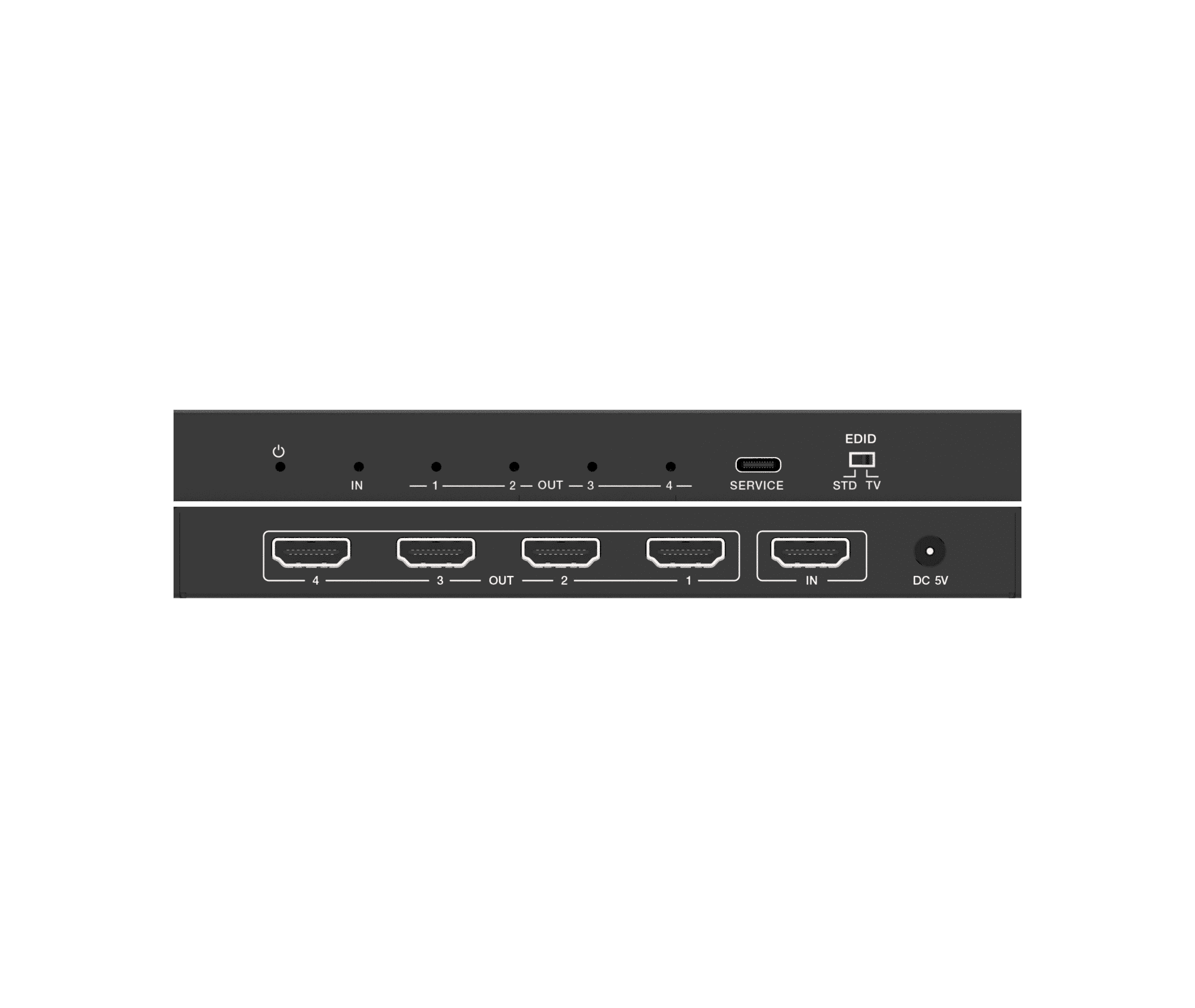

1×4
1×8
Diagram 1×8
Auto Downscaling
This splitter supports resolution auto downscaling on all outputs. It will automatically output the proper HDMI signal according to the EDID of the display device.
In the example above, the source signal will be sent to each output according to the EDID of the connected display device.
1×4 splitter diagram
FAQ
1. Q: Where is this product usually used?
A: It can be used in many place such as Entertainment Room / Home Theater /Lecture Room / Hall Presentation / Show Room / Demo Room / Public Commercial Display etc.
2. Q: Which input source and output devices can this product connect to?
A: Input source devices such as Blu-ray / DVD / PS3 / PS4 player or Set-Top- Box or any 6G with HDCP2.2 source etc. Output with 6G HDMI TV / Display or audio amplifier etc.
Note: To achieve 6G performance will need to collocation with particular HDMI cable to get the better quality.
3. Q: Does this product require an HDMI line length for the connection interface?
A: According to HDMI line length test, 4K2K@60Hz / 8 bit YUV 4:4:4 is the longest line length up to 3m, 4K2K@30Hz / 8-bit is the longest line length up to 10m, 1080p@60Hz / 8-bit is the longest line length up to 15m.
The use of “Premium High Speed HDMI” cable is highly recommended.

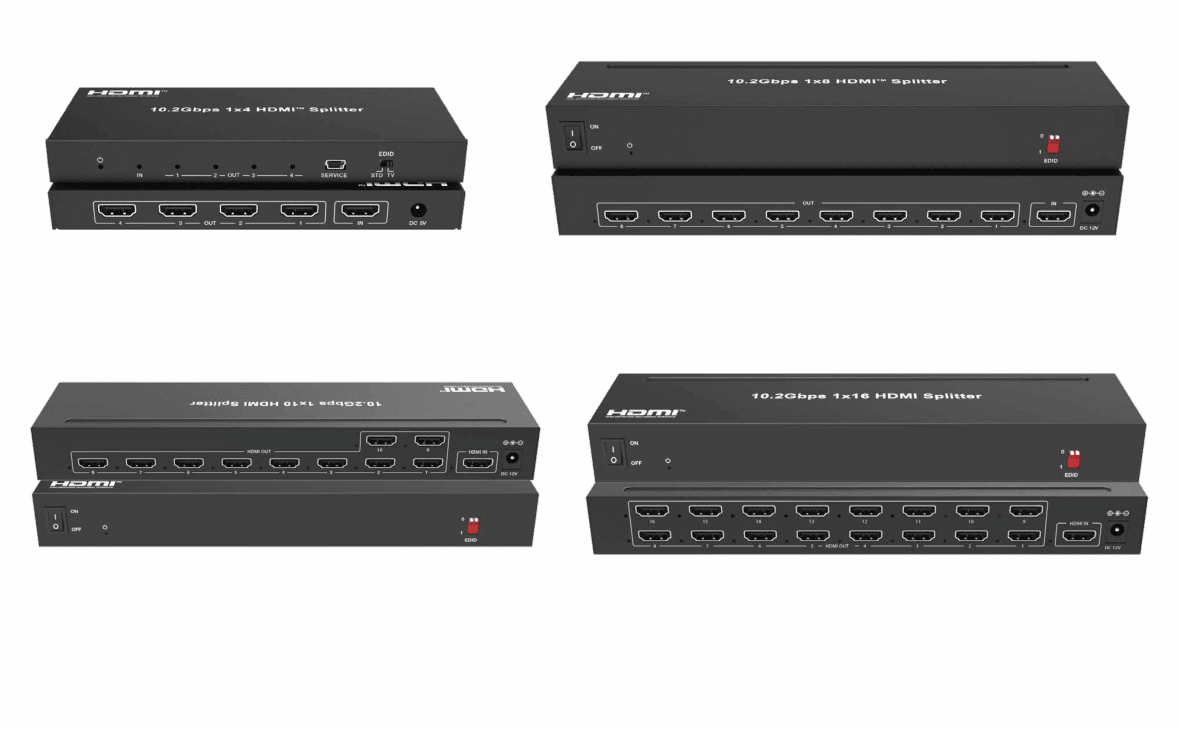

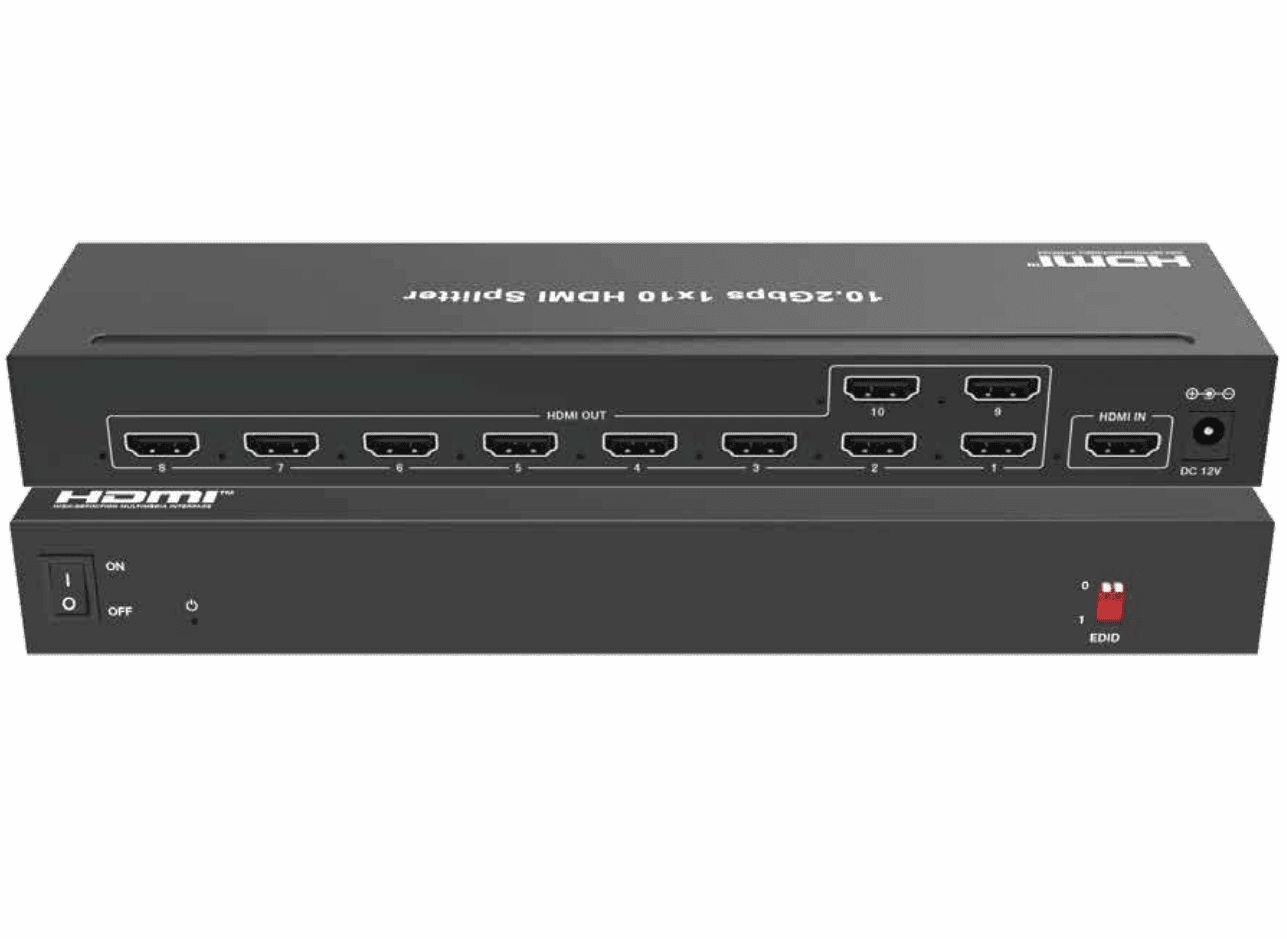

10.2Gbps 1×4 ,1×8,1×10,1×16 HDMI 4K30 Splitter,EDID
