New 7Pin Pure Fiber HDMI 2.1 Terminations for any fiber optic cables

(4K/8K fiber optic HDMI 2.0/2.1 cable/DVI/Displayport/USB connections)

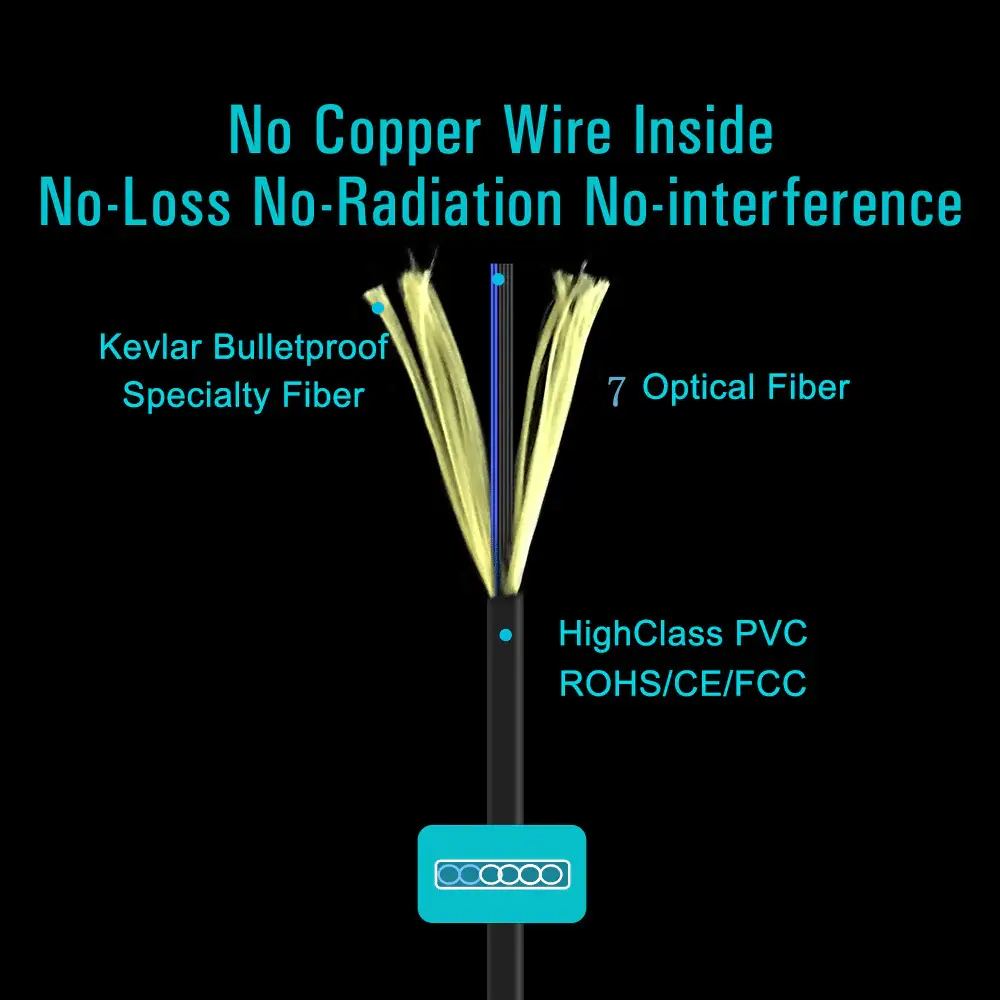

100% Pure Fiber, No Copper, Zero latency, No Loss, Uncompressed long distance Transmission

Gen2,48Gb/s Full Fiber HDMI AOC Cable,support CEC and eARC

Features:

-Pure Fiber Optic transmission for pure error-free noise-free connection of video & sound.

-Full Compatibility with any legacy HDMI TMDS, up to HDMI 2.1 FRL 48gigabit/s full speed.

-Full Compatibility with any legacy HDCP up to HDCP 2.3 or Higher.

-Supports all frames rates including 4K@30 4K@60,4K@120Hz 8K@30Hz, 8K@60 or higher (compressed system)

-Full 4:4:4 HDR10+ Uncompressed (HDMI 2.1 Standard FRL 48gigabit full speed)

-Backwards compatible with earlier HDMI versions such as HDMI 1.3/1.4/2.0a/2.0b

Multifunctional free combination full fiber AV and cable solutions

DVI –Resolutions up to 4K@30Hz with full bandwidth reach up to 10.2Gbps

DisplayPort–Resolution: 8K@30Hz/4K@144Hz/3D/1080p/1080/720p.

HDMI– Resolutions up to HDMI 2.1 8K @60Hz and full bandwidth of 48Gbps

USB– 10Gbps, bidirectional USB 3.1 Gen2. Max lengths is 100m



Standard Assembly:

1xHDMI-MPO (RX+TX) +1xMPO patch cord +2xAdapters. Customized service is available.

Cable Lengths: Up to 300meters, customized cable length service is available.

Dimension

Highlights

• Fully support HDMI 2.1 8K@60hz(without DSC) and full bandwidth of 48Gbps.
• Backward supports different definitions frame rates:8k30hz,4k120hz,4k60hz,4k30hz,1080p
• Supports HDCP2.3,CEC,eARC
• Pure light,flexible optic fiber cable design,transmission distance up to 300m
• Excellent EMI/RFI performance
• Modular design,an ideal solution for structure cabling deployment
• The outer cover of the optical cable can be upgraded to armor,CMP rated or any customized requirements
• Convenient and reliable pipeline wiring work,easy to deploy in work place.

HANDLING AND CARE CAUTION:

Optical energy is contained within cable and housings, do not cut optical cable. Viewing the cut fiber ends, especially with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) may pose an eye hazard. This product is classified as a Class 1 Laser product in accordance with IEC60825- 1:1993+A1+A2 and complies with 21CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice N0. 50, dated 24-Jun-2007.

Use or modification of this device other than those specified herein may result in hazardous radiation. To meet laser safety requirements the cable shall be used within environmental specifications.

Tampering with or modifying the device will result in voiding of the product warranty.

INVISIBLE LASER RADIATION CLASS 1 LASER PRODUCT 840-860nm, 700uW

• Resolution: 8K@60Hz, 4K@120Hz,HDR
• Bandwidth: 48Gbps(12 Gbps x 4Channel)
• Chroma Subsampling: 4:4:4/4:2:2/4:2:0
• Color Depth: 12bit
• HDCP: HDCP2.3, HDCP2.2
• eARC/ARC: Yes
• Audio
  • Dolby® Atmos,DTS:X, LPCM 7.1 audio, Dolby® Digital Plus,Dolby®
  • TrueHD, and DTS-HD® Master Audio™
• Other: Dynamic HDR/VRR/G-SYNC/FREESYNC/ALLM/QFT/CEC etc.

• Bit Error Rate: ≤0.0035dB/m
• Operating Temperature: -20℃~＋70℃
• Stored Temperature: -20℃~＋60℃
• Working Humidity: ＜90％，No condensation
• Power Supply: TX:0.5W RX:0.5W, 5VDC
• Power Consumption: 250mw

What Packages include

What is MPO Connector?
Multi-fiber push on connectors, or MPOs for short, are fiber connectors comprised of multiple optical fibers. While defined as an array connector having more than 2 fibers, MPO connectors are typically available with 8, 12 or 24 fibers for common data center and LAN applications. Other fiber counts are available such as 32, 48, 60 or even 72 fibers, but these are typically used for specialty super high-density multi-fiber arrays in large scale optical switches.

Why choose MPO pure fiber optical cable solutions for your HDMI/DVI/Displayport/USB connections?

Compared with hybrid optical AOC cables, New pure fiber cables have significant advantages as below:

• One multi-fiber OM3 fiber cable with 4x MPO connectors for many different Pigtails MPO cable and pigtails are separate
• You can change and connect with HDMI, DP, USB, DVI. etc up to 20 different Pigtails anytime
• No fixed direction they are bi-directional Pigtails are separate and you can change the “Source” and “Display” anytime
• Easily upgrade to the next generation. If you need new HDMI  version, just change the Pigtail Extra long length up to 1000ft using OM3 fiber
• The pure fiber cable support 8K@60Hz
• Best for Home Theater Systems or Smart TV or Projectors or Gaming
• Integrated TV streaming Gaming Ultra Ethernet with full control
• Connects 4K 8K Smart-TVs and Projectors at Full Distance with Perfect Original Uncompressed Sound & Video Quality

Step by Step Instruction User Manual
