2024 New 8K 48Gbps 4×4 8×8 HDMI2.1 HDCP2.3 HDMI Matrix Web Gui,RS232,EDID
4K@120hz,8K@60hz HDMI Matrix 4×4,8×8,Support 8K->4K or 8K/4K->1080p downscaling
| Weight | 2700 g |
|---|---|
| Dimensions | 45 × 21 × 4.5 cm |
| HDMI Version | HDMI 2.1, HDCP 2.3 |
| Resolution | Up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4 |
| Bandwidth | HDMI48Gbps |
| Features | HDR, HDR10, HDR10+, Dolby Vision pass-through |
| Control | Front Panel button, IR，RS-232，TCP/IP， Web GUI,or PC program |
| Markets | Residential or Commercial application |
Detailes About 2024 New 8K 48Gbps 4×4 8×8 HDMI2.1 HDCP2.3 HDMI Matrix Web Gui,RS232,EDID

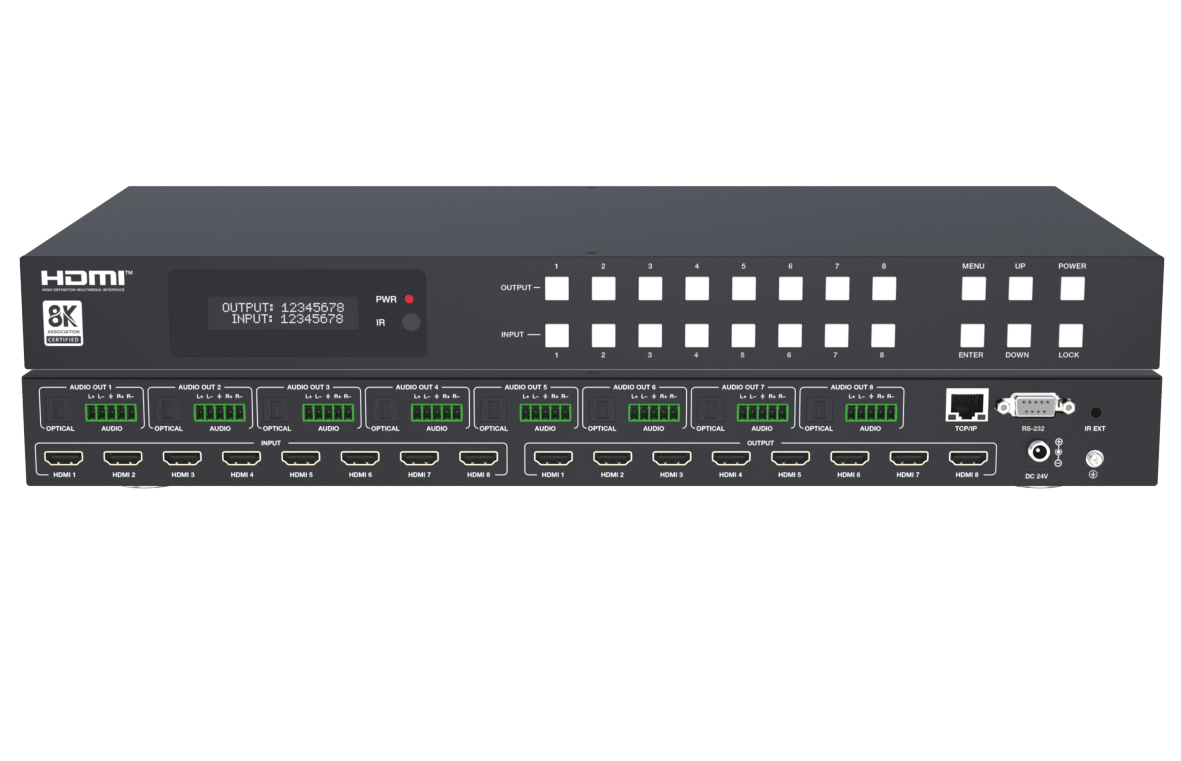

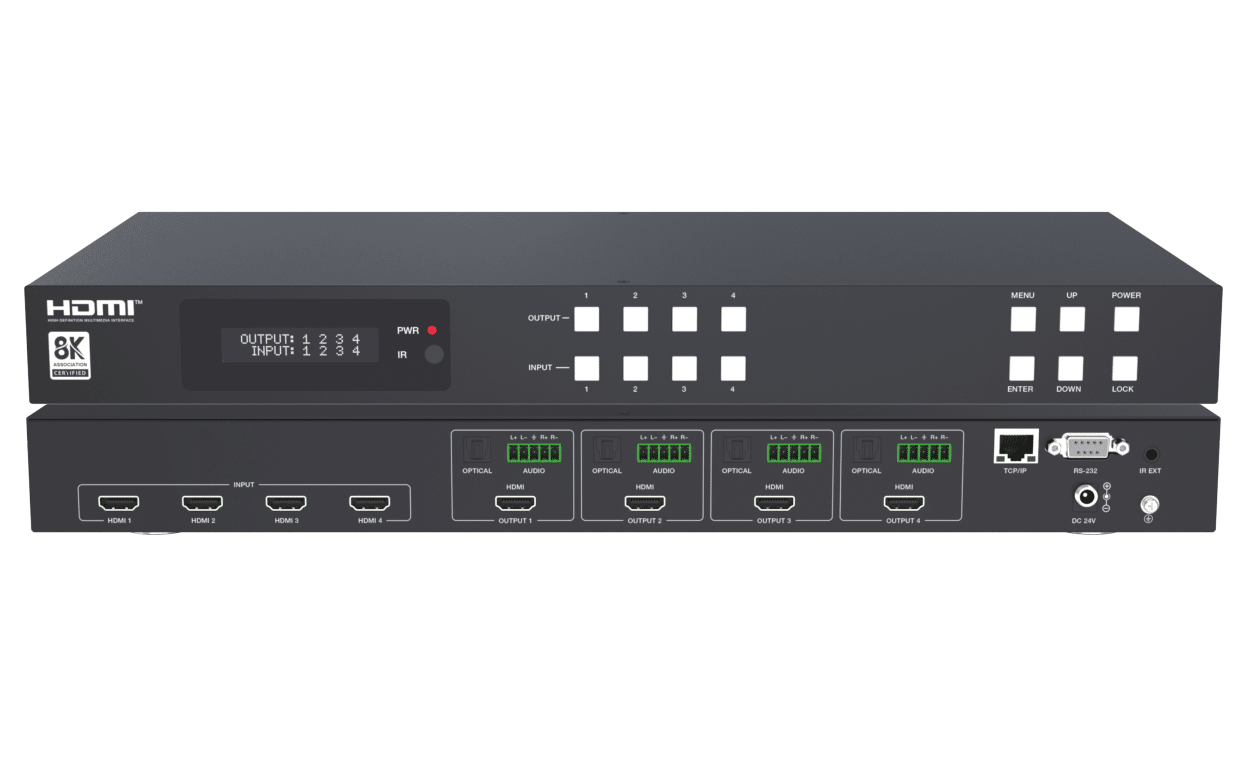

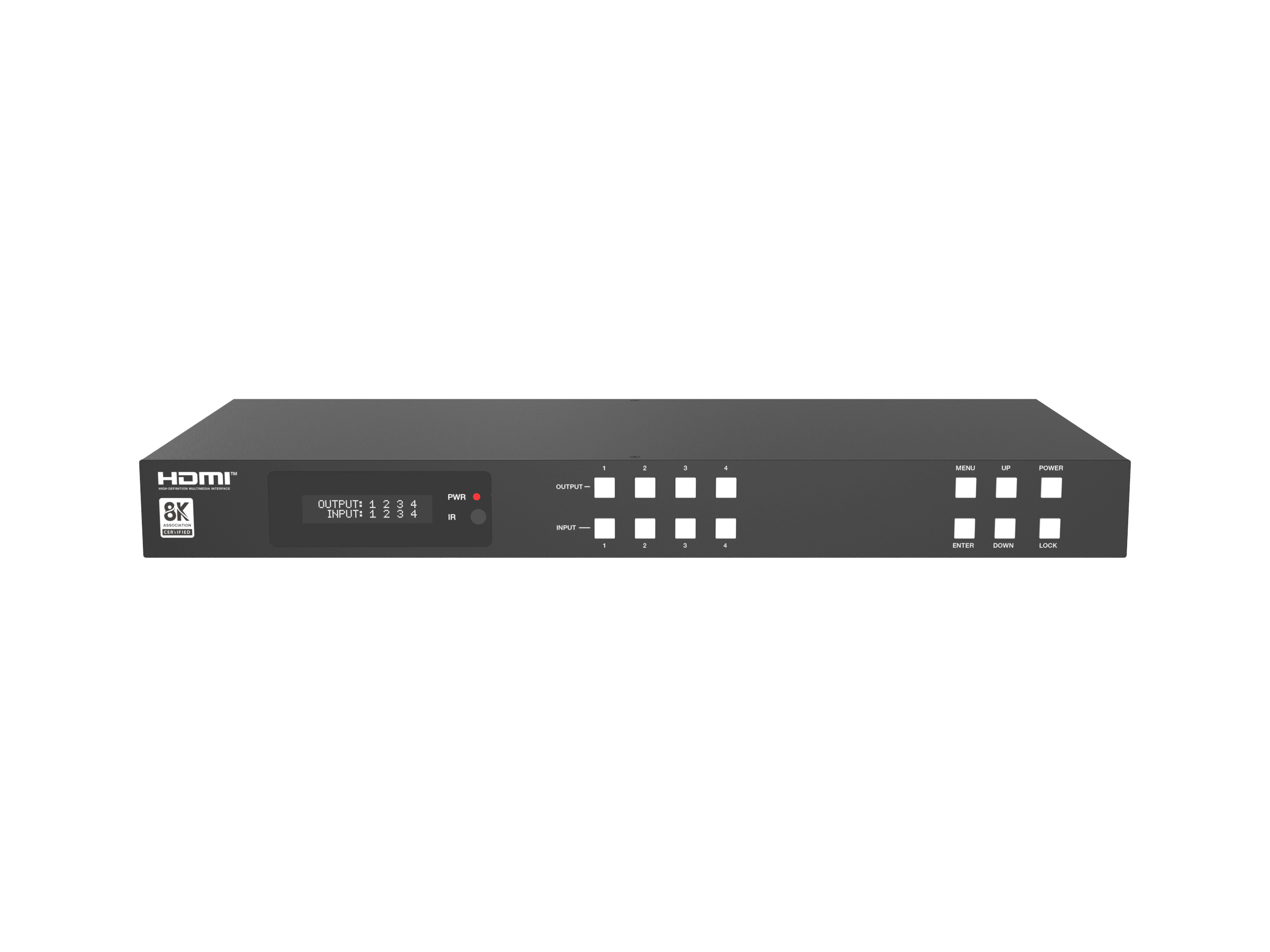

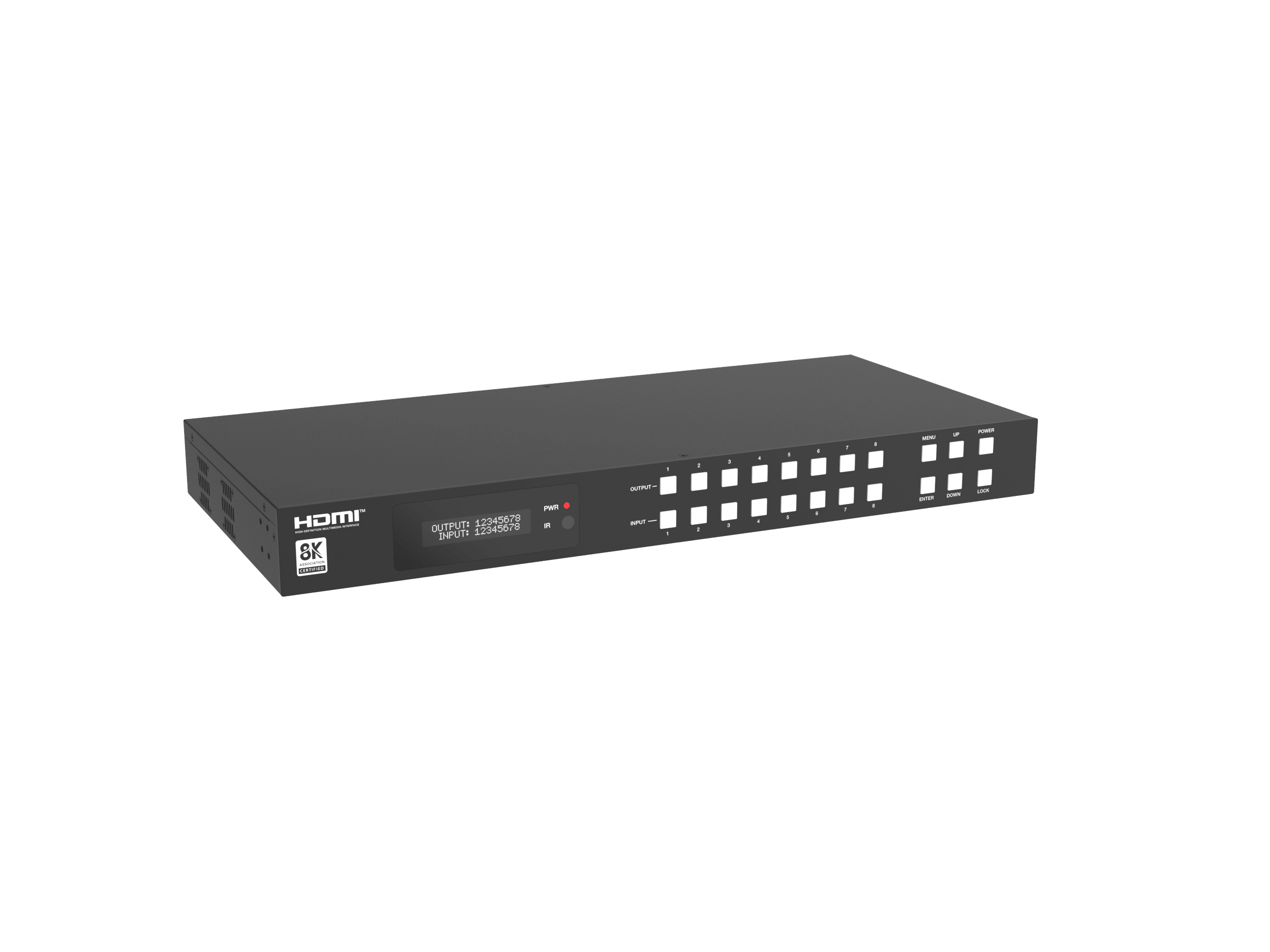

New 8K Matrix 4×4,8×8,HDMI2.1

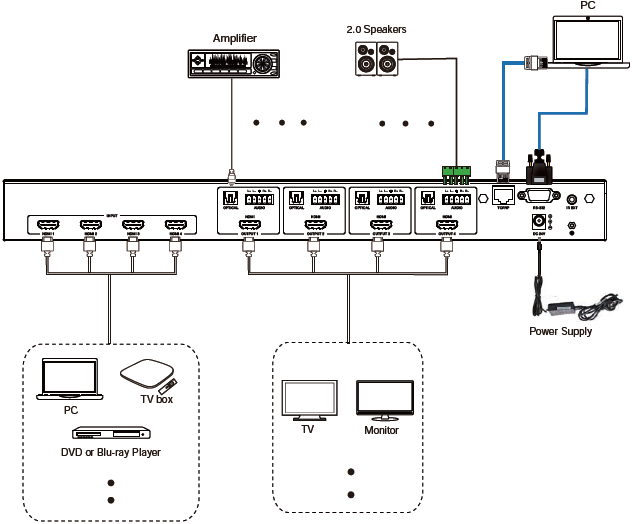

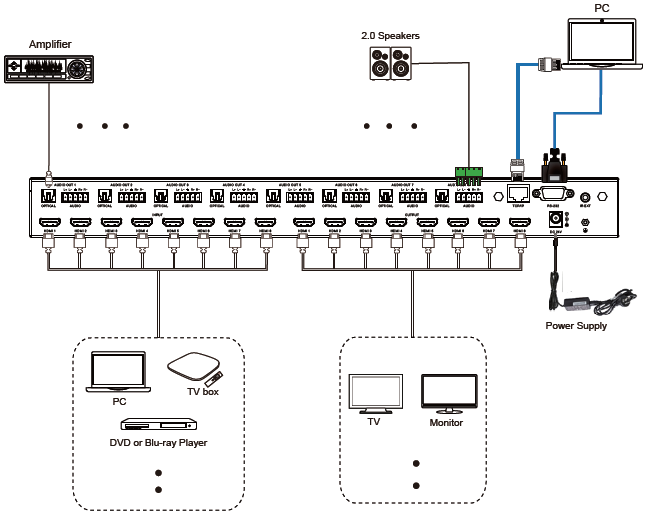

The 48Gbps 8K 4×4,8×8 HDMI Matrix supports the transmission of high resolution video (up to 4K2K@120Hz 4:4:4 12bit and 8K4K@60Hz 4:2:0 12bit) and multi-channel digital audio from 4/8 HDMI sources to 4/8 HDMI displays. Resolution downscaling and HDR conversion for each HDMI output are also supported
It works with Blue-Ray players, Set-Top boxes, Home Theater PCs, and game
consoles which connect to an HDMI display, and can be controlled via front panel
buttons, IR remote, RS-232, and Web GUI.
Features
☆ HDMI 2.1 and HDCP 2.3 compliant
☆ 4 × HDMI inputs can be independently routed to 4 × HDMI outputs
☆ Video resolution is up to 8K60Hz 4:2:0, 8K30Hz 4:4:4 and 4K120Hz 4:4:4
☆ Support 48Gbps video bandwidth
☆ HDR, HDR10, HDR10+, Dolby Vision pass-through
☆ Support 8K->4K or 8K/4K->1080p downscaling for each output port
☆ VRR, ALLM, QMS, QFT, SBTM are supported

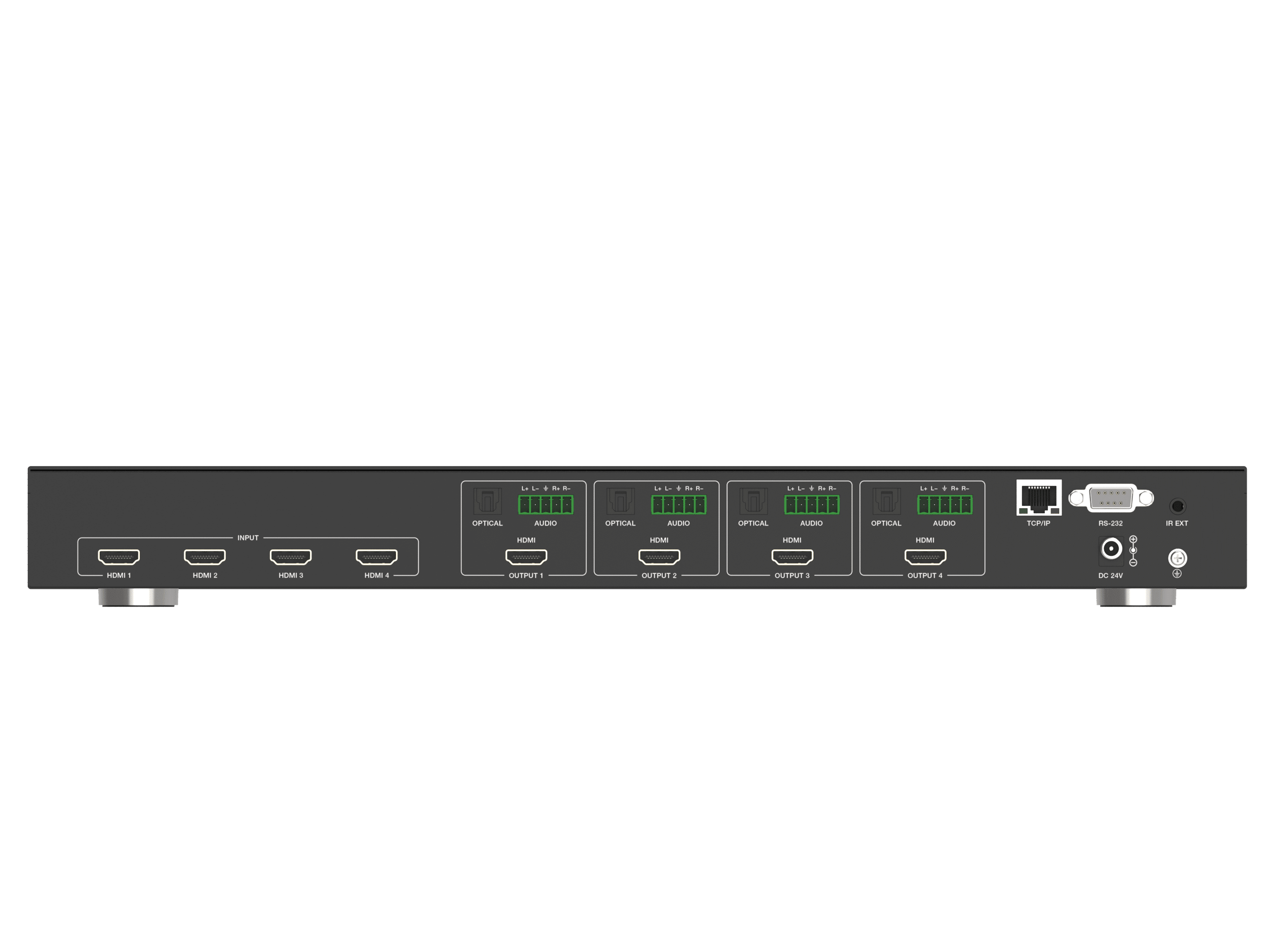

☆ Support optical audio and balanced analog audio output
☆ Advanced EDID management

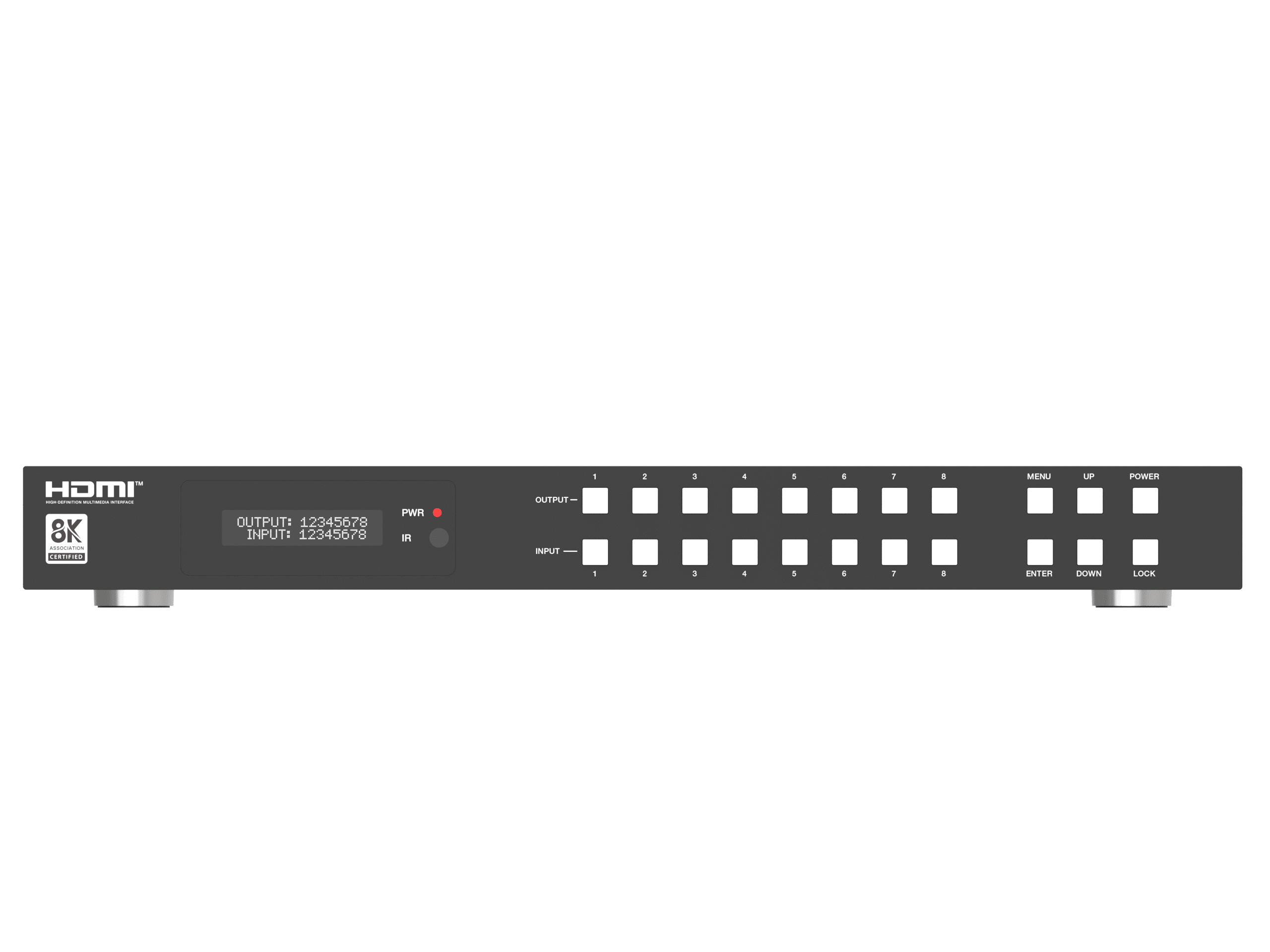

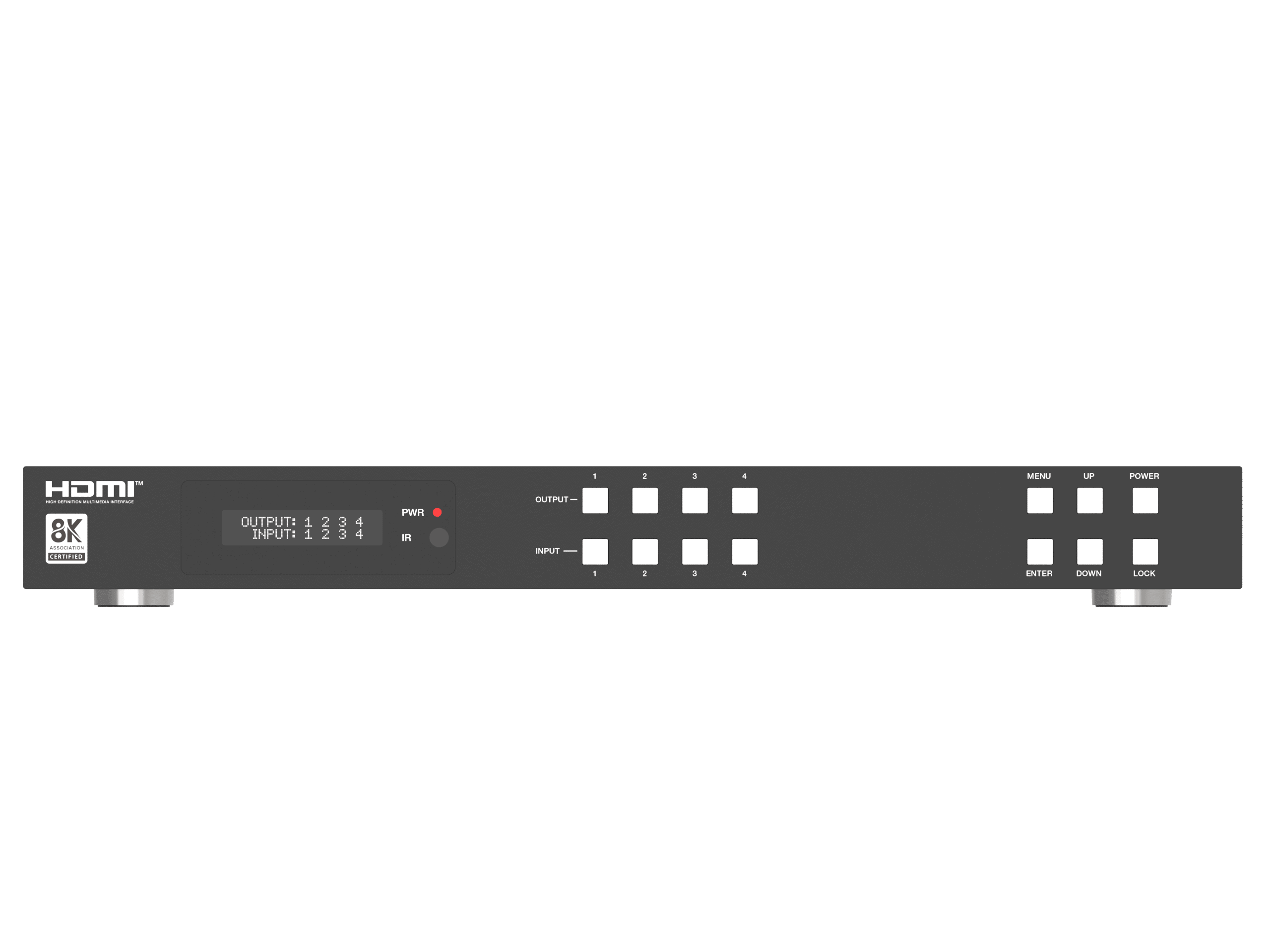

☆ Control via front panel buttons, IR remote, RS-232, and Web GUI
Package Contents
① 1 × 48Gbps 8K 4×4 HDMI Matrix
② 1 × 24V/2.7A Locking Power Adapter
③ 1 × IR Remote
④ 1 × IR Wideband Receiver Cable (12V, 1.5m)
⑤ 1 × AC Power Cord (1.5m)
⑥ 1 × RS-232 Serial Cable (1.5m, male to female head)
⑦ 4 × 5pin-3.81mm Phoenix Connector
⑧ 8 × Machine Screw (KM3*6)
⑨ 2 × Mounting Ear
⑩ 1 × User Manual
