New 4K30hz 4×4 8×8 Seamless HDMI Matrix Video Wall Controller Big Screen Display
4K30Hz 4×4 8X8 Enjoy large screen Seamless Matrix switch,Video wall,Audio de-embedding,EDID,RS232,Video Scaler
| Weight | 2190 g |
|---|---|
| Dimensions | 44 × 20.3 × 4.5 cm |
| HDMI Version | hdmi 1.4b |
| Resolution | 4k30hz 10.2Gbps Video bandwidth |
| HDCP | HDCP 1.4 |
| Color space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| RS232 Control | Support |
| Audio formats | HDMI input/output: LPCM 2.0/5.1/7.1，Dolby 2.0/5.1, Dolby Digital Plus 2.0/5.1/7.1, DTS 2.0/5.1, DTS HD HRA 5.1/7.1 Analog audio output: PCM 2.0 |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| IR Frequency | Wideband 38KHz |
Detailes About New 4K30hz 4×4 8×8 Seamless HDMI Matrix Video Wall Controller Big Screen Display

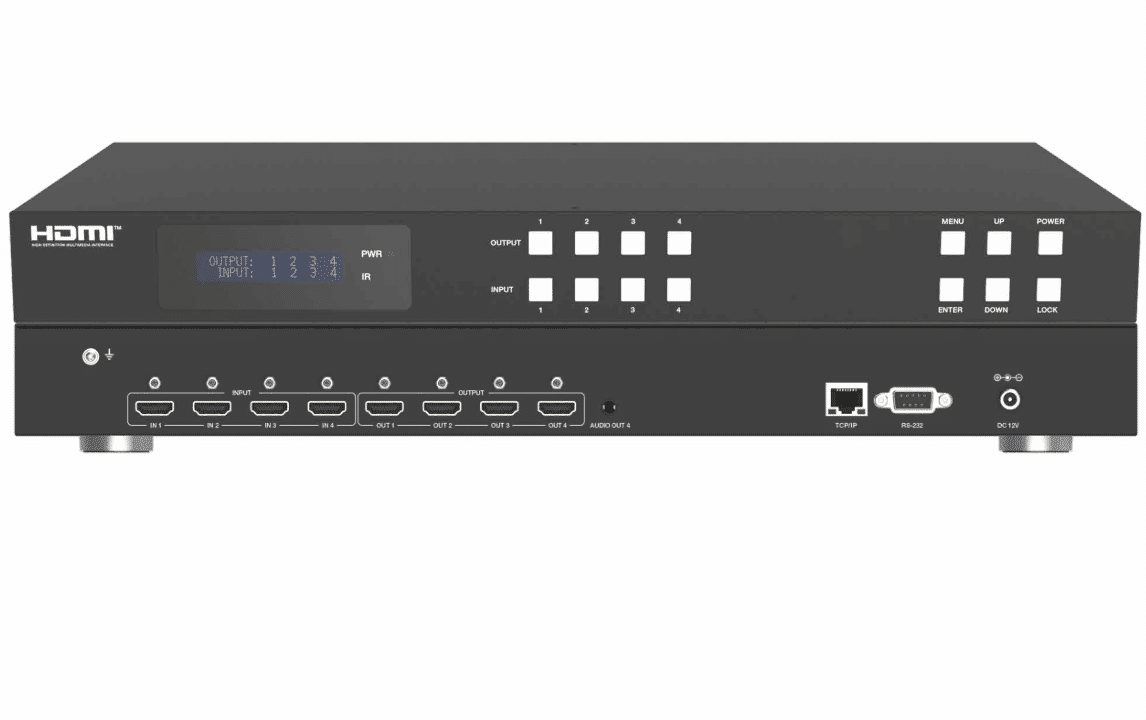

4K30hz 4×4 8×8 Seamless Switch with Video Wall Controller

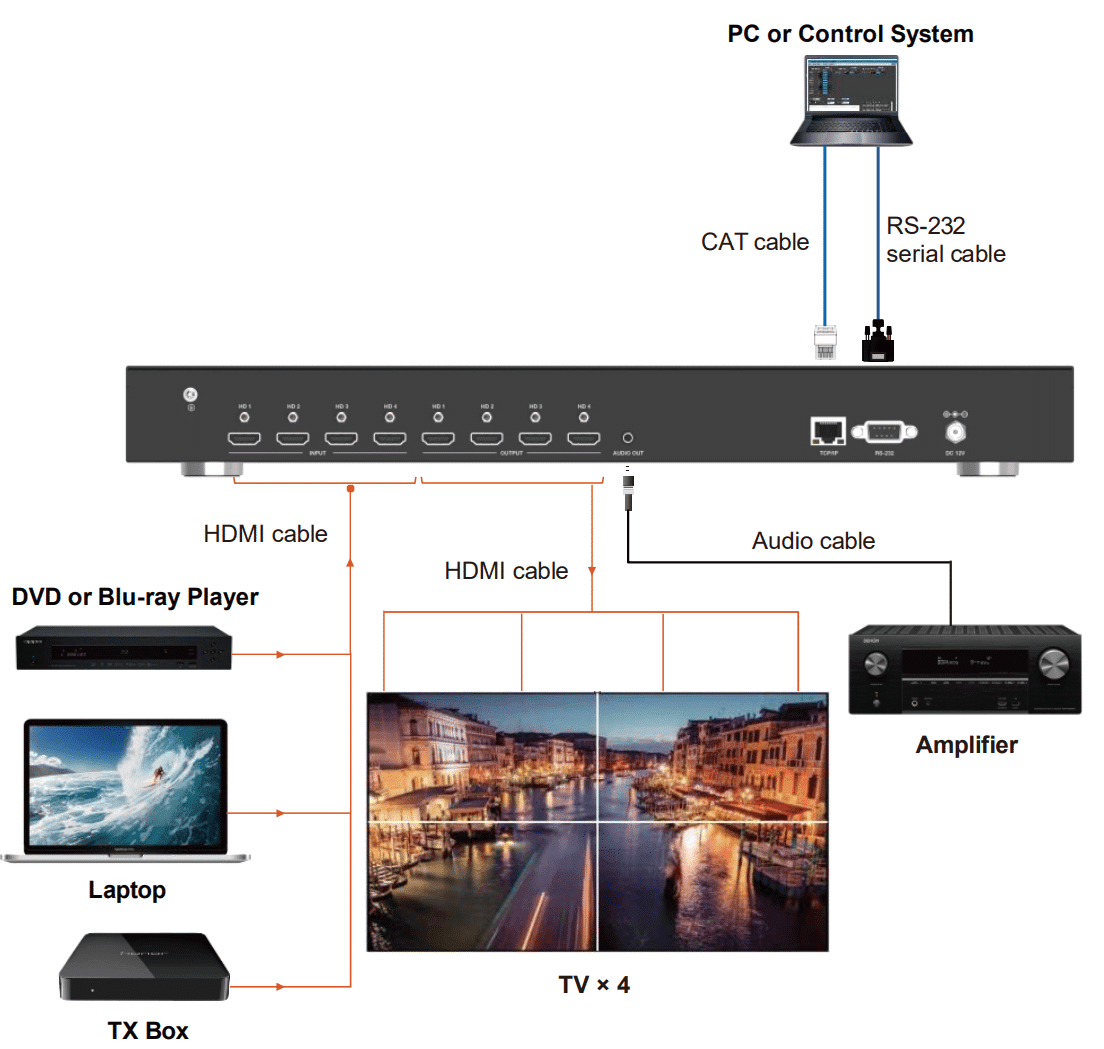

This 4K30 HDMI Seamless Matrix is a perfect solution for video transmission from four/eight HDMI sources to four/eight HDTV displays. It supports seamless switching and video wall functionality.
4/8 channel inputs support video resolution up to 4K30Hz. 4 /8 channel outputs support independent resolution modification, HDMI and DVI output switching, brightness and contrast adjustment. This matrix supports scene preset, saving, calling, deleting and polling.
Advanced EDID management is supported. This matrix can be controlled through the front panel buttons, IR remote control, RS-232 commands, Host Computer and Web GUI.
Specification
Features
☆ Supports 10.2Gbps video bandwidth
☆ Features 2 operational modes:
– 4×4 Matrix (seamless switching)
– Video wall (2×2, 4×1 or 1×4 etc configuration)

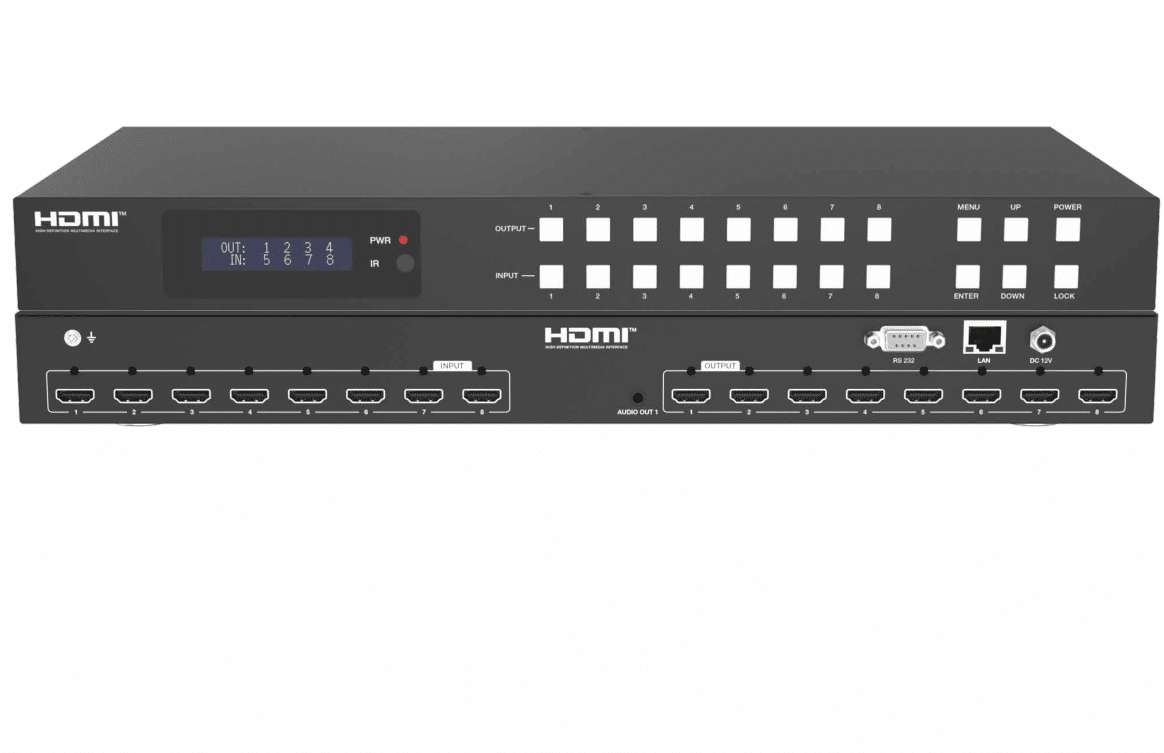

– 8×8 Matrix (seamless switching)
– Video wall (4×2, 2×4 or 1×8 etc configuration)
☆ 4 /8 channel inputs support video resolution up to 4K30Hz, as specified in HDMI 1.4b
☆ 4/8 channel outputs support independent resolution modification:
1024×768@60Hz, 1280×720@50Hz, 1280×720@60Hz, 1280×1024@60Hz,
1360×768@60Hz, 1440×900@60Hz, 1600×900@60Hz, 1600×1200@60Hz,
1920×1080@50Hz, 1920×1080@60Hz, 1920×1200@60Hz, 3840×2160@30Hz,
4096×2160@30Hz
☆ 4/8 channel outputs support HDMI and DVI output switching
☆ 4 /8 channel outputs support brightness and contrast adjustment
☆ Advanced EDID management, supporting preset EDID, copy EDID, custom EDID (upload)
☆ Up to 16 preset scenes, supporting preset scene save, call, delete, polling (the polling time can be set)
☆ Control via the front panel buttons, IR remote control, RS-232 commands, Host Computer and Web GUI
Packing list
① 1x 4K30 HDMI 4×4 /8×8 Seamless Matrix
② 1x IR Remote
③ 2x Mounting Ears
④ 8x Machine Screws (KM3*6)
⑤ 1x 12V/1A Multinational Power Supply (Locking)
⑥ 1x User Manual
Video Wall Modes (4×4)
IR Remote
EDID
This matrix has 9 factory defined EDID settings, 2 user-defined EDID modes and 4 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, RS-232 command, Web GUI or Host Computer.
Front panel button operation: On the initial LCD display screen, press “MENU” button to enter the level 1 menu, press “UP/DOWN” button to select INPUT, and then press “ENTER” button. Now the EDID item appears. Press the “ENTER” button, and then press “UP/DOWN” button to select the input channel. Press the “ENTER” button, and then press “UP/DOWN” button to select the EDID mode you need. Finally, press “ENTER” button to confirm, then the LCD screen will prompt “SUCCESS”.
