8port 16 port 32 port Rackmount KVM Switch Console Drawer,LCD KVM Switch Chinese factory
1U Rack Mount KVM Console Switch,Integrated keyboard,touchpad,Monitor,mouse control, 4/8/16 ports available.
| Weight | 2100 g |
|---|---|
| Dimensions | 61 × 60.8 × 19.5 cm |
| VGA Version | 1024*1280,1920*1080@60Hz |
| Screen size | 15.6", 17", 17.3", 18.5", 19", 21.5", 23.8" TFT LED |
| Port | 1, 4, 8, or 16 VGA |
| Max cascade computers | up to 512 |
| Keyboard/mouse | Integrated 104-key keyboard + touchpad; supports USB & PS/2 |
| Control | Front buttons, Hotkeys (Scroll/Caps/Num Lock), OSD menu |
| IP Remote control | Support |
Detailes About 8port 16 port 32 port Rackmount KVM Switch Console Drawer,LCD KVM Switch Chinese factory

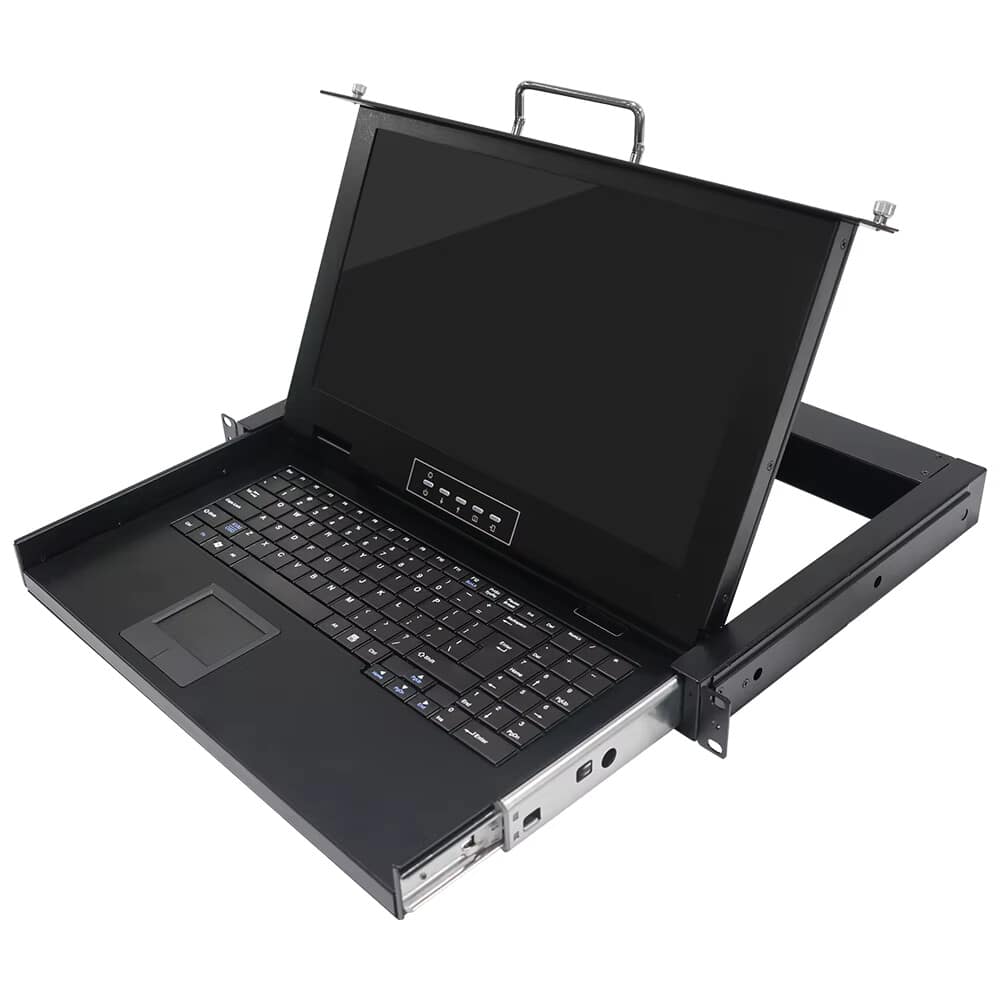

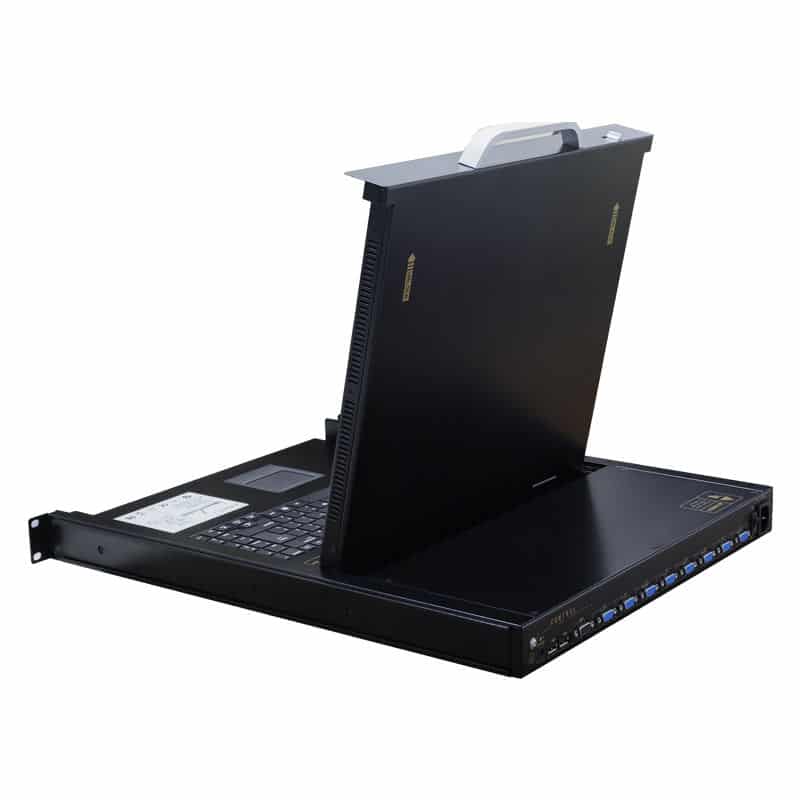

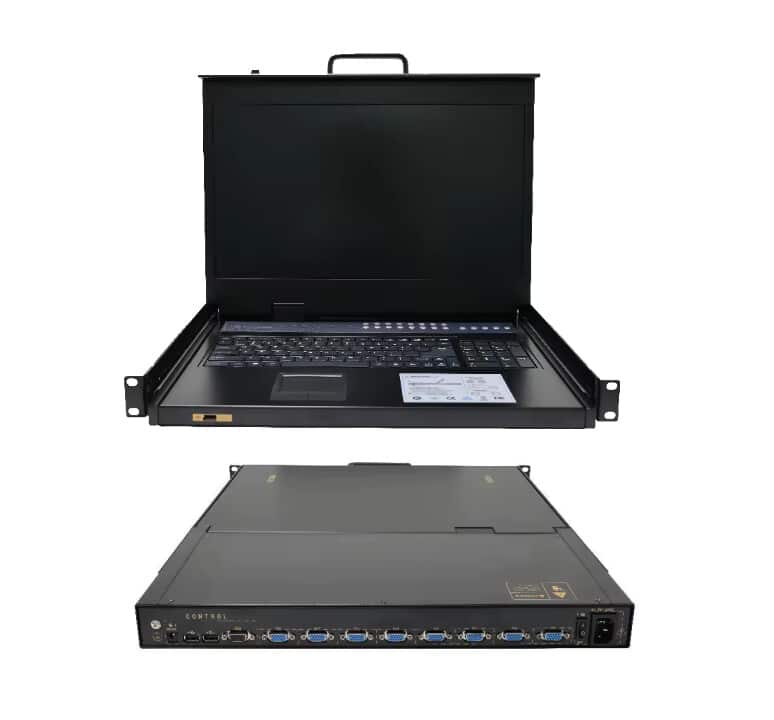

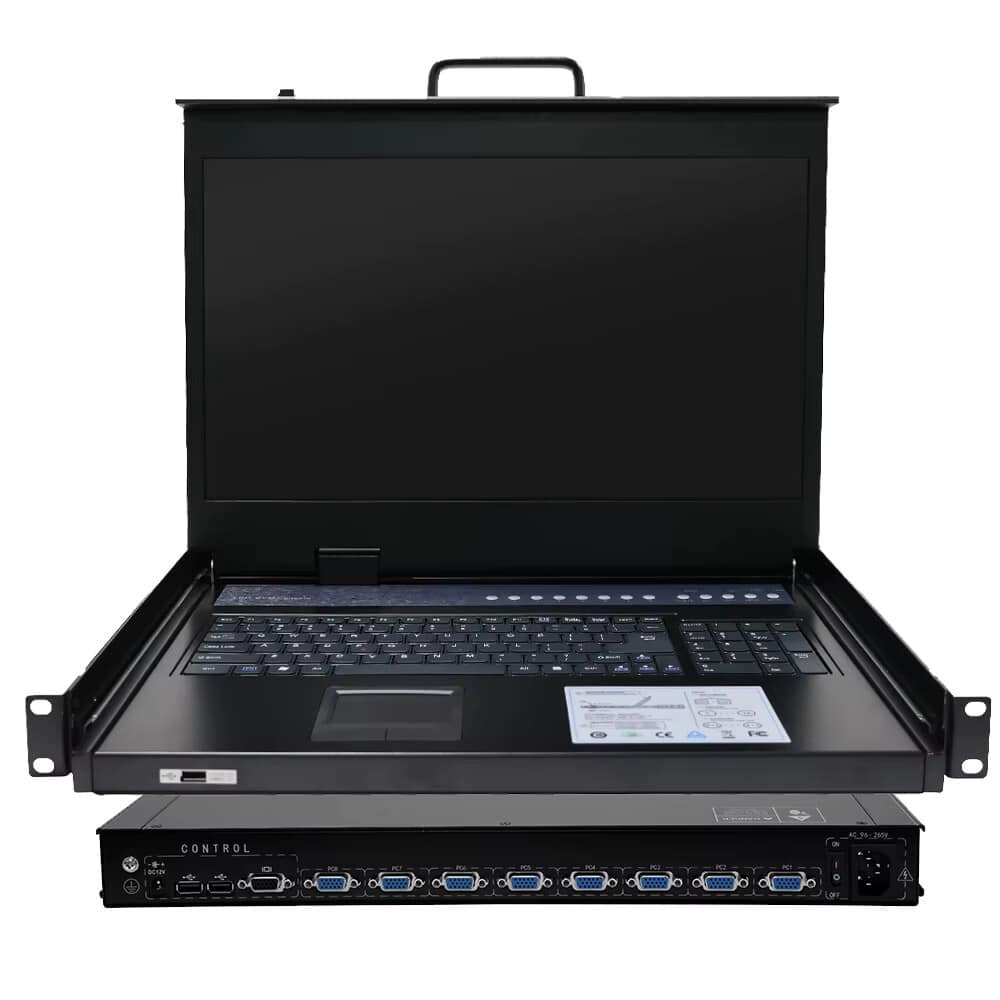

Integrated KVM Switch w/ 19″ LCD Monitor – Fully Featured 1U LCD KVM Drawer- OSD KVM 1280*1024 resolution
VGA KVM console 4/8/16 port optional
Main features:
« 19’’ 1U rack mount 15.6″/17″/17.3″/18.5″/19″/21.5″/23.8″ LED KVM switch with touch pad+Mouse
« 104keys keyboard with integrated Digital&E-switch keys.
« Supports 1024*1280 @ 75HZ resolution, 250 nit brightness.
« Supports front USB for keyboard/mouse
« Support USB+PS2 local console
« Supports computer indicator when user switch to another computer.
« Support cascading connection, max up to 512 computer.
| Product Series | VGA LED KVM Switch |
| Screen Sizes Available | 15.6″, 17″, 17.3″, 18.5″, 19″, 21.5″, 23.8″ TFT LED |
| Port Configurations | 1, 4, 8, or 16 VGA + USB/PS2 ports |
| Max Cascaded Computers | Up to 256 |
| Video Resolution | Up to 1920×1080 @ 60Hz |
| Video Connectors | VGA |
| Keyboard/Mouse | Integrated 104-key keyboard + touchpad; supports USB & PS/2 |
| Control Methods | Front buttons, Hotkeys (Scroll/Caps/Num Lock), OSD menu |
| Power Supply | AC 96–265V |
| Operating Temperature | 0℃ to 60℃ |
| Humidity | 0% to 80% RH |
| Rack Compatibility | 19″ standard rack; rail depth adjustable (400mm–1040mm) |
| Remote Access Option | IP Remote Card (sold separately) for browser-based TCP/IP remote control |
| Compatibility | IBM, Dell, HP, Sun, Lenovo, Advantech, EVOC; Windows, Linux, Unix |
| Optional features | USB VGA cable options include 3M/5M/10M. |
Introduction :

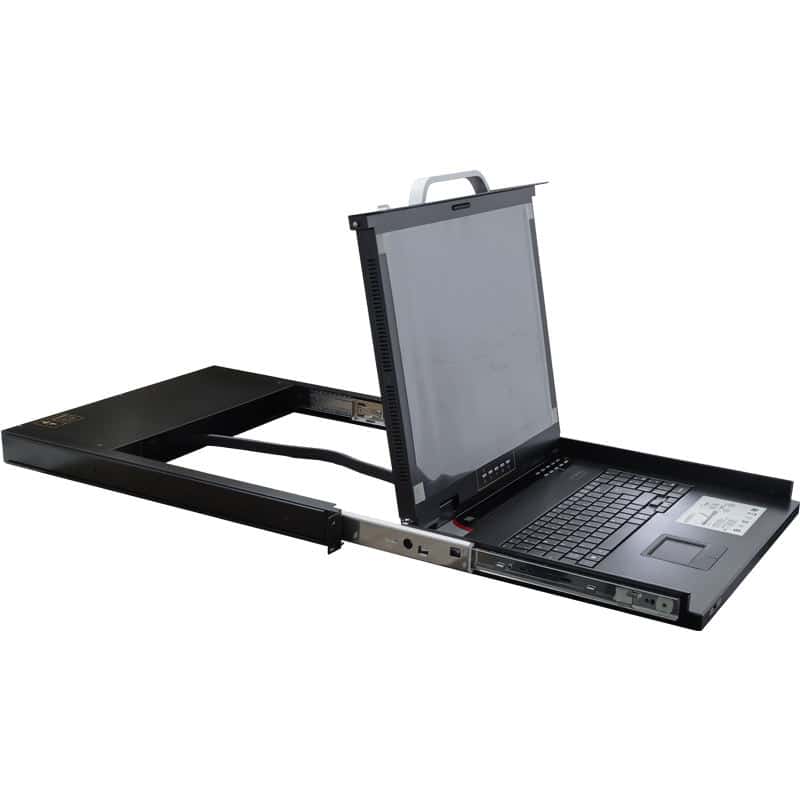

« Withdrawing installation design, the length can be adjusted to fit the rack space.
« Humanized design, can be installed and removed by only one person , which improves the efficiency of the administrator.
« To switch the host computer though the hotkey or OSD menu, which can manage up to 512 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL / HP/ SUN, ect .
« Support various operating system: Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc.
KVM switch meets all standard 19″ 1U cabinet and is installed from front to back.

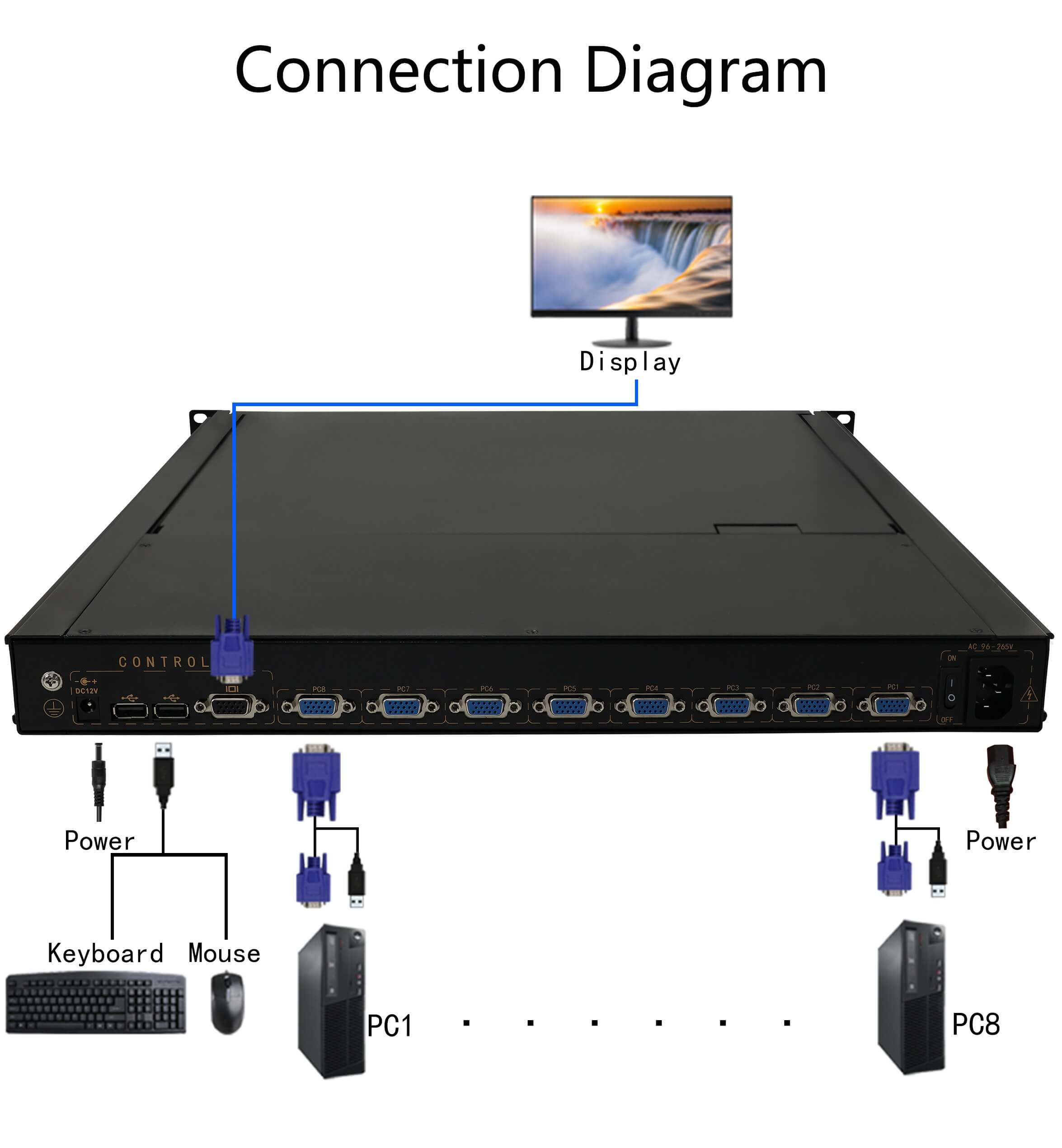

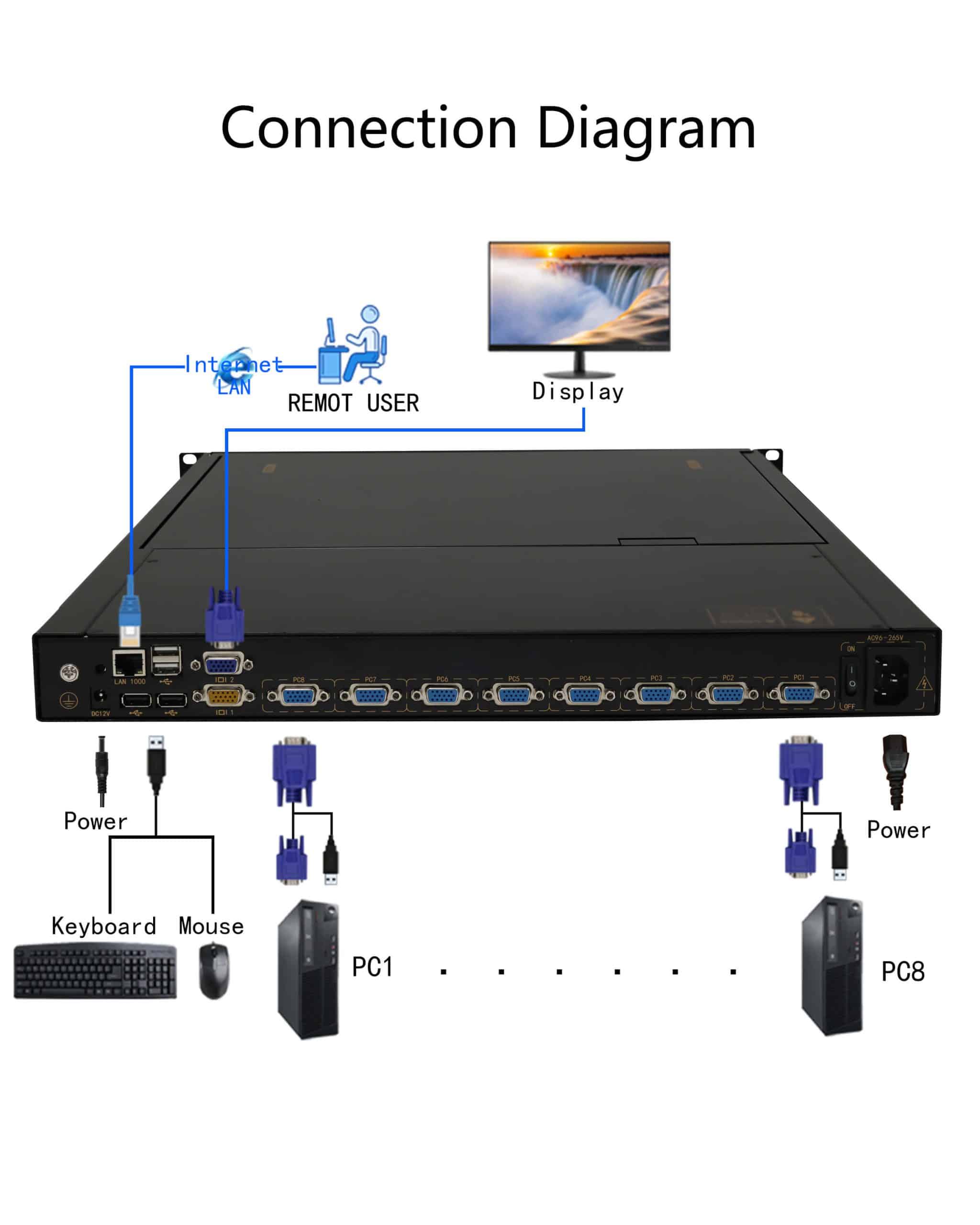

Insert the rear mounting ears into the guide grooves,After install,lock the front/rear mounting ears. Support cascade connection.
1 port maximum connect 1 computer
4 ports maximum connect 128pcs computers
8 ports maximum connect 256pcs computers

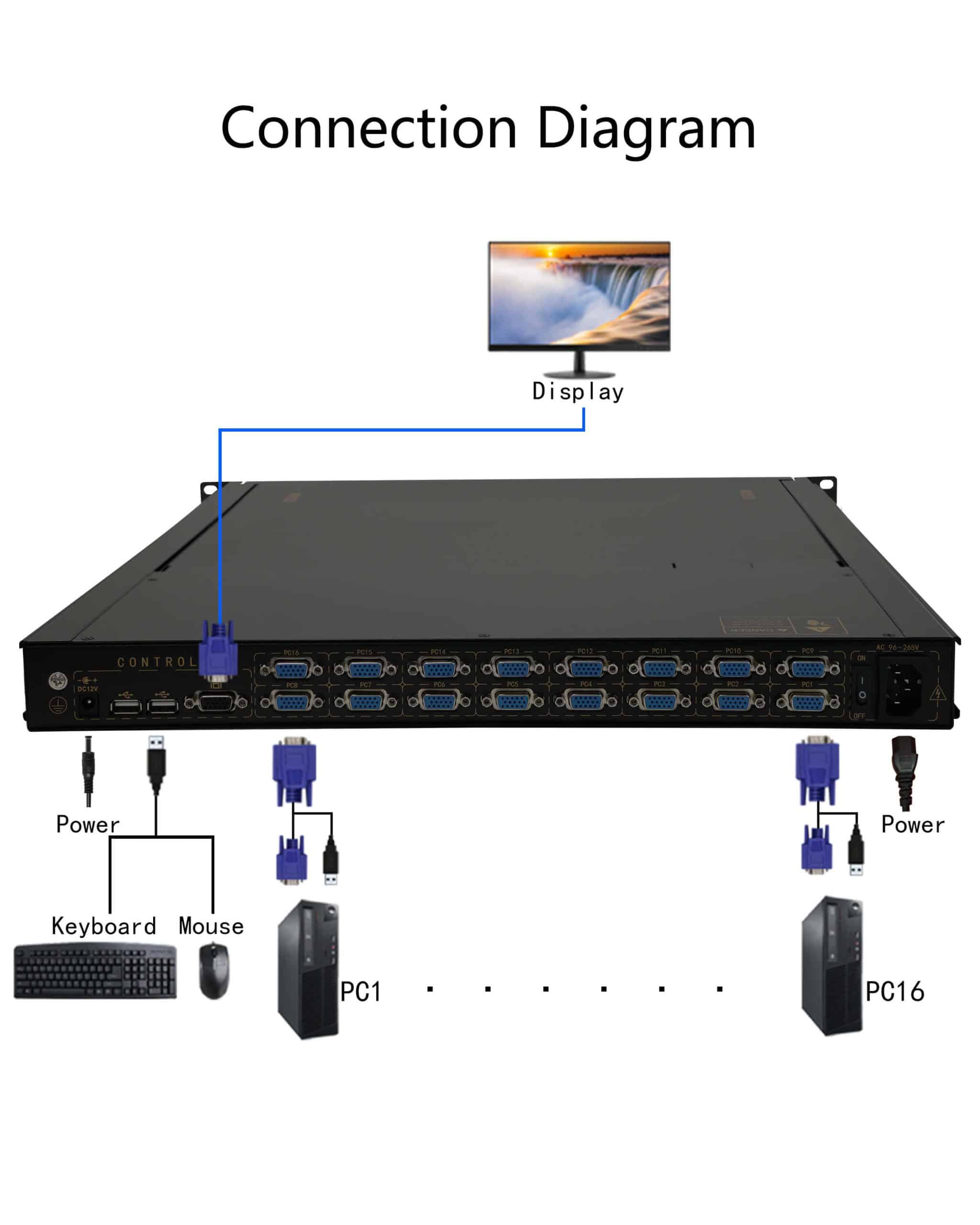

16 ports maximum connect 512pcs computers

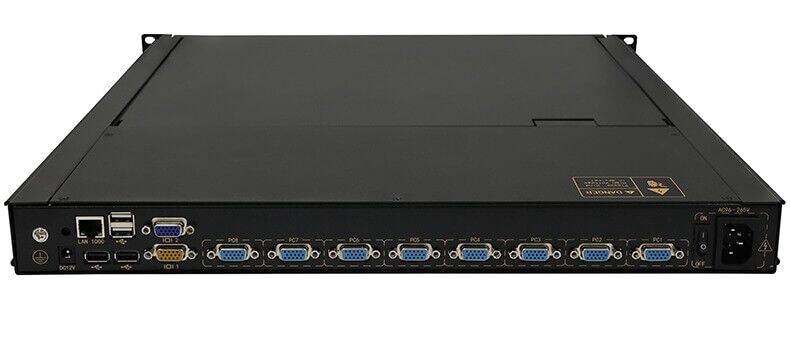

Support IP remote control with IP module card
We also have CAT5, HDMI,Displayport KVM Switch optional.
