800M/2624FT SDI/HDMI Wireless HD Video Transmission Kit with TALLY & Audio Wireless System 1080P TALLY Signal Return

Wireless HDMI SDI Extender up to 800meter



Additional information

Weight 8000 g
Dimensions 40 × 36 × 19 cm
HDMI Version

HDMI 1.3 1080P60hz

Operating frequency

5190MHz to 5795MHz

Transmission interface

HDMI In x1,SDI In x1,SDI Out x1

Receiver interface

HDMI Out x1, SDI Out x2

Transmission delay

50-70ms

Transmission distance

800m/2624ft Line of Sight

Detailes About 800M/2624FT SDI/HDMI Wireless HD Video Transmission Kit with TALLY & Audio Wireless System 1080P TALLY Signal Return

800m Wireless HD Video Transmission kit

The wireless transmission system can help a variety of video transmission platform to achieve easy to carry, install fast, real zero-wiring, plug & play, change the traditional site wiring and get rid of cumbersome cabling,enhanced video transmission system Flexibility.

Features

1. Wireless full HD video transmission;
2. 50-70ms low latency enables no waiting for wonderful image receiving;
3. Reliable overvoltage protection for better ensuring the safety of power supply;
4. Supports both HDMI and SDI interfaces for video input/output;
5. Full hardware design; plug & play; eliminates the hassle of running wires, simple and convenient;
6. Transmission distance: up to 800 meters under the point-to-point mode (with 5dBi antenna in open space)

800m/2624ft sdi/hdmi wireless hd video transmission kit with tally & audio wireless system 1080p tally signal return

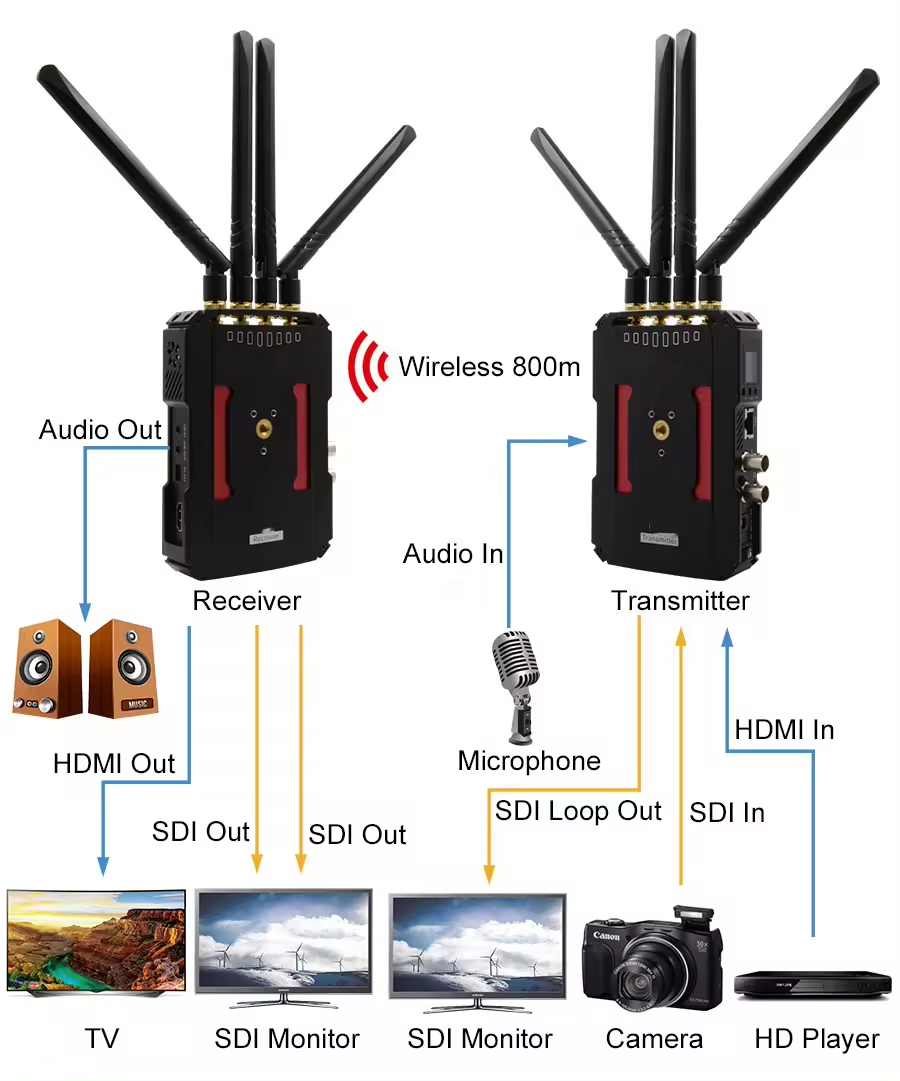

Diagram

800m/2624ft sdi/hdmi wireless hd video transmission kit with tally & audio wireless system 1080p tally signal return



Specification

Transmitter Receiver
Operating frequency 5190MHz, 5230MHz, 5270MHz, 5310MHz, 5510MHz, 5550MHz, 5590MHz, 5630MHz, 5670MHz, 5755MHz, 5795MHz
Antenna mode 4*4 5dBi external antenna
Modulation mode OFDM
Transmission power 17dBm
EVM ≤-28dB
Receiving sensitivity ≤-70dBm
Bandwidth 40Mhz
Wireless procotol 802.11n
Network encryption WPA2/WPS
Network mode point to point private procotol, RTSP protocol
Transmission distance up to 800m Line of Sight
Transmission delay min. 50ms
Transmission rate max. 300Mbps
Pairing function support
Frequency hopping manual
HDMI protocol support 1080P@60Hz as specified in HDMI 1.3
Video resolution 1080P, 1080i, 720P, 576P, 576i, 480P, 480i
Audio format PCM
Video compression H.264
External audio support line-in audio input support line-in audio output
IO port signal return support TALLY signal return

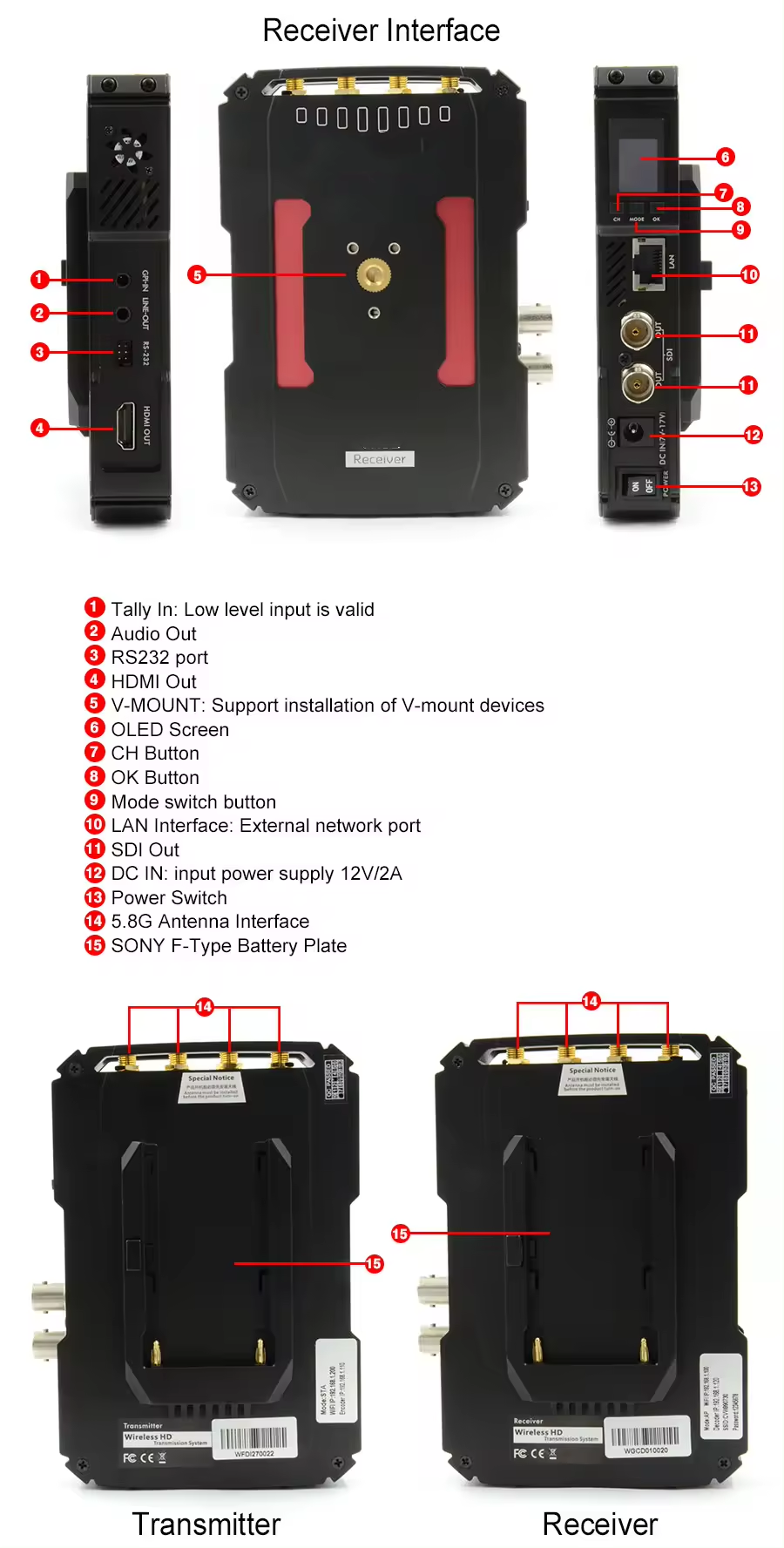

Interface HDMI in x 1, SDI  in x 1, SDI out x 1, 232 interface x 1, DC power in, Line-in x 1, RJ45 interface x 1, TALLY socket x 1 HDMI out x 1, SDI  out x 2, 232 interface x 1, DC power in, RJ45 interface x 1,

TALLY socket x 1

Power supply DC12 2A 7-17V
Power consumption 8-12W 7-9W

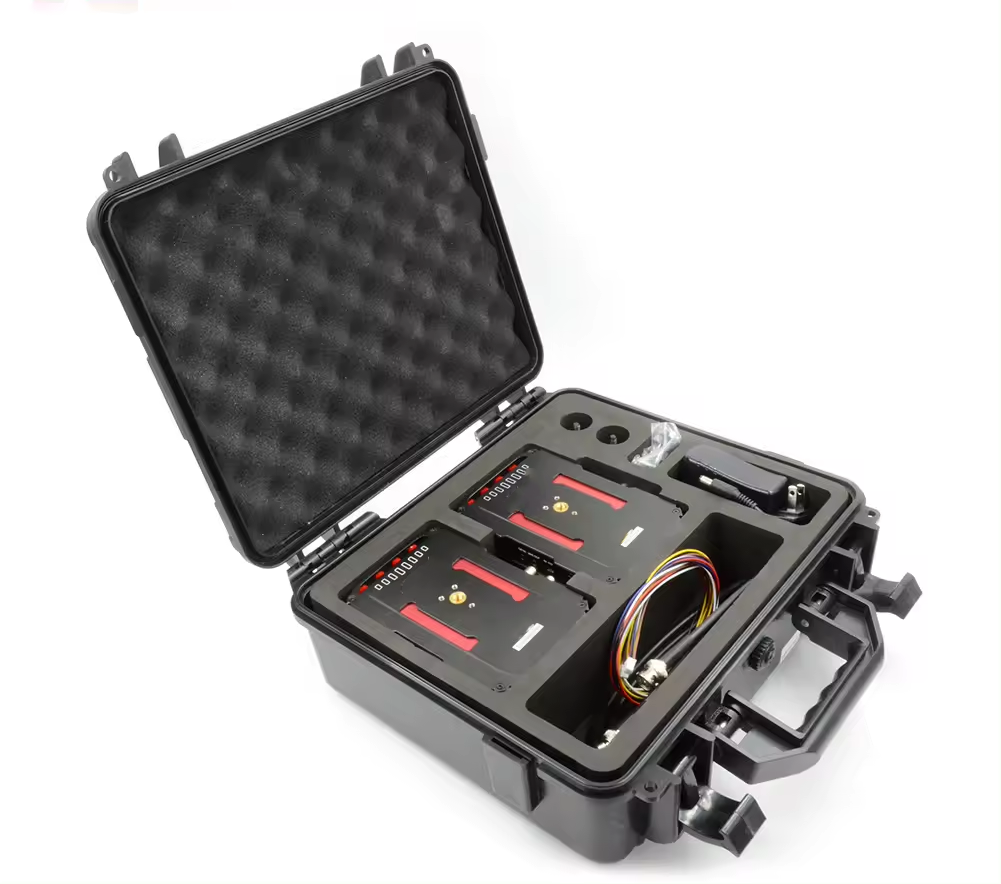

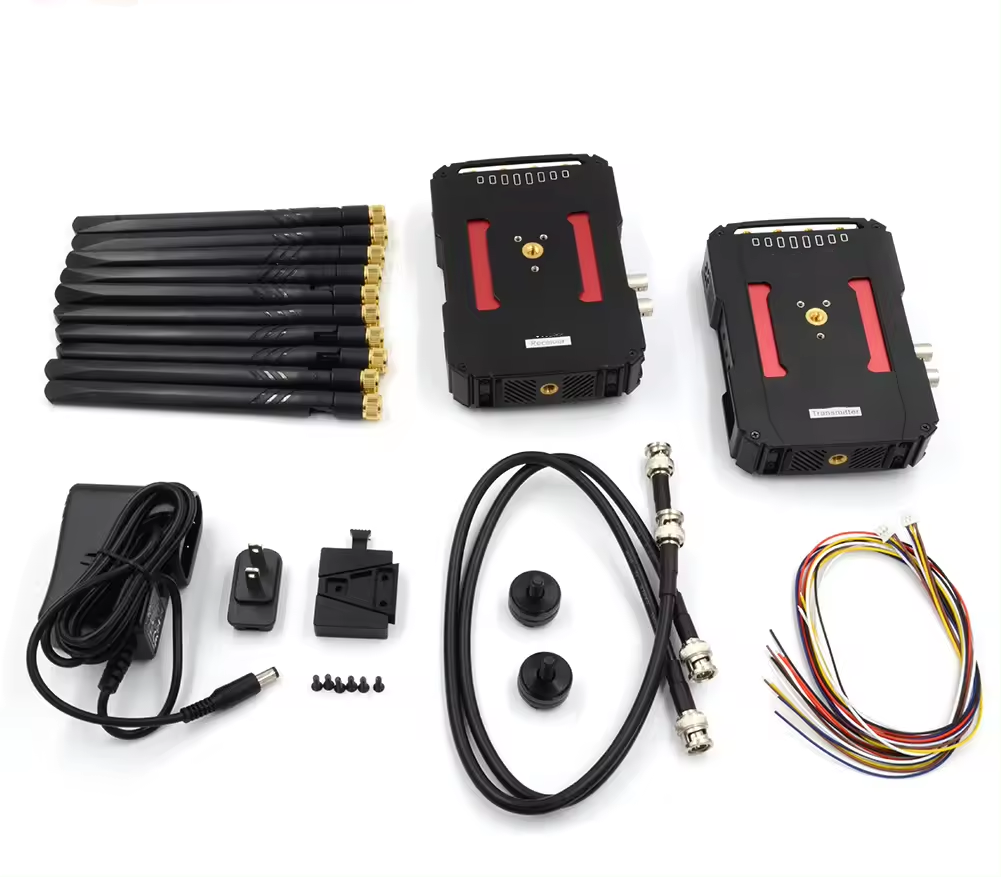

Accessories

800m/2624ft sdi/hdmi wireless hd video transmission kit with tally & audio wireless system 1080p tally signal return
