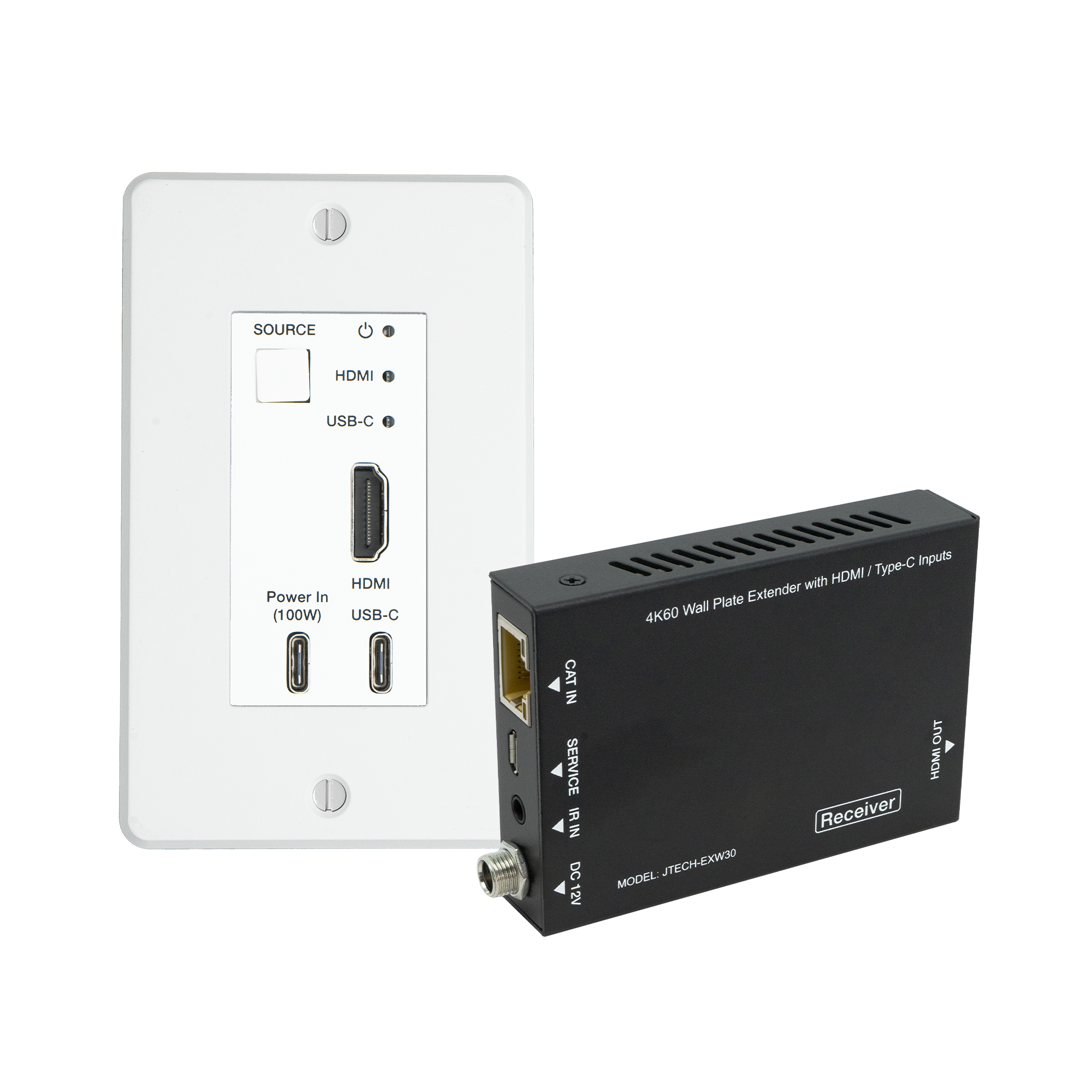

4K60hz HDMI & USB-C UHD 4K Wall Plate Extender

4K 60Hz Wall Plate Extender With HDMI / Type-C Inputs

Additional information

Weight 450 g
Dimensions 11.43 × 6.99 × 3.33 cm
Wallplate Transmitter

USB-C ,HDMI, Cat6 out

Receiver

Cat6 port,HDMI, IR port

Application

multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation.

Notes

To charge your input device while using it as a source,connect the "Power in "type c port on the transmitter to a wall outlet.

Detailes About 4K60hz HDMI & USB-C UHD 4K Wall Plate Extender

18Gbps CAT6 Wall Plate Transmitter with USB-C/HDMI and Receiver

2X1 Switcher and CAT transmitter with HDMI and USB-C inputs



hdmi & usb c uhd 4k wall plate extender

This wall plate is a 2×1 switcher and CAT transmmiter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangable white and black face/wall plates.

It supports video resolutions up to 4K60Hz, and can extend a signal over CAT6 up to 164ft. This product is remotely powered by the receiver or other CAT-equipped devices via POC.

hdmi & usb c uhd 4k wall plate extender

This CAT transmitter is perfect for high bandwidth applications. It supports up to 4K@60Hz 18Gbps. Long Distance: CAT6 output can extend video transmission up to 164ft / 50m.

Wallplate Design: This transmitter features a US one-gang enclosure for Decora-style wall plate openings with interchangable white and black plates. 2×1 switcher and CAT transmitter with HDMI and USB-C inputs

hdmi & usb c uhd 4k wall plate extender

• Compliant with HDMI 2.0b, HDCP 2.2 and DP 1.2a
• HDMI input supports 18Gbps video bandwidth
• USB-C input supports 5.4Gbps video bandwidth
• Video resolution up to 4K2K@50/60Hz 4:4:4
• Video transmission distance up to 164ft for 4K24Hz or 115ft for 4K60Hz via a single CAT5e/6 cable
• Support 3D, HDR10 and Dolby Vision
• HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Support HDMI and USB-C input
•  With USB-C charging port
•  US one-gang enclosure for Decora-style wall plate openings
•  Input signal selection supports automatic mode and manual mode
•  Support POC function (only from Receiver to Transmitter)
•  Available in white or black coating
hdmi & usb c uhd 4k wall plate extender
