New HDMI® Audio Extender Over Cat5e/6/6A with eARC ‑ 50m Range
HDMI Audio Extender over One Cat 5e/6/6a up to 50m with Bi-direction IR Control , CEC, eARC
| Weight | 200 g |
|---|---|
| Dimensions | 7.4 × 6.8 × 1.8 cm |
| Transmission distance | 50m/164 ft over CAT5e/6 cable |
| Audio Formats | eARC: LPCM 2.0/5.1/7.1CH, Dolby Digital, Dolby DigitalPlus, |
| Transmitter Ports | Input: 1× IR IN [3.5 mm audio jack], 1× eARC IN [HDMI] |
| Receiver Ports | Input: 1× IR IN [3.5 mm audio jack], 1× CAT IN [RJ45] |
| CEC | CEC pass-through |
| IR | Bi-direction IR pass-through |
Detailes About New HDMI® Audio Extender Over Cat5e/6/6A with eARC ‑ 50m Range
Overview
This Audio Extender can transmit HDMI eARC/ARC audio signals over a single CAT5e/6 cable. The transmission distance is up to 50m/164ft. It supports CEC pass-through and bi-direction IR pass-through.

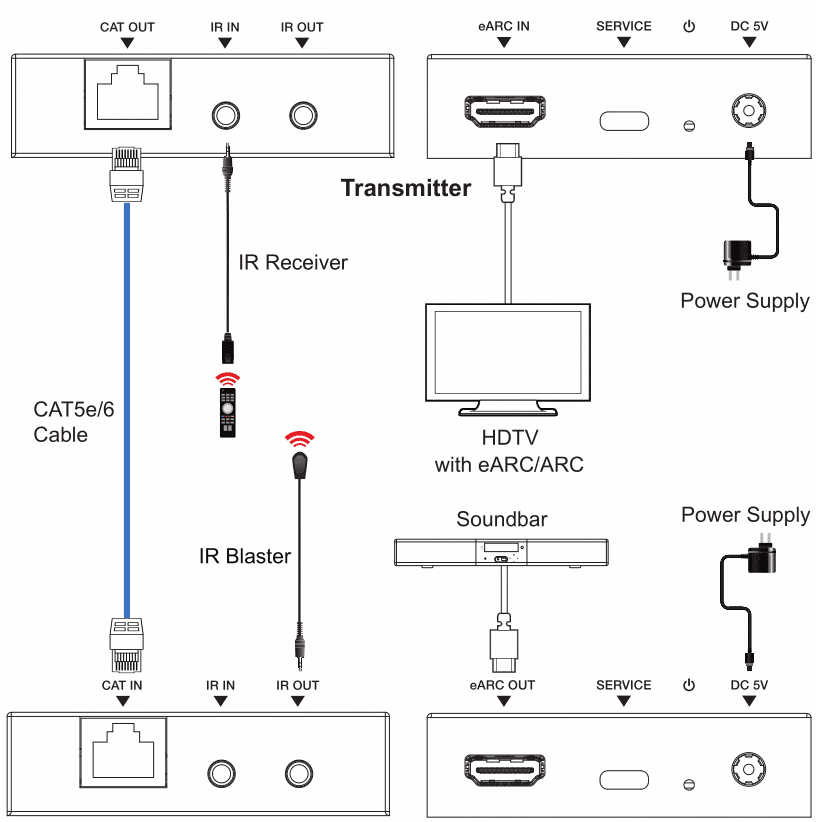

This is a fantastic plug and play solution for sending HDMI eARC/ARC audio from an HDTV to an amplifier, AVR or multi-room audio system.
Features:
☆ Support audio formats:
eARC: LPCM 2.0/5.1/7.1CH, DD,DD+, DTS, Dolby TrueHD, DTS-HD MA,Dolby Atmos
ARC: LPCM 2.0CH, Dolby 5.1CH, DTS 5.1CH
☆ Support CEC pass-through
☆ Support bi-direction IR pass-through
☆ Compact design for easy and flexible installation
② 1× HDMI eARC Audio Extender (Receiver)
③ 1× 5V IR Blaster Cable (1.5m)
④ 1× 5V IR Wideband Receiver Cable (1.5m)
⑤ 2× 5V/1A Multinational Power Supply
⑥ 1× User Manual
