Introduction

4K 60 Hz transceiver is an All-In-One AV over IP solution that supports fiber and copper, and supports automatic switching between two options, the copper has a higher priority. This product provides highest-quality and ultra-low latency audio/video extension over a standard 1G Network Switch, and the transmission distance is up to 328ft/100m.

It supports seamless switching, video wall, multiview and KVM seat management functions. Flexible transceiver design (one box can be set to encoder or decoder) is much convenient in a real installation site and inventory control.

In encoder mode, it supports one HDMI 2.0 input and one HDMI loop out, with analog audio embedding/de-embedding function. In decoder mode, it supports one HDMI 2.0 decoding output, with analog audio de-embedding function.

The encoder supports H.264 video preview stream. The system is based on Linux for software development, providing flexible control methods.

The best digital audio and video processing management solution is created using technologies such as audio and video processing, networking, visualization and centralized control, and full network distribution. It is committed to quickly establishing a high-performance, reliable and easy-to-use visualization application platform for users. Based on distributed interconnection, a comprehensive visualization solution is built that integrates audio and video comprehensive management, matrix switching, splicing and fusion, window roaming, KVM collaborative management, POE power supply application.

Features

☆ HDMI 2.0b, HDCP 2.2 compliant

☆ Support video resolution up to 4K60Hz (4:4:4), 18Gbps video bandwidth

☆ Audio formats support LPCM 2.0CH 48kHz

☆ Integrated design of encoder and decoder, supporting fiber and copper

☆ Support window roaming function: a unit as decoder can process up to 16 signals, enabling arbitrary windowing, roaming, overlaying, and splicing

☆ KVM seat management (one-to-one & one-to-many), supporting one person manages multiple PCs

☆ Universal H.264/265 protocol, supporting IPC access and seamless integration with security camera products

☆ Support high definition background image (both video and picture are available), as well as multi-screen splicing display

☆ Support scrolling subtitles and character overlay

☆ Support point-to-point signal extension

☆ Support signal distribution, multicast mode, matrix and video wall functions over a 1G Network Switch

☆ Integrated central control function over RS-232, APP on portable devices available

☆ Support user rights management

☆ Flexible control via KVM, APP and Control Server

☆ Standard POE supported (802.3af Class 3, PD mode)

☆ Encoder supports HDMI local loop out

☆ Encoder supports audio embedding and de-embedding function

☆ Comprehensive visual interaction mode, signal source, large screen status, scene preview and environmental visualization control

Packing list

① 1 x H.264/H.265 4K60 AV over IP Transceiver

② 2 x 6pin-3.81mm Phoenix Connector (male)

③ 1 x 3pin-3.81mm Phoenix Connector (male)

④ 1 x 12V 2.5A Locking Power Supply

⑤ 2 x Mounting Ear

⑥ 4 x Machine Screw (M3*4)

⑦ 1 x User Manual

Specification

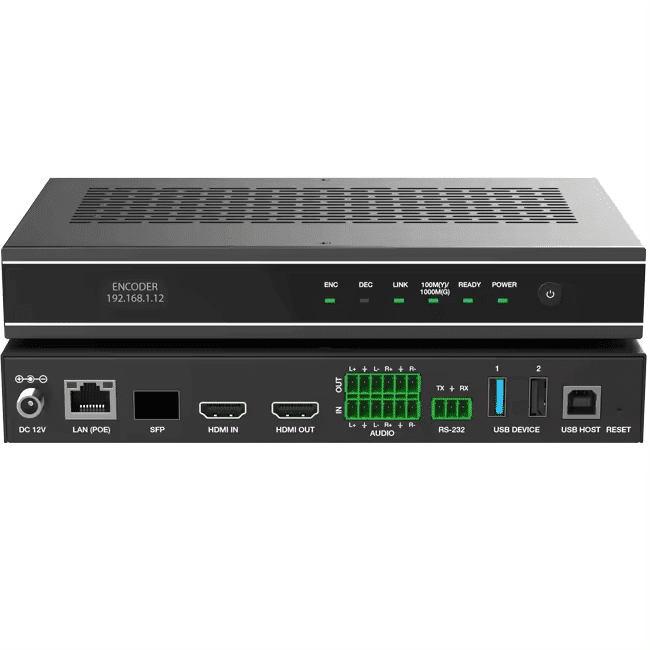

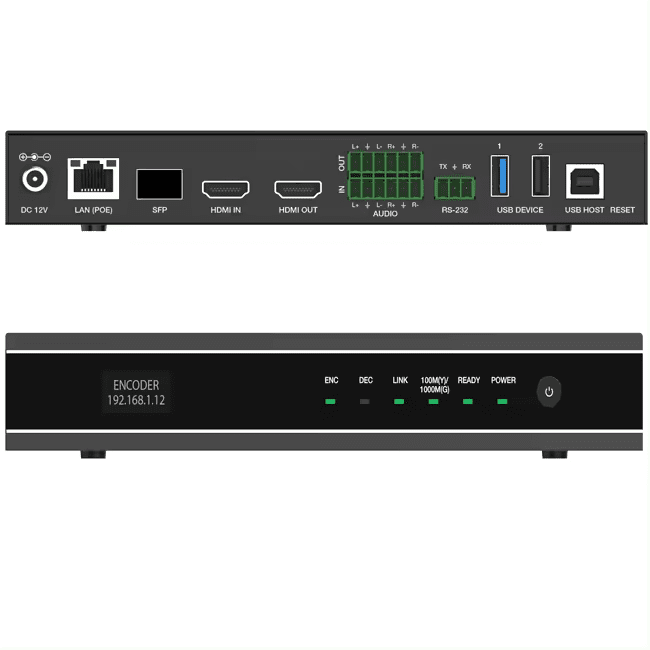

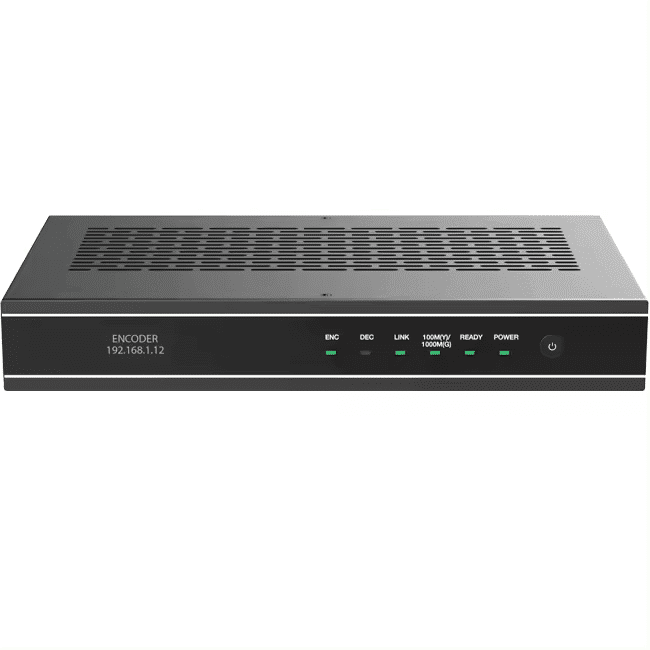

Front

Rear

Seamless integration of H.264/265 encoding and decoding for security camera

Connection:

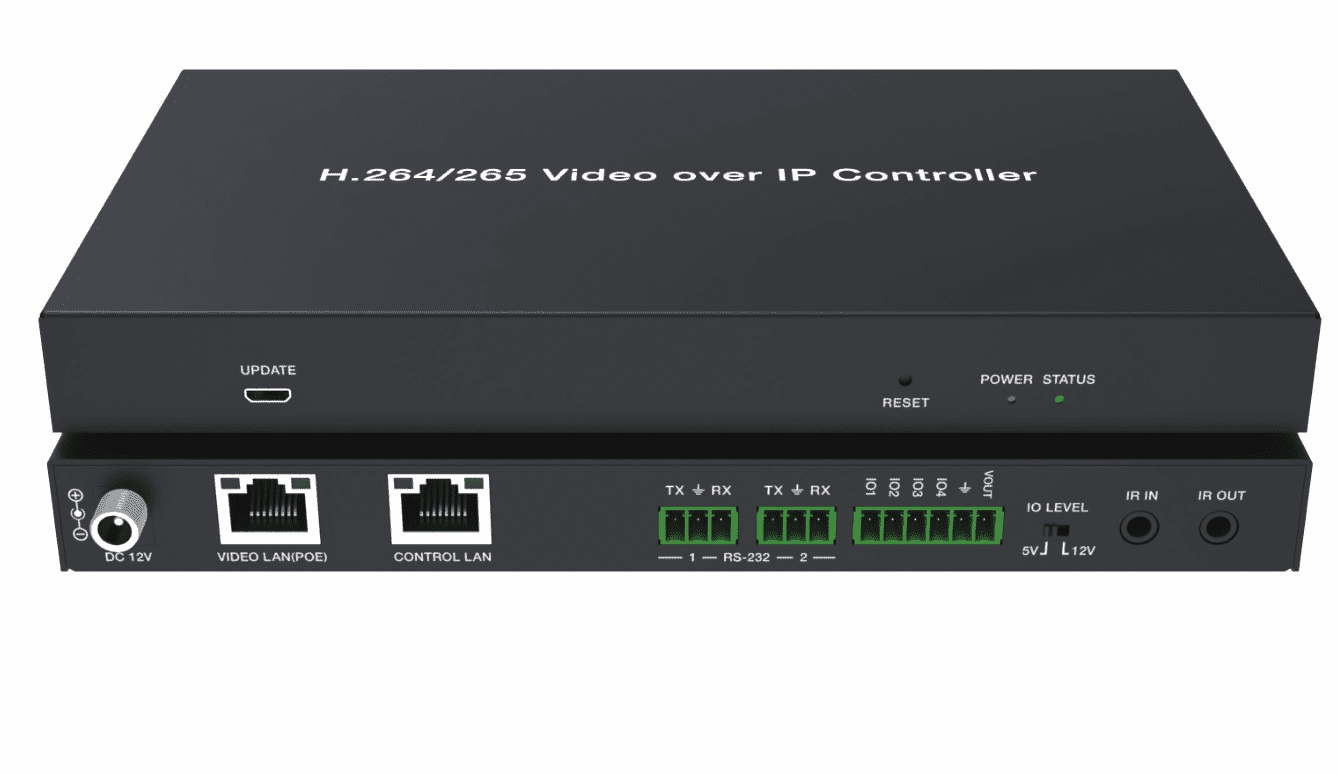

Controller for AV OVER IP System, central control

Connection Diagram

Controller Features

ARM Cortex-A55 2GHz CPU, Linux OS
Built-in Web GUI for easily system setup and management
Intuitive ‘drag & drop’ source selection with video preview
Supports APP and CLOUD Access Management Control
Advanced signal management for AV, RS-232 and USB routing
2x 1G RJ45 LAN to bridge existing network to video over IP network
External devices control via IO with 5V, 12V level configurable
Easy to integrate with the 3rd party major control system brands
Control API via RS-232 and TCP/IP
Security managements
PoE (802.3at PD device) or local 12V power supply
