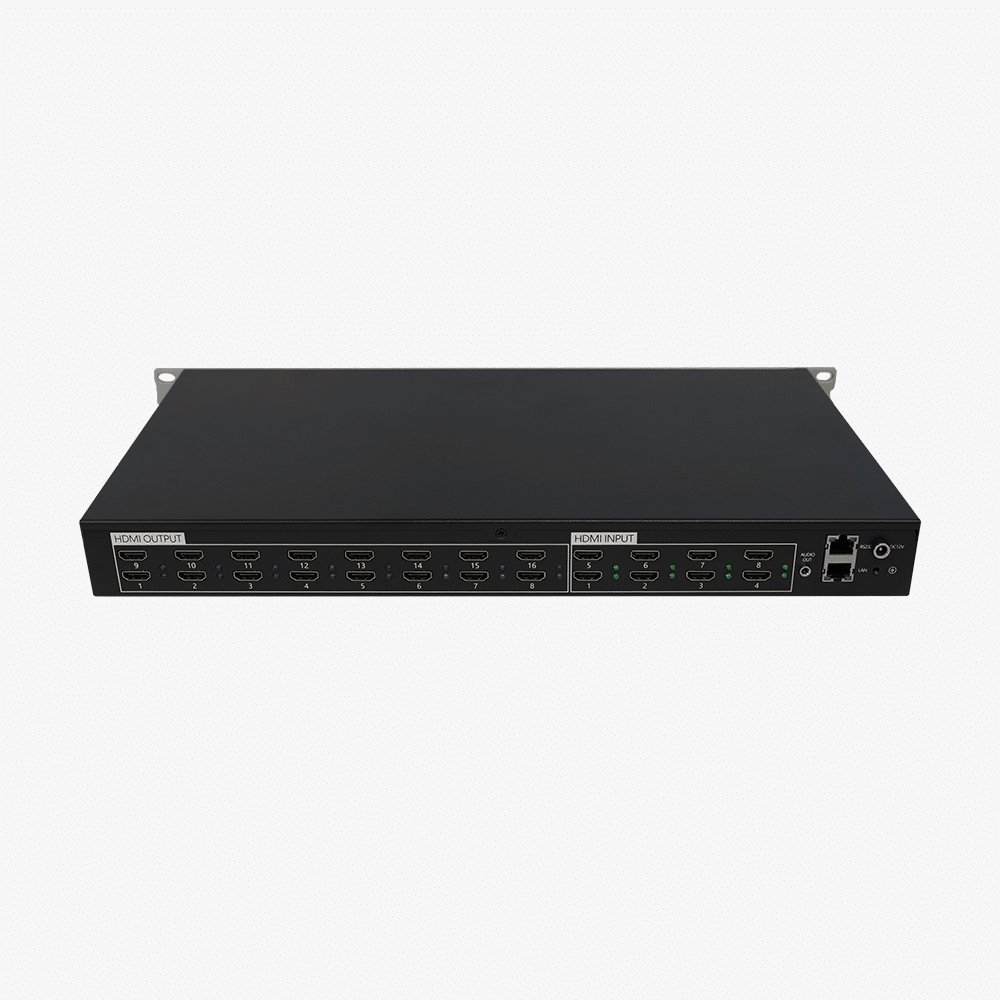

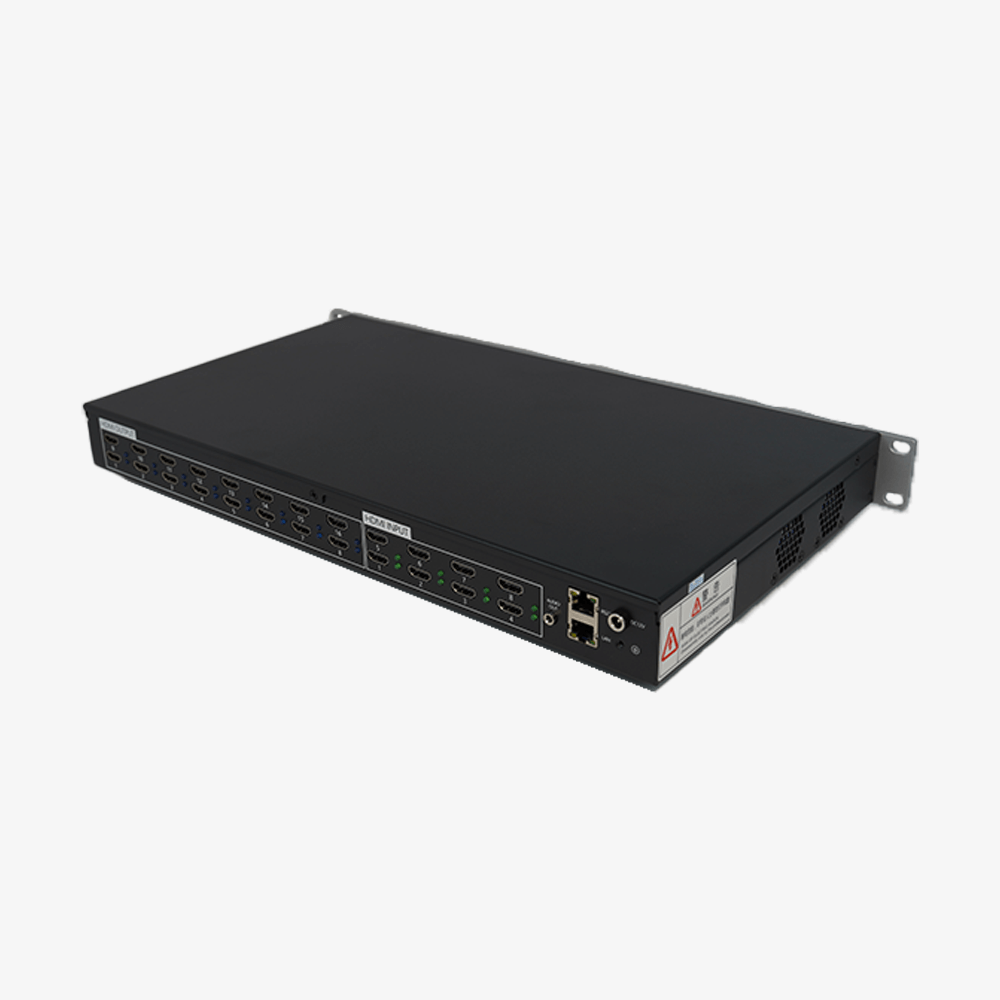

4K FPGA Video Wall Controller 8 input 16 output
LCD/LED Video Wall Controller 8×16 with Audio de-embeded,FPGA hardware,no software,plug and play
| Weight | 3200 g |
|---|---|

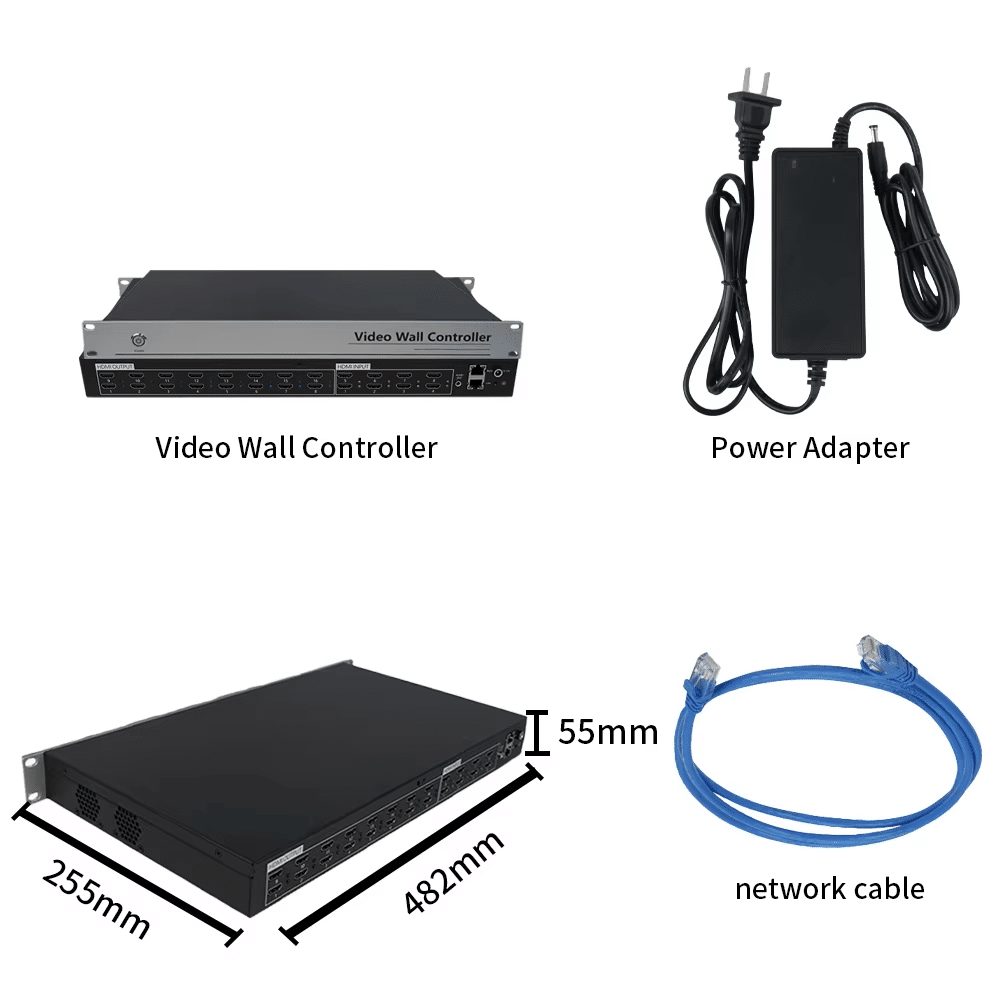

| Dimensions | 55 × 25.5 × 5.5 cm |

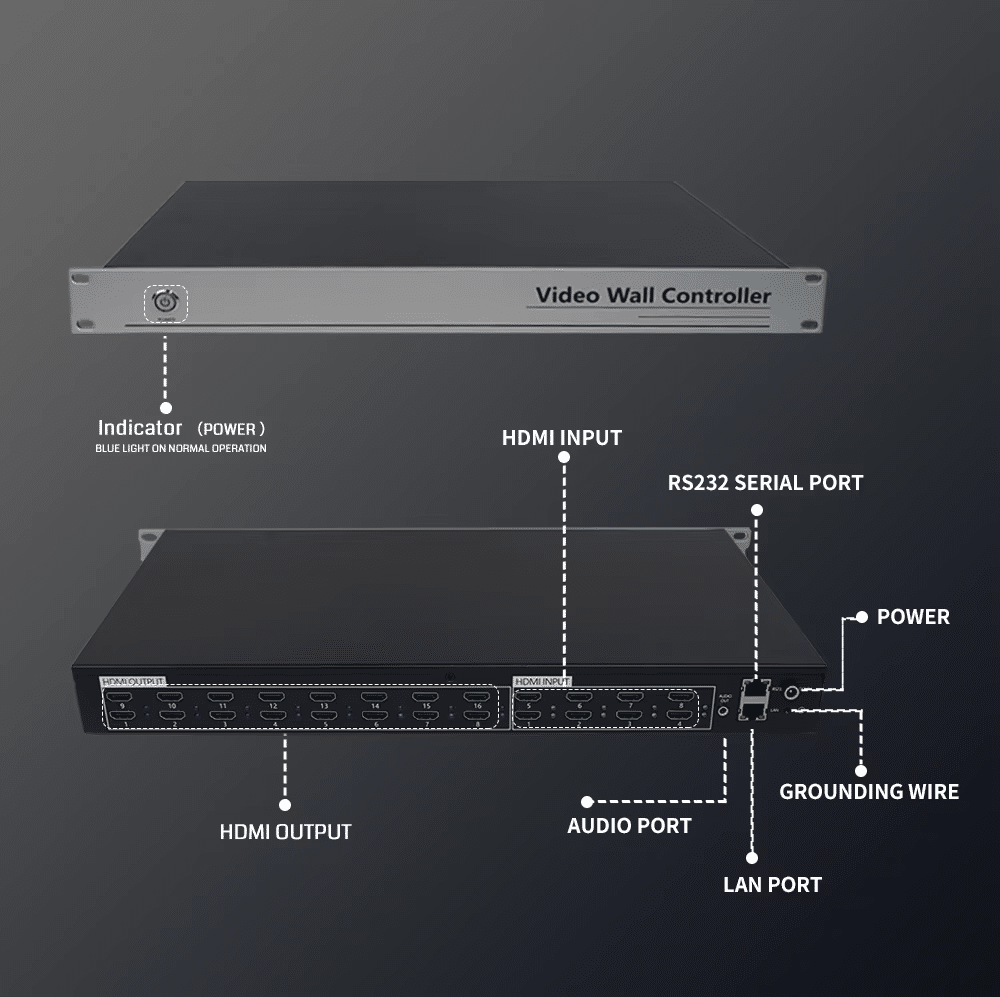

| Interface | HDMI 1.4 x 8 input, |
| Input Resolution | Support 1920*1080P @60/50,1920*1080P@30/25,720P60/50,1024*768@60 |
| Output resolution | 1920*1080P@60output,support custom resolution |
| Audio port | Support whole-machine audio de-embedding output |
| Power consumption | 35W |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 4K FPGA Video Wall Controller 8 input 16 output
FPGA Embeded Architecture Video Wall Controller with 7×24 hours long time running.
4K60hz Seamless Switching 8×16 HDMI Video Wall Controller with PIP,Shortcut operation,Color adjustment,16 splicing modes,RS232 Control,Host computer support
Features:
📌Supports 8 channels of HDMI high-definition signal input and 16 channels of HDMI high-definition digital signal output
📌Support any video signal on the wall for splicing,roaming,cross-screen,zoom in and out,picture-in-picture,outside-picture,picture overlay,etc
📌There are 9 windows on a single screen,and the entire screen layer supports 9*N layer overlay(N is the number of spliced screens).The entire processor opens 144 windows.
📌Supports single-port acquisition of 1920×1080@60HZ ultra-high-definition signals; supports single-port output of 1920×1080@60HZ ultra-high-definition signals
📌Built-in FPGA audio de-embedding and switching function,which can separate and switch any HDMI audio channel to the 3.5mm audio output interface
📌Supports Android tablet/Mobile phone APP control/WEB control
📌Supports the saving of more than 1,000 planned scenarios.Switch between scenarios at will
📌Supports ultra-high definition subtitle function

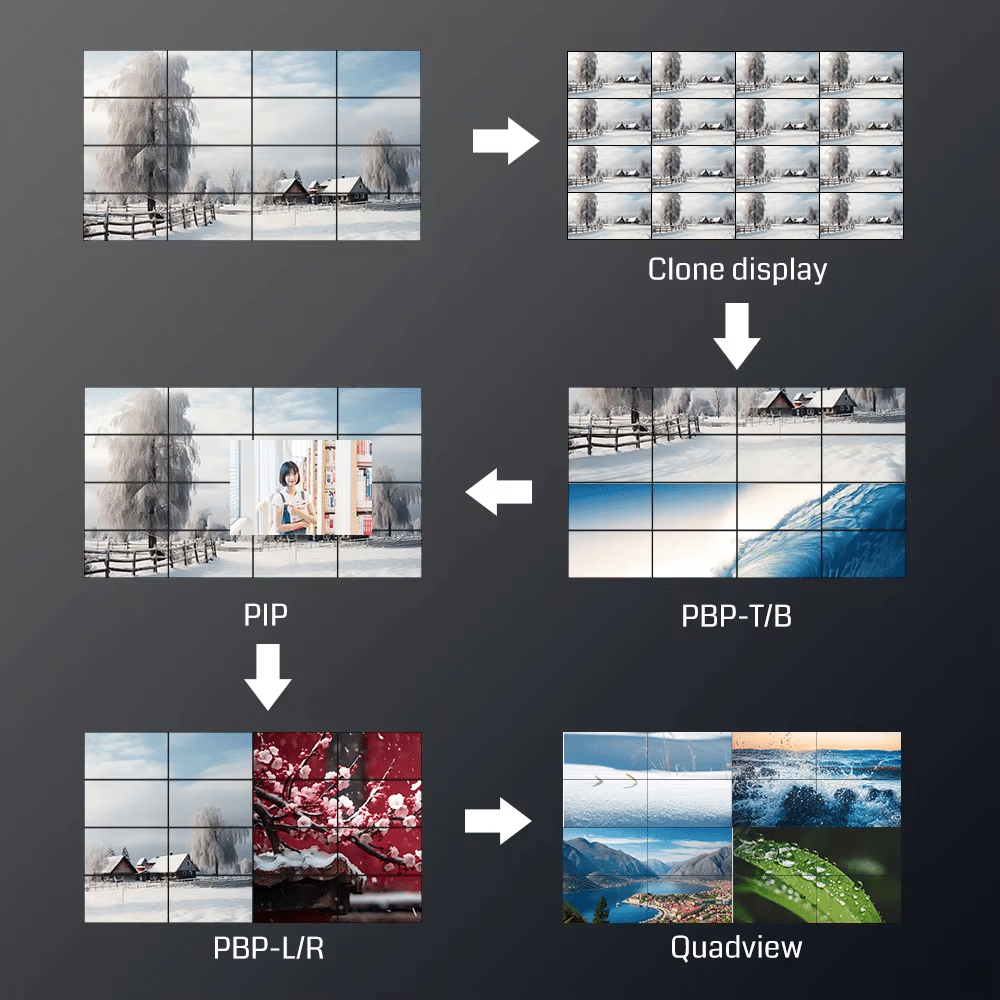

Multiviewer display

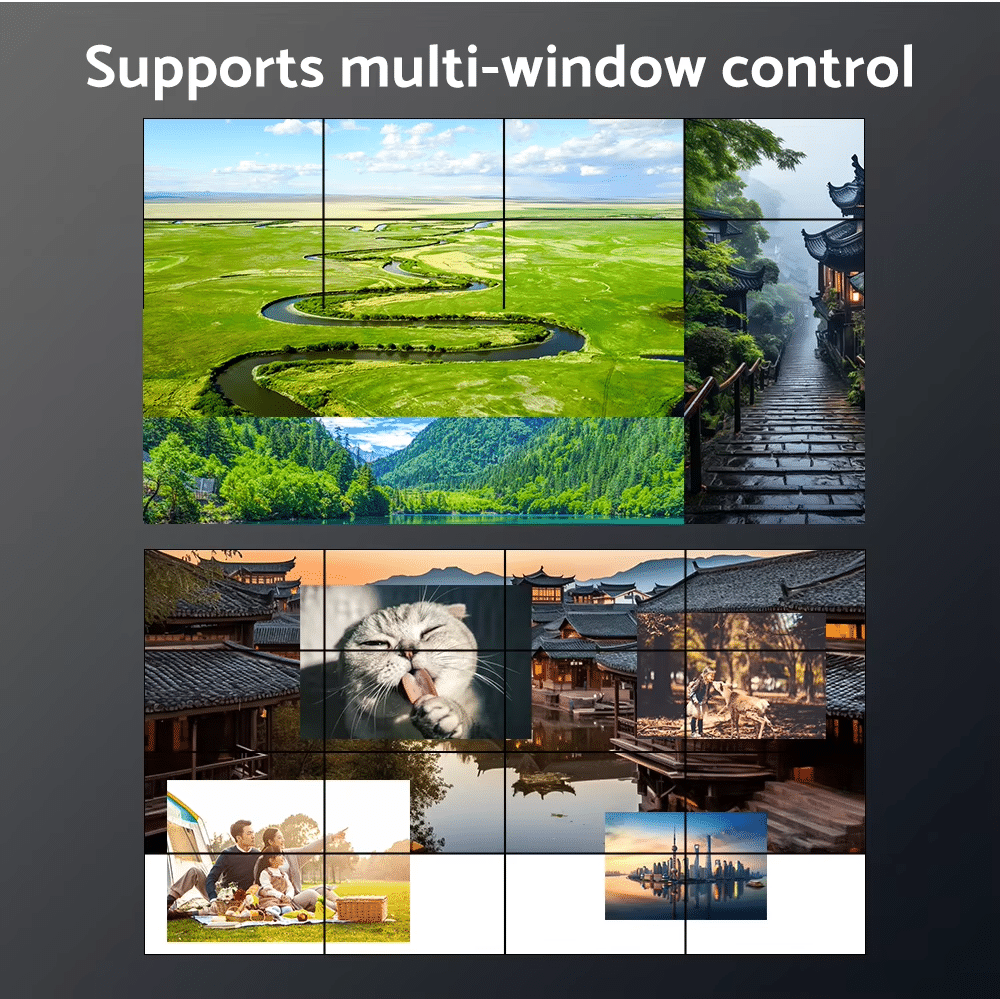

Multi window control support

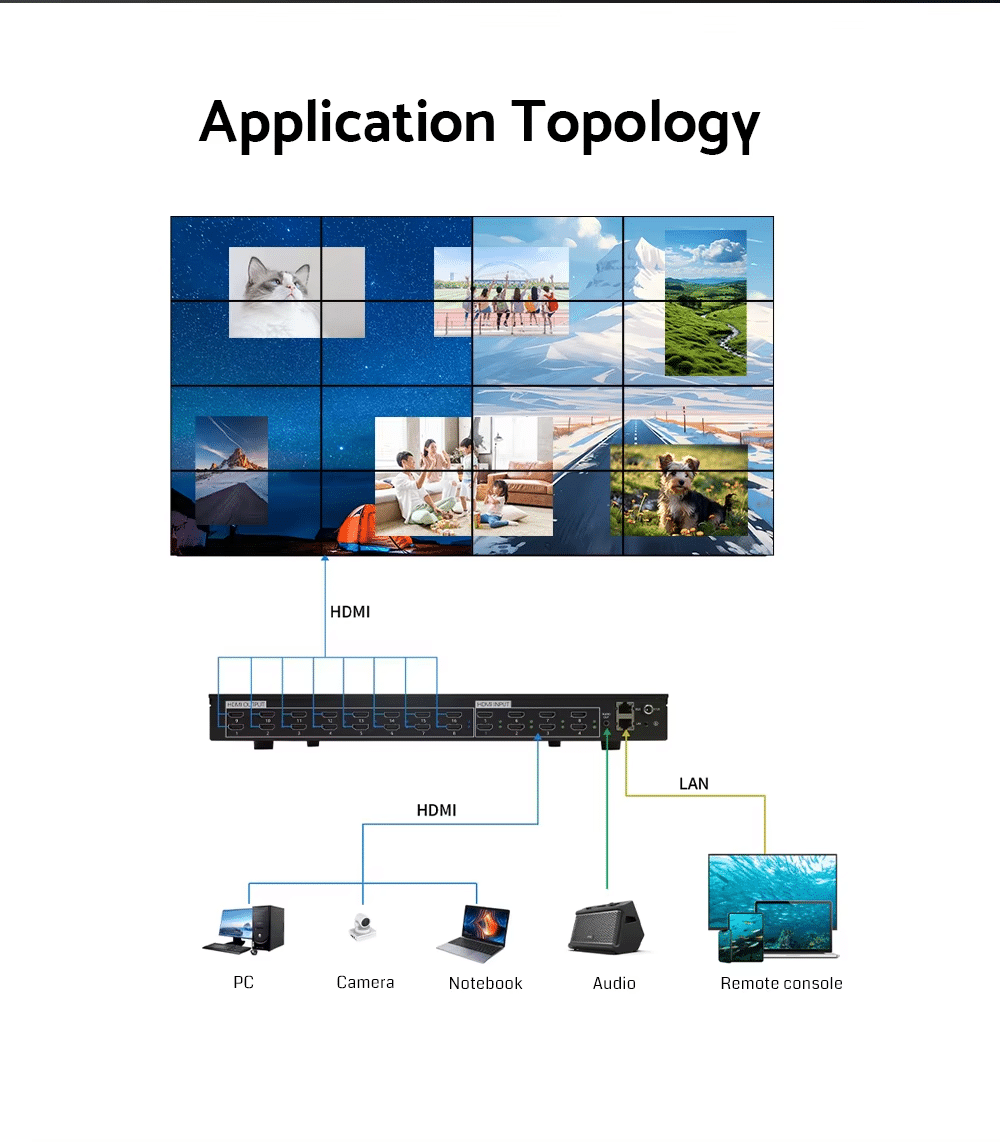

8×16 video wall controller Connection diagram
Supprt third party integration control
Support on screen captioning
8×16 video wall controller Testing video
