Features

1, unique single card 4-way input, single card 4-way output plug-in signal card design, 12-way signal input, 12-way signal output, according to different project sites with different signal cards;

2, support for HDMI, DVI interface, change the type of input signal, only need to replace the corresponding board;

3,Support 1080P@60hz 10bit, 4K signals, to meet the project high-definition signal requirements;

4, the total bandwidth of the device up to 475.2Gbps, the maximum bandwidth of a single port up to 10.2Gbps;

5, support for HDMI1.3 standard, support for HDCP1.4;

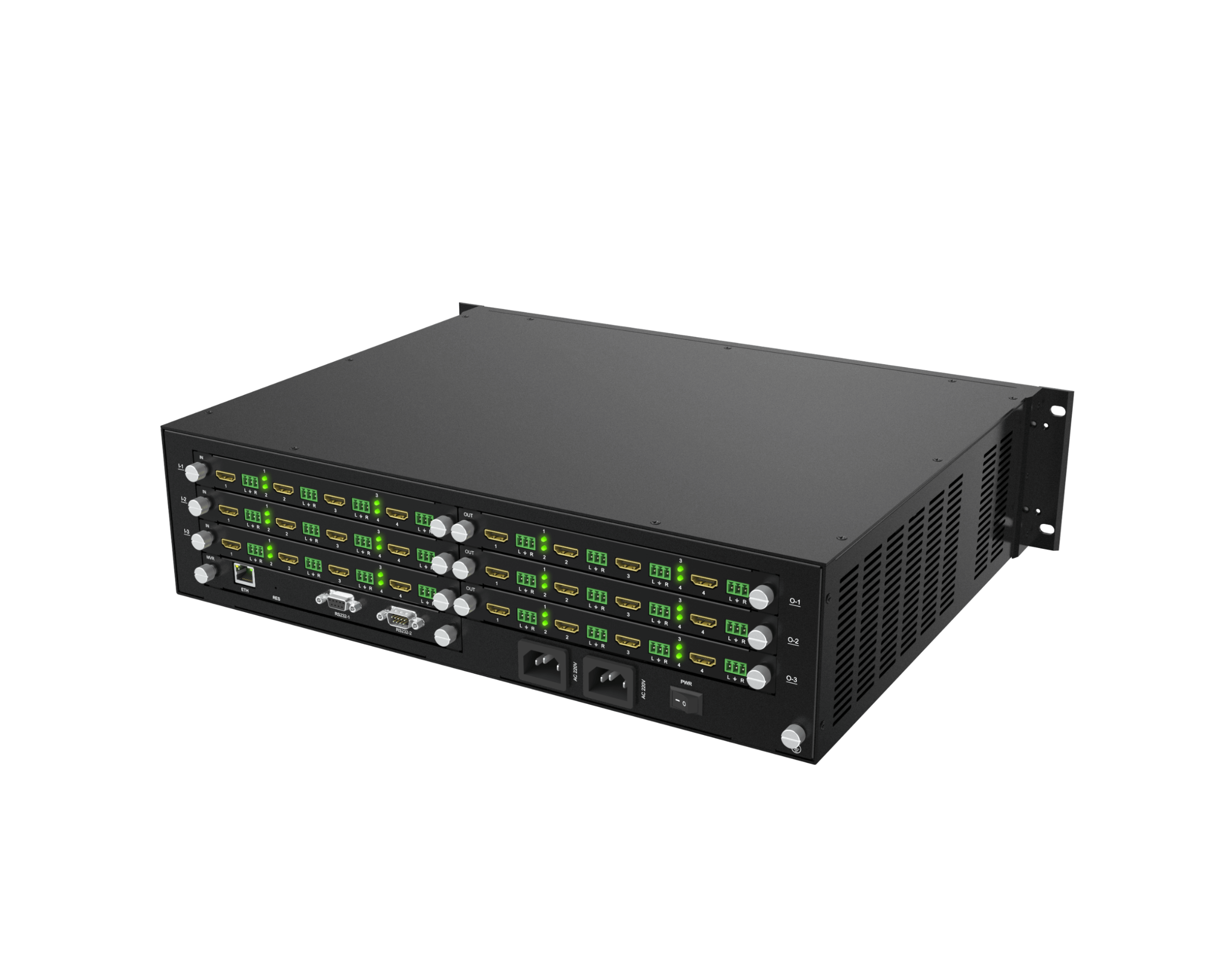

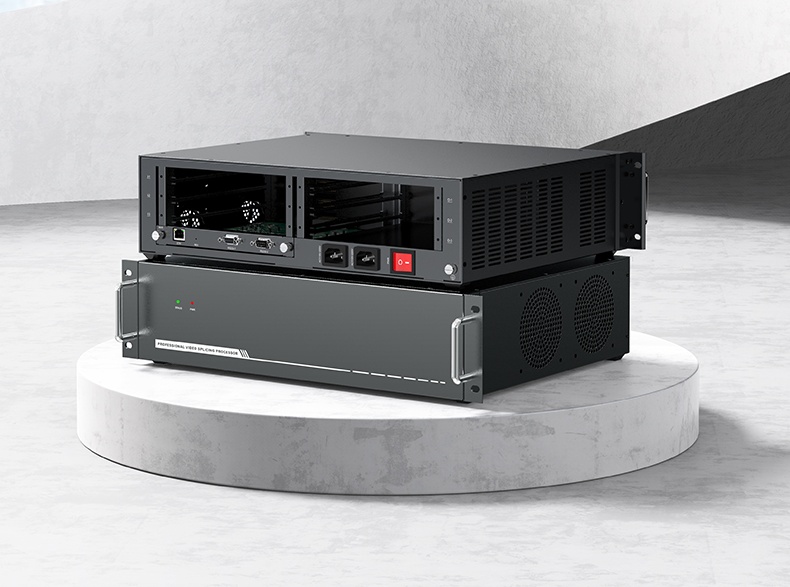

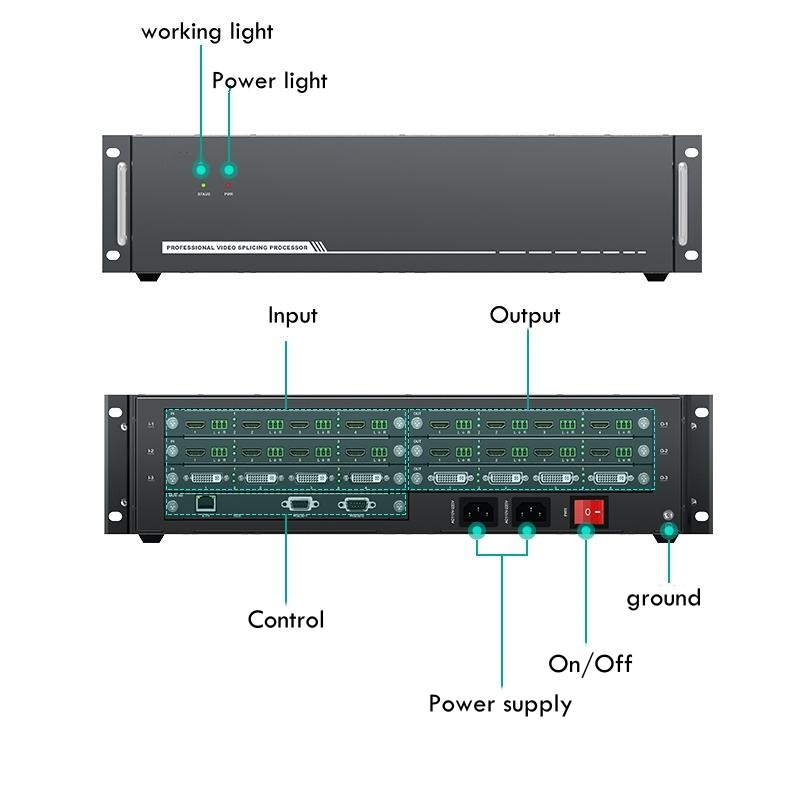

6, using FPGA pure hardware architecture, no internal operating system, no system crash, virus infestation, compatibility and other issues. Modular design (including input card, output card, switch card, control card, fan) to facilitate future upgrades and maintenance, support for hot plug;

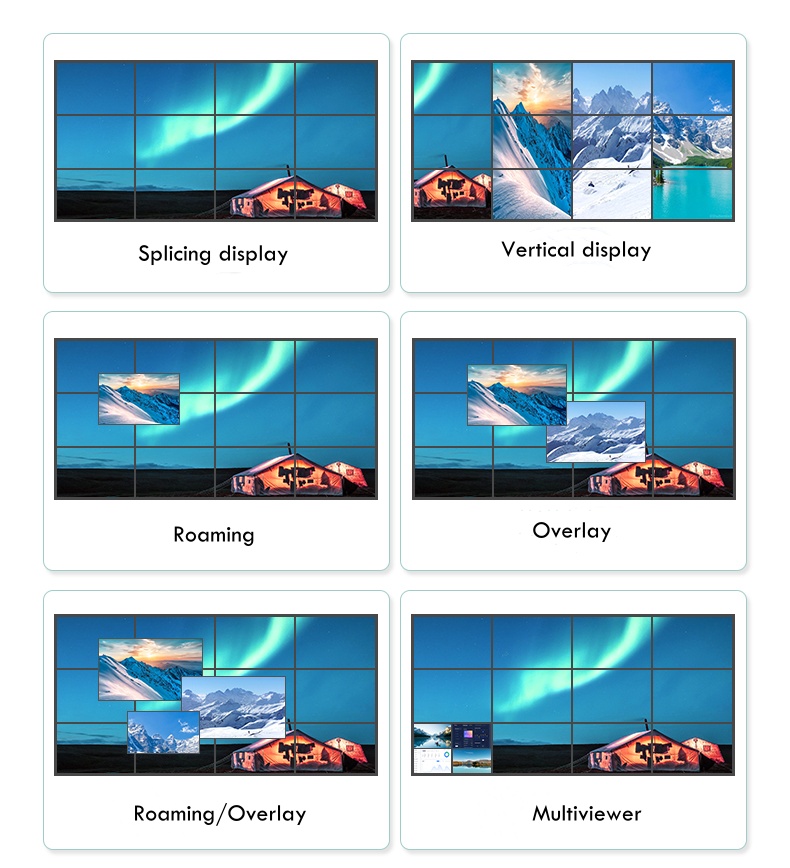

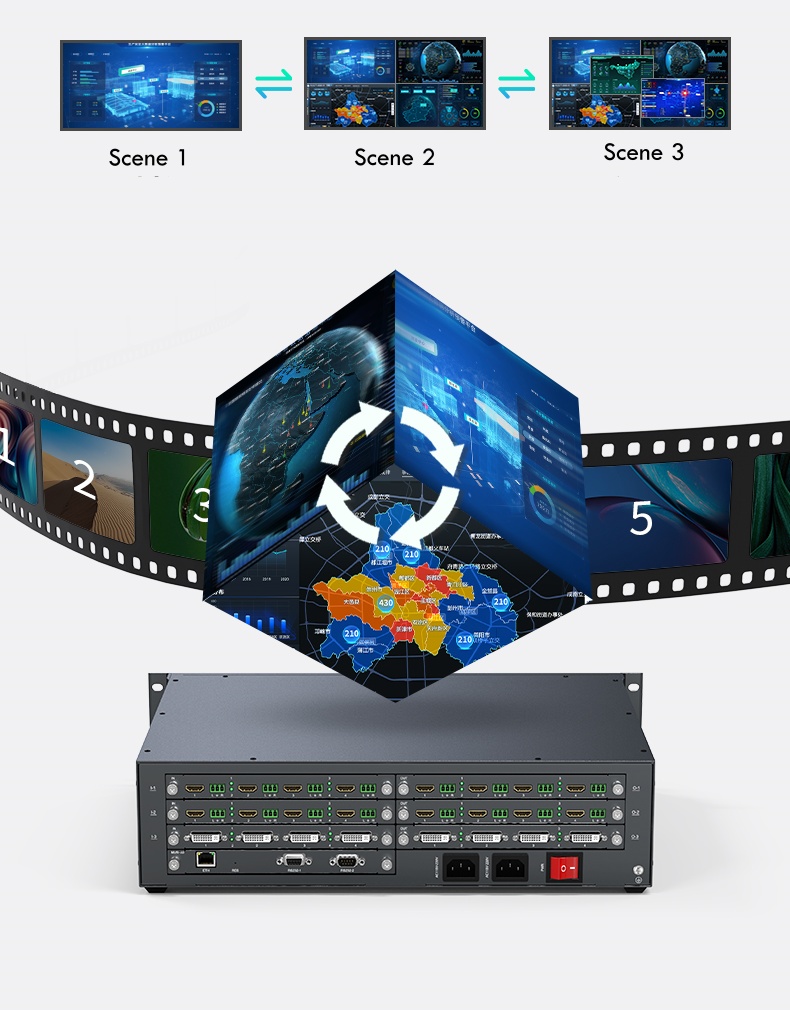

7, signal any position window, superimposed, stretch, cross-screen, roaming, zoom, picture-in-picture; up to 128 scenes of storage, support for scene rotation function;

8, support for real-time preview of the input signal, according to the actual needs of the output to the big screen, to prevent wrong input;

9, support for high-definition base map function, without access to any computer signal source and SD card memory card and other external storage devices, the device itself can output point-to-point static base map function, high-definition base map display technology;

10, the signal can be in any position of the splicing screen window, superimposed, stretch, roaming, cross-screen, zoom or picture-in-picture display, single screen support 2 layers and share 8 layers display, so that the display is colorful;

11,Support ONVIF, PSIA, can be paired with the majority of IP cameras for control;

12, the welcome word on the wall display function, support for scrolling subtitles, any variety of fonts, a variety of colors, any position, support for a variety of background colors, can be set to scroll time, and at the same time be able to store a variety of welcome word for access to the display;

13, splicing processor with output color adjustment function, the corresponding output interface can be adjusted for brightness, contrast, saturation, for the screen color inconsistency, color inconsistency, the corresponding parameter indicators to adjust to reduce a series of unnecessary trouble, support for large-screen background background color adjustment function, support for any large-screen background color adjustment function;

14, support for all input channels for character editing and labeling, desk label superimposed function, can arbitrarily set the font color and location, the image signal screen above the appearance of subtitles, while replacing the conventional similar to the subtitle machine equipment and then the user real-time grasp of the source of the current display of the signal, a greater degree of realization of the high degree of integration;

15, in line with VESA standard resolution output, can also customize the output resolution, can be adapted to different splicing wall;

16, support for DVI-I input board, input support for DVI / HDMI signal types, support for a board a variety of different types of signals at the same time input Advanced backplane switching architecture, each channel allocates an independent bandwidth up to 8G / S. Processing of multi-channel high-definition signals, image signals displayed in real time, without losing frames; inverse synchronizatio

17, point-to-point control mode, to ensure that the device is not interfered by third-party intrusion;

18, frame clock synchronization technology to ensure that all output signals are synchronized;

19, support for high temperature alarm function, to facilitate the management of the site environment;

20,Support output profile management, support profile one-key call, rapid response to the scene of emergency needs;

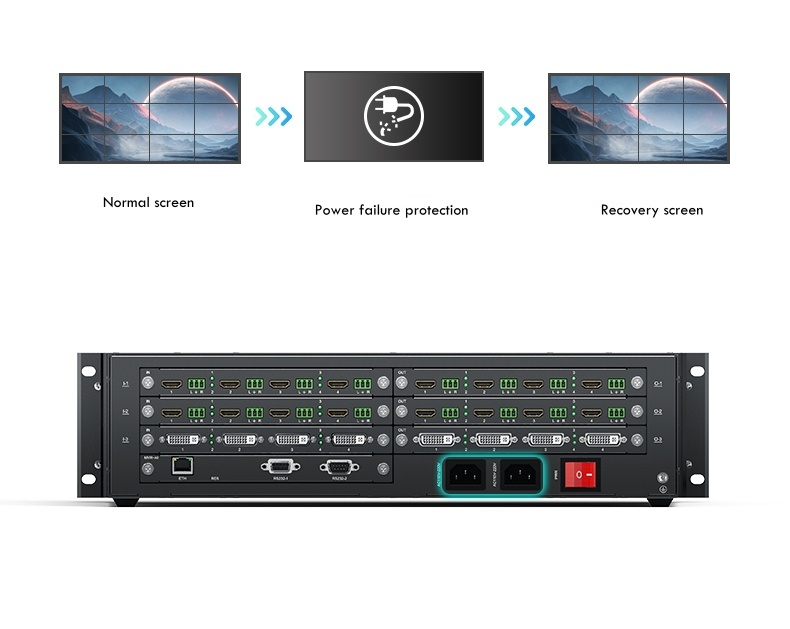

21,Support device information export function, to avoid equipment replacement to reset parameters, saving time; The use of international standard wide-voltage input power supply, grid voltage fluctuations between 110V ~ 240V, can ensure stable output, dual power supply redundancy and hot standby, support for power supply hot backup, to ensure long-term stability of the product greatly improves the reliability and stability of the system.

22,Supports setup log management to monitor device usage

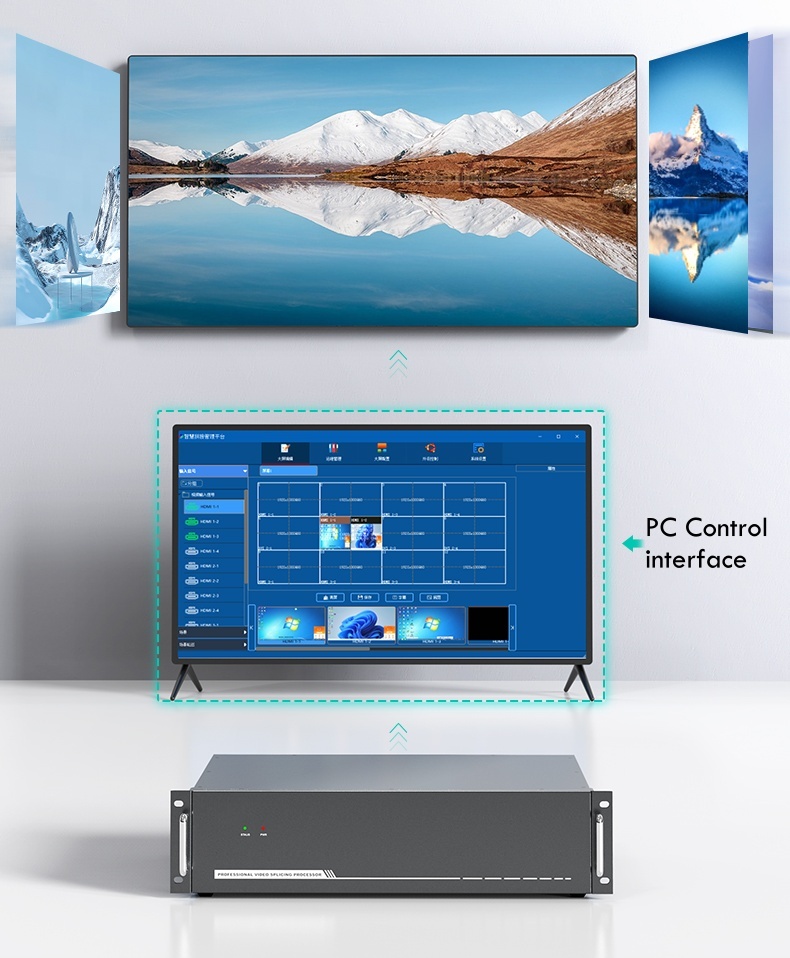

23,Support for rights management and multi-user control technology, the system has advanced management software, support for diversified control, with multi-user control function, can be set up through the software operating privileges, based on the level of authority to formulate different operational functions, different levels, with different permissions, to avoid illegal operation and overstepping of the authority, to facilitate operations

Specificaiton:

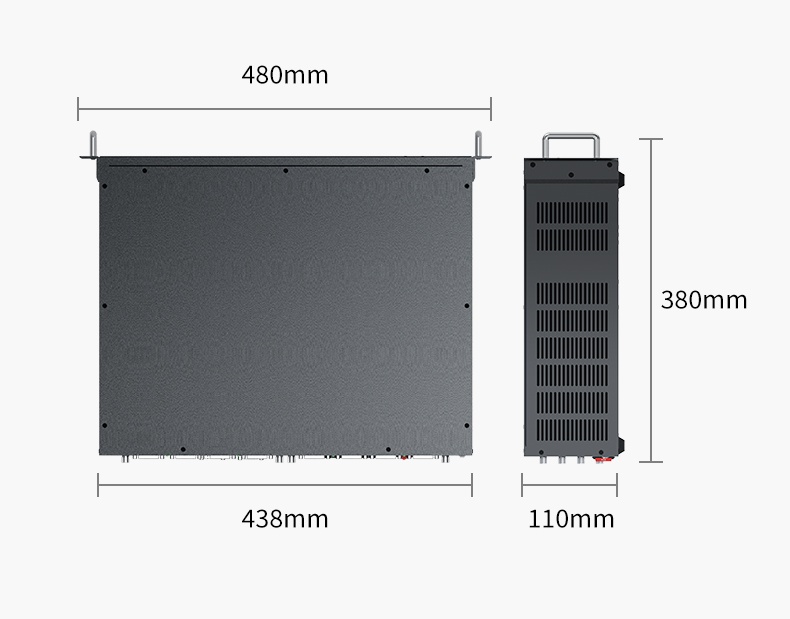

Product size:

Full Series of Seamless Matrix with VideoWallController 4in4out,8in8out,4in12out,8in16out,16in16out,8in24out,16in24out,24in24out
