USB 3.2 Gen 2 USB-C Type C,A to C,A to Micro B cable 4Lane full functional AOC 10m-50meter for Home,Conference Room,VR Camera
Engineering Standard USB 3.2 Gen 2 Fiber Optic Cable 10m-50m, No Loss,No Delay, 10Gbps, backward compatible with USB 3.0,2.0/1.1,Seamlessly switch between 4-lane DP 2.1 + USB 2.0 and 2-lane,Full Function USB-C Cable
| Weight | 50 g |
|---|---|
| Dimensions | 15 × 0.48 × 0.1 cm |
| USB Transfer Rate | USB 3.2 Gen 2 10Gbps, backward compatible with USB 3.0, 2.0/1.1 |
| DP Transfer Rate | Supports 4 lane DP 2.1 or 2 lane DP 1.4 |
| Video Resolution | 4 Lane DP 2.1 mode: 8K@60Hz, 4K@144Hz/120Hz |
| Wave Length | 850nm |
| Optional Cable Length | 10m (33ft)/15m (49ft) /20m/30m/40m/50m |
| ESD Protection | IEC 61000-4-2: |
| Charge Power | Supports fast charging PD 3.0 60W (20V/3A) |
| Outer Diameter | 4.8mm |
| Chip | Optoelectrontic Conversion Chip |
| Applicable Devices | Camera, Computer, Phone, Data Disk, Live Streaming Camera,Game Console, TV box, HDTV, Projector, VR Helmet, Home Theater, Multimedia, Monitor |

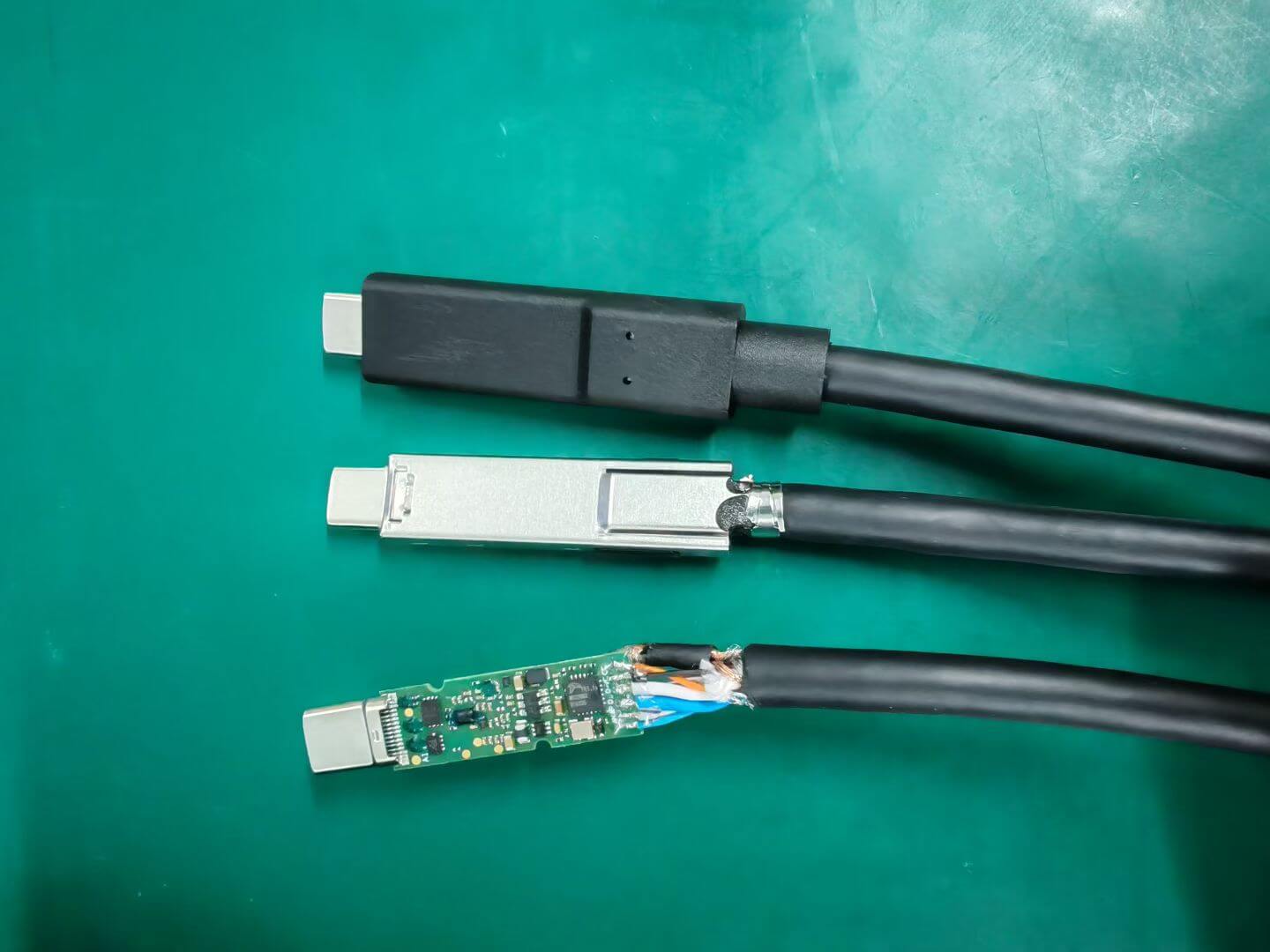

Detailes About USB 3.2 Gen 2 USB-C Type C,A to C,A to Micro B cable 4Lane full functional AOC 10m-50meter for Home,Conference Room,VR Camera

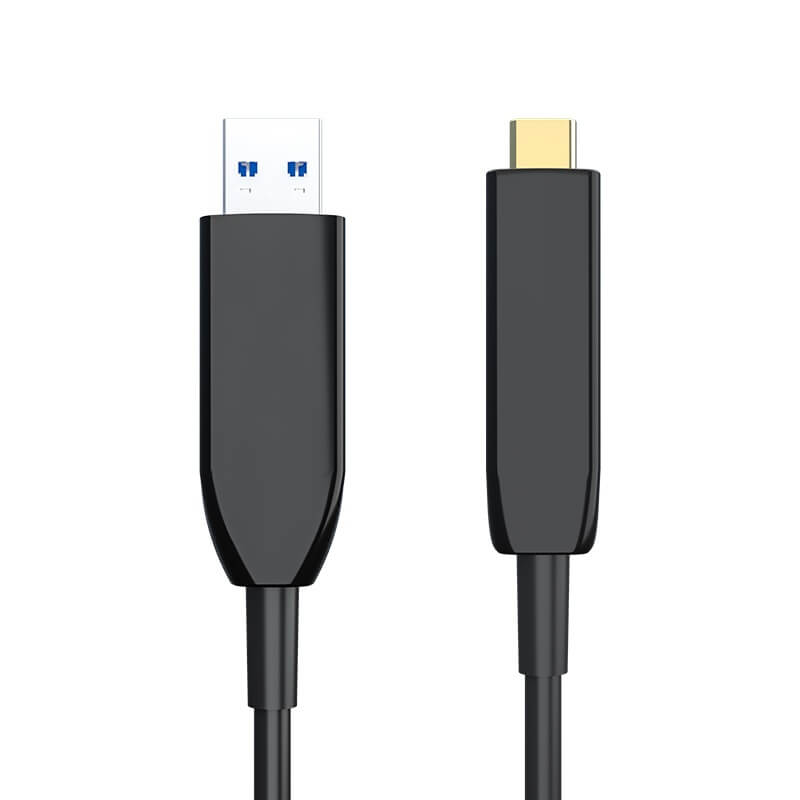

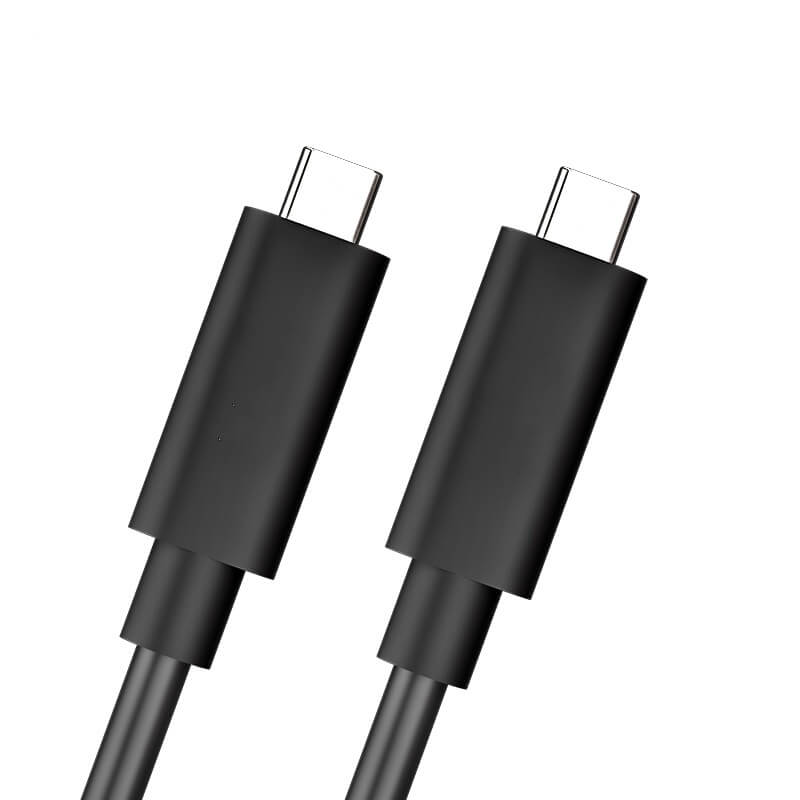

Engineering Standard USB 3.2 AOC Cable ,Type A to C, Type C to C, Type A to Micro B
for Live Streaming,VR Camera,Engineering Installation,10m-50m
Features:
Hybrid Active Optical Cable USB 3.1 ,Type C to A,Male to Male, AOC cable/Data Cable/Capture Video and Audio,Plug and Play,Support 5V power support for stable transmission.
Compatible with USB 3.0,2.0 and downward,10Gbps ,OD 5.0MM, Consumption less than 4.50w,working temperature: 0 to 50°C
PVC Material,CMR,CMP,CPR ECA,LSZH, pass through pipes above diameter 25mm

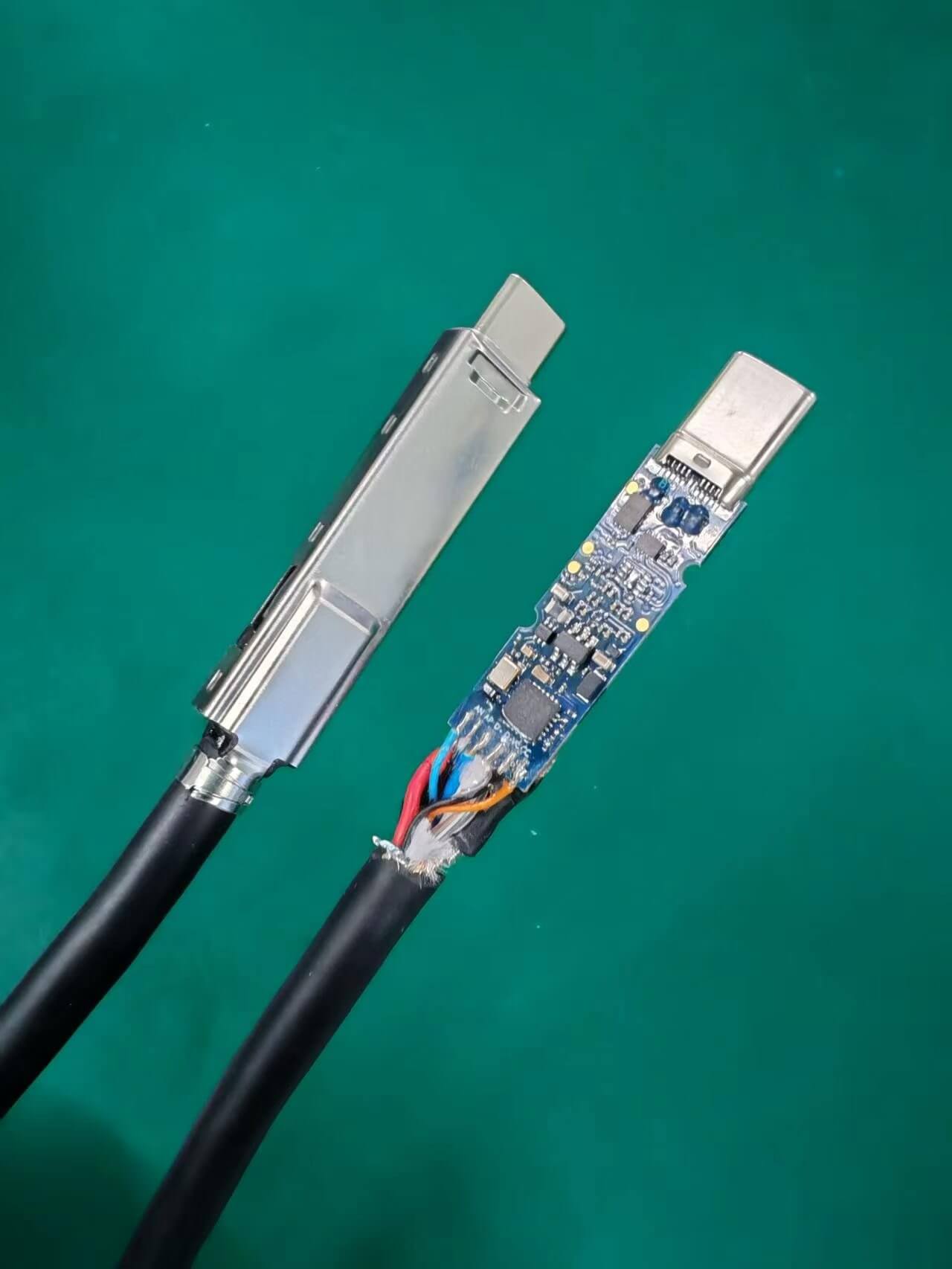

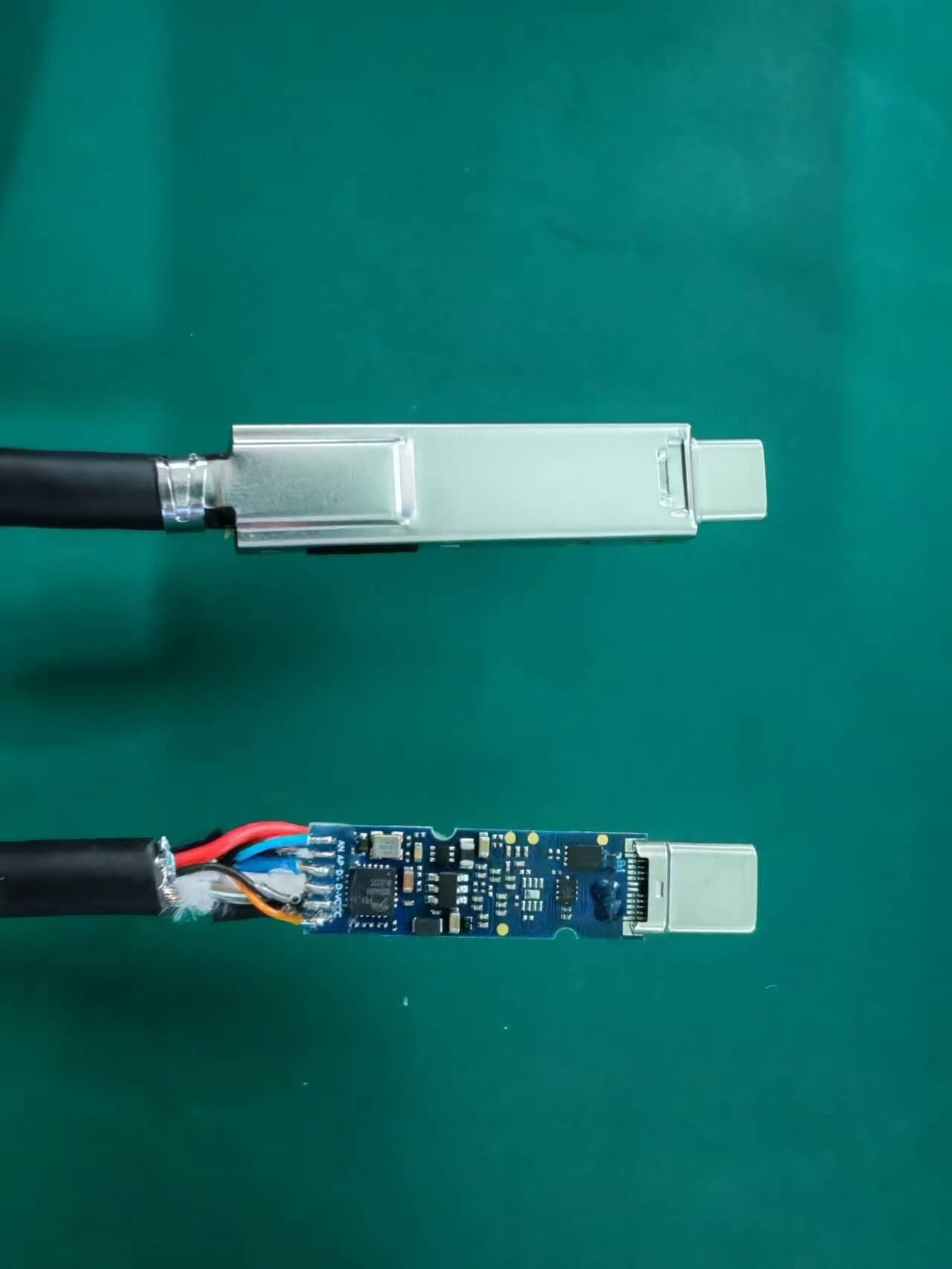

Inner with Chips,widely used in Kinect Motion Sensing, Video Conferencing, Webcams, Industrial Cameras, VR Integration, Surveillance Extension, Machine Vision, Motion-Sensing Conference Cameras.

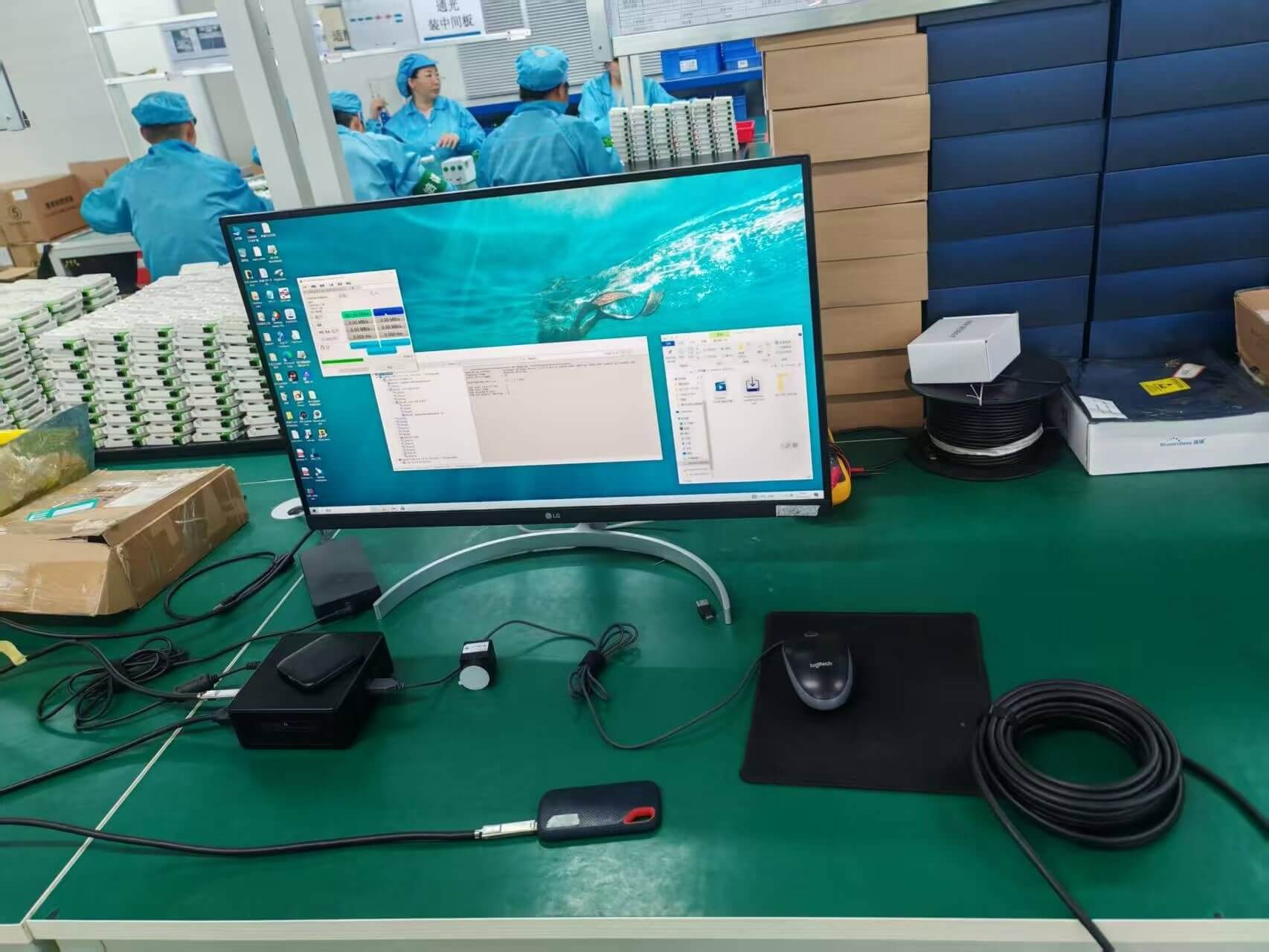

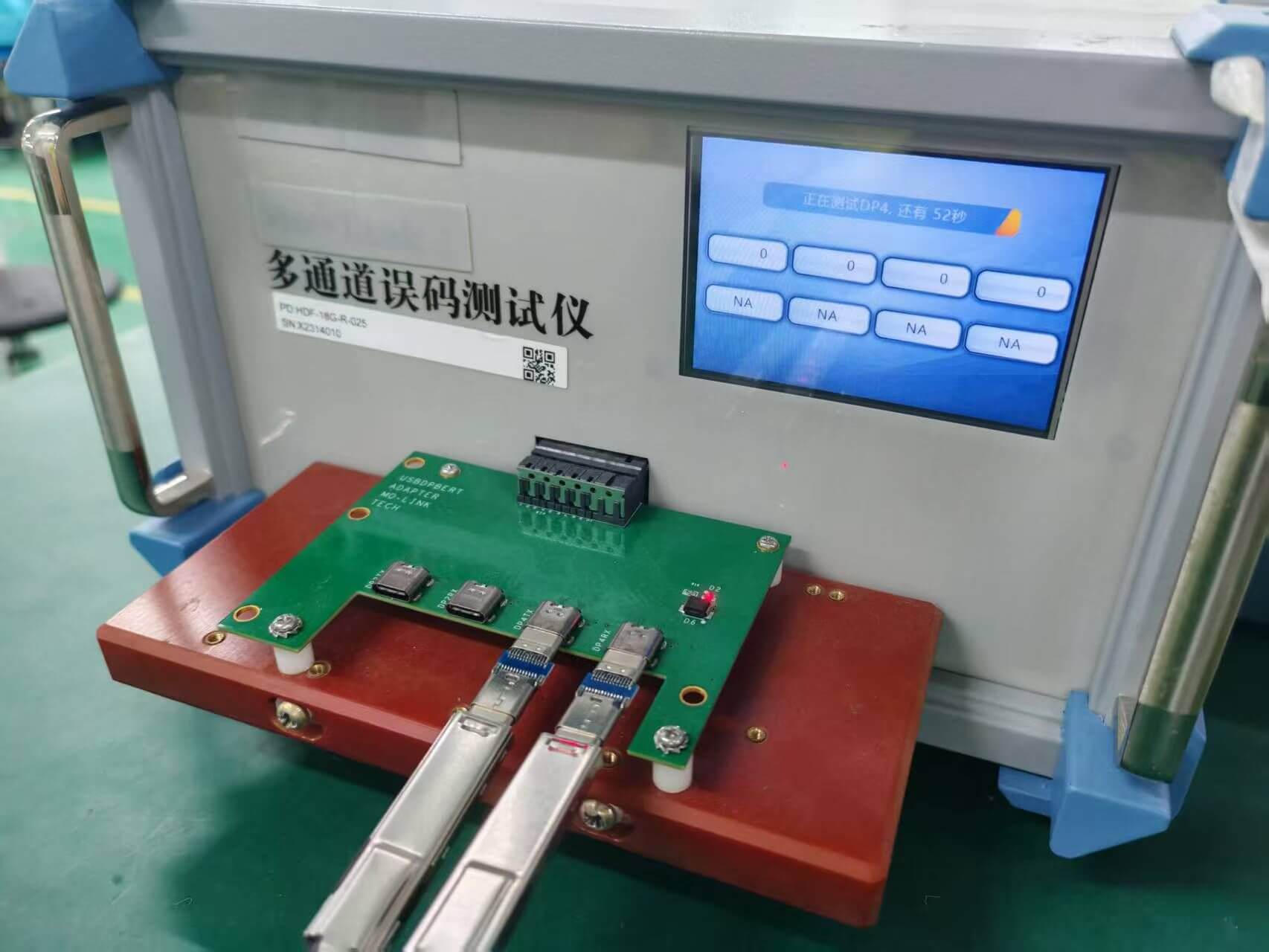

Testing
Application

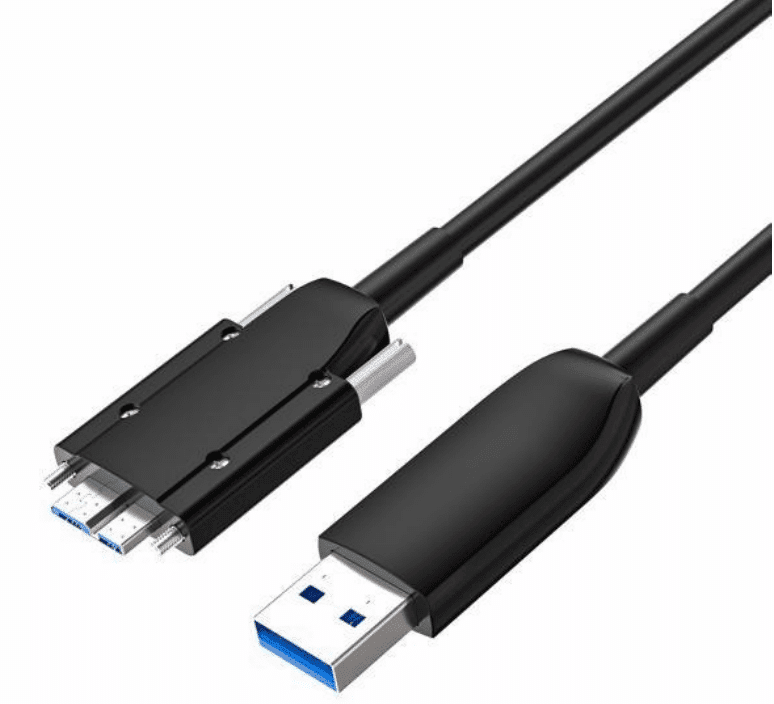

USB 3.0 Type A to Micro B AOC cable ,5Gbps,OD 4.8mm,5V power supply
below is the drawing
The USB TypeA to MicroB AOC uses Multimode optical fibers to improve the Machine vision system quality, fiber optical lanes will provide true 4K HD vision quality and without frame delay, itʼs widely used in different scenario such as the automation line products online inspections, data storage read/write etc. The fiber optical hybrid cable have much flexible and lightweight features vs. standard copper cable.
Supports more than 5 million towing chain cycles.
Support USB 3.0, full bandwidth 5Gbps.
Support HD resolution 4K@30Hz/2K/1080P/720P.
USB2.0 is not supported.
Support 1-to-N operation.
5V 0.9A power supply.
Supports customized cable length up to 30meters. OD: 4.8mm.
HANDLING AND CARE
CAUTION: Do not cut optical cable, viewing the cut fiber ends, especially with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) may pose an eye hazard.
This product is classified as a Class 1 Laser product in accordance with IEC 60825-1:1993+A1+A2 and complies with 21CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice N0 50, dated 24-Jun-2007. Use or modification of this device other than those specified herein may result in hazardous radiation. To meet laser safety requirements the cable shall be used within environmental specifications. Tampering with or modifying the
device will result in voiding of the product warranty.
