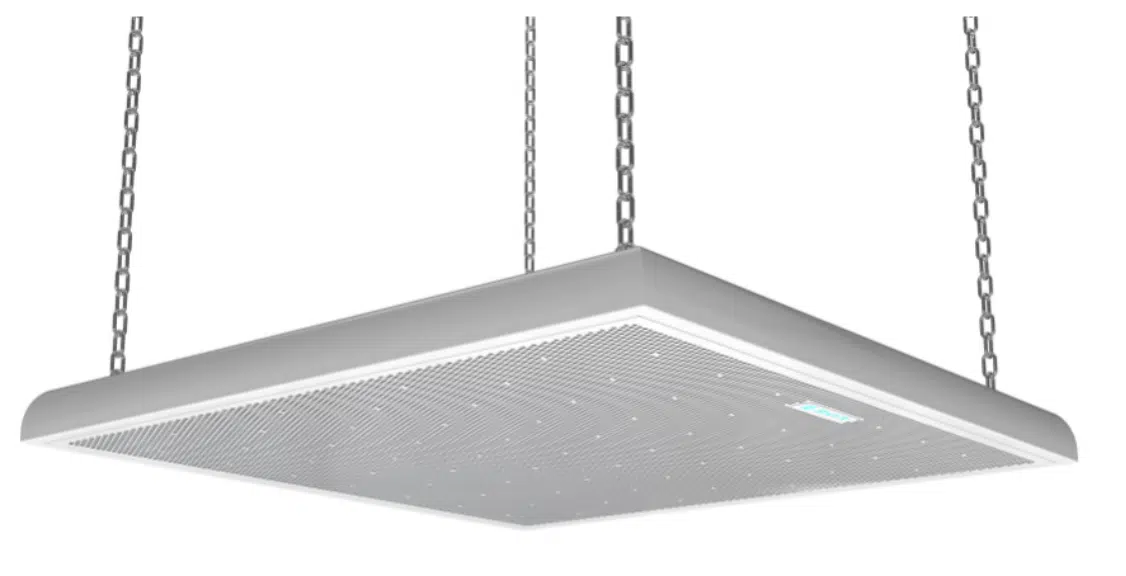

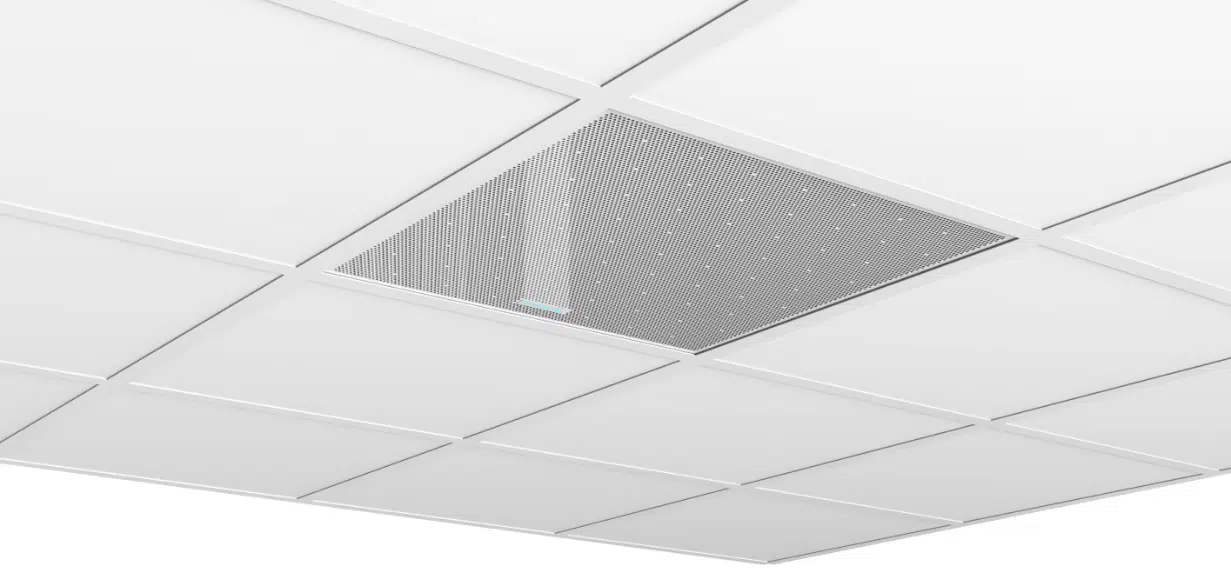

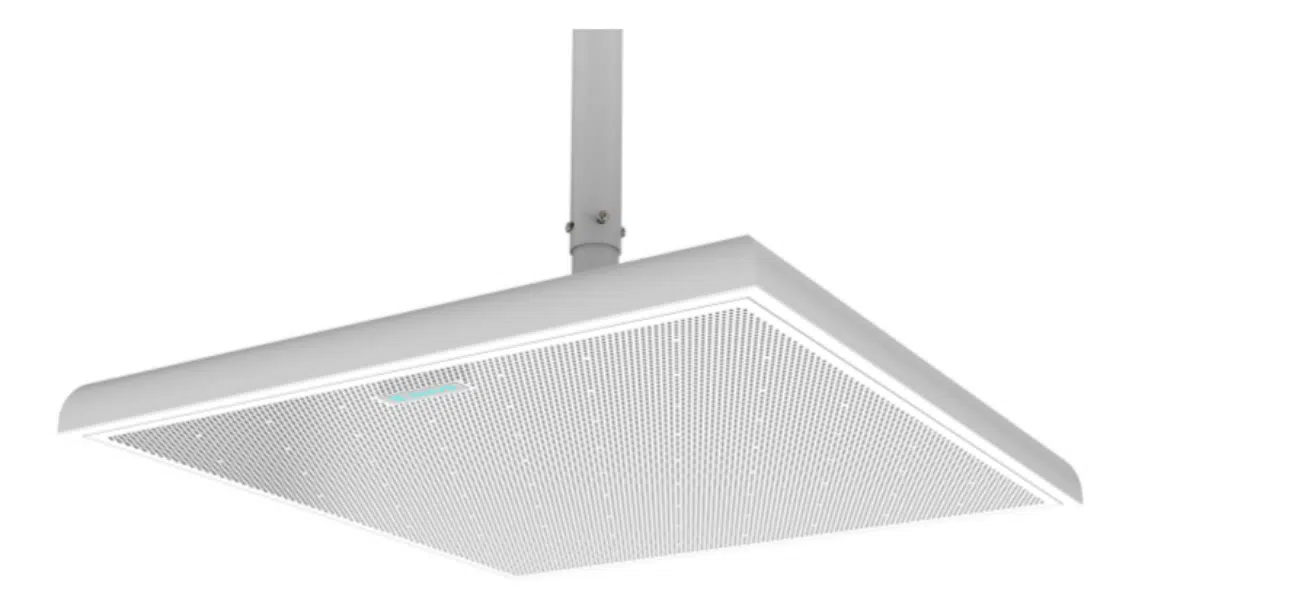

Dante Ceiling Microphone 129 units omnidirectional array microphone+USB-c

or 32 units omnidirectional array microphone without usb-c,

Support AI noise reduction, Automatic mixing, Beamforming, Sound source localization

Introduction

The seamless sound amplification ceiling array microphone consists of 129 high fidelity microphones, designed with a composite circular array layout to provide the necessary pickup sampling conditions for the algorithm; The CPU adopts a professional audio processor (8-core, 6T high computing power) and is equipped with industry-leading audio signal processing algorithms, such as low latency ClearVoice AI algorithm, real-time feedback suppression engine, adaptive sound field control technology, multimodal AI noise reduction system, spatial sound field modeling technology, traditional audio processing+AI deep algorithm dual engine architecture, dynamic beamforming, etc., which can effectively improve the quality of voice amplification interaction; The design adopts a professional audio composite circular array layout microphone, which can achieve 17 amplification areas and 33 pickup areas, with a amplification distance of 4 meters and a pickup distance of 8 meters, effectively picking up sound from any position in the pickup area; Built in cascading function module, capable of cascading multiple seamless sound reinforcement ceiling array microphones; Built in Dante module to achieve network audio transmission function. Built in advanced algorithms that automatically match various scenes, whether it is the effect of local amplification or the effect of outputting to remote terminals, can achieve clear and high fidelity vocals.

Features

1. Wide sound pickup: The seamless sound amplification ceiling array microphone is composed of a 129 unit omnidirectional array microphone, with a sound amplification distance of 4 meters and a sound pickup distance of 8 meters, achieving true seamless soundamplification wherever you go.
2. High volume: The sound feedback gain is ≥ 15dB. With a higher volume, it is less likely to howl and makes speaking without burden.

3. Clean sound: Implant ClearVoice AI deep algorithm to accurately recognize sound, remove various noises, and enhance speech signals.
4. High flexibility: Supports custom setting of positioning pickup, supports 33 pickup zones and 17 amplification zone mode settings, and can support multiple cascaded adaptation to different scenarios.
5. Easy to expand: Rich analog and digital (Dante, USB) audio interfaces, can be used independently, and can be connected to wireless microphones, without the  need for additional audio processors;

6. Easy to manage: The system is simple and provides multiple external control methods such as infrared, 485, and network to meet different needs and make the system more flexible.

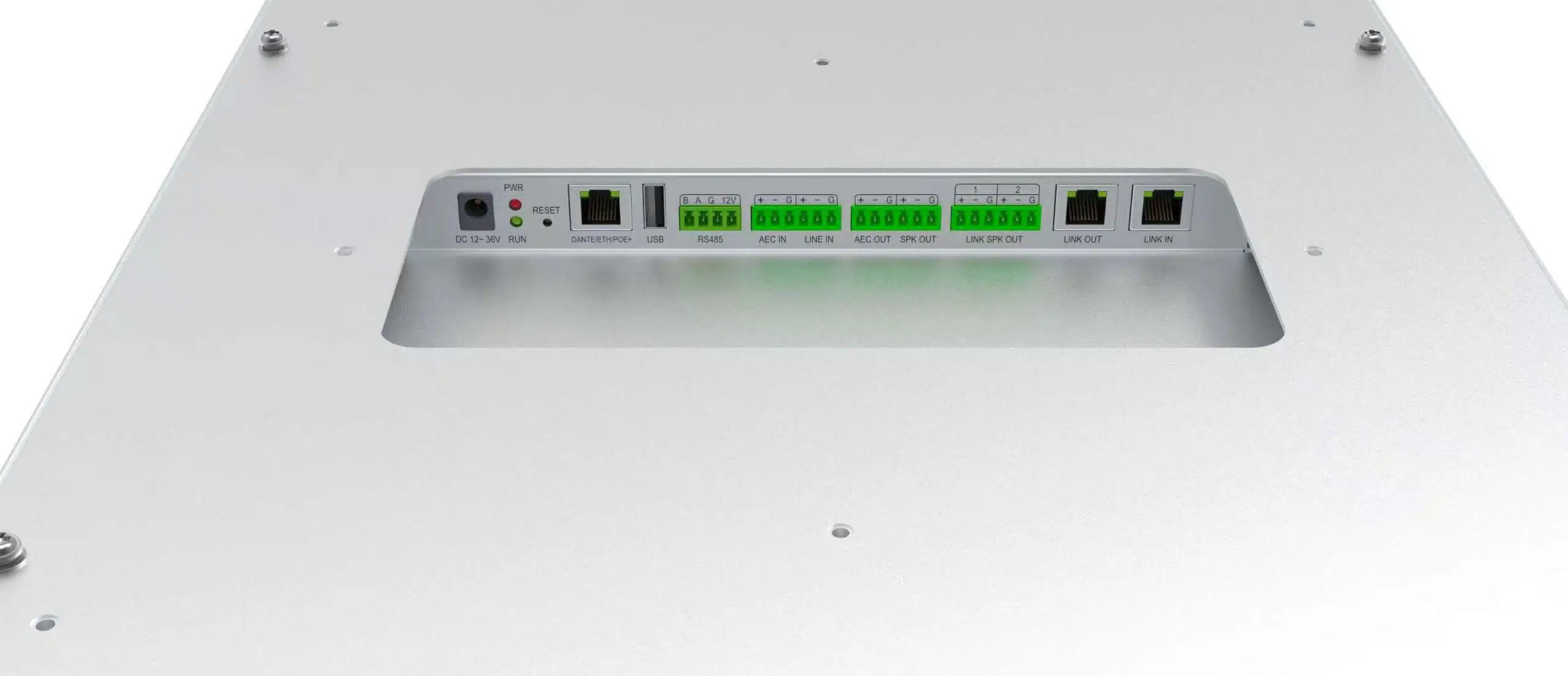

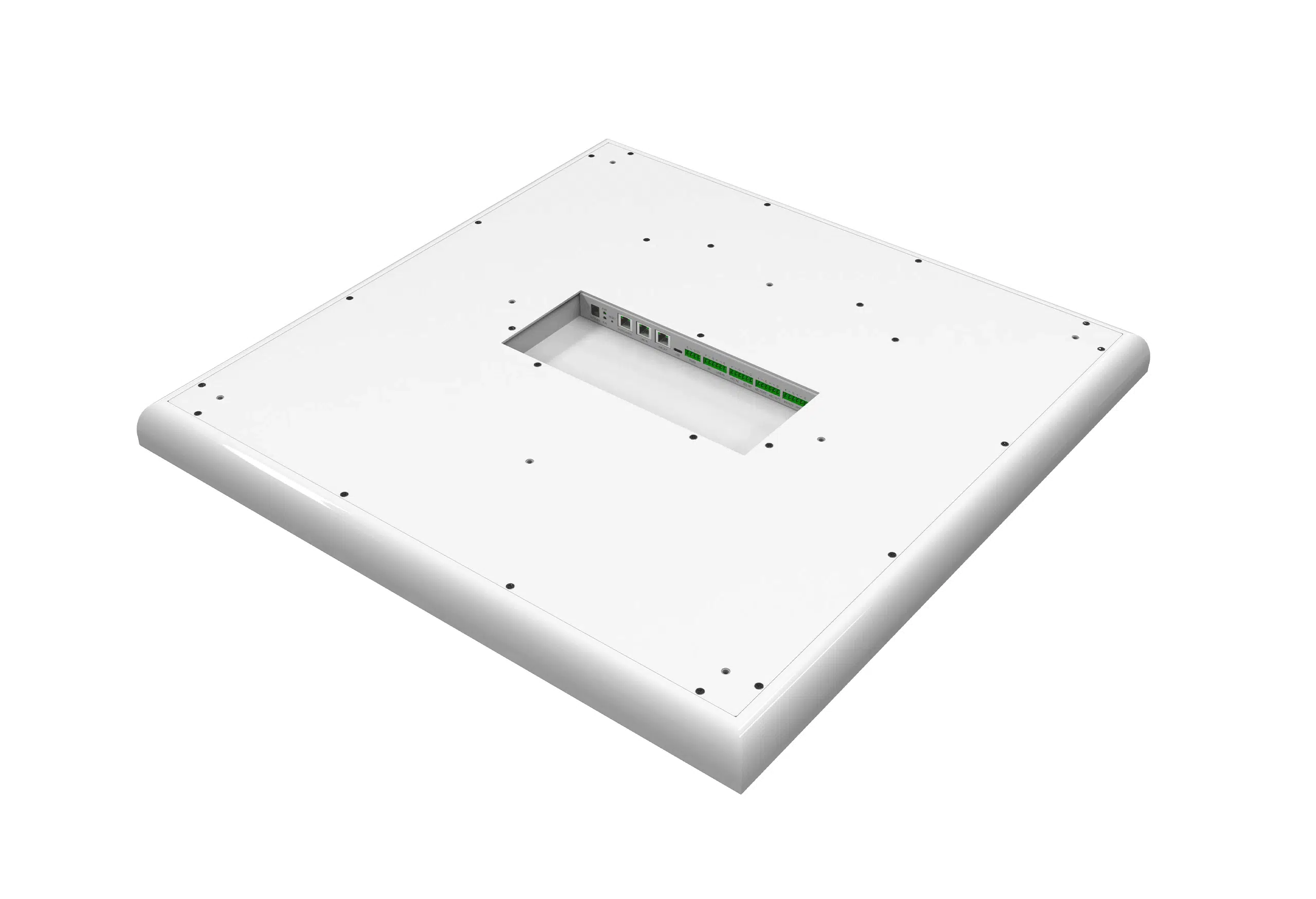

Interface

• DC12-48V interface: power interface, input voltage range DC12V-48V.
• PWR/RUN：Normal power on, the red light is always on. The system is running normally and the green light is constantly on.
• RESET：Restore factory settings.
• DANTE/LAN/POE+：Dante signal transmission interface/network interface/POE power supply network port.
• LINKE IN：Cascade link input network port.
• LINK OUT：Cascade link output network port.
• USB：Type C firmware upgrade interface, USB 2.0 audio transmission interface.
• RS485：485 device control interface; Output voltage DC12V/0.4A.
• WL/LINE IN：Wireless microphone analog input; External audio source (PC) analog input.
• AEC IN1/2：Remote audio (reference signal) analog input.
• AEC OUT1/2：Remote analog audio output.
• SPK OUT1/2：The speaker simulates audio output.

Specification

module	function	Specific parameters
Algorithm specifications	Support algorithm	AFC、ANS、AEC、AGC、ARR
	Sound feedback gain	≥18dB
	Noise reduction amplitude	≥30dB
	Echo cancellation amplitude	≥90dB
	Echo cancellation length	≥1s
	Reverberation suppression	≥18dB
	Maximum gain	≥30dB
	AI noise reduction	support
	Automatic mixing	support
	Beamforming	support
	Sound source localization	support
Microphone specifications	Number of microphones	129
	Sensitivity	-32±2dB
	Signal to Noise Ratio	70dB
	Frequency response	75-20KHz
Hardware specifications	Sampling rate	48K
	Frequency response	20Hz~20KHz，±0.5dB
	Signal to Noise Ratio	100dB
	Degree of distortion	≦0.1%
	Input impedance (balanced)	20KΩ
	Output impedance (balanced)	200Ω
	Maximum input level (balanced)	4dBu
	Maximum output level (balanced)	10dBu
	Dante Audio	support
	Cascade function	support
	485Central control interface	support
	Input power supply	DC 12V-48V/POE
	Power	25W
Other specifications	Dimensions (length x width x height)	600×600×42.8mm
	Net weight of equipment	6.03kg
	Operation temperature	0℃~40℃
	Storage temperature	-20℃~60℃
	Colour	Pearl White

Trouble shooting

phenomenon	reason	solution
PC tool cannot be opened	Antivirus software restrictions	Close antivirus software.
	Tool damage	Update PC Tools.
The network cannot communicate normally	Network reasons	Check the device status light.
		Check the PC network to ensure consistency between network segments and devices.
		Hardware RESET restores default, using default network for search.
		When cascading in series, the LINK IN of the previous unit is connected to the LINK OUT of the next unit, and the last unit cannot be connected to the network.
		When cascaded in parallel, each device can only have one network port connected to the network.
		Three network ports cannot be connected to the same network at the same time, only one port can be connected to the network.
	Network port malfunction	Check the status of the PC network port light.
	Equipment failure	Depot repair
Low output volume	Configuration issues	Check the input and output configuration status.
	Output gain level	Each output of AEC OUT and SPK OUT has hardware analog gain adjustment, with a total of 4 levels: 0dB, -12dB, -18dB, -24dB; The default is 0dB.
	Wiring malfunction	Check if the input and output wiring is correct.
