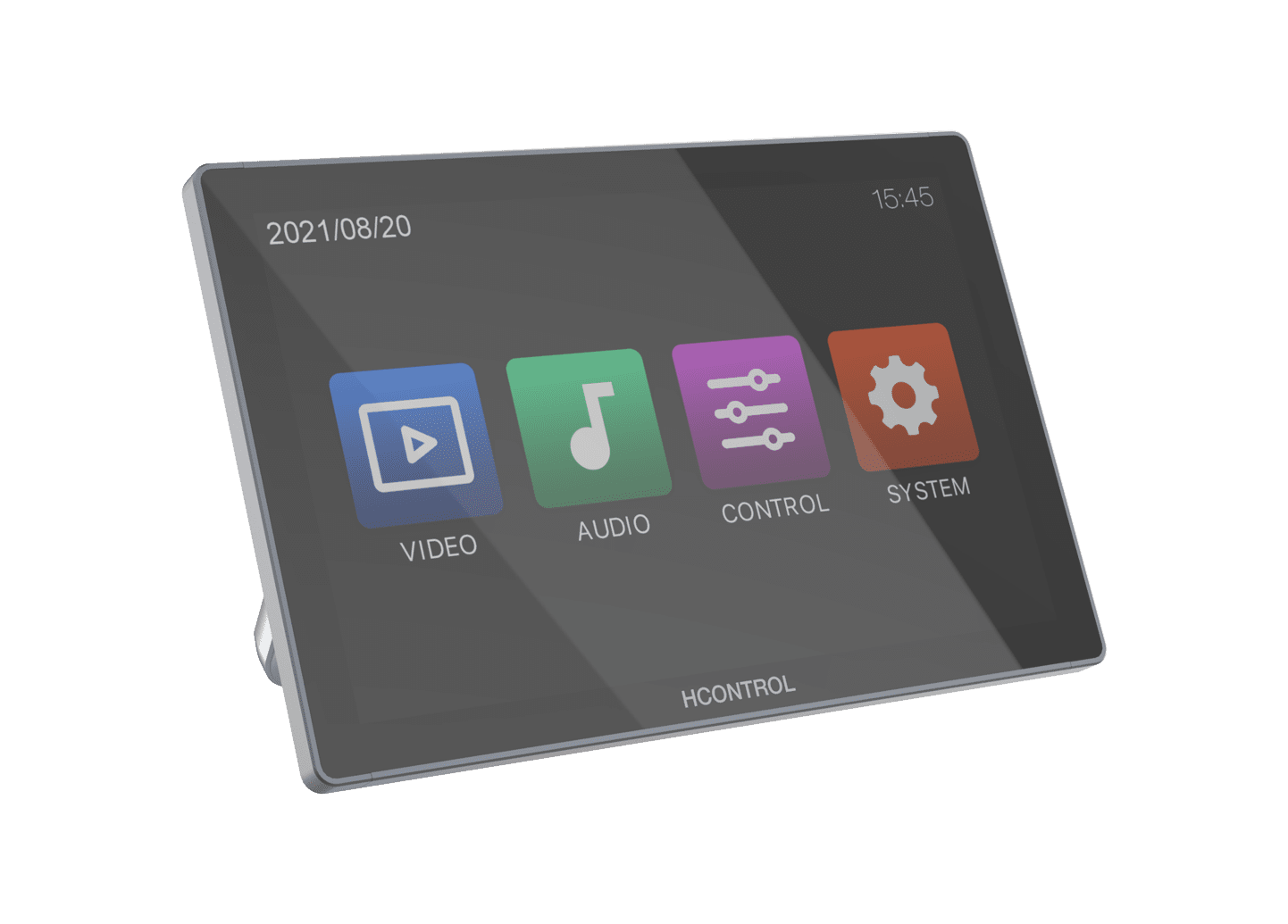

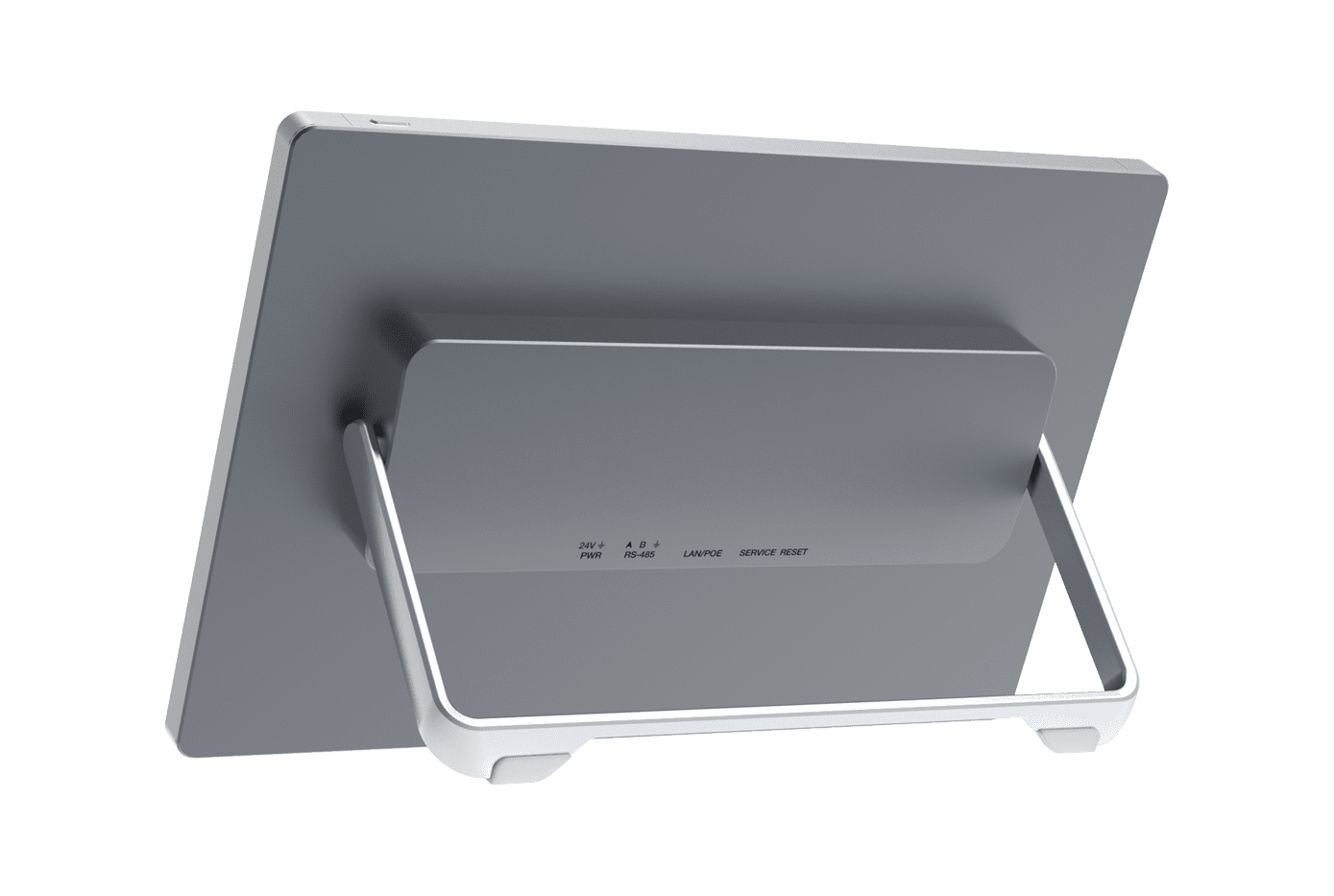

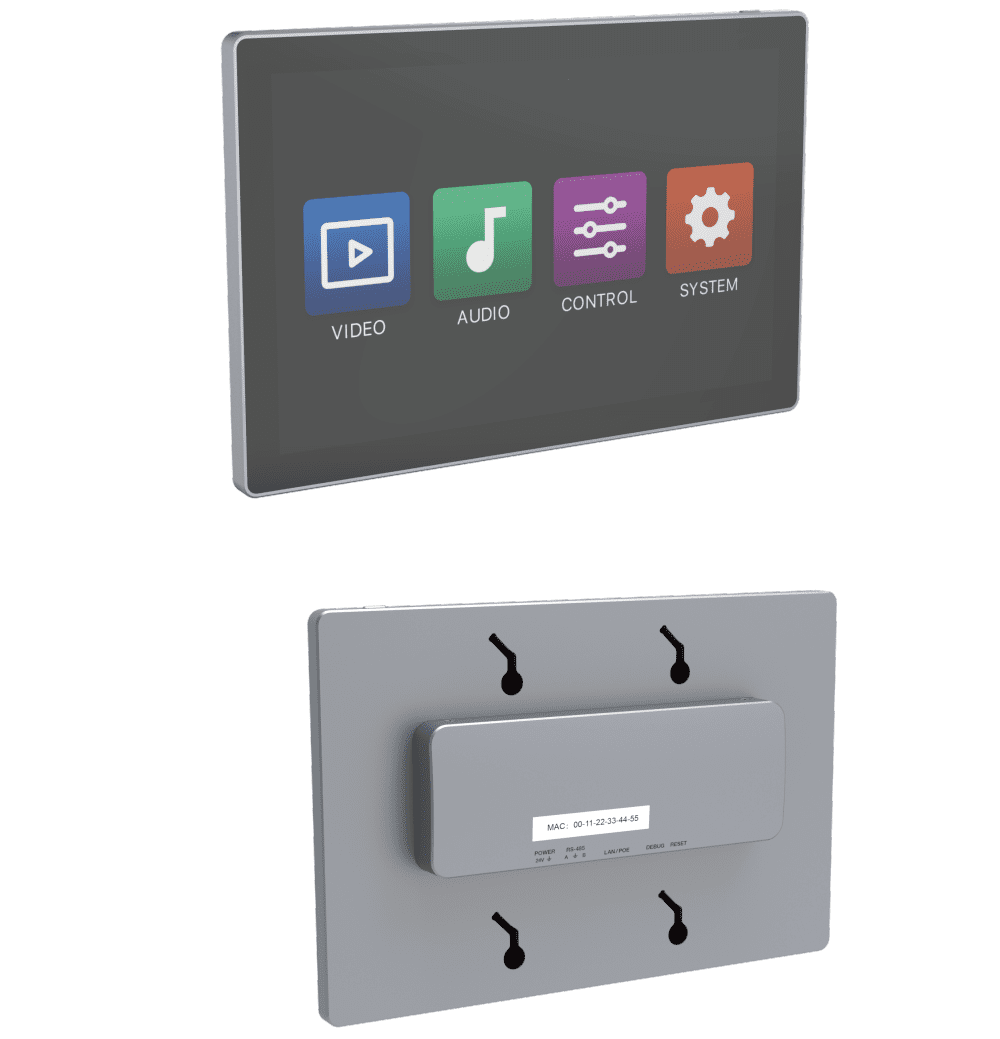

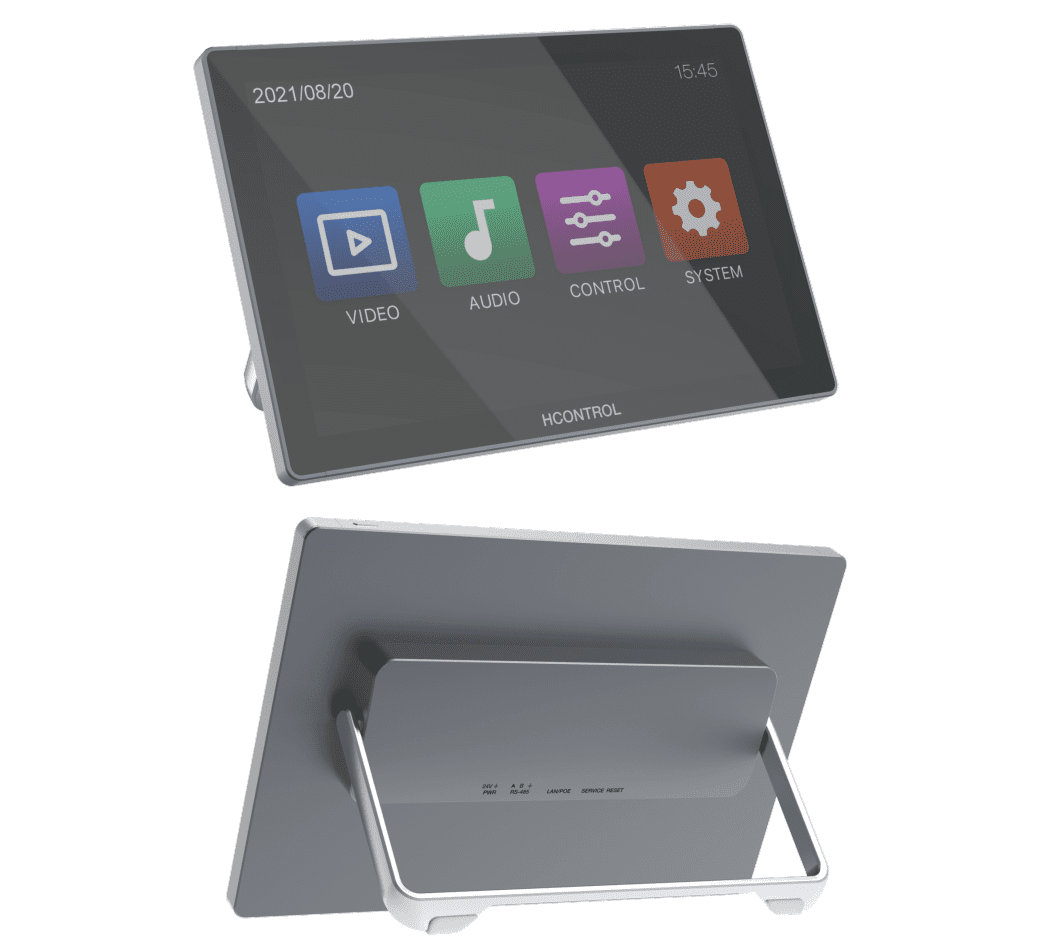

Programmable Touch Panel Control System for multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation.
| Weight | 887 g |
|---|---|
| Dimensions | 24.54 × 16.4 × 2.7 cm |

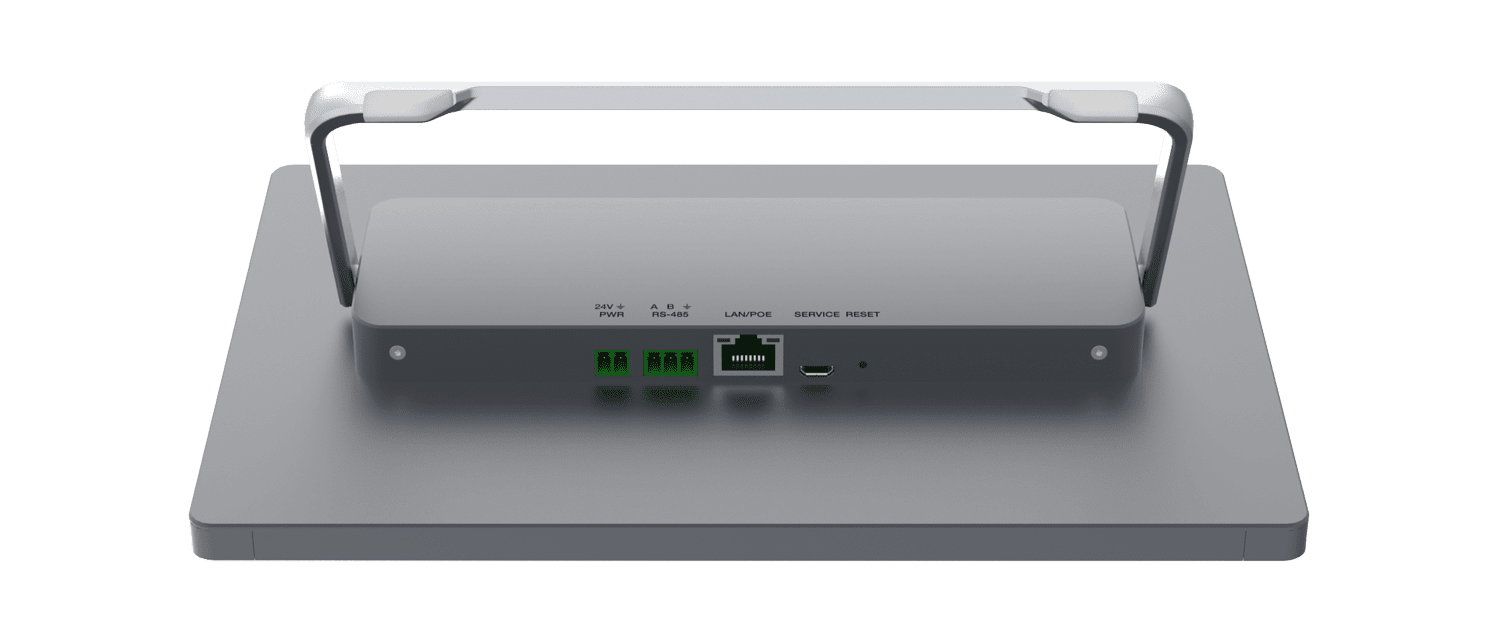

| RS-485 | 1x 3-pin Phoenix Connectors, for RS-485 serial data communication |
| LAN/POE | 1x standard 10M/100M/1000M Ethernet RJ45 interface, supporting POE function |
| Application | multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation. |
| POWER | 1x 2-pin Phoenix Connectors, for power supply |
| DEBUG | 1x Micro USB, system debugging port |
| CPU | ARM Cortex-A53 1.8GHz |
| Operation System | Android 9 |
| RAM,Flash Memory | 2GB DDR4 RAM,8GB EMMC Flash |
| Resolution | 1280×800 Capacitive Touch Screen |
The programmable touch screen control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a programmable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel is equipped with a capacitive touch screen with a resolution of 1280×800, and it supports one RS-485 serial port. It is used in a diverse range of installations and applications across industries including multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation.
☆ ARM Cortex-A53 architecture 1.8Ghz main frequency
☆ Android 9.0 system, 8GB Emmc Flash, 2GB DDR4 RAM
☆ 720×720 (1:1) resolution, standard 86 box wall-plate design
☆ One machine with two modes, can be used as touch screen central control or user terminal
☆ Support one RS-485 communication serial port, which is capable of configuring 8 baud rates in the range of 2400-115200bps
☆ Support access to the host system management web page with a password
☆ Compliant with industry standard network communication protocols (TCP/IP, Http, UDP, Websocket)
☆ With 1 Gigabit network port, the highest rate up to 1G/bps
☆ Support POE function or independent DC 24V/1A power supply
☆ Interface and function configuration via central control software
☆ Support remote control, remote O&M, online upgrade
☆ Support factory reset
