Integrated Switching Power Supply Controller 4 Ports, 8 Ports, 12 Ports
High Configuration DC Power Controller, 4ports,8ports, 12ports, Scheduled Turn on/Off, RS232, TCP/IP, Web Gui Control, Input Voltage 100~240VAC 50~60Hz,Output Max 15W/180W
| Weight | 4200 g |
|---|---|
| Dimensions | 44 × 36 × 4.4 cm |
| Input Voltage | 100~240VAC 50~60Hz |
| Output Voltage | 5V, 12V or 24V can be selectable |
| Output Voltage Range | 5V: 4.75~5.25V,12V: 11.4~12.6V,24V: 22.8~25.2V |
| Maximum output power consumption of signal channel | 5V:12W; 12V:15W; 24V:15W |
| Maximum output power consumption for single / dual supply | 180W |
| GUI Control | TCP/IP port (RJ45). |
| Buttons Control | Front Panel: 01~12, total 12 buttons. |
| RS232 Control | RS232 port (3-Pin phoenix connector). |
| Temperature | 0 ~ +50℃ |
| Humidity | 10% ~ 90% |
Detailes About Integrated Switching Power Supply Controller 4 Ports, 8 Ports, 12 Ports

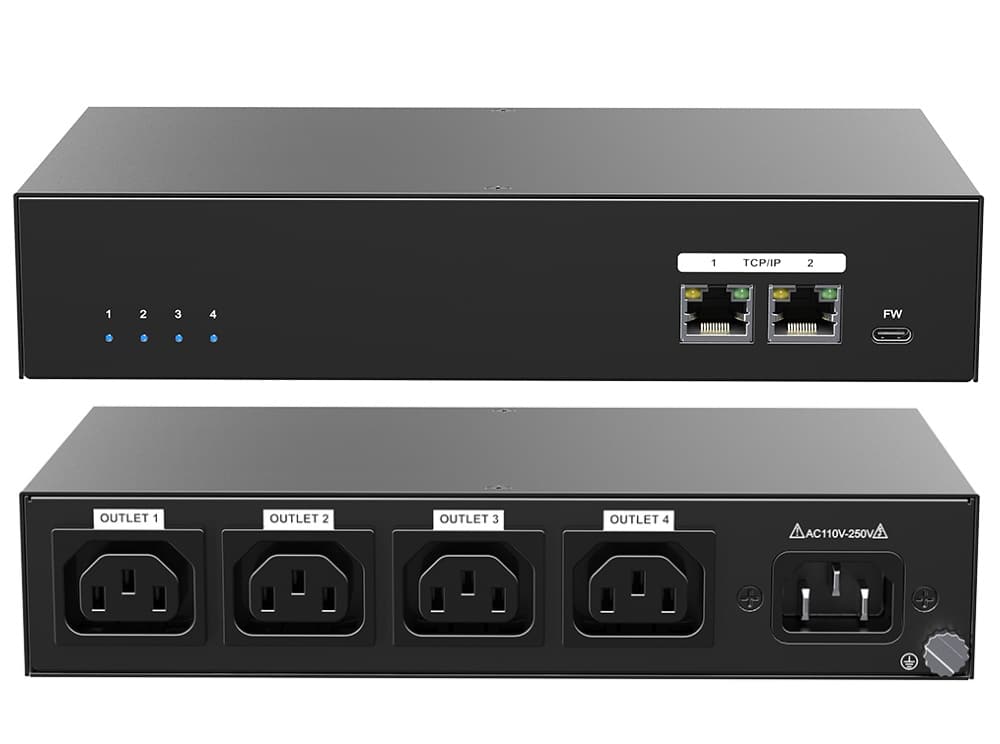

4 Ports Power Controller with redundant TCP/IP port. The controller is designed for power control and monitoring. It supports up to AC110V~250V 10A IEC C14 power input and four 10A IEC C13 outlets.
The controller supports power control and monitoring via TCP/IP, which provide multiple network protocols and IoT protocols.
4x 10A IEC C13 female power output;
1x 10A universal IEC C14 male power input;
Monitoring and statistics of voltage, current, power, and energy consumption data;
Switch control, current and power consumption monitoring;
Provide remote monitoring, monitoring and configuration through Web-GUI;
2x redundant backup TCPIP network ports to provide uninterrupted network services;
Safety guarantee: overload protection, interference filtering, wiring error protection, remote login verification;
Supports multiple network protocols and IoT protocols.

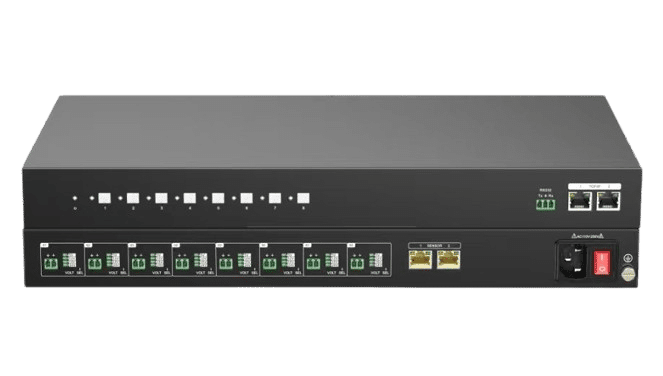

It is designed for power control and data monitoring. It supports AC power inputs ranging from 110V to 250V, with output voltages of 5/12/18/24V per port. It offers multiple control methods for devices. This PDU also supports data monitoring via TCP/IP, supporting various network and IoT protocols.
Furthermore, it features multiple protection mechanisms to ensure device and user safety. To ensure the PDU is suitable for the environment, users can also connect environmental sensors for real-time monitoring of the surrounding environment.
- Outlet-levemetering of energy, current & power.
- Configurable overload protection process.

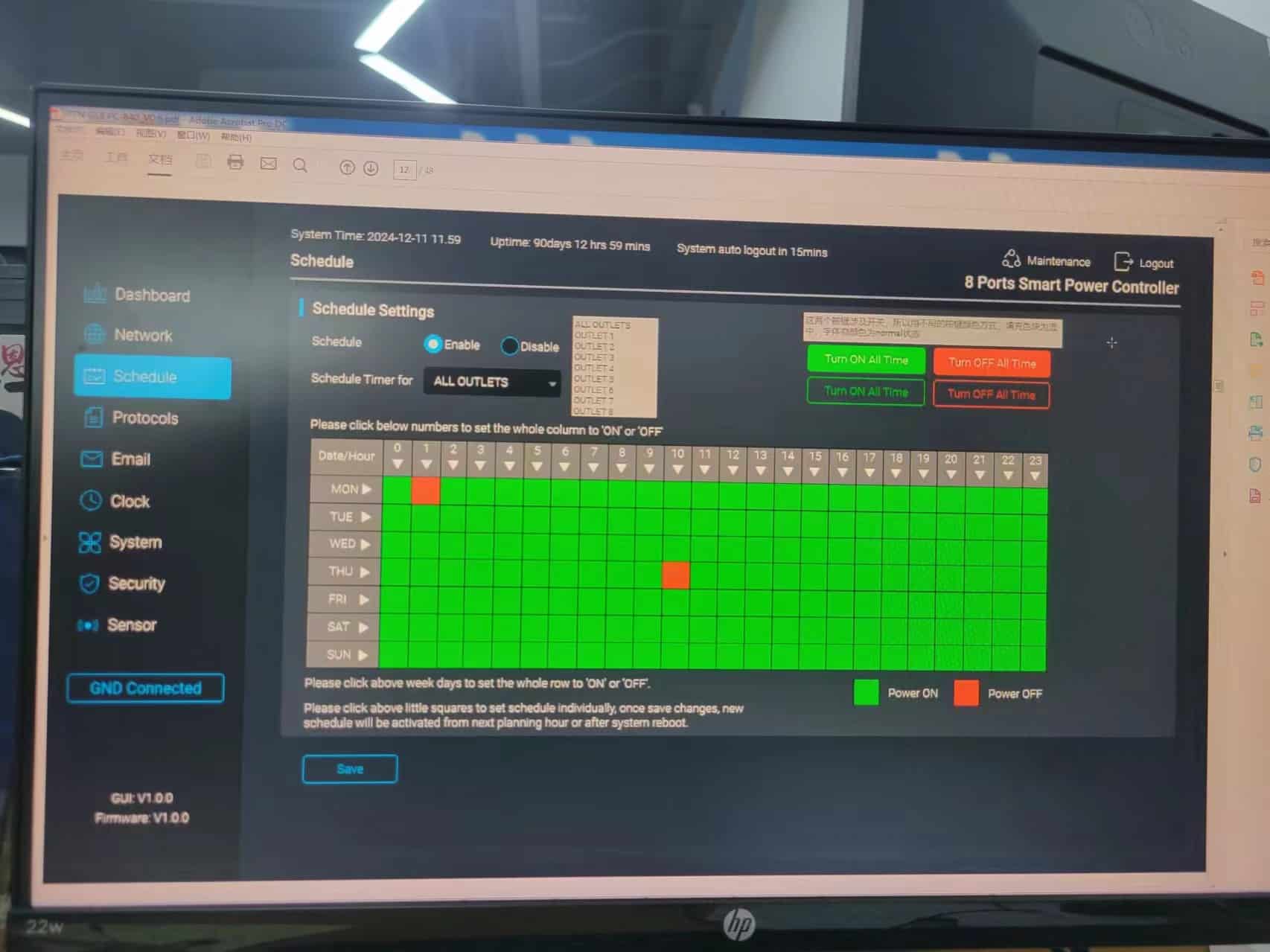

- System & outlets power supply schedule.
- Supports RADIUS security login and email alerts.
- 8x voltage variable outlets from 5/12/18/24V.
- Up to 36W DC power from each outlet (up to 30W at 5V).
- Controllable via TCP/IP(Web-GUI) or many protocols.
- Supports SNMP, Telnet, HTTPS, SSH, MQTT, Mod bus.
- 2x custom environment sensor ports.

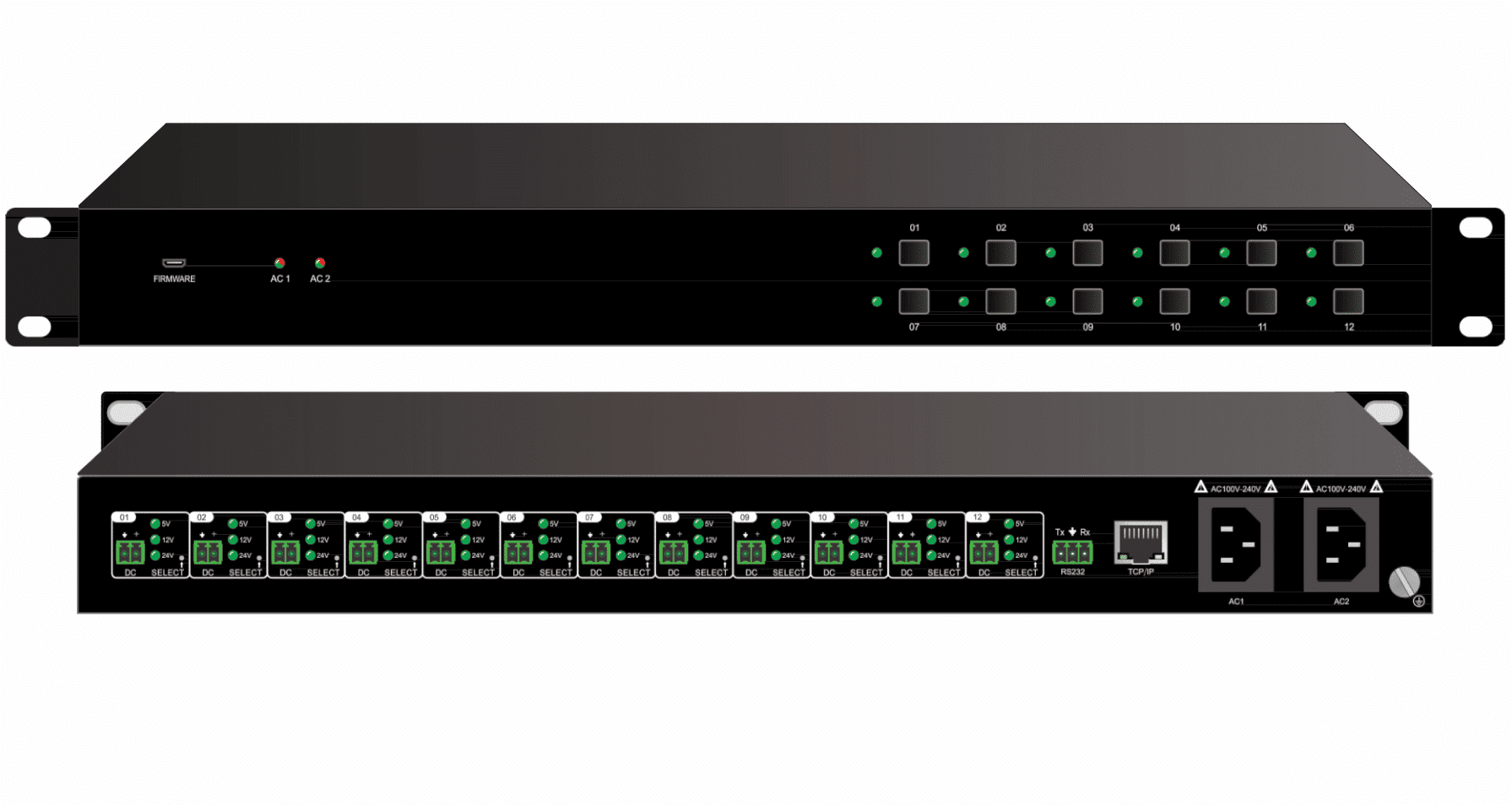

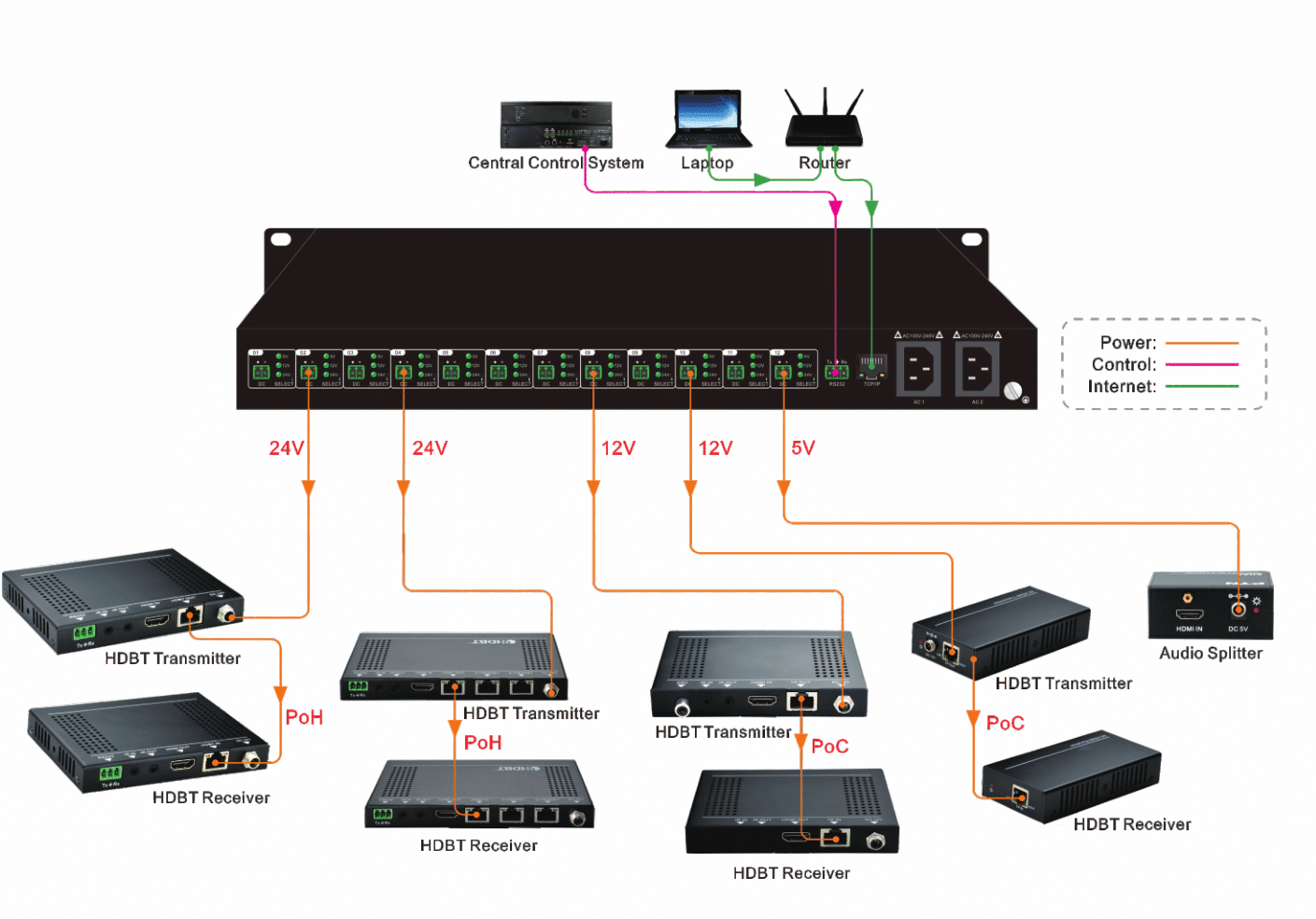

Base on the sequential control technology, when powered on, the 12 output channels will turn on orderly every 100ms.In addition, each output channel also can be switched on/off via front panel button, RS232 commands or GUI, and the output voltage on each output channel can be selected as 5/12/24VDC via the TACT Switch on rear panel, RS232 command, or GUI.
Total 12 output channels and each channel has three kinds of output voltage (5/12/24VDC) can be selected.
Output channels can be switched on/off by via the front panel buttons, RS232 commands or GUI.
Output voltage (5/12/24VDC) can be selected via the TACT Switch on rear panel, RS232 commands, or GUI.
Adopt sequential control technology.
Supports online software upgrading.
