BYOM Wireless Presentation system Content share from laptops Tablets Video Conference

4K Video Collaboration BYOM Presentation System ClickShare Quickshare Content Control

Additional information

Weight 800 g
Dimensions 18 × 7 × 2 cm
HDMI Version

4K60Hz

CPU

Quad-core Cortex-A55

Operation System

Windows 7/8/8.1/10 32 & 64 bit macOS 8.0 and above8.0 Android 4.2 and above4.2 iOS 8..0 and above 8.0

Transmission Distance

Adjustable with signal strength modulation; max. 60m (195 ft) between Button and Base Unit

Multiviewer

Support 16/9/6/4 screen, 4k pixel to pixel

Resolution

2G+8G/4G+32G(Pro)

Wifi

Wifi 6 5.8G Hotspot+5.8G Sta ,HDMI out +HDMI in

Markets

Video Conference room for Venues, Government, Retail, Hospitality, Residential, Corporate, Education

BYOM

Conference video meeting,Smart-classroom, Support install the thrid App application

Remote webpage casting

Support

Broadcasting and central management

Support

Detailes About BYOM Wireless Presentation system Content share from laptops Tablets Video Conference

4K Wireless AV Content Sharing & BYOM collaboration System (4-9 devices )

Transmitter (HDMI Dongle,Type C dongle,USB Dongle) and Receiver

Four,Nine,Sixteen devices share on One Screen

Introduction

Wireless conference solution is designed to connect the room display to be shared with remote meeting participants to provide a better collaborative experience between in-room and remote participants,it enables people to connect the room camera, mic, speaker, and display with their own laptop wirelessly, including USBcam/Webcam reverse transmission and audio back to the laptop when wireless conferencing.

byom wireless presentation system content share from laptops tablets video conference

Main features:

* Pure wireless presentation experience, bring your own device, no cable messy.
* Support Single screen 4K pixel to pixel, Dual screens 1080P pixel to pixel
* Wireless contents input up to 4K, HDMI 2.0 output
*Support native wireless mirroring protocols like Airplay, Miracast, Chromecast
*Support plug-&-play HDMI/Type-C dongles for wireless presentation
*Support Windows, Mac and Android App for wireless connection
*Support 4-9 split screen view
*Support wireless touch back on interactive whiteboard/touch screen
*Best-in-class data security with dual network and high standard encryption
*RS232 supported, can support some commands of central control
*Support moderator mode with preview function
*Support whiteboard and annotation
*Customizable home screen page
*Central management platform available

byom wireless presentation system content share from laptops tablets video conference

USB Dongle –Transmitter Features:

Wireless Transmitter  (HDMI Dongle,Type C dongle,USB Dongle)

No configuration, no installation, automatic connection

byod wireless presentation gateway content share from laptops tablets video conference

Packing List
① 1 x (Transmitter) ( Depends on different application for 4 or 9 devices content share)
② 1 x (Receiver)
③ 1 x Remote controller
④ 1 x HDMI Cable & 1 x Power adapter
byom wireless presentation system content share from laptops tablets video conference

BYOM: Wireless Shared Camera & Microphone

byom wireless presentation system content share from laptops tablets video conference

Accurate Writing and Annotation

byom wireless presentation system content share from laptops tablets video conference



Remote Web Page Casting

byom wireless presentation system content share from laptops tablets video conference

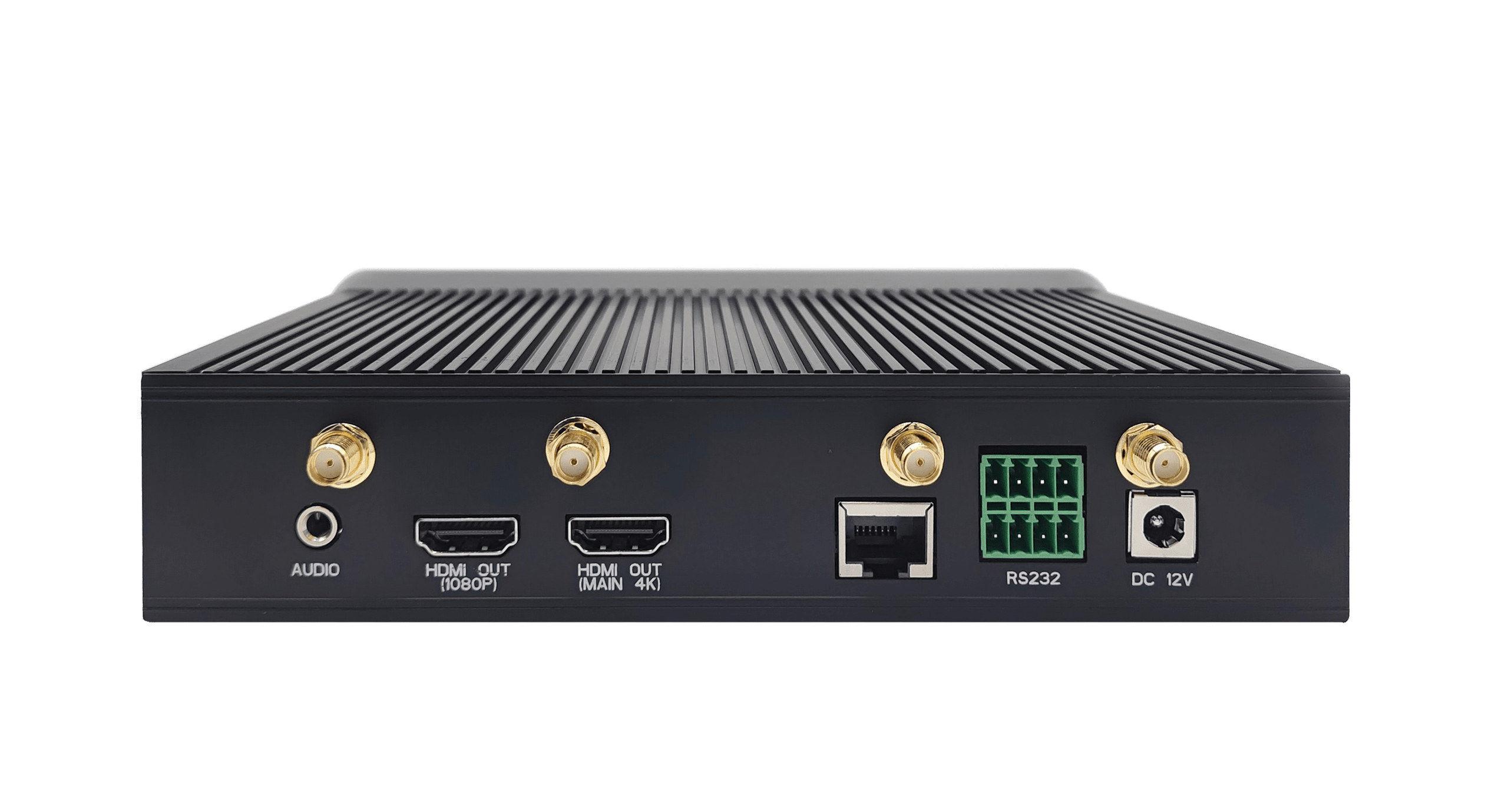

RS232 *2 for Easily access to central control

byom wireless presentation system content share from laptops tablets video conference

App Free: Miracast & Airplay Mixed projection

byom wireless presentation system content share from laptops tablets video conference

Remote Broadcast Centralized Management

byom wireless presentation system content share from laptops tablets video conference

Live broadcast on the vertical screen and watch movies on the horizontal screen

byom wireless presentation system content share from laptops tablets video conference

Application Example

Four or Nine devices in One Screen share, Multiviewer, Seamless switch, Multi person Presentations

byom wireless presentation system content share from laptops tablets video conference
