HDMI 18Gbps Audio Extractor with Audio Downmix

New 4K HDR HDMI Audio Extractor with downmixer



Additional information

Weight 220 g
Dimensions 10.6 × 6 × 2.7 cm
HDMI Version

2.0b 18Gbps

Resolution

4K 60 HZ, YCbCr 4:4:4 HDR

HDCP

HDCP 2.2 HDCP1.4

Color space

RGB, YCbCr 4:4:4, YCbCr 4:2:2

Audio Format (Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital,
DTS 5.1, Dolby Digital+, Dolby
TrueHD, DTS-HD Master Audio,
Dolby Atmos, DTS:X

Optical Audio Formats

LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH

L/R Audio Formats

Analog Stereo 2CH

Markets

Residential

Detailes About HDMI 18Gbps Audio Extractor with Audio Downmix

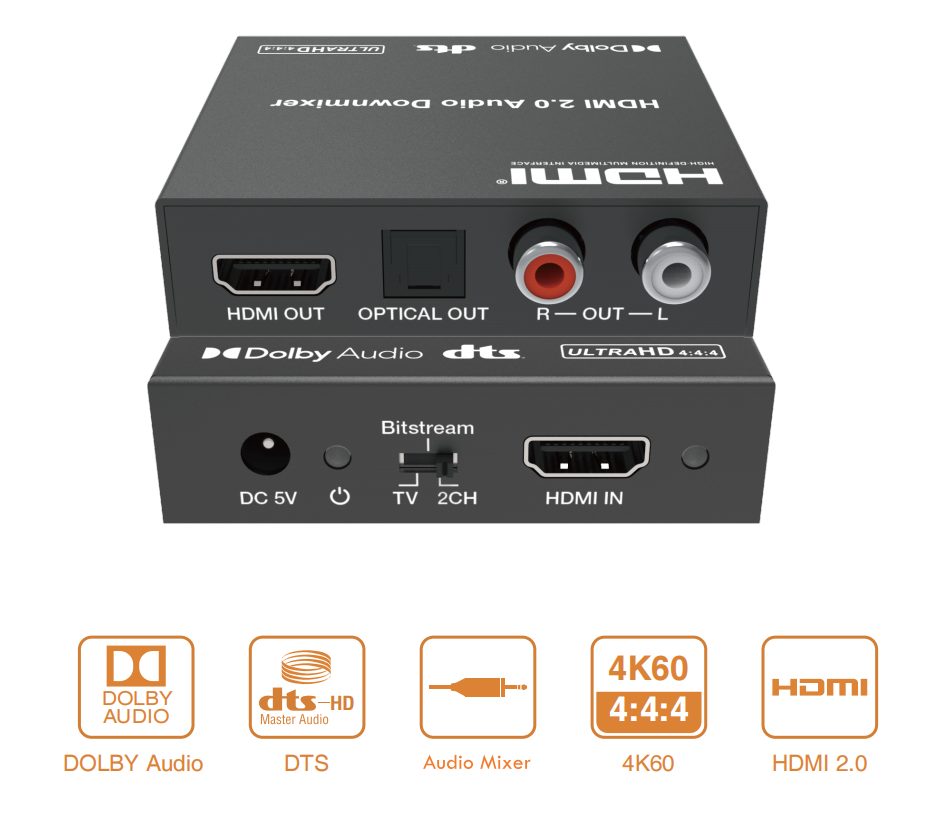

HDMI 2.0 Audio Downmixer

hdmi 18gbps audio extractor with audio downmix

The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs.

For maximum flexibility, this audio extractor also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio passthrough.

Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

Features

☆ HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

☆ Video resolutions up to 4K2K@50/60Hz (YUV444)

☆ Extract HDMI audio to multi-channel optical (SPDIF) or L/R analog audio

☆ HDMI Pass-through audio input to HDMI and optical audio output

☆ Support bitstream audio down-mix to L/R analog output

☆ Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH

☆ Support HDMI High Bit Rate(HBR) audio pass through

☆ Audio sample rates up to 96kHz

☆ 10bits HDR (High Dynamic Range) pass through

☆ Support CEC pass-through

Package Contents ① 1× HDMI 18Gbps Audio Extractor ② 1× 5V/1A Power Adapter ③ 1× User Manual
