Bidirectional 12G SDI & HDMI 2.0 Converter,12G SDI to HDMI 2.0,HDMI 2.0 to 12G SDI

Professional Bidirection 12G SDI & HDMI2.0 with Audio Extract

Additional information

Weight 500 g
Dimensions 7.6 × 7 × 2 cm
HDMI Version

4K 18Gbps

Resolution

Up to 4K60

HDCP

HDCP2.3 and HDMI 2.0b

Markets

Radio and television program editing and production, video conferencing, armed police forces, medical teaching, live interaction, stage equipment rental, AV Entertainment centers, live sports events, drones and other industries.

Video Formats

720p50,720p59.94,720p60,1080i50,1080i59.94, 1080i60,1080p23.98,1080p24,1080p25, 1080p29.97,
1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160P25, 2160p29.97, 2160p30,
2160p50, 2160p59.94, 2160p60, 2160p23.98DCI, 2160p24DCI, 2160P25DCI, 2160p29.97DCI, 2160p30DCI,
2160p50DCI, 2160p59.94DCI, 2160p60DCI

Detailes About Bidirectional 12G SDI & HDMI 2.0 Converter,12G SDI to HDMI 2.0,HDMI 2.0 to 12G SDI

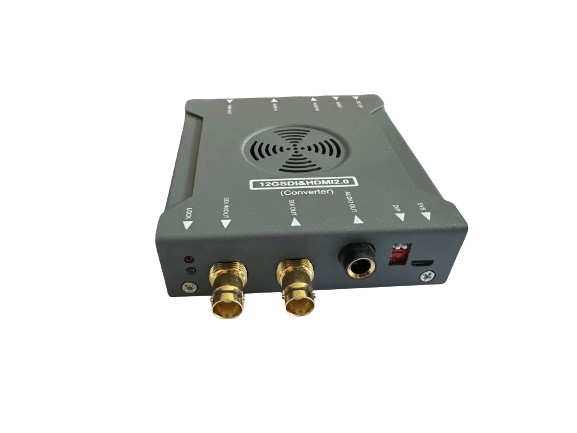

Bi directional 12G SDI & HDMI 2.0 Converter

Overview

This model can convert in both directions,In different standards at the same time! You can convert SDI to HDMI and HDMI to SDI simultaneously.Plus it also supports Audio extract. It Support different video format ,such as HD, 3G,6G,12G.

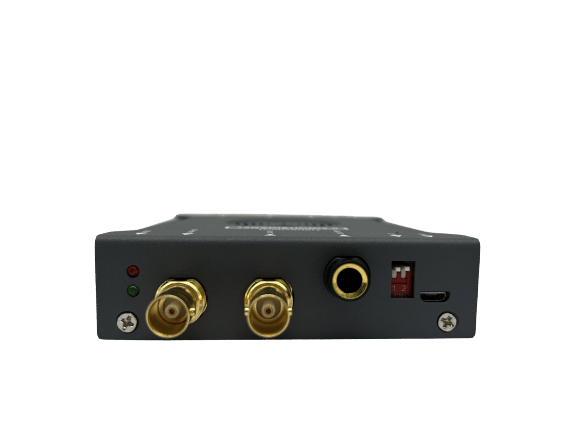

Function description

bidirectional 12g sdi & hdmi 2.0 converter,12g sdi to hdmi 2.0,hdmi 2.0 to 12g sdi

1.USB port

2.DIP port:

Dial the code. Dial No. 1 and dial it up. It means the current function of the converter is HDMI to SDI.

Dial No. 1 and dial it down. Indicates SDI to HDMI converter.

Turning the No. 2 dial up indicates that the output is HDMI audio.

Turning the No. 2 dial down indicates that the output is SDI audio.

3.Audio Output

4.SDI Output

5.SDI Input

6. Light, Red light will be on when the power is connected. Green light will be on when there is video signal input.

bidirectional 12g sdi & hdmi 2.0 converter,12g sdi to hdmi 2.0,hdmi 2.0 to 12g sdi

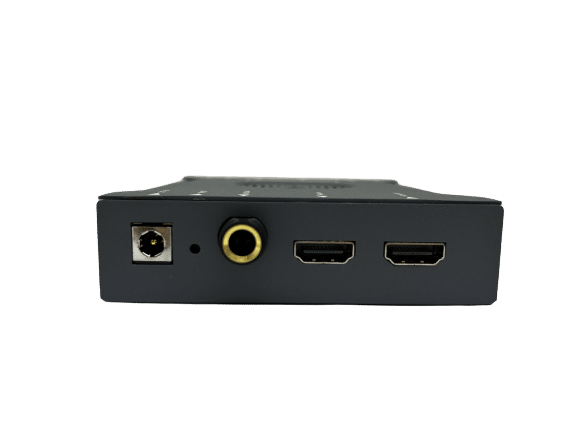

7.Power Port

8.Reset

9.Audio Input

10.HDMI Input

11.HDMI Output

Application Example :

bidirectional 12g sdi & hdmi 2.0 converter,12g sdi to hdmi 2.0,hdmi 2.0 to 12g sdi
