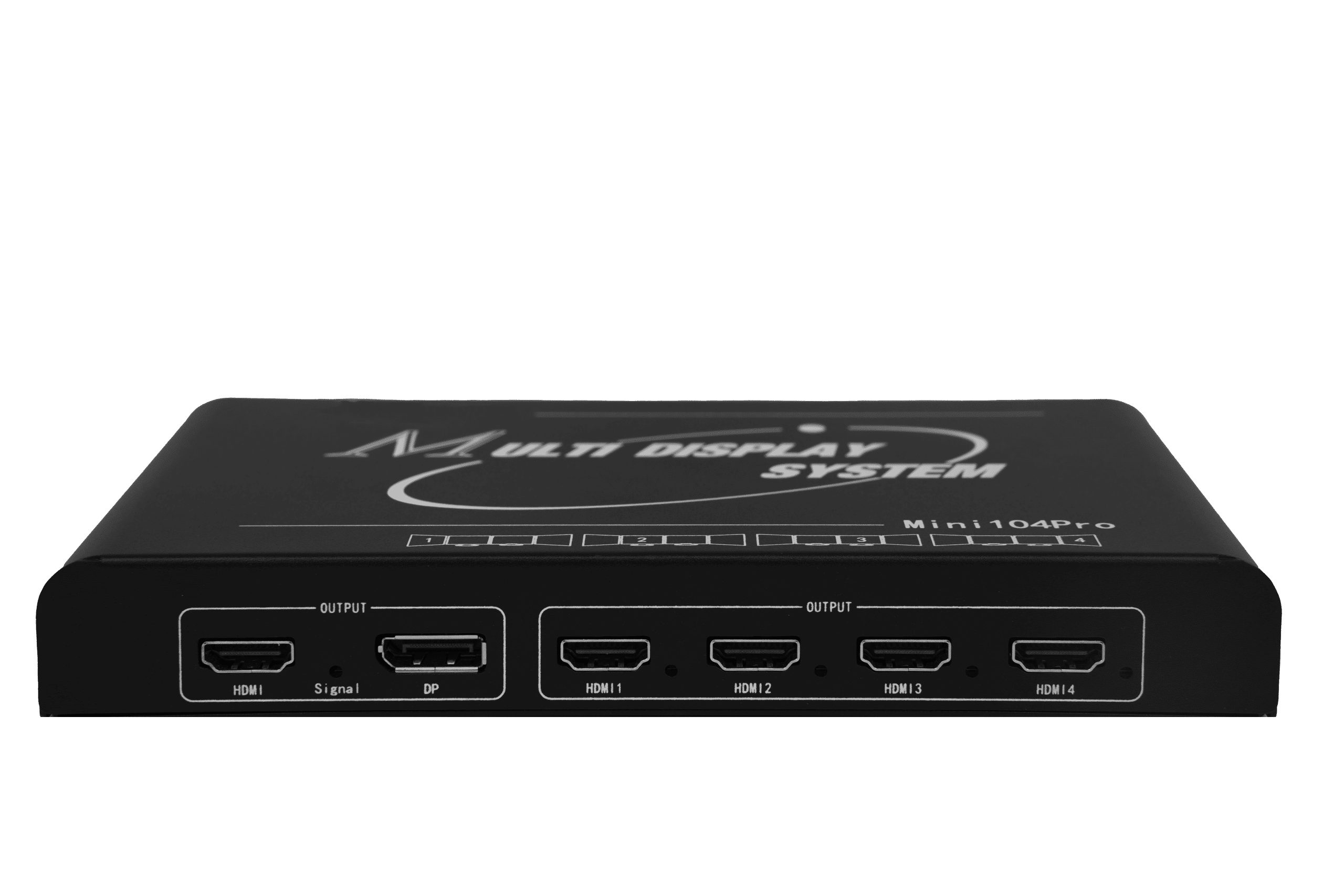

FPGA 4K60 Multi Screen extender 1X4

LCD/LED multi-screens video processor

Additional information

Weight 800 g
Dimensions 23 × 11.3 × 2.8 cm
Interface

1xHDMI Input 4K60HZ 2.0 or DP port optional , 4XHDMI Output
Audio Out,

Application

Ultra-high-resolution desktop applications, ultra-large screen walls, command and dispatch systems, multi-screen video surveillance, engineering display applications, multi-channel projection, virtual reality, surround-screen theaters, large advertising walls, LCD/LED multi-screens, etc.

LCD/LED VideoWall mode

1×1,1×2,1×3,1×4,2×2,2×1,3×1,4×1

Computer graphics card

Compatible with NVIDIA graphics card and ATI graphics card

Package list

12V/2A power supply*1, HDMI/DP cable* 1 , certificate*1, warranty card*1

Detailes About FPGA 4K60 Multi Screen extender 1X4

4K FPGA Multi screen extender

fpga 4k60 multi screen extender 1x4

Product features

1.The creative ultra-clear processor is an industrial-grade high-performance product specially developed to meet the needs of multi-desktop operation and multi-channel projection integration. It adopts HDMI/DP input interface and HDMI output.

2. Ultra-high resolution, the highest supported output resolution is 7680 x1200@60Hz/1920x 4800@ 60Hz, and is backward compatible with lower resolutions.

3. Supports 1x 1 , 1xN, Mx1 ( multiple units can be connected in parallel to achieve MxN ), point-to-point, no stretching, no deformation, and wide field of view.

4. Using 28 nm process high-end programmable FPGA chip, pure hardware processing architecture, no poisoning, no crashes, nanosecond-level processing speed, no delay, no tailing.

5. Industrial-grade design, more reliable quality, using fully imported industrial chips, multi-layer PCB boards, input signal balanced gain, and output signal driver amplification.

6. Supports parallel use to ensure real-time display requirements on large screens.

7. Low power consumption, energy-saving and environmentally friendly design, internal conduction heat dissipation, no external heat dissipation measures required, extremely high reliability.

8. Support audio separation, 3.5mm audio port; support HDMI audio out.

Application scenarios

Ultra-high-resolution desktop applications, ultra-large screen walls, command and dispatch systems, multi-screen video surveillance, engineering display applications, multi-channel projection, virtual reality, surround-screen theaters, large advertising walls, LCD/LED multi-screens, etc.

fpga 4k60 multi screen extender 1x4

Specification

Input interface maximum video pixel frequency 600MHz
Maximum video pixel frequency of output interface 300MHz
Enter interface type HDMI interface, DP interface (choose one of the two, HDMI takes priority)
HDCP function Support HDCP2.2

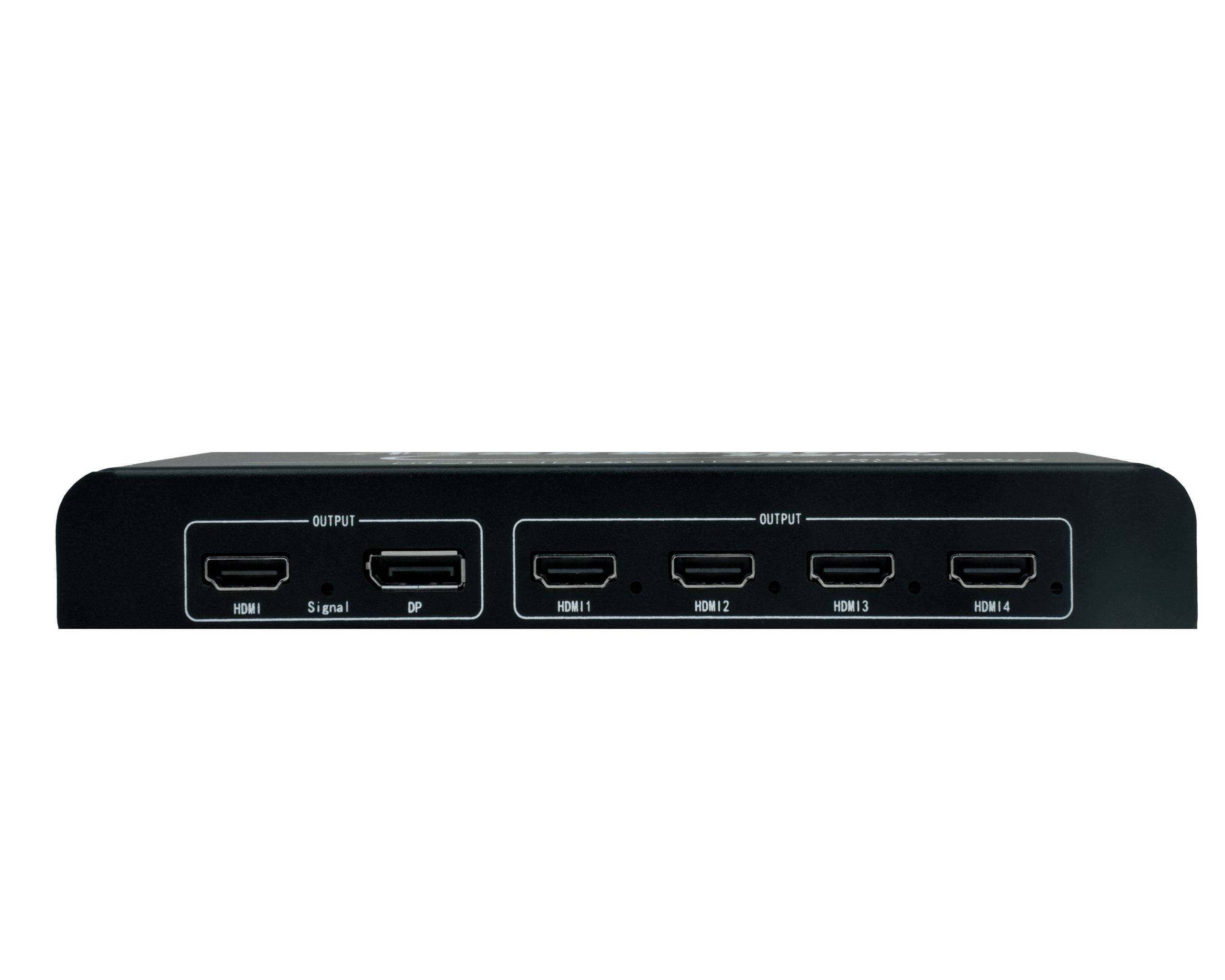

Output interface type 4 HDMI outputs

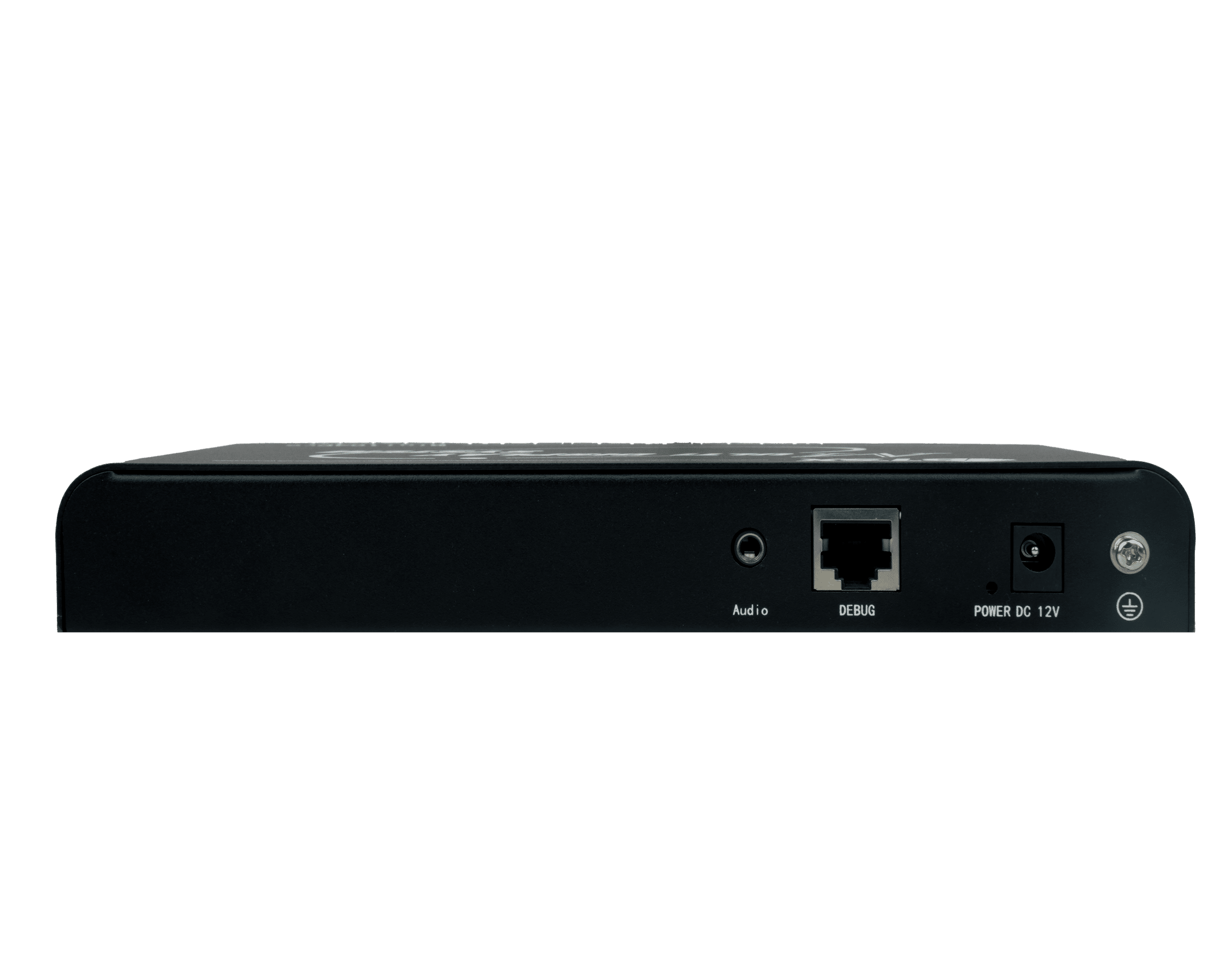

1 3.5mm audio output interface

audio function Support 3.5mm audio separation; HDMI audio comes out
2 screens support typical resolutions 2x1920x1080@60Hz 1920x1080x2@60Hz
3 screens support typical resolutions 3x1920x1200@60Hz 3x1920x1080@60Hz

1920x1200x3@60Hz 1920x1080x3@60Hz

4 screens support typical resolutions 4x1920x1200@60Hz 4x1920x1080@60Hz

1920x1200x4@60Hz 1920x1080x4@60Hz

2x1920x1080x2@60

Product factory default resolution 3840×2160@60Hz
2×2 maximum supported resolution 3840×2400@60Hz
3×1/1×3 maximum supported resolution 1920×3600@60Hz/5760×1200@60Hz
4×1/1×4 highest supported resolution 1920×4800@60Hz/7680×1200@60Hz
Enter cable length ≤3 meters (copper wire)
Output cable length ≤ 15 meters (copper wire)
Equipment size Length 230mm* Width 113mm* Height 28mm
Equipment net weight 0.8KG
Package Size Length 360mm* Width 215mm* Height 70mm
Package weight 1.1KG
Parts List 12V/2A power supply*1, HDMI/DP cable* 1 , certificate*1, warranty card*1
Warranty three years

ATI graphics card

fpga 4k60 multi screen extender 1x4
