8K60 Multi-Screen Extender Multi-Channel Projection Fusion Processor DP 2.1 HDMI Matrix Customizable

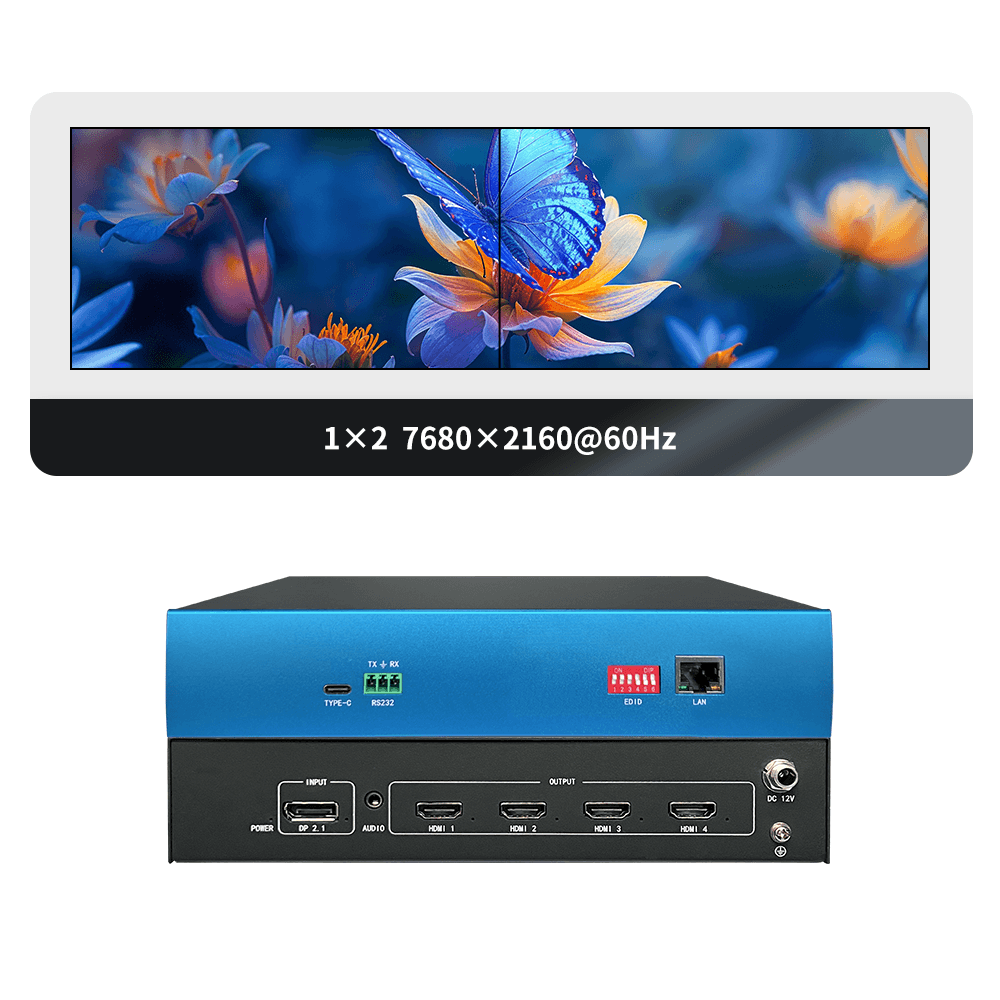

It is an industrial-grade high-performance 8K60 multi-screen expander specially developed for Multi-screen Expander operation and multi-channel image processing and display requirements. It is equipped with 1-channel 8K60 input with DP interface and 4-channel 4K60 output with HDMI interface. It can combine four 4K60 display units into an 8K60 video wall to meet the common 2×2 layout, and also support 1×4 layout and 4×1 layout.

It is widely used in various fields such as ultra-high resolution desktop, engineering display, multi-channel projection fusion, exhibition halls, virtual reality, large-scale circular screen cinemas, command centers, stage performances, large advertising walls, LCD/LED and so on.

Features:

Supports 1-channel 8K60 signal input with DP interface to ensure clear images and rich details.
Supports standard resolution output such as 16:9 and 16:10 as well as custom output resolution, provides 4-channel HDMI interfaces, compatible with various display devices and resolution requirements. It can be flexibly adjusted according to specific application needs and device configurations, offering more options and adaptability.
Supports control via DIP switch, RS232, and Ethernet web interface.

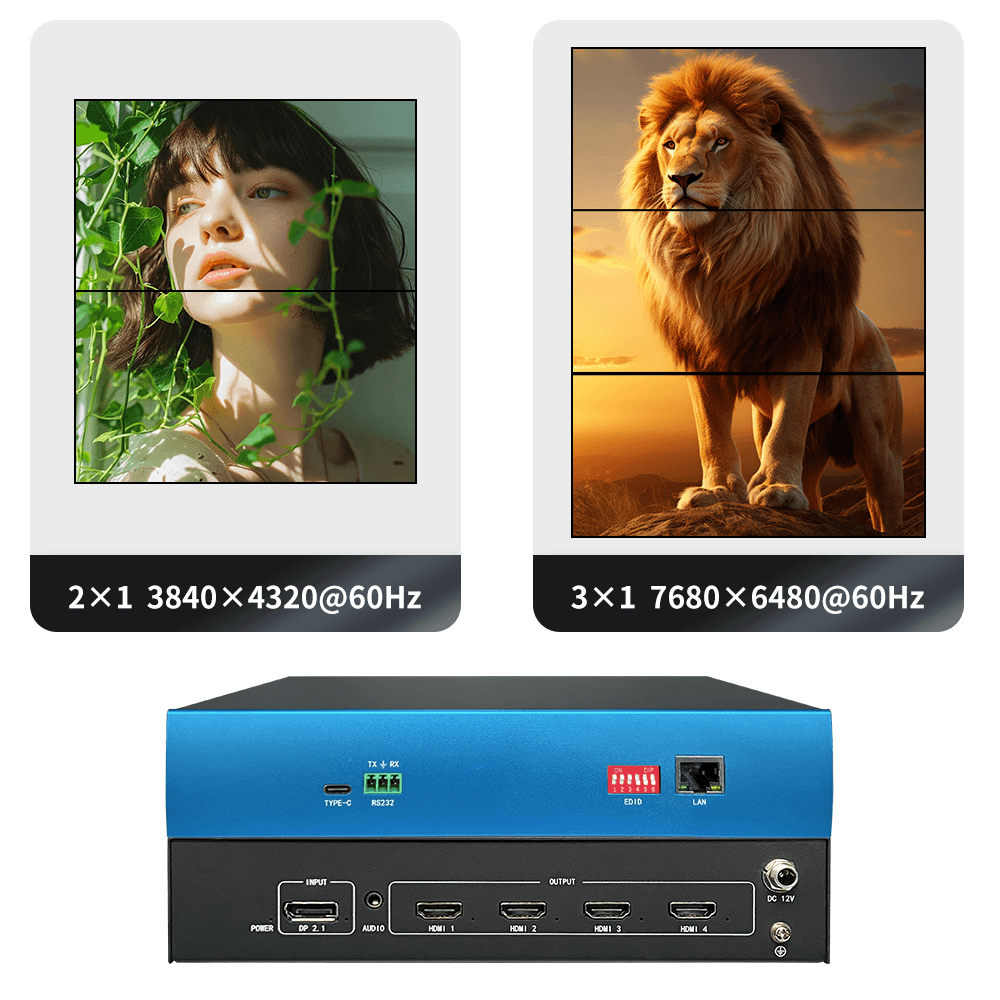

Supports M×N point-to-point splicing (M, N≤4, MN≤4) without stretching or distortion, delivering a wider field of view.
Supports output channel duplication and backup, making full use of all physical interfaces and turning idle ports into hot backup resources.
Supports synchronization of all output ports to fundamentally eliminate screen tearing, stuttering and out-of-sync issues, achieving ultra-smooth and consistent multi-screen display.
Supports EDID management via DIP switch and Web interface without external programming software.
Supports DHCP auto IP assignment and custom static IP address, balancing ease of use and controllability for various application scenarios.
Adopts a high-end programmable FPGA chip with 28nm process and full hardware real-time processing architecture for ultra-fast processing with zero latency.
Industrial-grade design with thickened 6-layer PCB, 16KV advanced ESD protection and outstanding product stability.
Supports parallel operation of multiple units to expand the number of channels and meet real-time large-screen display requirements.
Adopts a modular chassis design: two half-width units can be combined into a full-width 1U structure with a tray. It also supports card insertion with up to 4 boards integrated in one chassis for centralized power supply.
Low-power, energy-saving and eco-friendly design with overheat protection and anti-interference performance. Built with 18W thermal conductivity material for internal heat dissipation to ensure long-term stable operation in various environments.

Product datasheet

Input Interface	1×DP 2.1 (Copper wire≤3Meters)
HDCP	Support HDCP1.4/HDCP 2.3
Input Maximum Pixel Clock Frequency	2400MHz
Input Maximum Resolution	2×2: 7680×4800P60、7680×4320P60,1×4：15360×2160P30、15360×2400P30 4×1：3840×8640P60、3840×9600P60.See Chapter 5 for details.
Input Color Format	RGB444
Input Color Depth	8bit
Output Interface	4×HDMI2.0 (Copper wire≤5Meters)
Output Maximum Pixel Clock Frequency	600MHz
Output Resolution	3840×2400P60、3840×2160P60,3840×2400P50、support customization
Output Color Format	RGB444
Output Color Depth	8bit
Power Supply	12V5A
Power Consumption	28W
Storage/Operating Temperature	-10~50℃/0~50℃, 14ºF to 122ºF/32ºF to 122ºF
Product Dimensions	L×W×H: 217mm×204mm×44.5mm
Product Weight	1 KG
Packaging Dimensions	L×W×H: 365mm×255mm×95 mm
Package Weight	2.1 KG

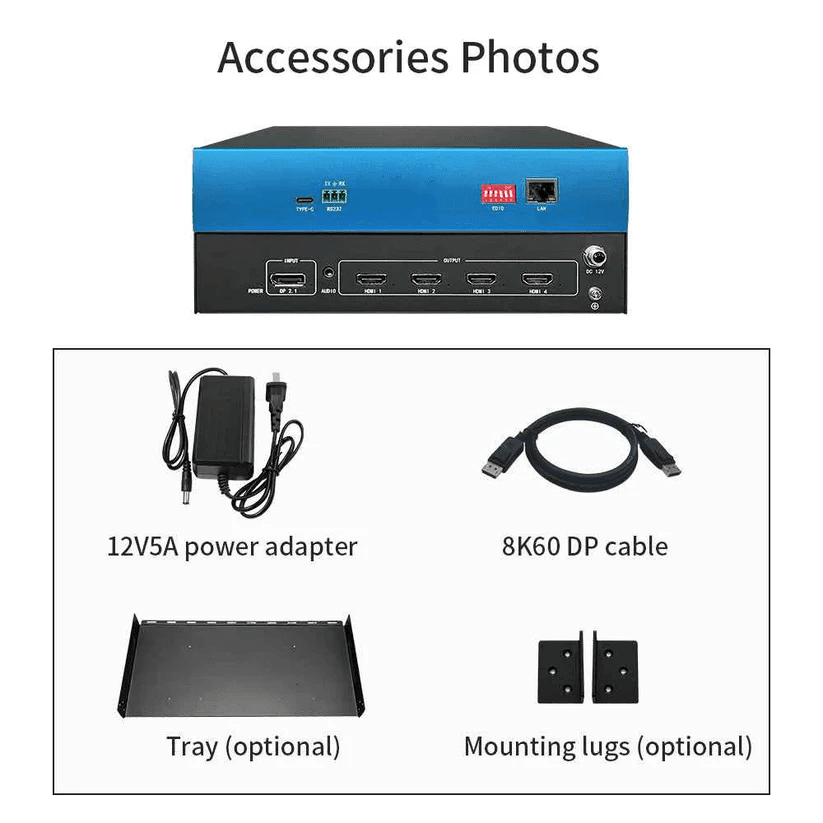

Accessory List	1×12V5A power adapter、1pcs DP 1.4 cable, 1 cat5e network cable,1pcs screw terminal block(phoenix type),1pcs 1U Tray (optional)
After-sales Service	3 years

Splicing

DIP Switch

The product is equipped with a 6-position DIP switch, which can be used to adjust the product’s EDID and change the layout.
Up = 1, Down = 0.
Refer to the table below for details.
For 1×4 and 4×1 layouts, use a **NVIDIA GeForce RTX 50 Series or higher graphics card**; Apple GPUs are **not supported**.
DIP switch setting **111111** enables Web mode.

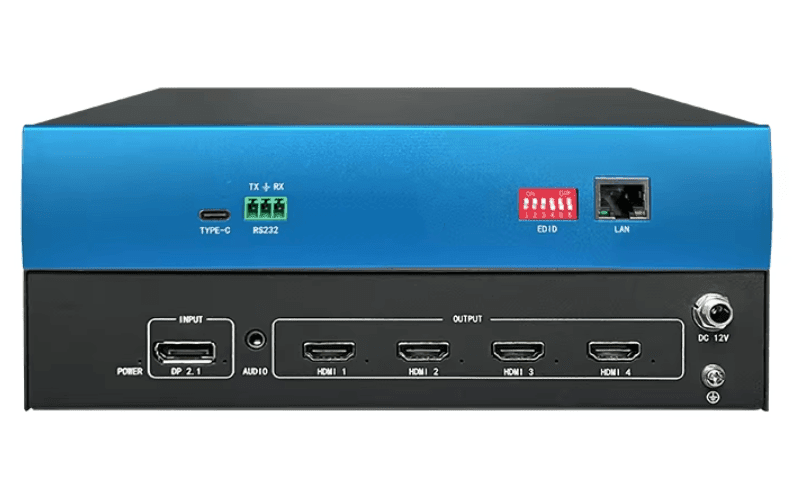

Interface

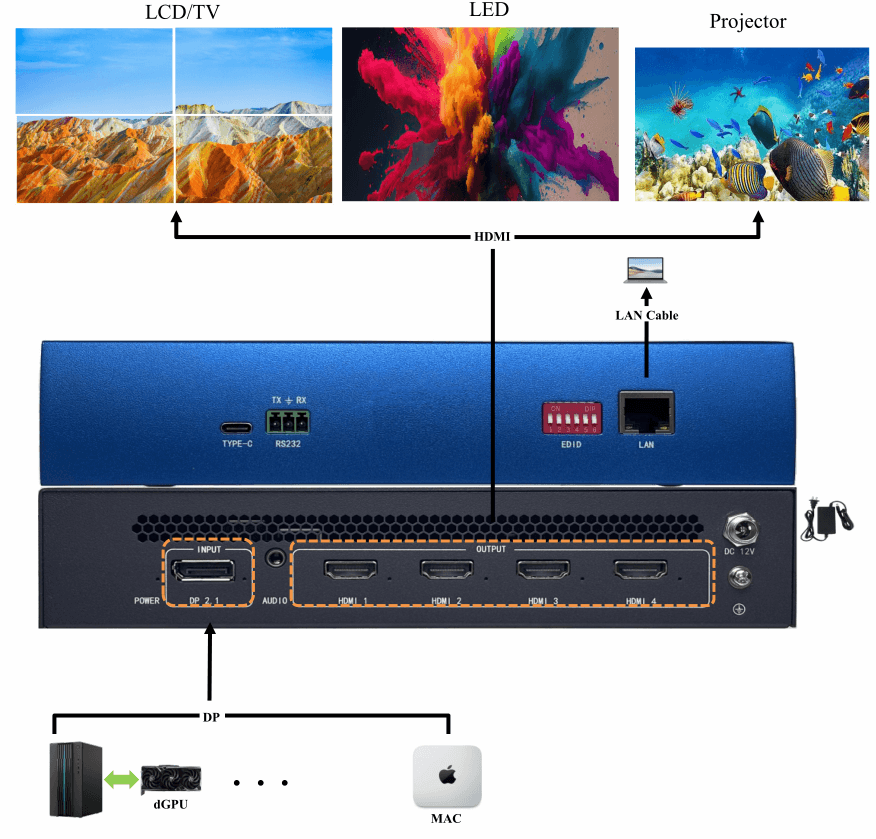

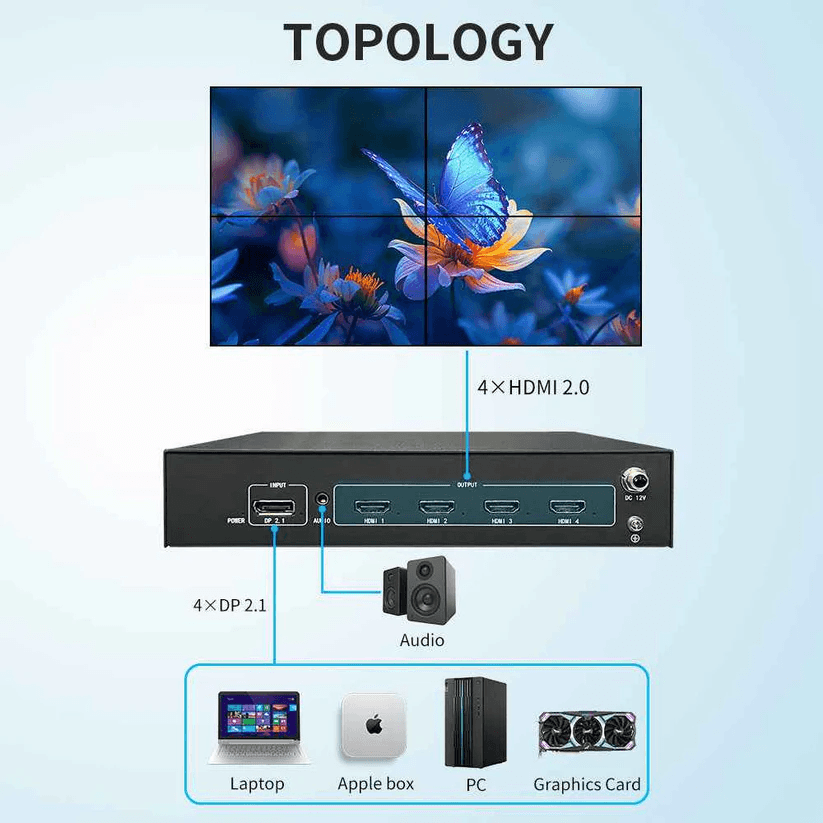

Device Connection

API Description

This device is equipped with three types of APIs corresponding to three communication channels:
WEB, TCP/UDP, and RS232 serial port.All three APIs share a dedicated set of BCMD control commands, with fully unified command format and execution logic.Only the communication method, hardware connection, and parameter configuration differ.
You may select the corresponding API to control the device according to actual debugging and application scenarios.Before use, please carefully verify all parameter requirements to ensure normal command issuance and proper device response.

Product highlights:

* Supports 8K60 signal input through 1 DP interface to ensure clear images with rich details;
* Provides 4 HDMI interfaces for 4K60 signal output simultaneously to meet multi-channel display requirements;
* Ultra-high resolution, supporting a maximum input of 7680×4800/7680×4320;
* Supports point-to-point splicing of up to 4 screens without stretching or distortion for a wider field of view;
* Supports EDID management, with flexible EDID selection via DIP switches;
* Industrial-grade design with 8-layer thickened PCB board, 16KV super anti-static capacity and excellent stability;
* Low power consumption, energy-saving and environmental protection design with overheat protection and anti-interference design;adopts materials with a thermal conductivity of 18W/mk for internal heat dissipation to ensure long-term stable operation of the device, suitable for long-term use in various environments;

* Chassis combined design: 2 half-width boxes are combined into a full-width 1U structure with a tray.
