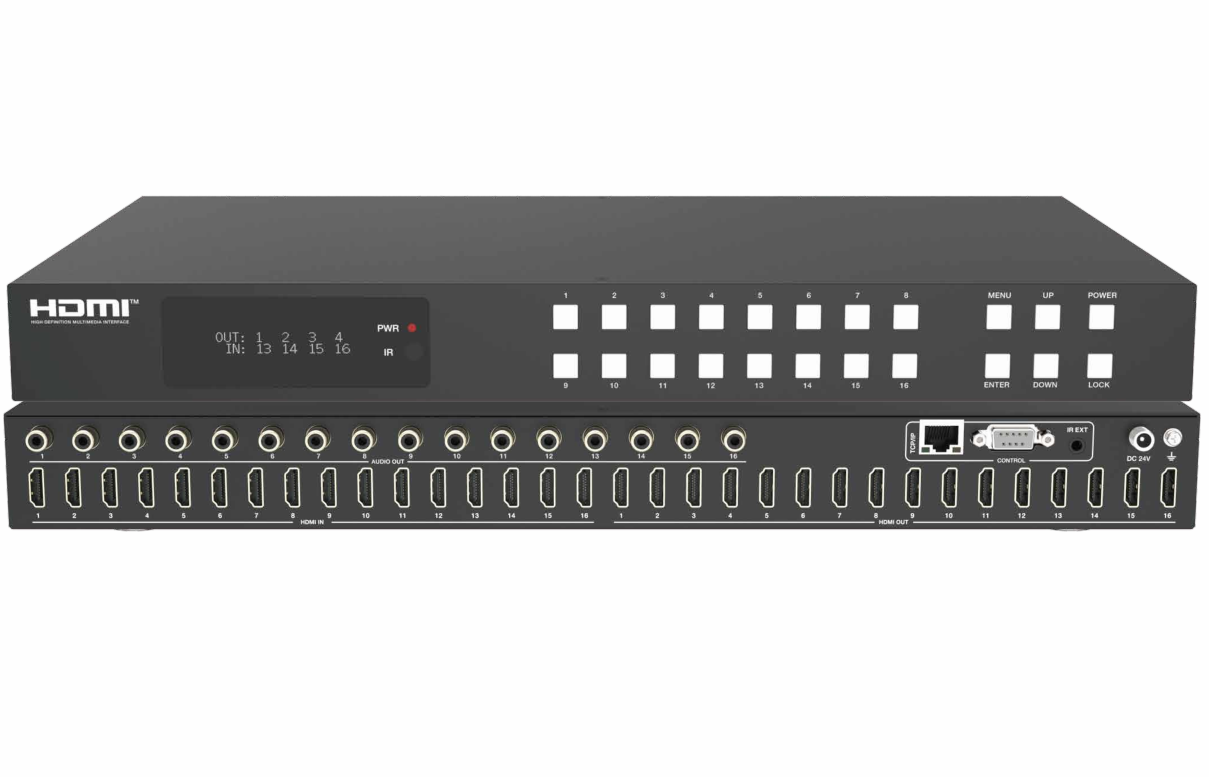

8K60Hz 48Gbps 16×16 HDMI Matrix Switcher with Audio deembedding,EDID,RS232,WebGui
8K60Hz 16×16 HDMI 2.1 Matrix Switch
| Weight | 5500 g |
|---|---|
| Dimensions | 44 × 31 × 7 cm |
| HDMI Version | HDMI2.1 8K60Hz |
| Matrix mode | 16×16 switching |
| HDCP | HDCP2.3,HDMI 2.1 |
| Control methods | Panel Button with LCD, IR Remote control, RS232 Control, TCP/IP,Web Gui Control |
| Video Format Supported | 8K@60 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Audio format Supported | HDR10, HDR10+, HLG and Dolby Vision pass-through |
| Audio | Digital audio de-embedded at output ports |
Detailes About 8K60Hz 48Gbps 16×16 HDMI Matrix Switcher with Audio deembedding,EDID,RS232,WebGui

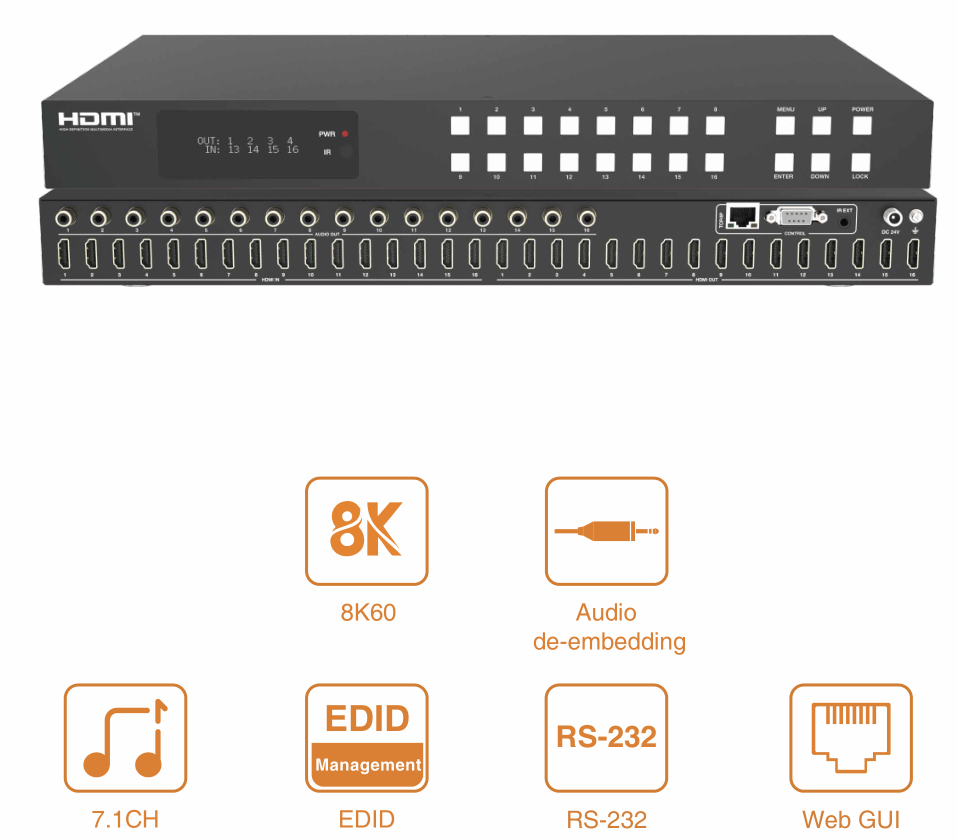

8K60Hz 16×16 HDMI Matrix
Features
HDMI 2.1, HDCP 2.3 compliant
8K@60 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
Up to 48Gbps FRL
8K to 4K/2K downscaling on each output
HDR10, HDR10+, HLG and Dolby Vision pass-through
PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, DTS,DTS-EX,DTS-96/24, DTS High Res, Dolby True HD,DTS HD-master pass-through
Digital audio de-embedded at output ports
Advanced EDID management
Source and Display control via CEC
Front panel button, IR, RS-232, TCP/IP and Web GUI control
