4K 8K Video Wall Controller 12×12 Seamless, Matrix, Splicing Processor Web Control
Pro 12X12 Video Processor with FPGA chip,Seamless switching, Multiviewer,Support 12 screens horizontal and vertical splicing,
Supporting screen mirroring and whole screen freezing
| Weight | 5000 g |
|---|---|
| Dimensions | 48.3 × 20 × 13 cm |
| HDMI Version | 4K60hz 18Gbps,Input 4xHDMI 2.0,Output 12xHDMI 2.0 |
| Input resolution | 1280x768P60,1280x800P60,1280x1024P60,1360x768P60,1440x900P60,1920x1080P60、3840x2160P60,Output max up to 4096x2160P60 |
| Maximum Pixel Clock Frequency | Input 600MHz, Output 600 MHz |
| Color Format | RGB444, YUV444, YUV422, YUV420 |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
| Control | Remote control, RS232 serial port, Web, key pad |
| Audio | HDMI output with audio out |
Detailes About 4K 8K Video Wall Controller 12×12 Seamless, Matrix, Splicing Processor Web Control
Overview
It is a splicing + seamless matrix switching device.It has high-definition processing chip, 12-channel 4K60 HDMI interface input, 12-channel 4K60 HDMI interface output.
Device input and output support 3 boards, each board 4 HDMI ports, can be combined to provide remote control, serial port, network port control interface, button, LCD screen display.
Ultra-high picture quality, extremely stable, extremely simple operation mode, widely used in meeting rooms and conference centers, command centers, monitoring rooms, commercial display and advertising, public information release, museums and exhibition halls and other places.
Combination method
| Number of input cards | Number of onput cards | Combination method |
| 1 | 1 | 4 in and 4 out |
| 1 | 2 | 4 in and 8 out |
| 1 | 3 | 4 in and 12 out |
| 2 | 1 | 8 in and 4 out |
| 2 | 2 | 8 in and 8 out |
| 2 | 3 | 8 in and 12 out |
| 3 | 1 | 12 in and 4 out |
| 3 | 2 | 12 in and 8 out |
| 3 | 3 | 12 in and 12 out |
Features:
- Supports 12 HDMI inputs and 12 HDMI outputs.
- Single device, 12 in 12 out, can be combined 12 rectangular splicing mode, 12 input source seamless switching, horizontal screen/vertical screen/field shape, and support large-scale parallel use.
- The maximum value of the input is 3840x2160P60, backward compatible. The maximum output output is 4096x2160P60.
- Supports custom resolution of an independent graphics card and EDID management. You can create and save custom EDID using the WEB UI.
- Splicing does not require compression of the input source, and the picture is clear.
- Support infrared remote control, serial port RS232, network port WEB interface, key board control.
- Uses HD video processing chip
- Low power consumption, energy saving and environmental protection design, without any external heat dissipation measures, high reliability.

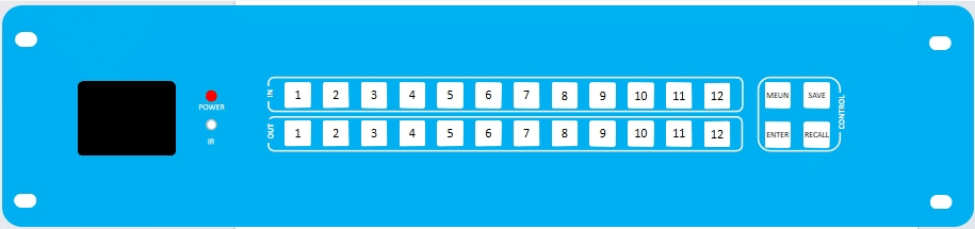

- The chassis comes with an LCD display. You can switch the source, set the resolution, and switch the dynamic and static IP addresses by pressing the button.
Specification:
| Input interface | 12 x HDMI 2.0 |
| Enter the highest pixel clock frequency | 600MHz |
| Input maximum resolution | 3840x2160P60 |
| Color depth | 8bit |
| Color format | RGB444, YUV444, YUV422, YUV420 |
| Output interface | 12 x HDMI 2.0 |
| Output maximum pixel clock frequency | 600MHz |
| Output resolution | 4096x2160P60 |
| Control mode | Remote control, RS232 serial port, Web, key pad |
| Audio frequency | HDMI output with audio out, separate |
| Power source | 220V |
| Power dissipation | 72W(3 input cards, 3 output cards) |
| Storage/operating temperature | -10 to 50ºC/0 to 50ºC |
| Product size | Length × width × height: 483mm×200mm×130mm |
| Package size | Length × width × height: 540mm×325mm×225mm |
| Product weight | 5KG |
| Packing weight | 5.7 KG |
| List of attachments | 1×220V power cable, 24×HDMI cable, 1× Phoenix terminal, 1×IR infrared head, 1× remote control |
| After-sales service | 3 years |
Interface
| Name | Instructions |
| RUN | Running indicator. Blinking: The indicator is running |
| POWER | Power indicator, steady on. Switch on the power supply |
| 3.5MM seat | Infrared extension port connects to infrared extension cable |
| Industrial terminal | Connect the Phoenix terminal to the central controller |
| network-socket | An access cable connects to a computer or router |
| TYPE-C | Connect a USB cable for online upgrade of the controller card |
| Ground hole | The grounding system is connected by wire |
| Electrical outlet | The power supply is 220V |
| Switch | Open ON, close OFF |
| Input interface | 12 HDMI inputs |
| Output interface | 12 HDMI outputs |

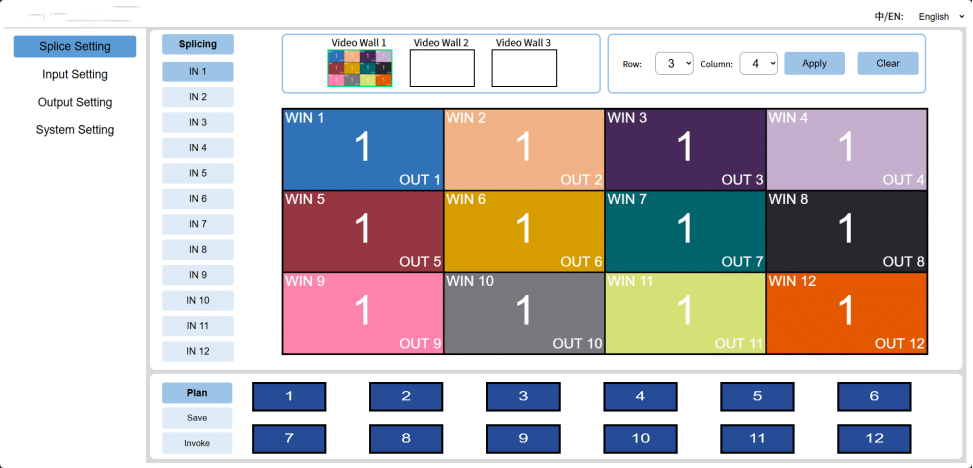

Web Control

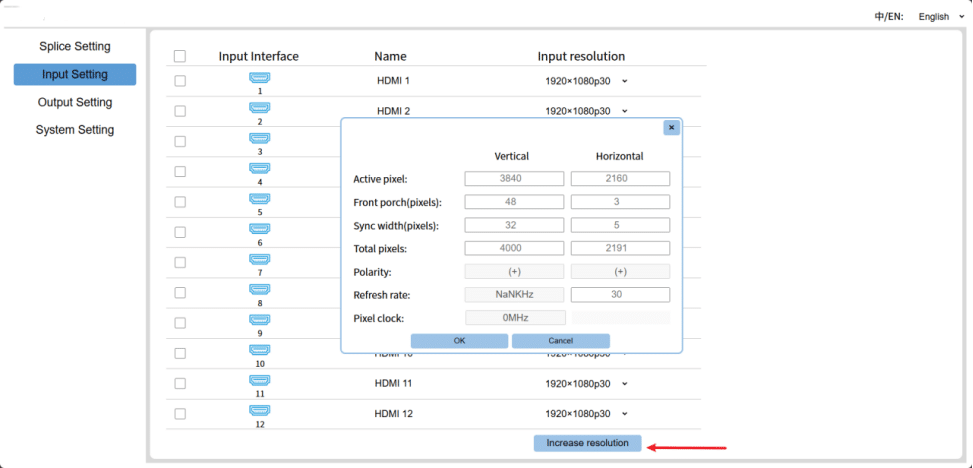

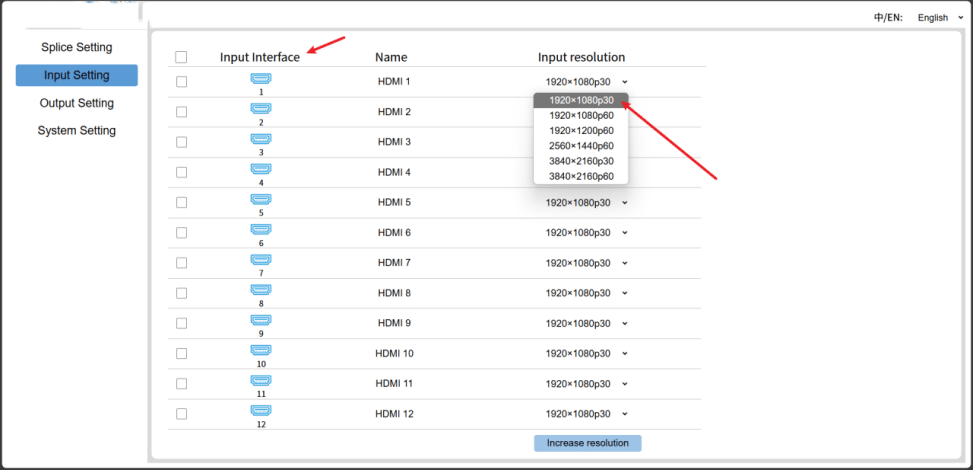

Input/Output Setting and customized EDID
