4K60Hz HDMI 2.0 AV over IP H.265/264 Technology,Bi-directional IR,KVM,RS232,One to One,One to Many (255 RX)
18Gbps HDMI2.0 IP Extender over One Cat6 Cable up to 120meter HDMI 2.0,IR /RS232 KVM Control, HDMI Loopoutput, Zero latency. One Transmitter with 255 Receivers via Switch,Web Gui, EDID setting
| Weight | 600 g |
|---|---|
| Dimensions | 12 × 7.8 × 2.5 cm |
| HDMI Version | HDMI 2.0, HDCP2.2 18Gbps |
| Resolution | VESA: |
| Compression Technology | H.265,H.264 |
| Transmission Distance | 120m/394FT via One Cat 5E/6/6A cable,Support one to one, one TX to 255 RX via network switch |
| Audio formats | LPCM 2.0 CH, 32KHz, 44.1KHz, 48KHz |
| IR | Wideband 20K-60KHz, 5Vp-p |
| Request for Switch | 1. Type of Layer 2 managed Ethernet Switch or higher-level network Switch. |
| Color Space | Input: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | Input: 8/10/12-bit; Output: 8-bit |
| Bi-directiona | IR, RS-232, USB KVM transmission |
Detailes About 4K60Hz HDMI 2.0 AV over IP H.265/264 Technology,Bi-directional IR,KVM,RS232,One to One,One to Many (255 RX)

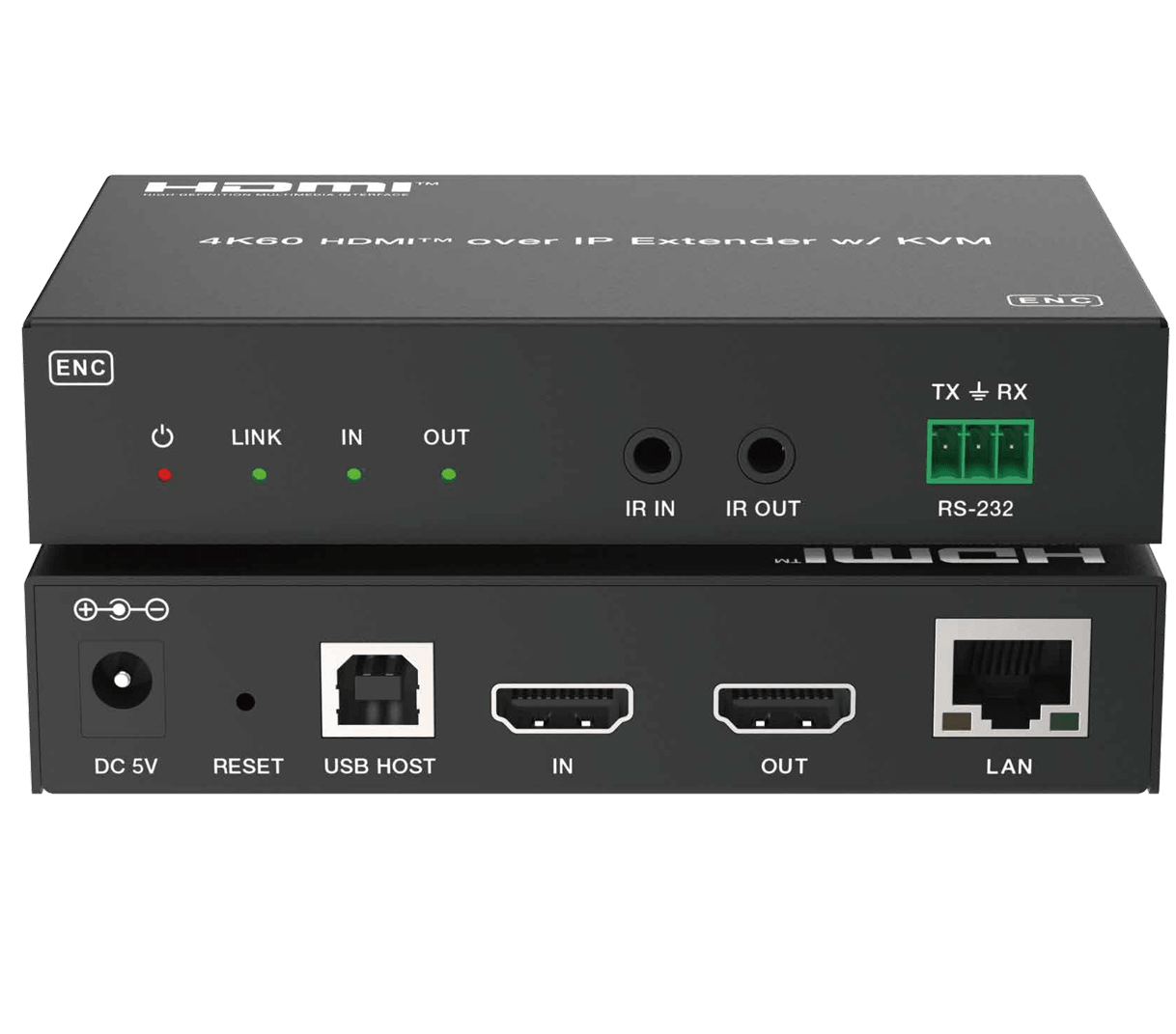

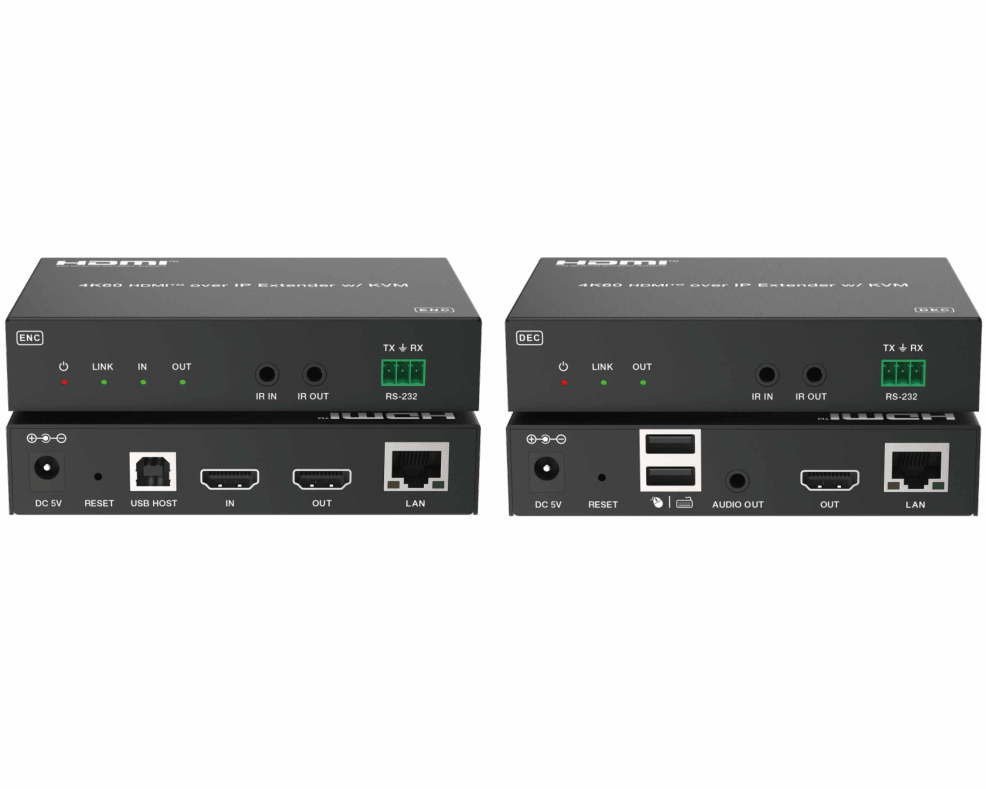

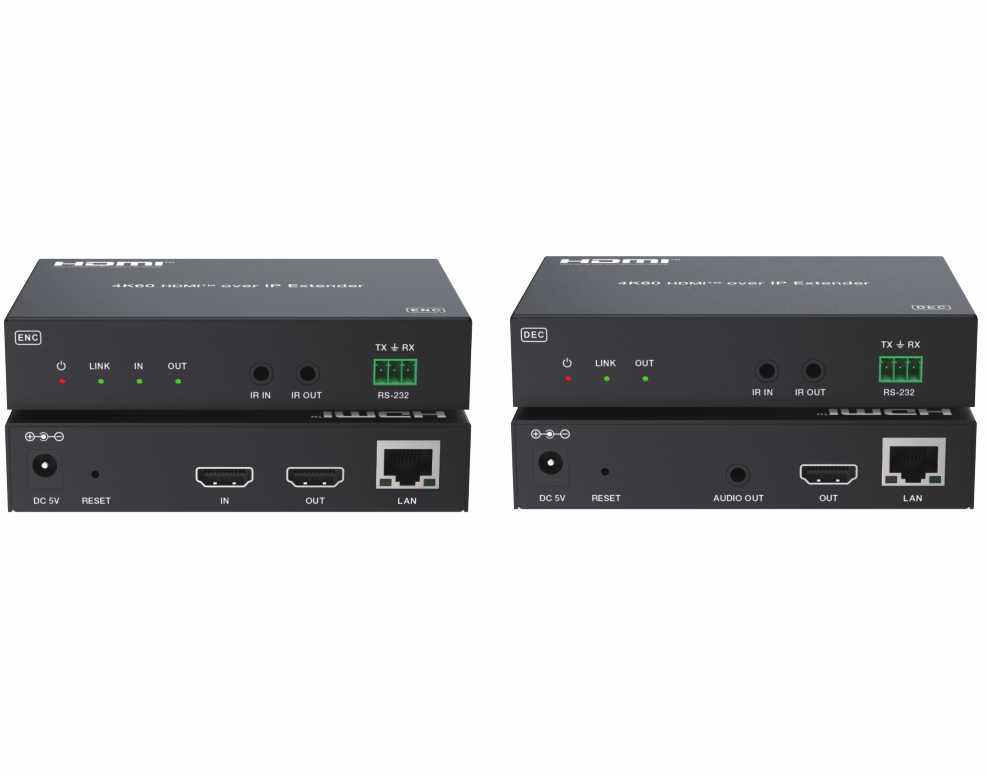

Overview (with or without KVM function optional)
The HDMI™ 4K60 AV over IP Extender is based on AV over IP solution for distribution of one UHD content to one UHD display device or to multiple UHD display devices over a standard network Switch, and extends distance up to 394ft/120m between encoder and decoder via a CAT5e/6/6A cable. It offers configurable high quality, low-bandwidth H.265 compression video. The resolution is up to 4K@60Hz. It also supports HDMI™ loop output on the encoder.
The Extender includes two units: Encoder and Decoder. The Encoder is responsible for obtaining HDMI™ signals for encoding, transmitting via CAT 5e/6/6A cables. It supports HDMI™ loop output; The Decoder is responsible for signal decoding and outputting HDMI™ signals to UHD displays. The product supports two-way IR, RS-232 and KVM control signal transmission. It offers the most convenient solution for HDMI™ extension over a single CAT5e/6/6A cable, and is the perfect solution for any application.
Features:
☆ H.265/264 Encoder/Decoder
☆ Compliant with HDCP 2.2, 18Gbps video bandwidth
☆ HDMI™ In & Out video resolution up to HDMI™ 2.0b 4K@60Hz (4:4:4) with 4K@30Hz IP Stream
☆ Transmission distance up to 394ft/120m via CAT5e/6/6A cable
☆ One-to-one or one-to-many over standard network Switch
☆ HDMI™ loop out on Encoder, allows for cascading
☆ Audio de-embedding on Decoder
☆ Built-in configuration Web GUI
☆ DHCP (APIPA) and Static IP Modes
☆ Picture brightness/contrast/hue/saturation settings
☆ Preset EDID and user EDID data
☆ Support uploading Logo image
☆ Bi-directional IR, RS-232, USB KVM transmission
☆ Decoder HDMI™ out supports three smart resolution modes
☆ Low latency, high picture quality
☆ Support LPCM 2.0CH audio
☆ Easy to use, plug & play
☆ ESD, Surge protection
☆ Support 1G managed network Switch
☆ 5V DC power supply

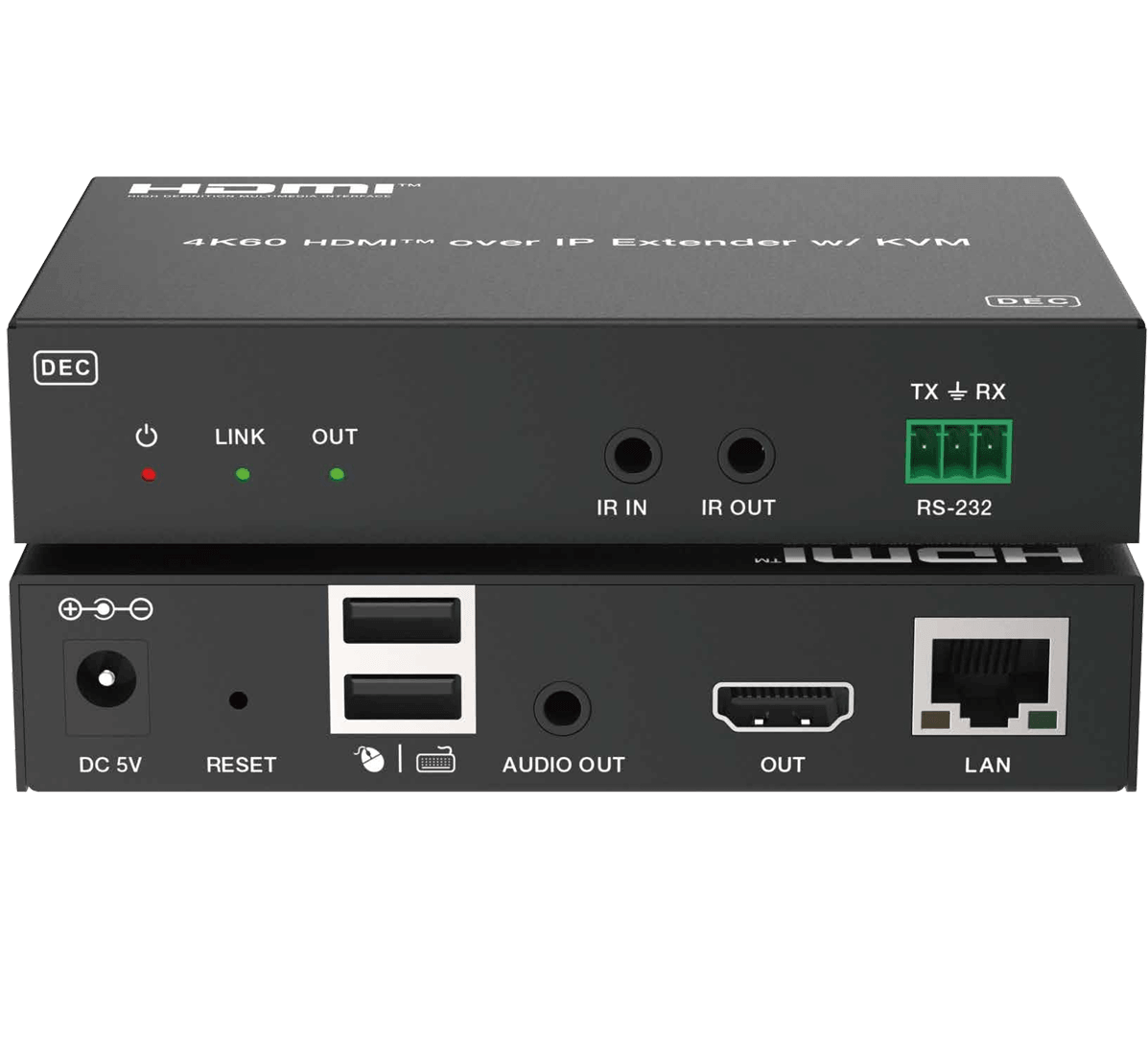

① 1× HDMI™ 4K60 AV over IP Extender (Encoder)
② 1× HDMI™ 4K60 AV over IP Extender (Decoder)
③ 1× IR Blaster Cable (1.5m)
④ 1× IR Wideband Receiver Cable (1.5m)
⑤ 1× USB Cable (USB type A to type B, 1.5m)
⑥ 2× 5V/1A Multi-national Power Supply
⑦ 1× User Manual
For Encoder Only:
① 1× HDMI™ 4K60 AV over IP Extender (Encoder)
② 1× IR Blaster Cable (1.5m)
③ 1× IR Wideband Receiver Cable (1.5m)
④ 1× USB Cable (USB type A to type B, 1.5m)
⑤ 1× 5V/1A Multi-national Power Supply
⑥ 1× User Manual
For Decoder Only:
① 1× HDMI™ 4K60 AV over IP Extender (Decoder)
② 1× IR Blaster Cable (1.5m)
③ 1× IR Wideband Receiver Cable (1.5m)
④ 1× 5V/1A Multi-national Power Supply
⑤ 1× User Manual
Specifications
Technical
HDCP Compliance HDCP 2.2
Video Compression Standard H.265/264
Video Resolution
CEA-861: 480p60, 576p50, 720p50, 720p60, 1080i50, 1080i60, 1080p24/25/30/50/60, 3840x2160p24/25/30/50/60, 4096x2160p24/25/30/50
Color Depth Input: 8-bit, 10-bit, 12-bit,Output: 8-bit
Audio Formats LPCM 2.0 CH, 32KHz, 44.1KHz, 48KHz
IR Frequency Wideband 20k-60kHz
Transmission distance : 394ft/120m (CAT5e/6/6A cable) Transmission
Connection
Input: 1× IN [HDMI™ Type A, 19-pin female]
Output: 1× OUT [HDMI™ Type A, 19-pin female]
Control: 1× LAN [RJ45 jack],1× RS-232 [3pin-3.5mm phoenix connector],1× USB HOST [USB-B, 4pin female]
1× IR IN [3.5mm audio jack],1× IR OUT [3.5mm audio jack],
1×AUDIO OUT [3.5mm audio jack]
Control: 1× LAN [RJ45 jack]
1× RS-232 [3pin-3.5mm phoenix connector]
1× USB DEVICES [Dual-layer USB-A]
1× IR IN [3.5mm audio jack]
1× IR OUT [3.5mm audio jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Encoder/Decoder: 120mm [W] x 78mm [D] x 24.5mm [H]
Weight Encoder: 276g; Decoder: 276g
Power Supply Input: AC 100 – 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption(Max) Encoder: 3.15W, Decoder: 5W
Operating Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Operating Humidity 20% ~ 80% (relative humidity, no condensation)
Storage Humidity 10% ~ 90% (relative humidity, no condensation)

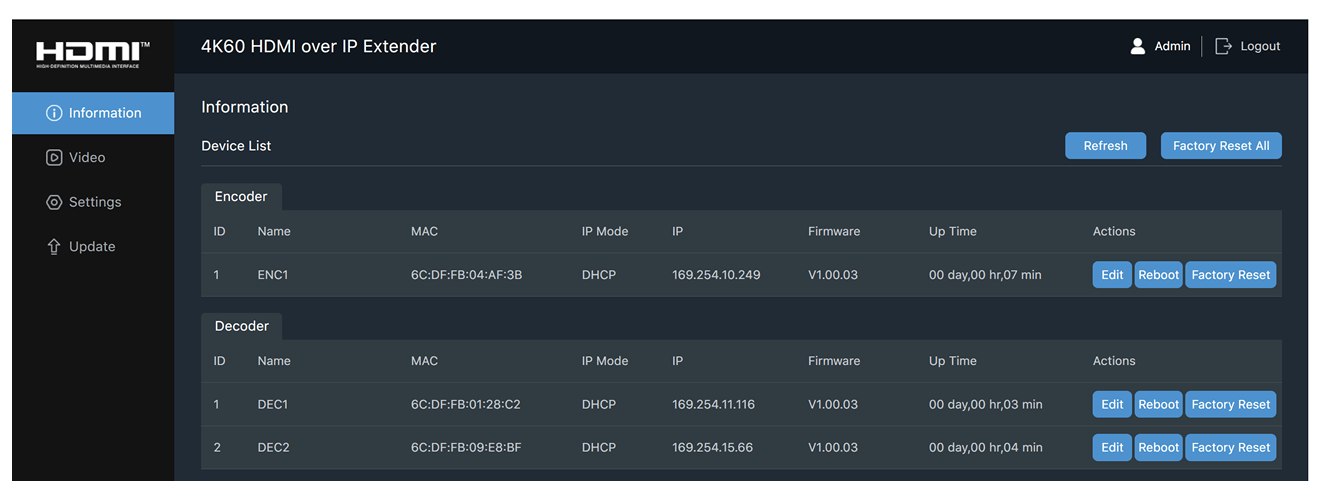

Web GUI Operation Guide
The extender can be controlled by Web GUI. Follow the steps below to connect devices and log in to the Web GUI.
Step 1: Connect the PC, encoders and decoders to the same Switch.
Step 2: Directly input the URL (http://encoder.local) into the Web browser address bar on the PC to enter the Web GUI login interface.
Note: The extender is set to DHCP (APIPA) mode by default, and the default domain name is “encoder”. The URL (http://encoder.local) can be used to access to the Web GUI.

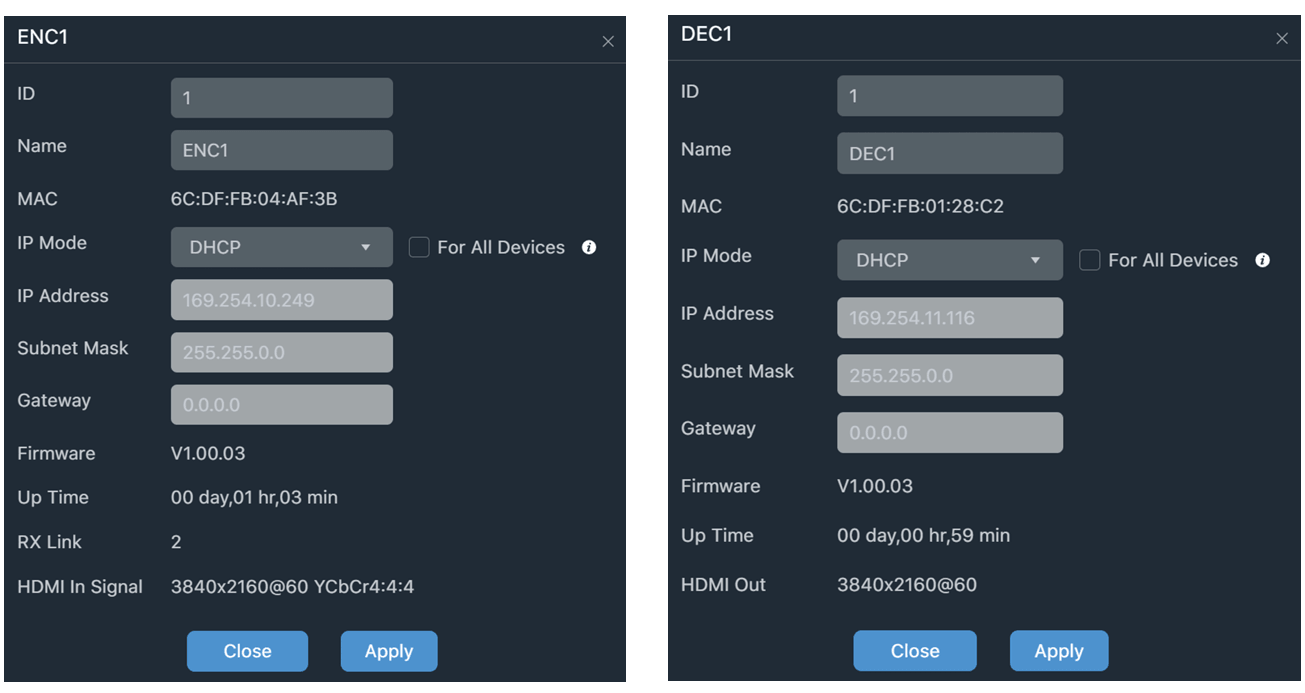

Encoder/Decoder information
Application

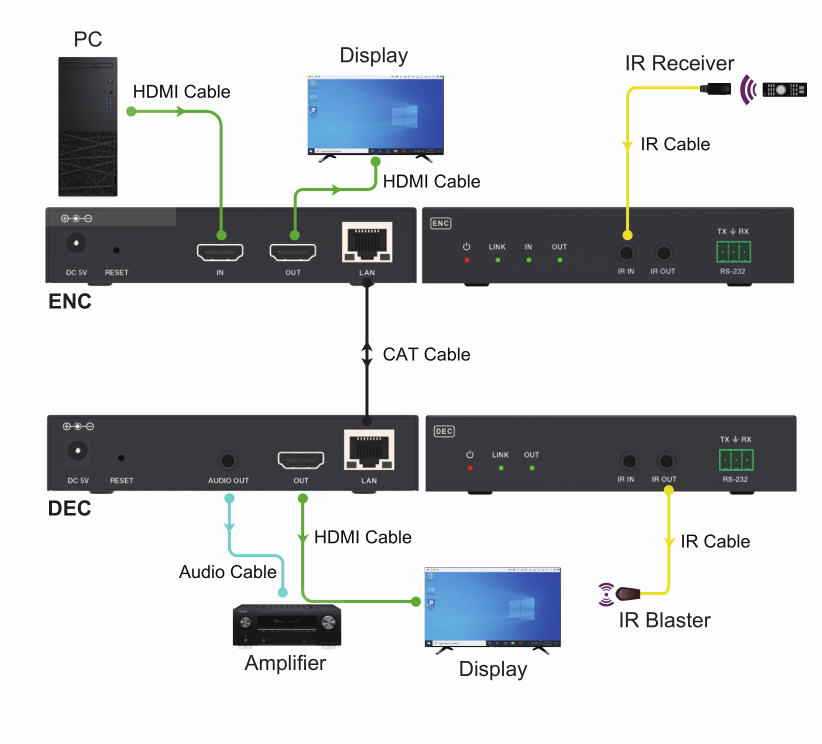

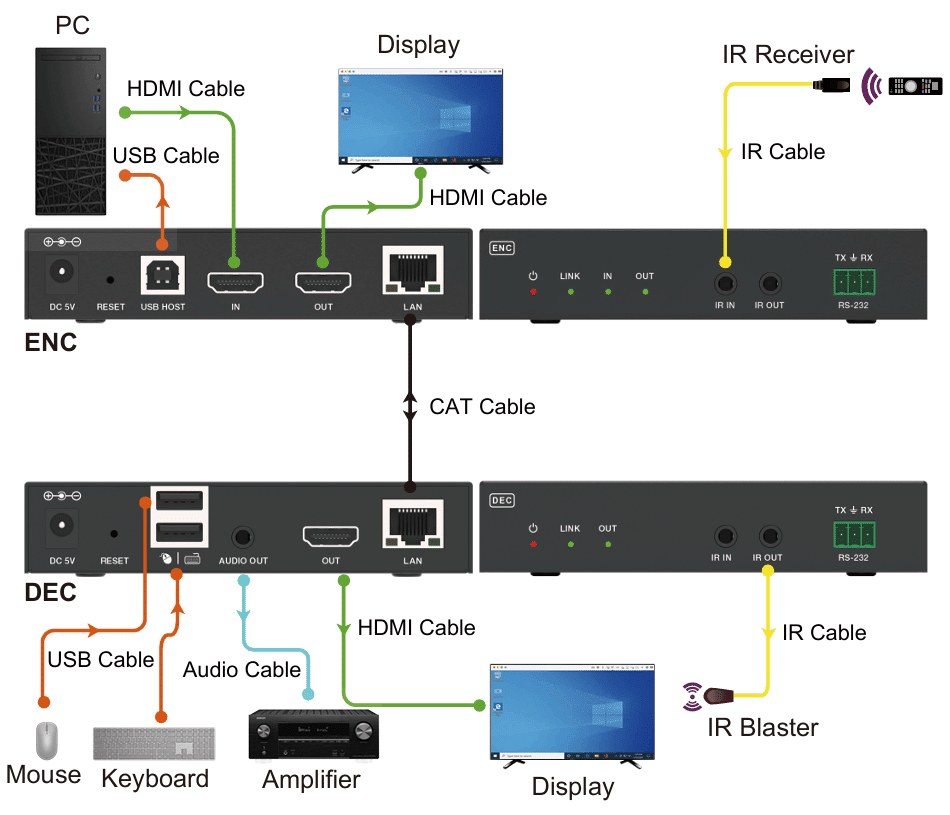

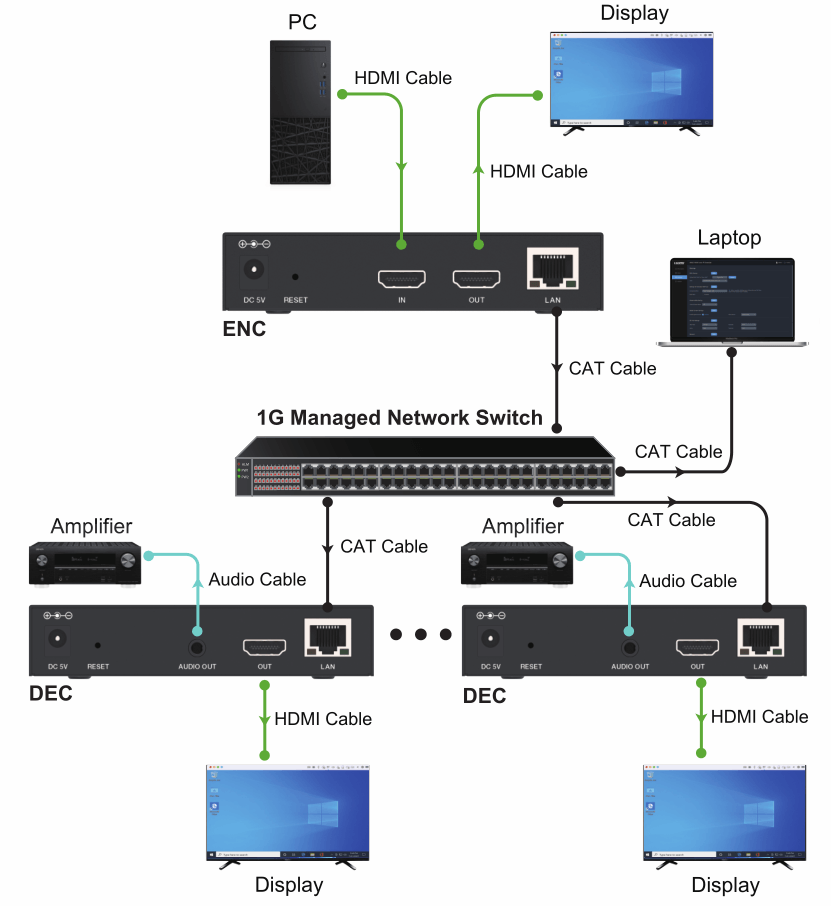

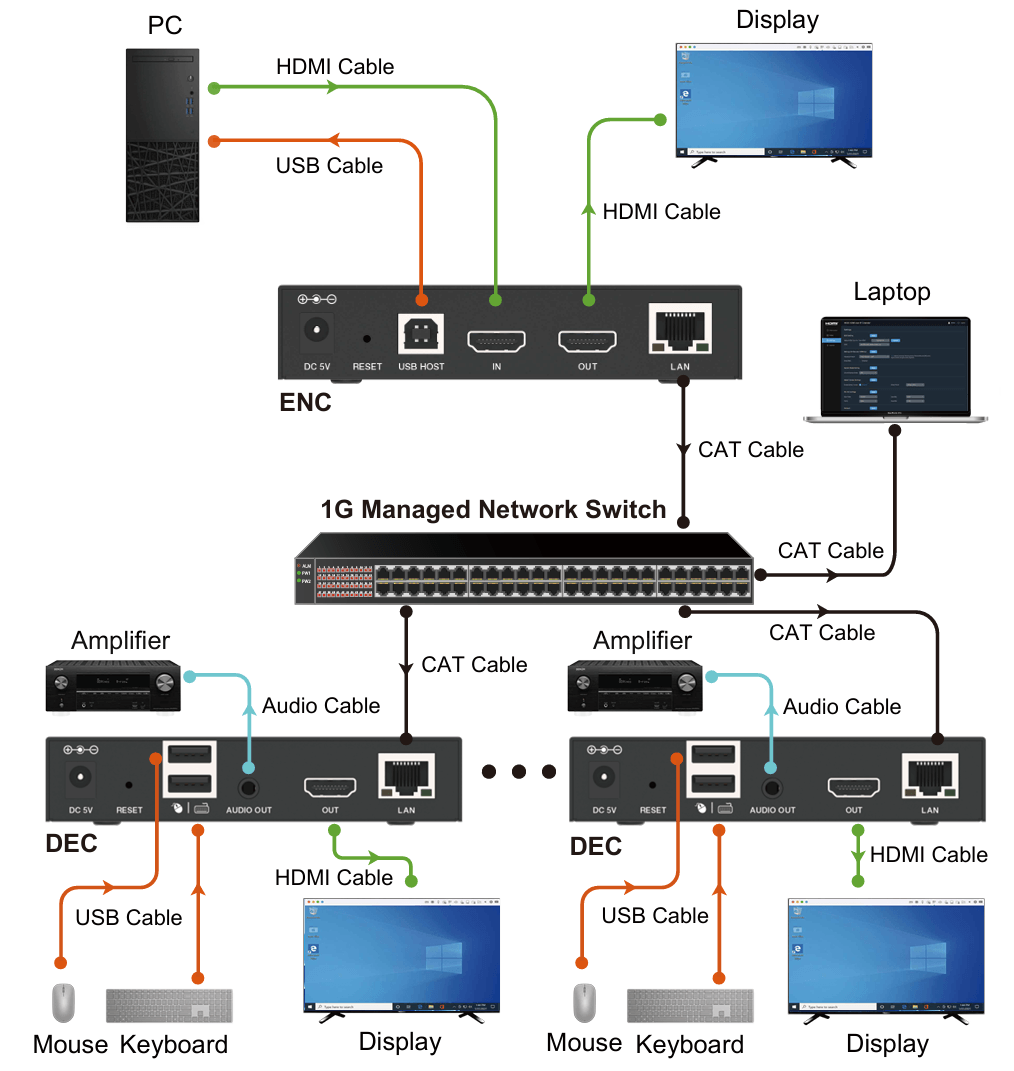

One to Many connection with 255 Receivers
Network Switch Requirements
A network Switch used to set up the system should support below features:
1. Type of Layer 2 managed Ethernet Switch or higher-level network Switch.
2. Supports 100Mbps or Gigabit Ethernet bandwidth (Gigabit recommended).
3. Supports multicast functionality.
4. Supports IGMP Snooping functionality.
5. Supports filtering/dropping unregistered multicast traffic.
Note: If the network only contains the encoder and decoders of this product, without any other network devices, an unmanaged Ethernet switch can be used. A DHCP router/server is not required, as the system will automatically assign IP addresses to all encoder and decoders
