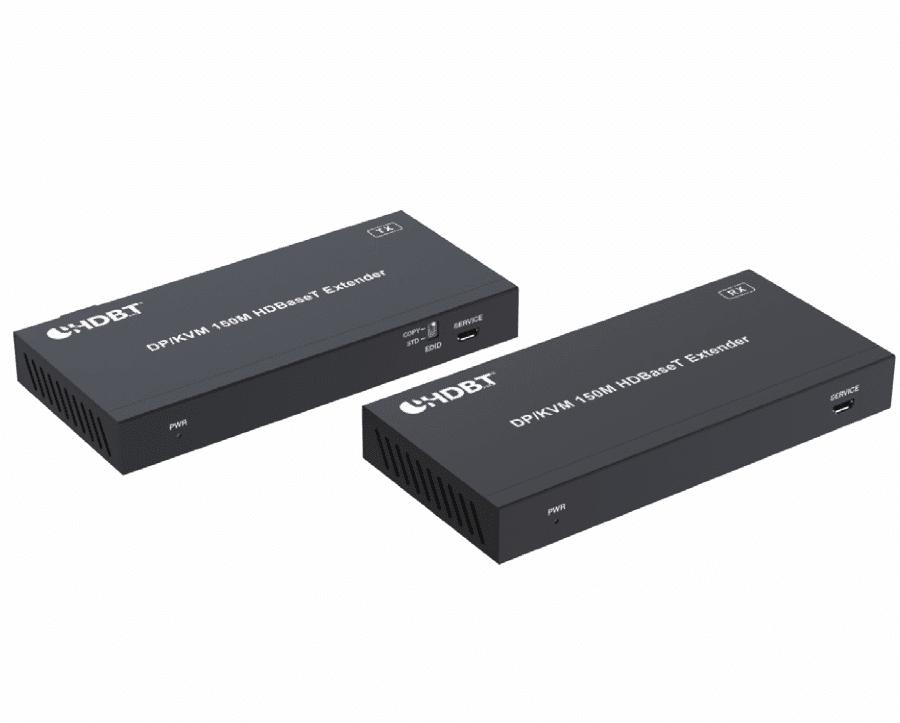

4K@60Hz DP/HDMI KVM Extender USB POC One Cat6 Up To 150meter 18Gbps IR RS232
18Gbps 2.0 HDMI DP KVM Extender over One Cat 6 up to 150m with Bi-direction IR, RS232 control,POC, EDID
| Weight | 700 g |
|---|---|
| Dimensions | 14 × 6.5 × 1.8 cm |
| HDMI Version | HDMI 2.0b |
| Resolution | 4K@60Hz 4:4:4 |
| HDCP | HDCP2.2 |
| Transmission Distance | 1080P@60–492ft/150m, 4K60–328ft/100m |
| Video Bandwidth | 21.6Gbps |
| USB compliance | USB 1.1 |
| Bi-direction IR & RS232 | IR Wideband 20K-60KHz,5Vp-p,Support RS232 control |
| DP Compliance | DP 1.2a |
| EDID | EDID DIP switch is used for EDID setting. (Dial to COPY by default) |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 4K@60Hz DP/HDMI KVM Extender USB POC One Cat6 Up To 150meter 18Gbps IR RS232
Overview

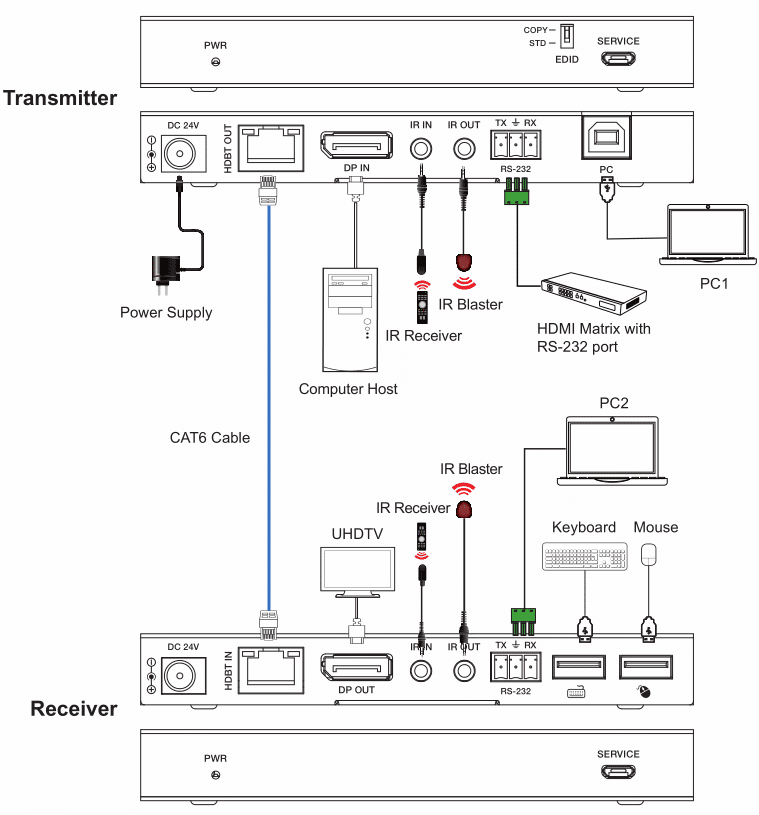

This 4K60 DP Extender can extend DP signal, bi-directional IR control signal,bi-directional RS-232 signal and USB KVM signal to a distance up to
328ft/100m for 4K60 signal or 492ft/150m for 1080P signal via a single CAT6 cable. It converts DP signal to standard HDBaseT signal, and transmits it
through LAN cable. It can easily control signal source device or display device from the remote end through bi-directional IR signal pass-through function.Video resolution is up to 4K2K@60Hz YUV 4:4:4. It also supports bi-directional POC function.
Supporting for DisplayPort 1.2 allows for the transmission of visually lossless,highly detailed 4K Ultra HD resolutions, perfect for eye catching digital
signage or detailed content in medical setups. This extender also supports lossless audio formats including DolbyTrueHD and DTS-HD, to add powerful
multi-channel sound to video content, providing an enhanced experience and sense of realism for the viewer. USB KVM connectivity allows for a full control of a DisplayPort PC from a local console, which can be stored in a secure or controlled temperature environment, while seamlessly providing consistent video content to the display.
Features:
☆ Support 21.6Gbps video bandwidth
☆ Support video resolution up to 4K2K@60Hz YUV 4:4:4
☆ Signal transmission distance can be extended up to 328ft/100m for 4K60 signal or 492ft/150m for 1080P signal via a single CAT6 cable
☆ Support LPCM2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH
☆ With smart methods of compression for visually lossless transmission
☆ Control a single DisplayPort PC, keyboard and mouse via KVM function
☆ Support bi-directional POC (Power over Cable) function
☆ Advanced EDID management
☆ Compact design for easy and flexible installation
② 1 × 4K60 DP Extender Extender (Receiver)
③ 1 × IR Blaster Cable (1.5m)
④ 1 × IR Wideband Receiver Cable (1.5m)
⑤ 2 × 3pin-3.81mm Phoenix Connector
⑥ 1 × USB2.0 Cable (USB-A to USB-B, 1.5m)
⑦ 4 × Mounting Ear
⑧ 8 × Machine Screw (KM3*4)
⑨ 1 × 24V/1A Locking Power Supply
⑩ 1 × User Manual
