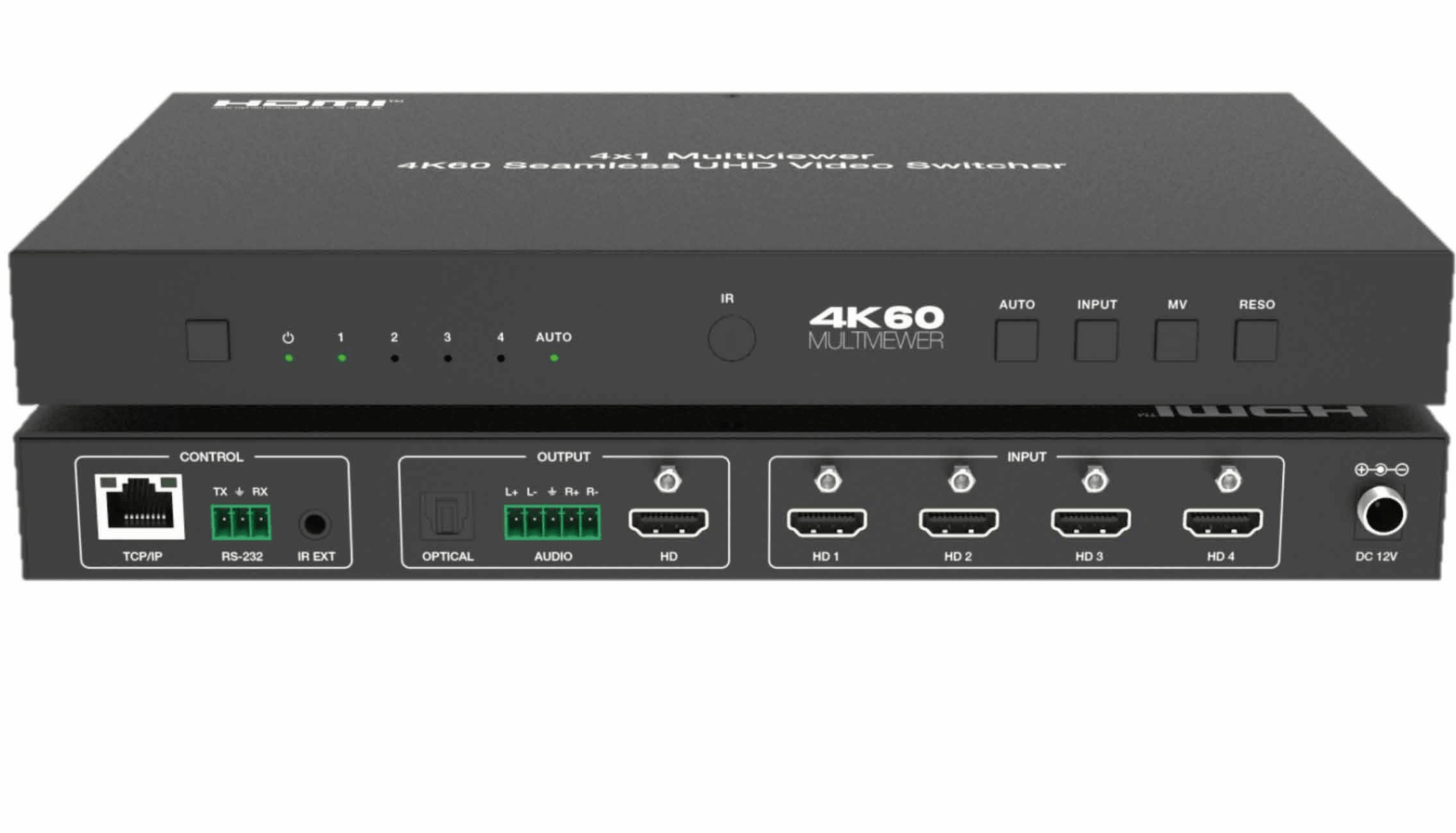

Pro 4K60Hz 4×1 Seamless Switch Multiview with RS232,TCP/IP,Audio Extractor L/R Analog Audio Output 8 Display Modes
4K60hz Presentation System 4×1 seamless switcher with multi viewer , RS232 Control,Audio Out,No black screen while switching,No tearing screen.
| Weight | 300 g |
|---|---|
| Dimensions | 17.6 × 6.8 × 1.8 cm |
| HDMI Version | HDMI 2.0 |
| Video Resolution | 4K60 4:4:4 |
| HDCP | 2.2 |
| Control | KVM WebGUI,RS232,IR,Button |
| Multiview modes | SINGLE, PIP, PBP (1), PBP (2), Triple (1),Triple (2), Quad (1), Quad (2) |
| Audio | Audio Extractor,Volume Control,Independent Audio selec. |
| Optical SPDIF | Support |
| ESD Protection | IEC 61000-4-2: |
Detailes About Pro 4K60Hz 4×1 Seamless Switch Multiview with RS232,TCP/IP,Audio Extractor L/R Analog Audio Output 8 Display Modes
Professional 4K60 4X1 Seamless Switcher with Multiviewer,TCP/IP,Audio
Features
Compliant with HDCP 2.2 and HDCP 1.x standards
18Gbps video bandwidth; supports input and output resolutions up to 4K2K@60Hz 4:4:4
Supports LPCM, Dolby Digital, DD+, and DTS audio pass-through
Supports seamless switching between input channels
Enables the combined display of multiple images on a single UHD TV
Multiple screen layout modes: PIP (Picture-in-Picture), PBP (Picture-by-Picture), Triple-View, and Quad-View
Supports input resolutions ranging from VGA to WUXGA, as well as 480i to 4K60
Output resolutions are scalable from 1024×768@60Hz up to 4K60
Supports audio de-embedding via balanced audio and optical audio outputs
Supports volume control and independent audio selection
Supports control via WebGUI, RS-232, IR remote, and front-panel buttons
18Gbps video bandwidth; supports input and output resolutions up to 4K2K@60Hz 4:4:4
Supports LPCM, Dolby Digital, DD+, and DTS audio pass-through
Supports seamless switching between input channels
Enables the combined display of multiple images on a single UHD TV
Multiple screen layout modes: PIP (Picture-in-Picture), PBP (Picture-by-Picture), Triple-View, and Quad-View
Supports input resolutions ranging from VGA to WUXGA, as well as 480i to 4K60
Output resolutions are scalable from 1024×768@60Hz up to 4K60
Supports audio de-embedding via balanced audio and optical audio outputs
Supports volume control and independent audio selection
Supports control via WebGUI, RS-232, IR remote, and front-panel buttons
Multiview
OSD: Press to switch three OSD display states: no OSD, display current input channels, display current input channels and borders.
POS: Press to switch the position of PIP view: top left, bottom left, top right, bottom right.
SIZE: Press to switch the size of PIP view: large, middle, small.
Display Mode: Press to select the multi-view modes as follow:
16:9: Press to switch the aspect ratio between full-screen and 16:9.
POS: Press to switch the position of PIP view: top left, bottom left, top right, bottom right.
SIZE: Press to switch the size of PIP view: large, middle, small.
Display Mode: Press to select the multi-view modes as follow:
16:9: Press to switch the aspect ratio between full-screen and 16:9.
IR remote

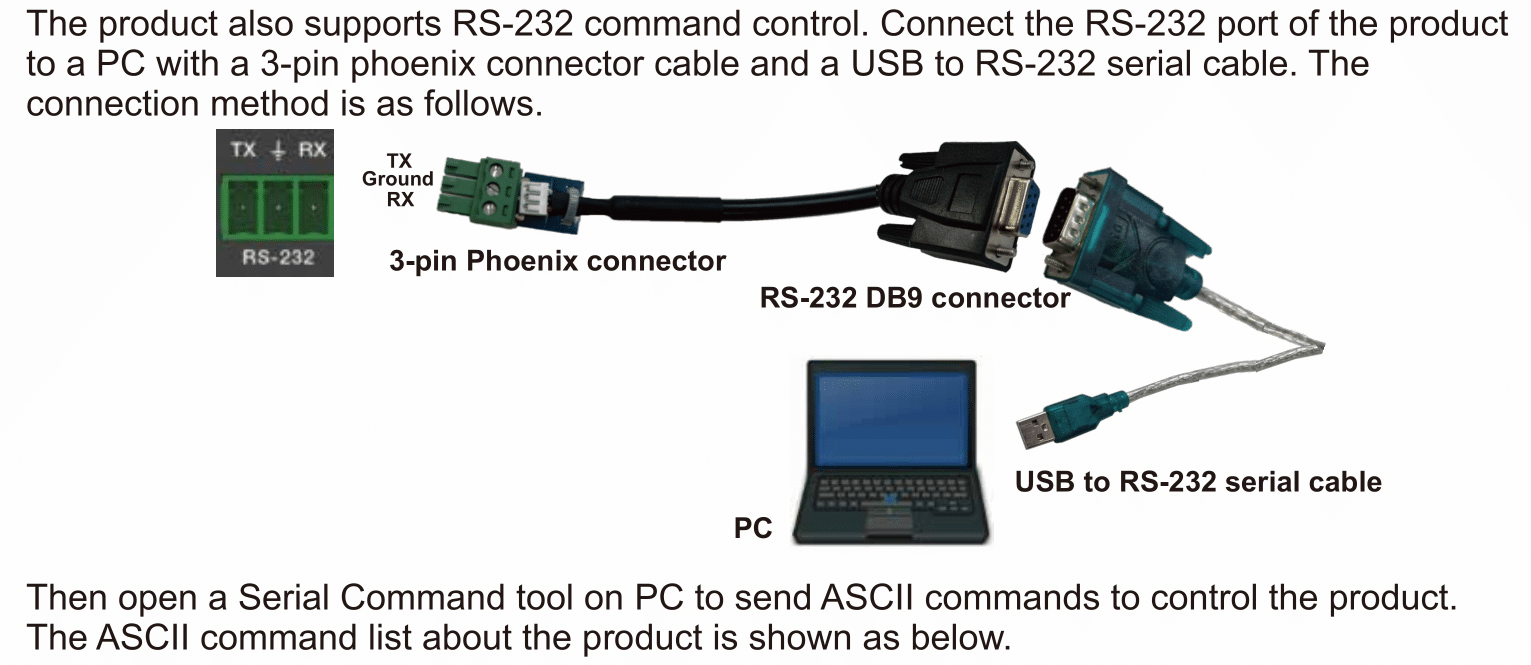

RS232 Connect
