4K@60Hz 4:4:4 HDBaset 3.0 100m USB-C,Over a single CAT6A/7 cable,1G Ethernet
18Gbps HDBaset 3.0 Extender over One Cat6a/7 up to 100m with USB 3.0 Hub ,USB-C 100W charging,RS232,POC,VS3000 chipset based,DP-ALT mode for AV.
| Weight | 1400 g |
|---|---|
| Dimensions | 20.8 × 12.2 × 2.2 cm |
| HDMI/DP | HDMI 2.0b |
| Resolution | 4K@60Hz 4:4:4 |
| HDCP | HDCP2.3 |
| Transmission Distance | HDMI/USB-C passive cable: 16.4ft/5m |
| Video Bandwidth | 18Gbps |
| Audio format | HDMI/USB-C/HDBT : LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| USB port | TX: USB 3.2 Gen 1 5Gbps, compatible with USB 2.0 480Mbps |
| USB Host port | TX: 1x USB-C 3.2 Gen 1 + 1 USB-B 3.2 Gen 1 RX: None |
| POC Power Supply | Support bi-directional 24V PoC, with PoC switch (USB-C charging only from TX power supply) |
| USB Device Ports | TX: 1x USB-C 3.2 Gen 1 + 2x USB-A 3.2 Gen 1 |
| RS232 | RS-232 signal pass-through and API control |
| IR | Two-way IR pass-through and 1G Ethernet |
Detailes About 4K@60Hz 4:4:4 HDBaset 3.0 100m USB-C,Over a single CAT6A/7 cable,1G Ethernet
HDMI/USB-C 4K60 100M HDBaset 3.0 with USB-C Input/1G Ethernet,IR,RS232,Audio De-embedding,EDID,POC,Video scaler
This 4K HDBaseT 3.0 Extender can extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB signals up to 328ft/100m via a
single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4.
The transmitter features 1x HDMI input, 1x USB-C input (A/V+USB 3.2+1G+ 100W charging), 1x USB 3.2 Host and 3x USB 3.2 Device ports. It can switch between HDBT Standard Mode (as factory default) and HDBT Long Reach Mode. It supports EDID management. The receiver features 1x HDMI output, 4x USB 2.0 Device ports. Both transmitter and receiver support analog audio de-embedding, bi-directional IR, RS-232 and 1G LAN pass-through.
This product supports bi-directional 24V PoC function, with PoC switch.The Extender offers the most convenient solution for video extension via a
single CAT cable with long distance capability, and it is a perfect solution for home/commercial applications.
Features:
☆ Compliant with HDCP 2.2 and DisplayPort 1.4a, 18Gbps video bandwidth
☆ HDBaseT 3.0 VS3000 chipset based design
☆ Support video resolution up to 4K2K@60Hz (YUV 4:4:4), as specified in HDMI 2.0b
☆ 4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)
☆ 1080P 8bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)
☆ TX features 1x HDMI input, 1x USB-C input, 1x HDMI/HDBT output, 1x USB 3.2 host and 3x USB 3.2 clients
☆ RX features 1x HDBT input, 1x HDMI output, 4x USB 2.0 clients
☆ USB-C and HDMI signal inputs support auto or manual switching mode
☆ Auto switching supports HDMI 5V or signal detect selection
☆ TX USB-C host port supports DP-ALT mode for A/V, USB 3.2 data, 1G Ethernet and power charging up to 100 watts
☆ TX/RX USB-A client ports VBUS on or off depends on USB host is connected or not
☆ HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
☆ 4K to 1080p downscaling features on HDMI output, no frame rate conversion
☆ Both TX and RX support analog audio de-embedding
☆ RS-232 signal pass-through and API control
☆ RS-232/CEC control external device power on/off
☆ 1G Ethernet and bi-directional IR signal pass-through
☆ Advanced EDID management
☆ Support bi-directional 24V PoC, with PoC switch (USB-C charging only from TX power supply)
Package
1× 4K HDMI/USB-C over HDBaseT 3.0 Extender (Transmitter)
2 1× 4K HDMI/USB-C over HDBaseT 3.0 Extender (Receiver)
3 2× 3pin-3.5mm Phoenix Connector (male)
4 2× 5pin-3.5mm Phoenix Connector (male)
5 4× Mounting Ear
6 8× Machine Screw (KM3*6)
7 1× IR Blaster Cable (1.5m)
8 1× IR Receiver Cable (1.5m)
9 1× 24V/7.5A Desktop Power Supply
10 1× User Manual
Connection Diagram

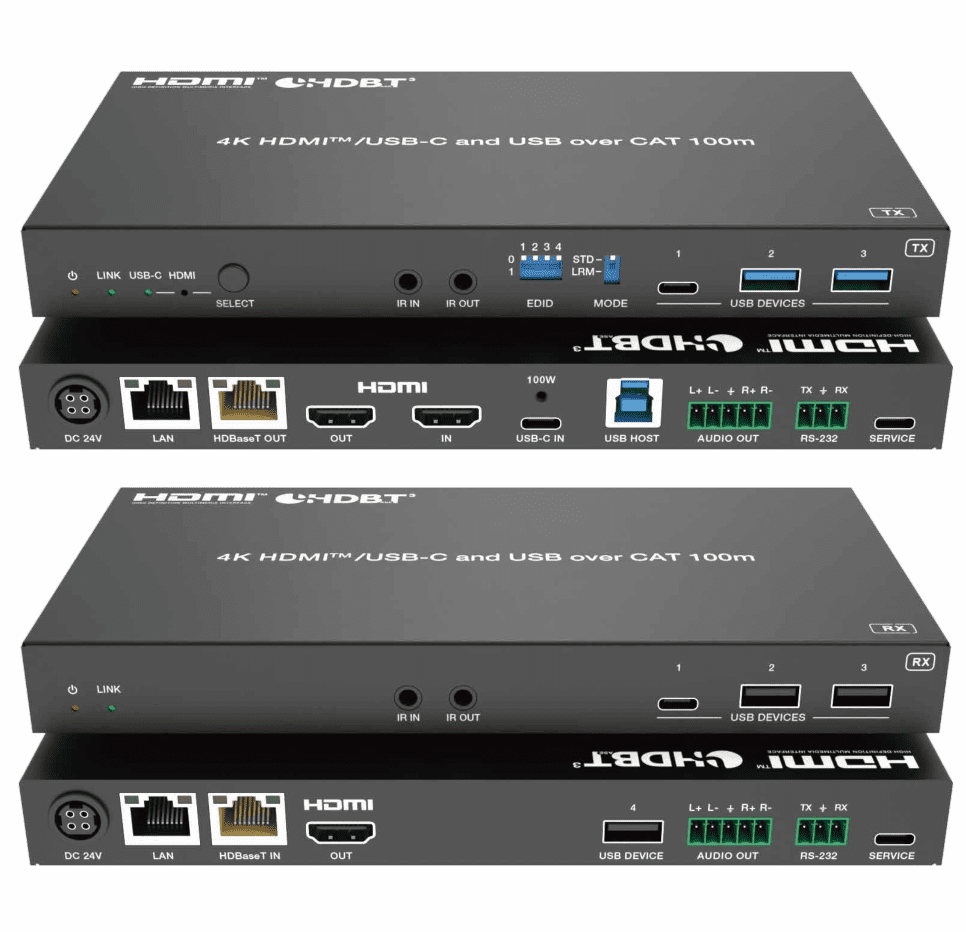

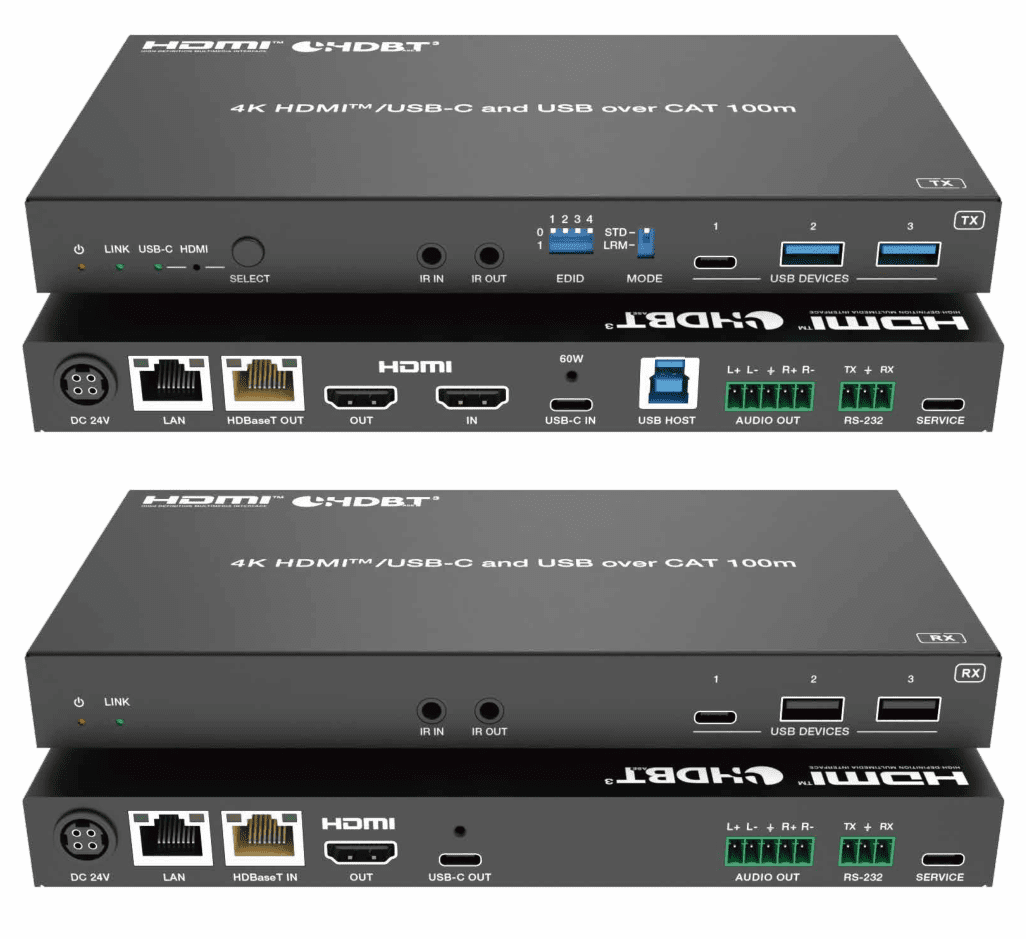

Transmitter Interface
Receiver Interface
The product also supports API commands control. Connect the RS-232 port of the product to a PC or control system with a 3-pin phoenix connector cable, or connect the SERVICE port of the product to a PC with a USB-C cable.Then, open a serial command tool on PC to send ASCII commands to control the product.
