4K60Hz 1×10 Video Wall Controller with USB-C input 3×3,2×2,4×2,5×2
Video Wall Controller 15 splicing modes: 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, 2×2,3×3,4×2,5×2, 180° rotation
| Weight | 600 g |
|---|---|
| Dimensions | 22 × 10 × 3 cm |
| HDMI Version | HDMI 2.0 |
| Resolution | Up to 4K2K@60Hz RGB/YCBCR 4:4:4 |
| HDCP | HDCP 2.2 |
| 15 video wall splicing modes | 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, 2×2,1×5,1×6,1×7,1×8,1×9,1×10,2×3,2×4,2×5,3×3,4×2,5×2 |
| Video Bandwidth | 18Gbps |
| Audio | Optical audio and L/R analog audio de-embedding output |
| Control | Control via front panel buttons, IR remote and RS-232 commands |
| Rotation | 180°,convenient for ceiling installation |
Detailes About 4K60Hz 1×10 Video Wall Controller with USB-C input 3×3,2×2,4×2,5×2
Features:
HDCP 2.2 compliant
Video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4, as specified in HDMI 2.0b

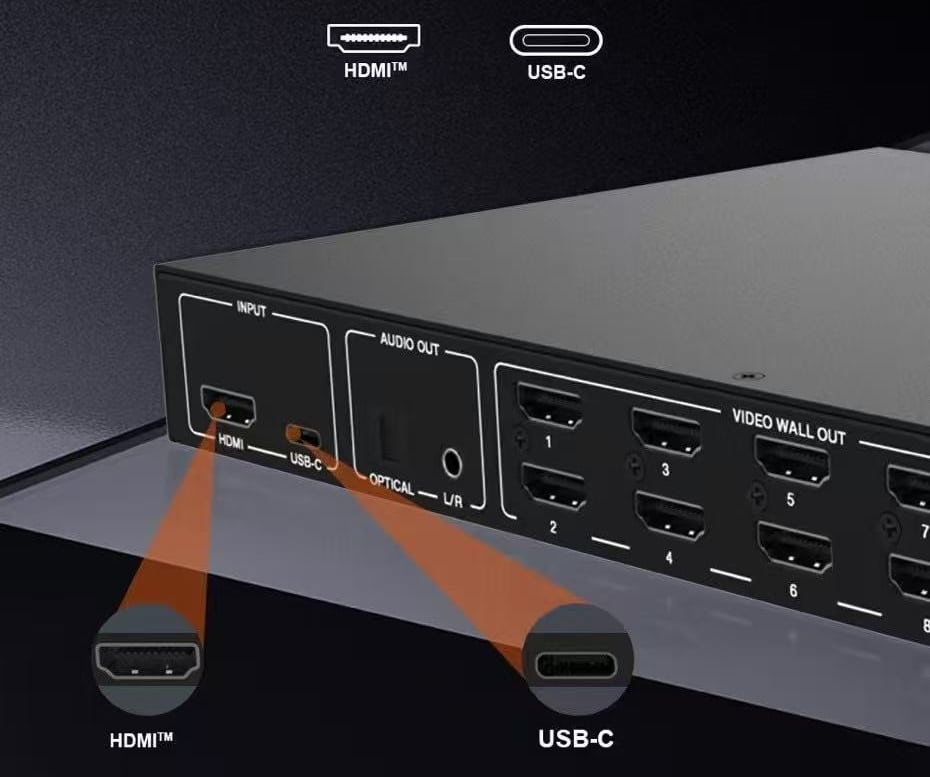

HDMI input and USB-C input, and the resolution is up to 4K@60Hz 4:4:4

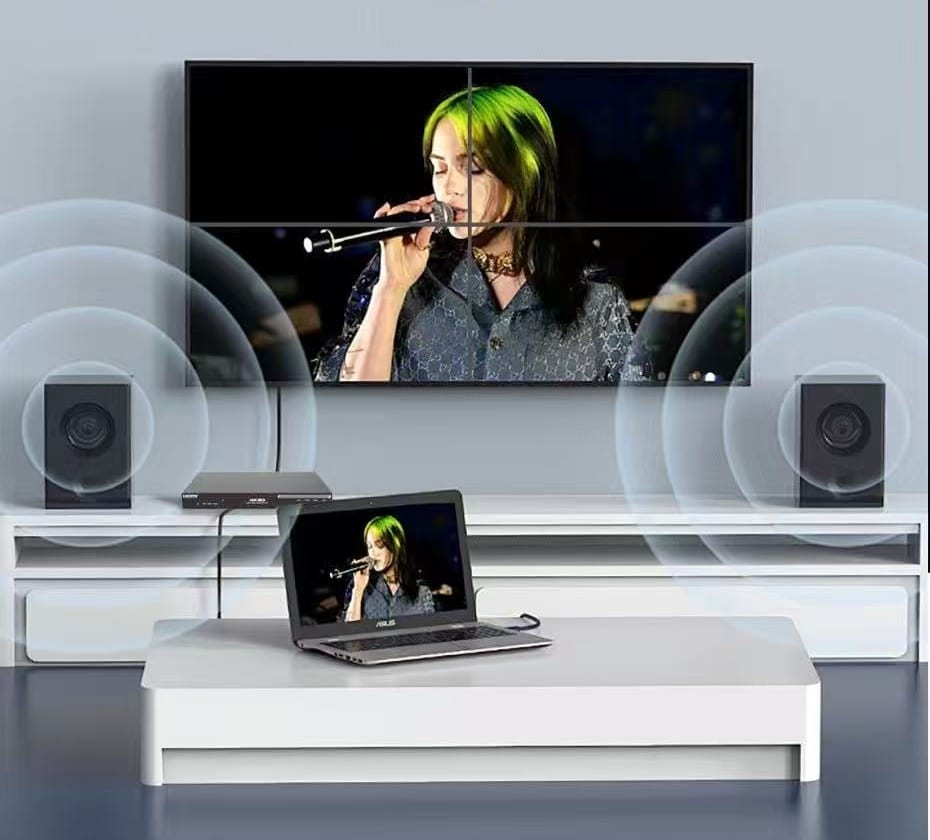

Optical audio and L/R analog audio de-embedding output

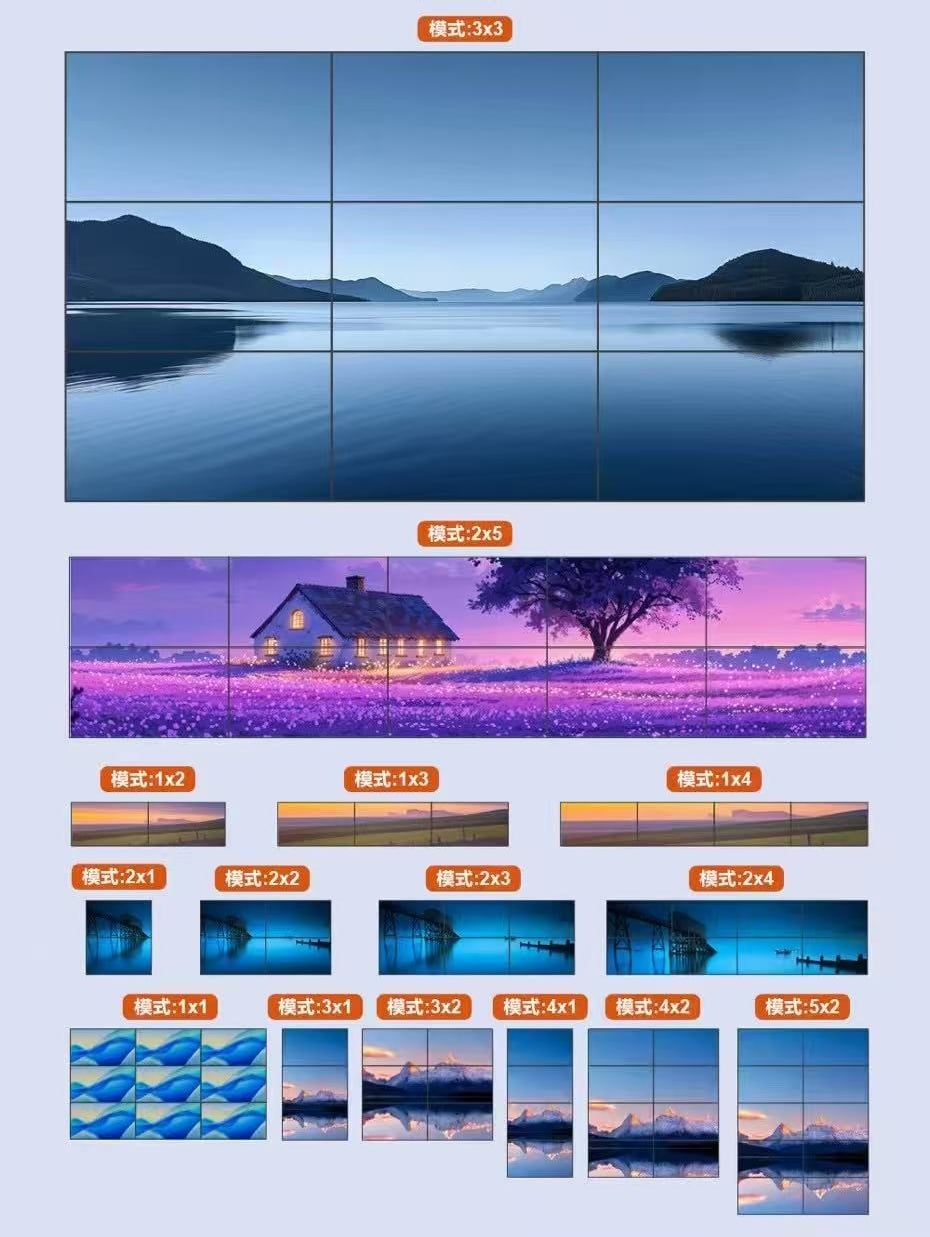

15 video wall splicing modes: 1×1, 2×1, 3×1, 4×1, 1×2, 1×3, 1×4, 2×2, 3×3, 4×2, 2×4, 5×2, 2×5
Image 180° rotation, convenient for ceiling installation
Bezel adjustment for the splicing edge
Advanced EDID management
Control via front panel buttons, IR remote and RS-232 commands
Simple plug and play, no drive and installation setting are required

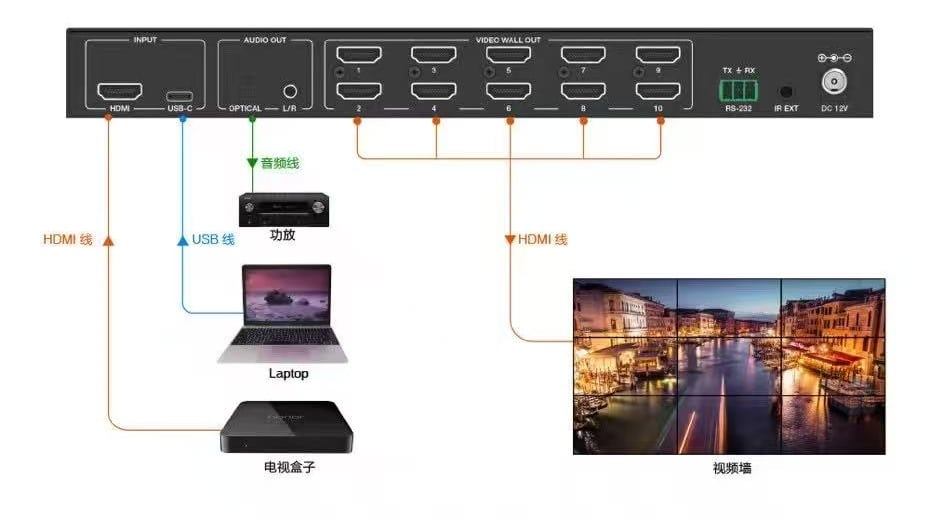

Connection Diagram
