4K60hz 150M HDBaset Wallplate Extender 2×1 HDMI & USB-C UHD 4K Wall Plate Extender 18Gbps ,IR,RS232,POC
4K 60Hz Wall Plate Extender With HDMI / USB-C Inputs,POC, Receiver Box,Easy Plug and Play,120M-150Meter by one Cat6/6a cable,Audio, DC 24V
| Weight | 358 g |
|---|---|
| Dimensions | 6.98 × 3.9 × 11.4 cm |
| Wallplate Transmitter | 2×1 switcher and CAT transmitter with HDMI and USB-C inputs |
| Transmission distance | Up to 120m/394ft for 4K2K@60Hz 4:4:4 via CAT6/6A cable |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz 4:4:4, Including all 3D TV format, Including all resolution in computer such as 1920×1200 |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio Format | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| IR Frequency | Wideband 20K-60KHz |
| Color Depth / Space | 8-bit,10-bit,12-bit,RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Application | multi-media conference rooms, multi functional halls, training centers, show room, broadcasting studios and industrial automation. |
Detailes About 4K60hz 150M HDBaset Wallplate Extender 2×1 HDMI & USB-C UHD 4K Wall Plate Extender 18Gbps ,IR,RS232,POC

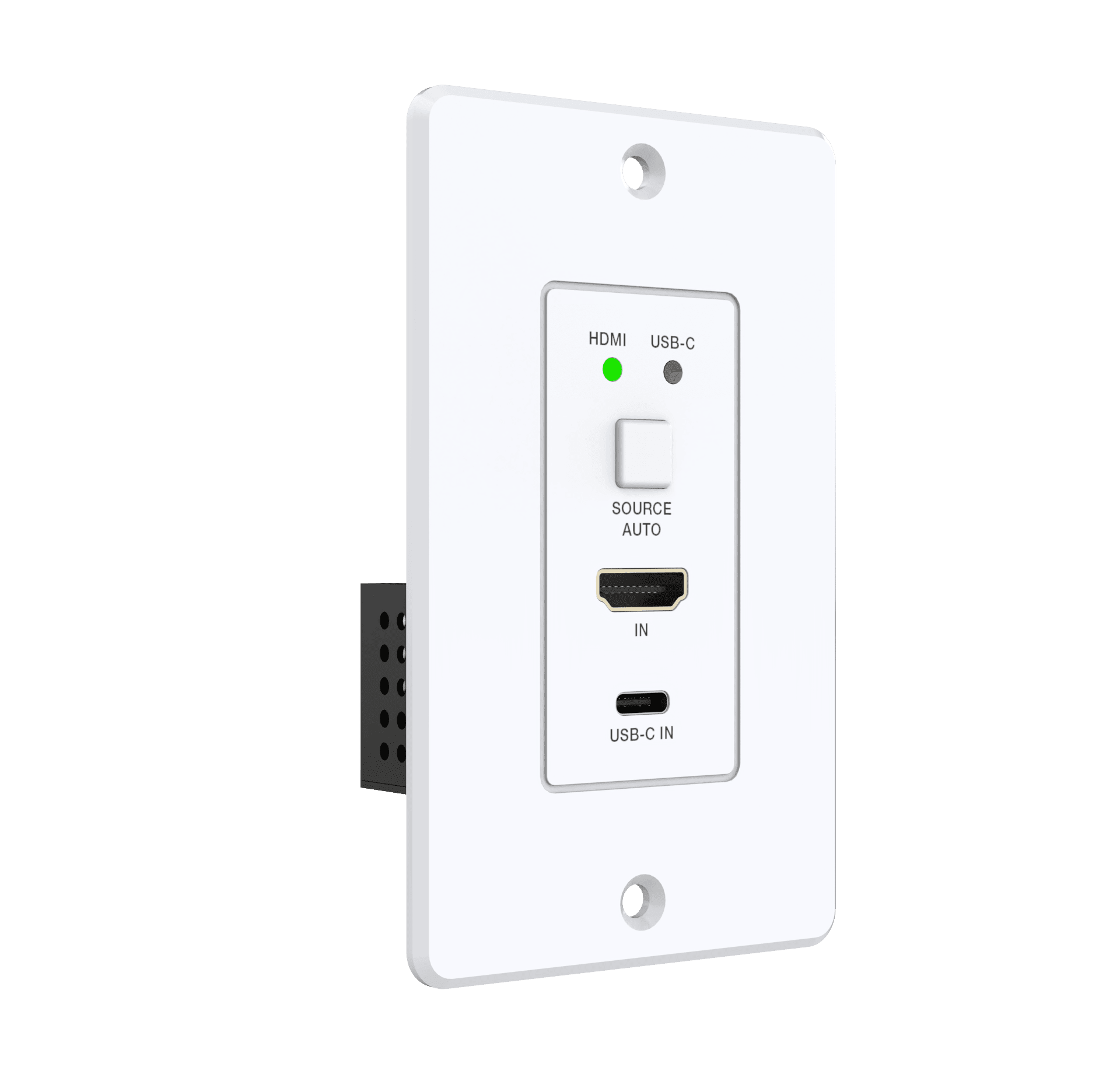

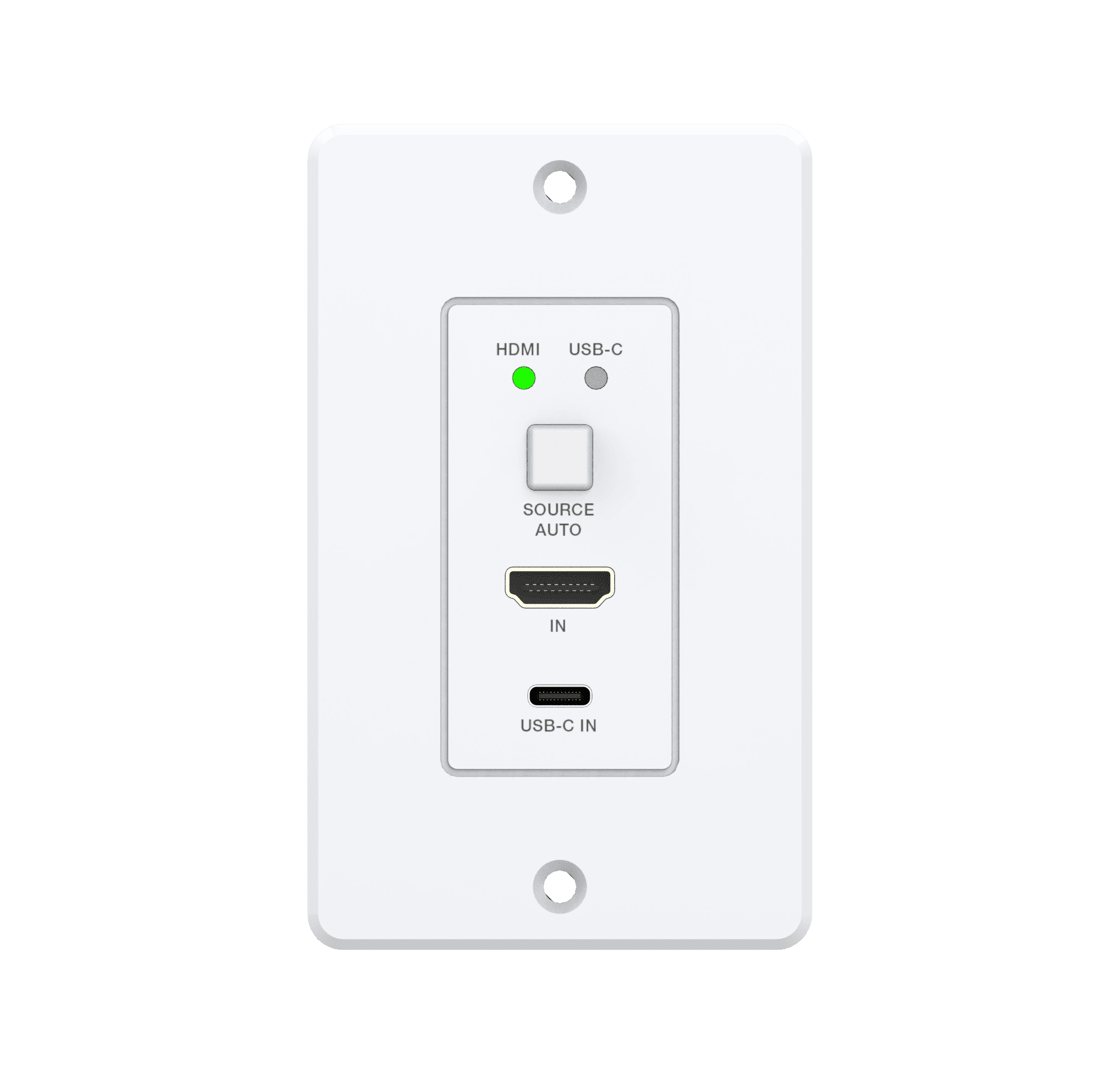

4K60 2×1 HDBT Extender with USB-C/HDMI™ Inputs
IR,RS232/ HDMI & USB-C Input
This product can extend HDMI/USB C signals up to 150m/492ft for 1080P @60Hz, or 120m/394ft for 4K2K@60Hz (4:4:4) via a single CAT6/6A cable. The wall-plate transmitter features one HDMI input and one USB-C input port, supporting manual and automatic switching modes. The box receiver features one HDMI output and one 3.5mm de-embedding audio output.
It supports bi-directional PoC and bi-directional IR, RS-232 signal transmis- sion.
The multifunctional extender can be widely used in scenarios of demonstration, video conference, multimedia teaching and other HDMI signal extension occassions.
Features:
☆ DP 1.4, HDCP 2.2 compliant
☆ The transmitter with 1-Gang US size wall plate supports two inputs: 1× HDMI and 1× USB-C
☆ Video resolution is up to 4K2K@60Hz 4:4:4, and video bandwidth is 18Gbps
☆ Support auto switching and manual switching
☆ The maximum transmission distance via CAT6/6A cable is up to:
120m/394ft for 4K2K@60Hz 4:4:4 signal; 150m/492ft for 1080P@60Hz 4:4:4 signal
☆ Support audio format: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ Bi-directional IR, RS-232 and CEC control signal transmission
☆ Support bi-directional PoC
Package Contents
For Transmitter Only:
① 1× 4K60 2×1 HDBT Extender (Transmitter)
② 1× 24V/1A Multinational Power Supply
③ 1× 2-pin 3.5mm Phoenix Connector (Male)
④ 2× 3-pin 3.5mm Phoenix Connector (Male)
⑤ 1× User Manual

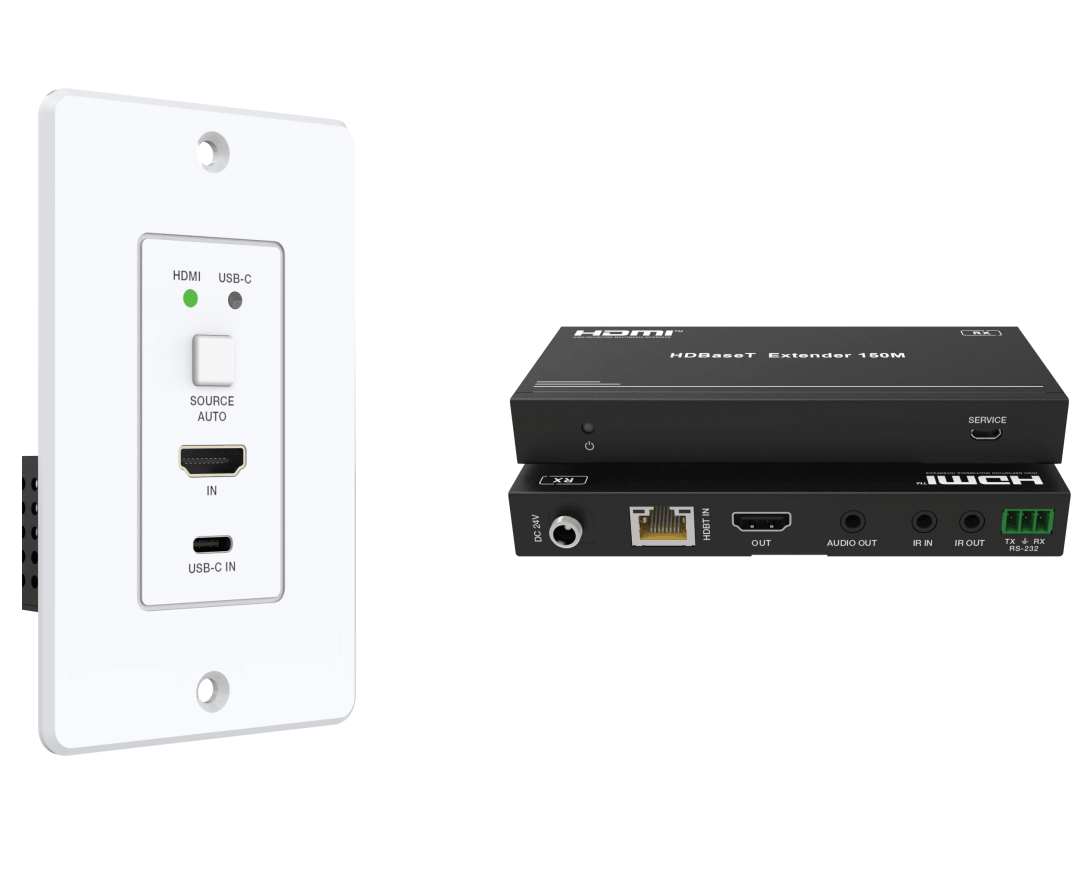

For Transmitter & Receiver:
① 1× 4K60 2×1 HDBT Extender (Transmitter)
② 1× 18Gbps HDMI over HDBaseT Extender (Receiver)
③ 1× 24V/1A Multinational Power Supply
④ 1× IR Blaster Cable (1.5m)
⑤ 1× IR Wideband Receiver Cable (1.5m)
⑥ 1× 2-pin 3.5mm Phoenix Connector (Male)
⑦ 2× 3-pin 3.5mm Phoenix Connector (Male)
⑧ 1× 3-pin 3.81mm Phoenix Connector (Male)
⑨ 2× Mounting Ear
⑩ 4× Machine Screw (KM3*4)
11 1× User Manual
Specification
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz 4:4:4 Including all 3D TV format Including all resolution in computer such as 1920×1200 |
| Color Depth | 8-bit,10-bit,12-bit |
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio Format | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| L/R Audio Format | LPCM 2.0CH |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | Up to 120m/394ft for 4K2K@60Hz 4:4:4 via CAT6/6A cable Up to 150m/492ft for 1080P@60Hz 4:4:4 via CAT6/6A cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
|
Transmitter | Input: 1× USB-C IN [USB Type C, 24-pin female] 1× HDMI IN [HDMI Type A, 19-pin female] Output: 1× HDBT OUT [RJ45] Control: 1× RS-232 [3-pin 3.5mm phoenix connector] 1× IR IN [3-pin 3.5mm phoenix connector] 1× IR OUT [2-pin 3.5mm phoenix connector ] |
|
Receiver | Input: 1× HDBT IN [RJ45, 8-pin female] Output: 1× HDMI OUT [HDMI Type A, 19-pin female] 1× AUDIO OUT [3.5mm stereo mini-jack] Control: 1× IR IN [3.5mm stereo mini-jack] 1× IR OUT [3.5mm stereo mini-jack] 1× RS-232 [3-pin phoenix connector] 1× SERVICE [Mini-USB, update port] |
| Mechanical | |
| Housing | Transmitter/Receiver: Metal Enclosure |
| Color | Transmitter: White + Black; Receiver: Black |
| Dimensions | Transmitter: 69.8mm [W] × 39mm [D] × 114mm [H] Receiver: 140mm [W] x 65mm [D] x 18mm [H] |
| Weight | Transmitter: 203g, Receiver: 155g |
| Power Supply | Input: AC 100-240V 50/60Hz; Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Transmitter: 4.5W (Max); Receiver: 4.7W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% relative humidity, non-condensing |
| Storage Humidity | 10%~90% relative humidity, non-condensing |
| No. | Name | Function Description |
| 1 | USB-C LED | The green LED will be on when USB-C input is selected as the input channel. |
| 2 | HDMI LED | The green LED will be on when HDMI input is selected as the input channel. |

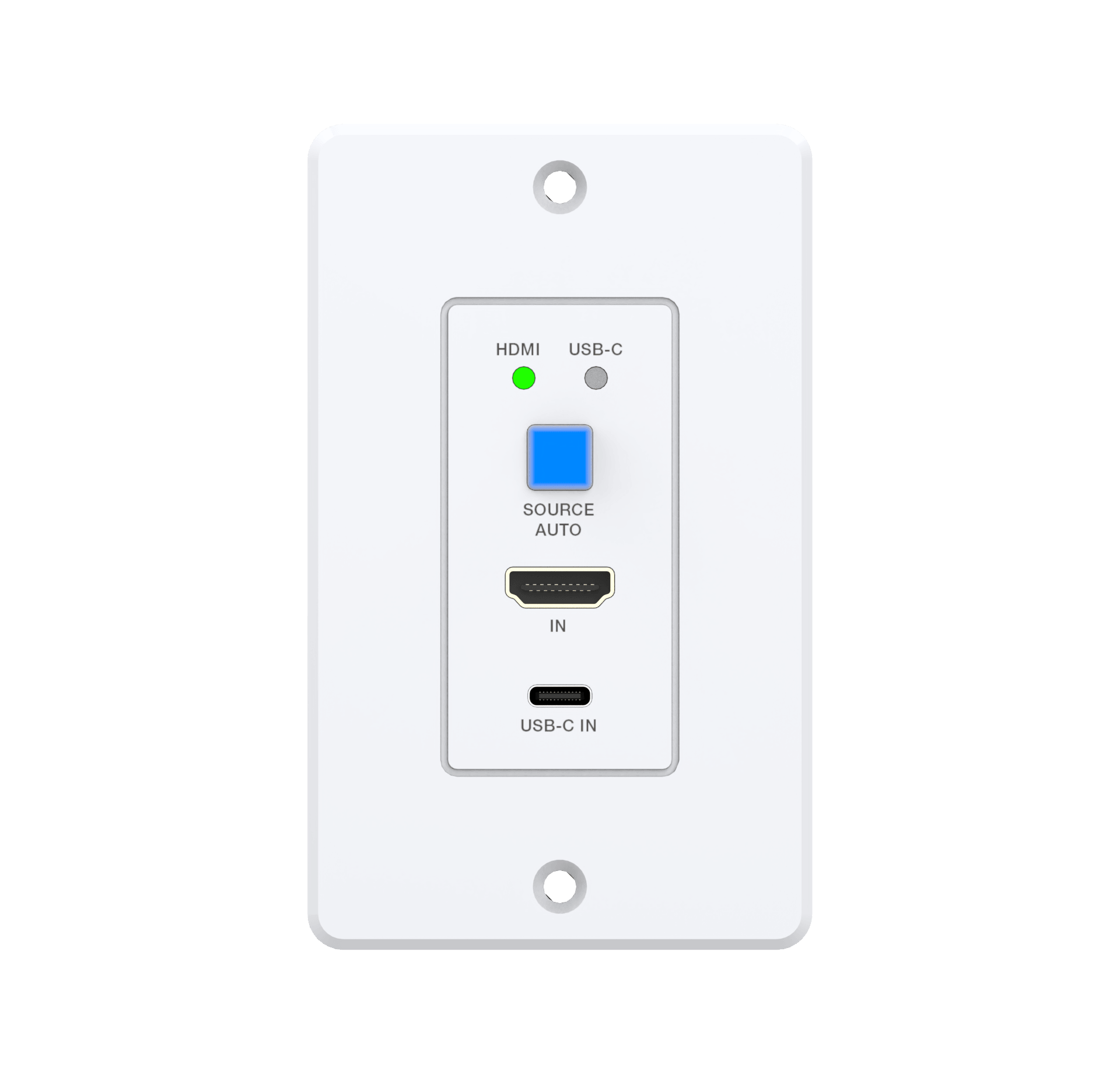

| 3 | SOURCE/AUTO button & indicator | Press to switch the two input sources: USB-C and HDMI. Long press for 3 seconds to enable or disable auto switching function. The indicator will be blue when auto switching is enabled. |
| 4 | HDMI IN | HDMI input port, supporting video signal up to 4K60 4:4:4. |
| 5 | USB-C IN | USB-C input port, supporting video signal up to 4K60 4:4:4. |
| 6 | HDBaseT OUT | Connects to the HDBT IN port on Receiver with CAT6/6A cable. |
| 7 | RS-232 | 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter. |
| 8 | IR IN | IR input port for receiving the signal of IR remote. |
| 9 | IR OUT | IR output port for control of source device. This IR output signal is from the IR IN port of receiver. |
| 10 | DC 24V | DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply. |
| 11 | PoC ON/OFF | PoC switch. Switch to ON to enable PoC function; switch to OFF to disable PoC, and the transmitter is powered from local power supply at this time. |

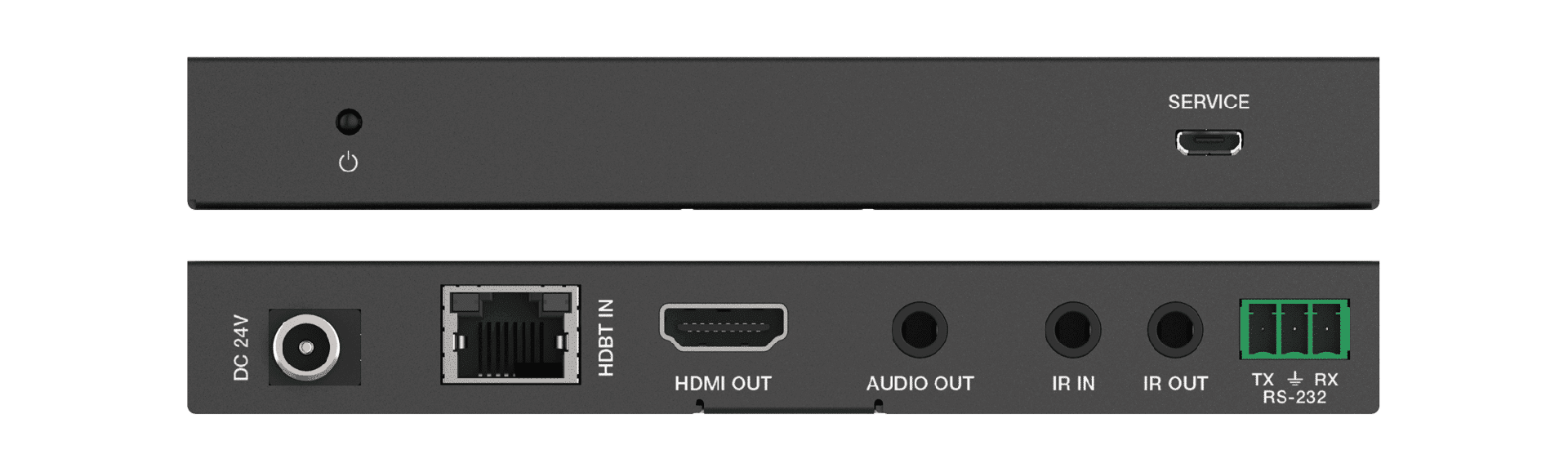

| No. | Name | Function Description |
| 1 | Power LED | Red LED indicates that the receiver is powered on. |
| 2 | SERVICE | Firmware update port. |
| 3 | DC 24V | DC 24V/1A power supply input port. Note that the extender supports PoC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply. |
| 4 | HDBT IN | Connects to the HDBT OUT port on Transmitter with CAT6/6A cable. |
| 5 | Connection Signal Indicator | ▪ On: Transmitter and receiver are in good connection status. ▪ Flashing: Transmitter and receiver are in poor connection status. ▪ Off: Transmitter and receiver are not connected. |
| 6 | Data Signal Indicator | ▪ On: There is HDMI signal with HDCP. ▪ Flashing: There is HDMI signal without HDCP. ▪ Off: There is no HDMI signal. |
| 7 | HDMI OUT | HDMI signal output for display. |
| 8 | AUDIO OUT | 3.5mm stereo connector for analog audio output. |
| 9 | IR IN | IR signal input port for receiving the signal of IR remote. |
| 10 | IR OUT | IR signal output port for control of display device. This IR output signal is from the IR IN port of transmitter. |
| 11 | RS-232 | 3-pin Phoenix connector for RS-232 command transmission. The RS-232 command will pass-through from transmitter to receiver or from receiver to transmitter. |

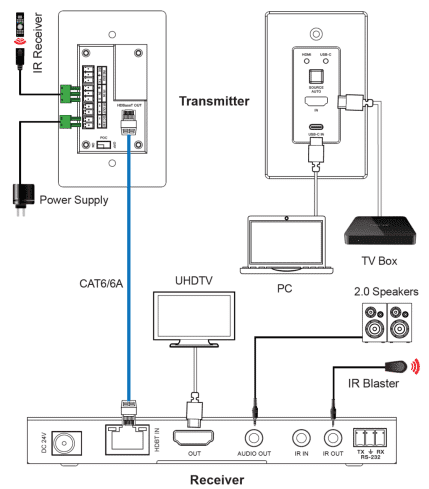

Diagram
