4K@60Hz 4:4:4 HDBaset 2.0 100m HDMI/USB-C dual Input Over a single CAT6 cable,60W charging,POC,RS232,IR
18Gbps HDBaset 2.0 Extender over One Cat6 up to 100m with USB 2.0 Hub ,USB-C 60W charging,RS232,POC,DP-ALT mode for AV
| Weight | 1400 g |
|---|---|
| Dimensions | 20.8 × 12.2 × 2.2 cm |
| HDMI/DP | HDMI 2.0b |
| Resolution | 4K@60Hz 4:4:4 |
| HDCP | HDCP2.3 |
| Transmission Distance | HDMI/USB-C passive cable: 16.4ft/5m |
| Video Bandwidth | 18Gbps |
| Audio format | HDMI/USB-C/HDBT : LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| USB port | USB-C support DP Alt Mode,USB 2.0 data transmission,60W charging |
| POC Power Supply | Support bi-directional 24V PoC, with PoC switch (USB-C charging only from TX power supply) |
| RS232 | RS-232 signal pass-through and API control |
| IR | Bi-directional IR pass-through |
Detailes About 4K@60Hz 4:4:4 HDBaset 2.0 100m HDMI/USB-C dual Input Over a single CAT6 cable,60W charging,POC,RS232,IR
HDMI/USB-C 4K60 100M HDBaset 2.0 with USB-C Input,Bi-directional IR,RS232,Audio De-embedding,EDID,POC,60W charging
Features:

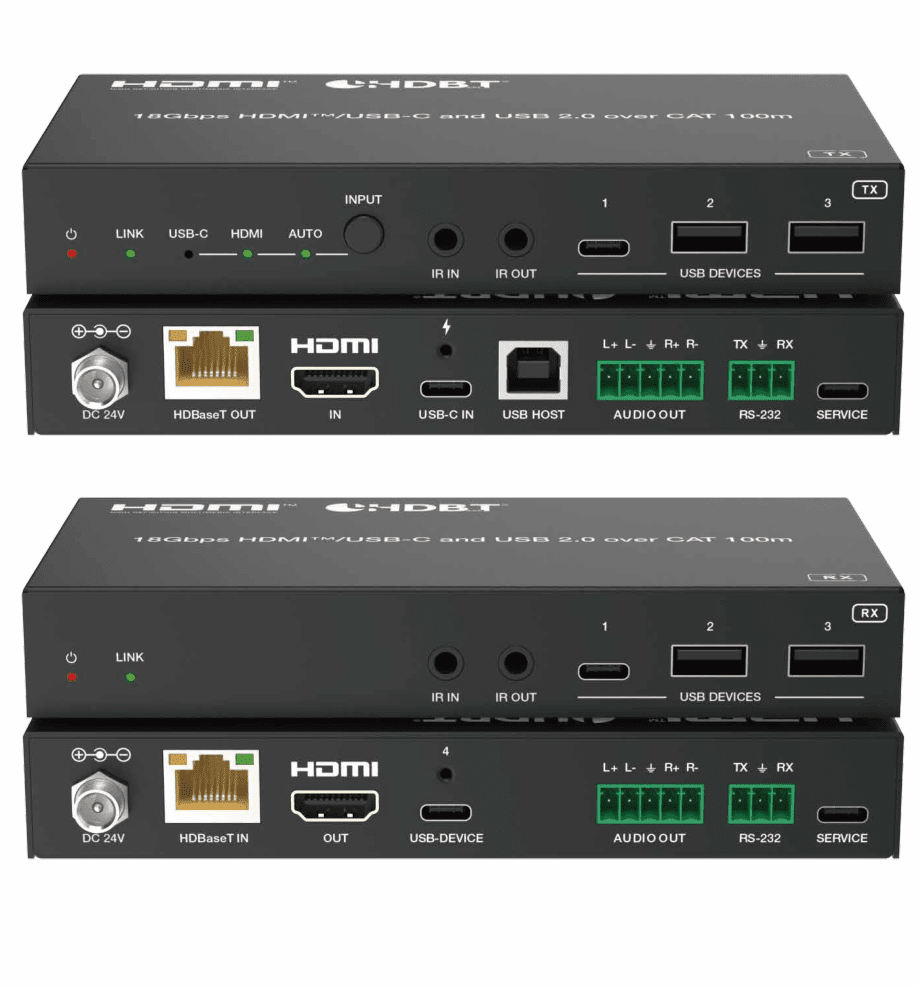

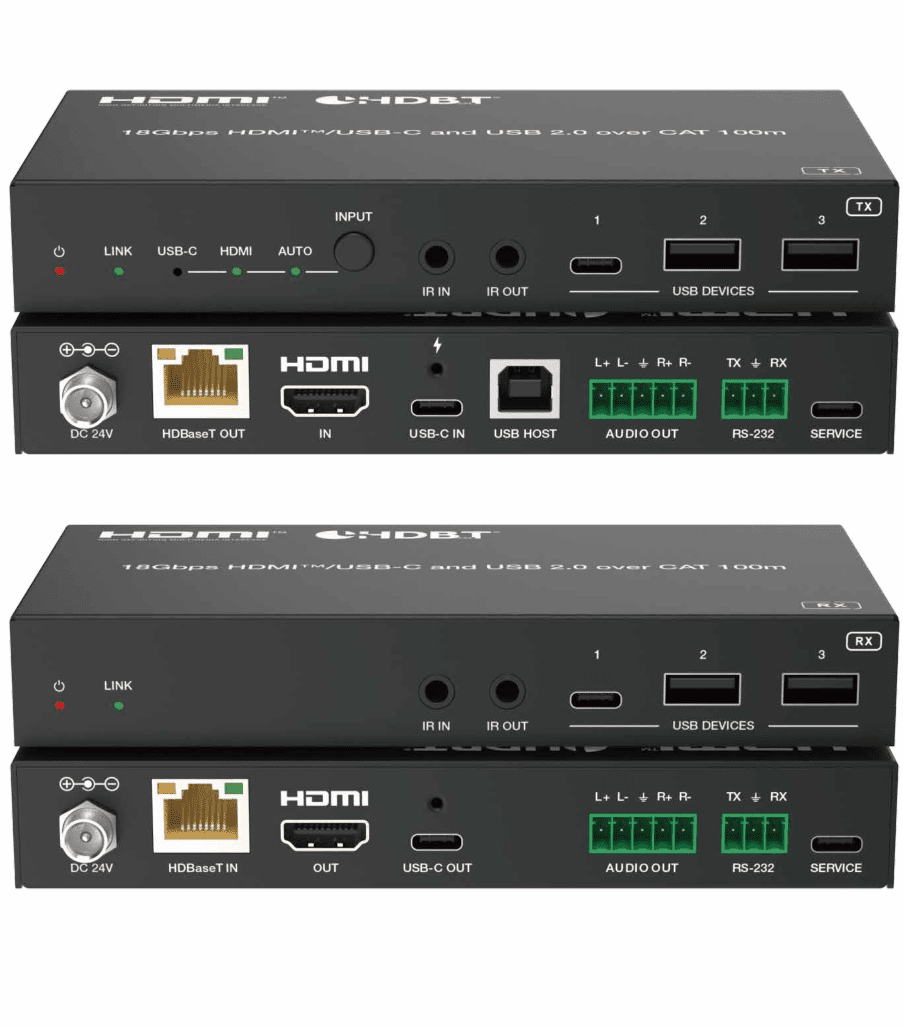

HDBaseT 2.0 Extender with Dual USB-C / HDMI™ Inputs
Extends HDBaseT 2.0 4K@60Hz video up to 100 meters over a single CAT6 cable
USB-C Port (Supports DP Alt Mode)
Supports resolutions up to 4K@60Hz 4:4:4 (DP 1.2a, HDCP 2.3)
Supports USB 2.0 data transmission
Supports up to 60W Power Charging
Supports Fast Switching, offering both Automatic and Manual switching modes
Automatic switching supports signal detection and 5V power detection
Transmitter (TX) and Receiver (RX) support balanced / unbalanced audio de-embedding
Supports EDID Management
Supports RS-232 and Bi-directional IR pass-through
Bi-directional 24V PoC (Power over Cable)
The USB-C charging function is available only when the Transmitter (TX) is connected to a power source
