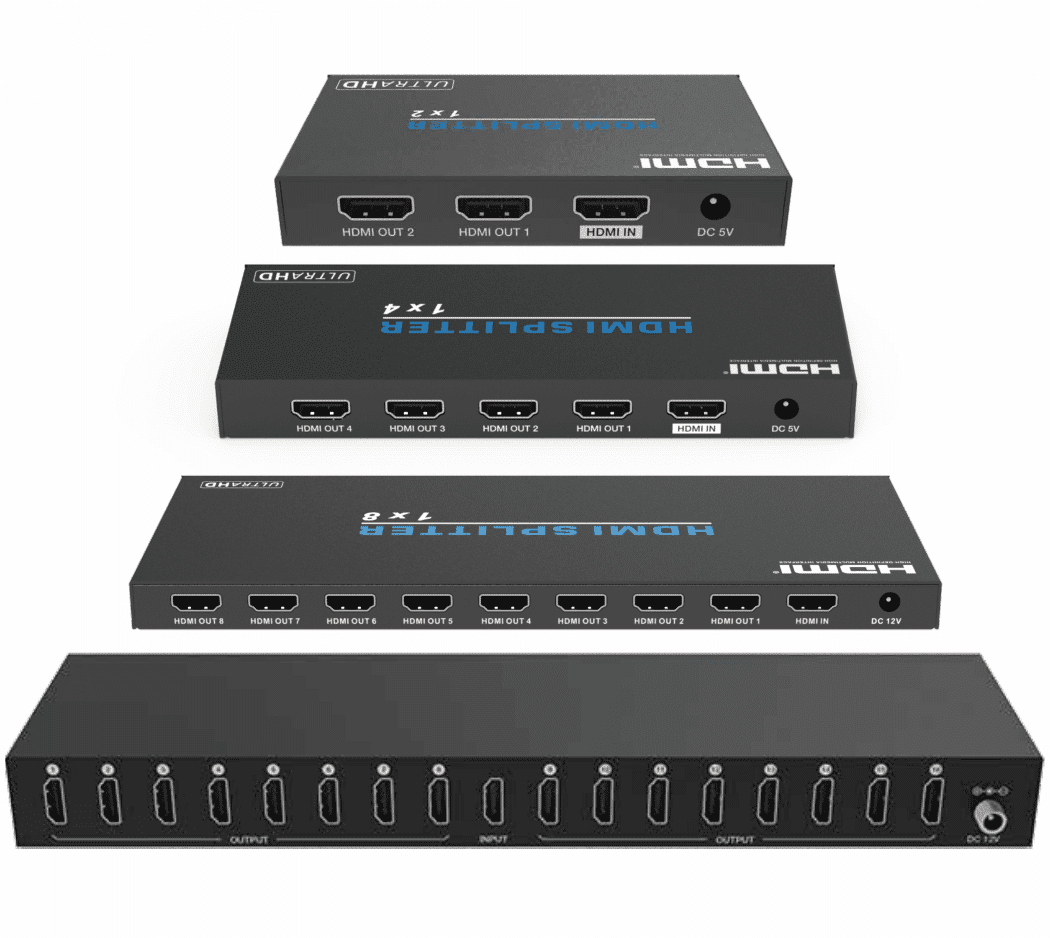

4K60 HDMI 2.0 18Gbps 1×2 1X4 1×8 1×16 Splitter,1×2/4 with Audio deembedded,downscale
4K60 1×2 1×4 1×8 1×16 HDMI Splitter with EDID, 1X2 1X4 with Audio and downscale,Plug and Play, with Certificate Power adapter, 5 Years Warranty.
| Weight | 400 g |
|---|---|
| Dimensions | 10 × 6 × 3 cm |
| HDMI Version | 4K60 HDMI 2.0, 18Gbps,HDCP2.2 |
| Interface | 1 HDMI IN, 2/4/8/16 HDMI Out, EDID |
| Video Bandwidth | 600MHz/18Gbps |
| Special feature | Audio with 7.1Ch, |
Detailes About 4K60 HDMI 2.0 18Gbps 1×2 1X4 1×8 1×16 Splitter,1×2/4 with Audio deembedded,downscale

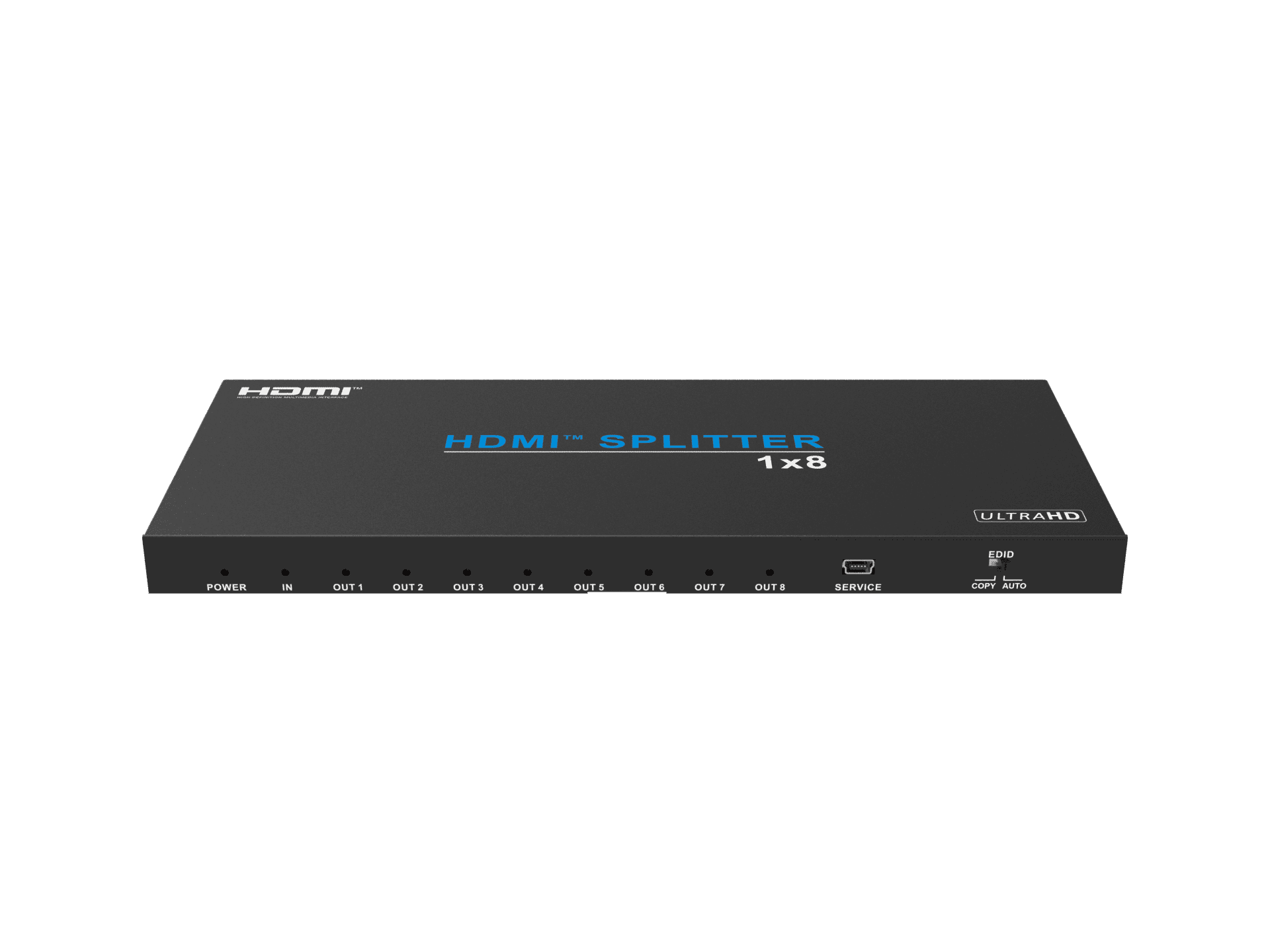

1×2,1×4,1×8,1×16 HDMI 4K60 Splitter with EDID
18Gbps 1×2,1×4,1×8,1×16 HDMI Splitter is an advanced solution for splitting single HDMI signal to 8 HDMI outputs synchronously. It supports up to 18Gbps bandwidth, HDMI 2.0b/HDCP 2.2 content up to 4K@60Hz 4:4:4. It can be set the COPY/ AUTO EDID configuration. Supporting the latest features you can be assured of reliable and high quality HDMI distribution.
Features
☆ HDMI 2.0b, HDCP 2.2 compliant
☆ Supports 18Gbps bandwidth
☆ Supports resolution up to 4K@60Hz 4:4:4
☆ Supports HDR function
☆ Supports COPY/AUTO EDID control via dialling the dip switch
☆ Compact design for easy and flexible installation
Packing list
① 1× 18Gbps 1×8 HDMI Splitter
② 1× 12V/1A DC Locking Power Adapter
③ 1× User Manual
Interface
Specification
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 1×2 600MHz/18Gbps, 1×8 594MHz/18Gbps |
| Input Port | 1×HDMI Type A (19-pin female) |
| Output Ports | 2/4/8/16 ×HDMI Type A (19-pin female） |
| Video Resolution | 4K2K@24/25/30/60Hz |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Mechanical | |
| Chassis Material | Metal Enclosure |
| Color | Black |
| Dimensions | 1×2 56mm (W) × 100mm (D) × 16mm (H) , 1×8 243mm x 102mm x 16mm |
| Weight | 1×2 165g,1×8 572g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: 1X2 DC 5V/1A , 1×8 12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 1X2 2W, 1X8 6.15W |
| Operating Temperature | 1X2 0°C ~ 40°C / 32°F ~ 104°F 1X8 -10°C ~ 50°C / 14°F ~ 122°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% (90% 1×8) (relative humidity, non-condensing) |
| Storage Humidity | 10%~90% (relative humidity, non-condensing) |
FAQ
1. Q: Where is this product usually used?
A: It can be used in many place such as Entertainment Room / Home Theater /Lecture Room / Hall Presentation / Show Room / Demo Room / Public Commercial Display etc.
2. Q: Which input source and output devices can this product connect to?
A: Input source devices such as Blu-ray / DVD / PS3 / PS4 player or Set-Top- Box or any 6G with HDCP2.2 source etc. Output with 6G HDMI TV / Display or audio amplifier etc.
Note: To achieve 6G performance will need to collocation with particular HDMI cable to get the better quality.
3. Q: Does this product require an HDMI line length for the connection interface?
A: According to HDMI line length test, 4K2K@60Hz / 8 bit YUV 4:4:4 is the longest line length up to 3m, 4K2K@30Hz / 8-bit is the longest line length up to 10m, 1080p@60Hz / 8-bit is the longest line length up to 15m.
The use of “Premium High Speed HDMI” cable is highly recommended.

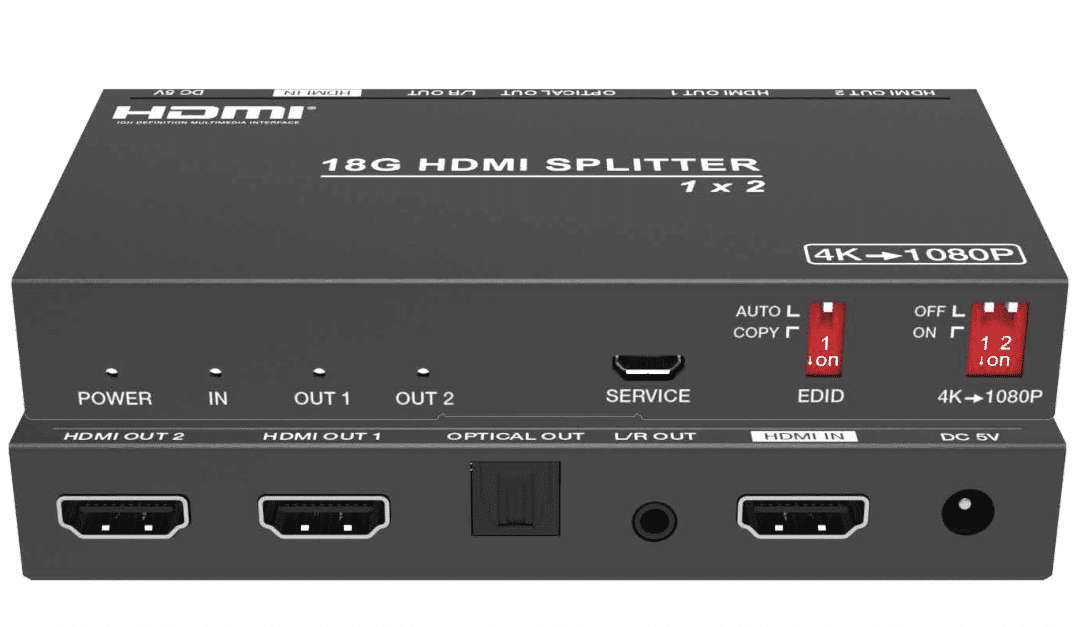

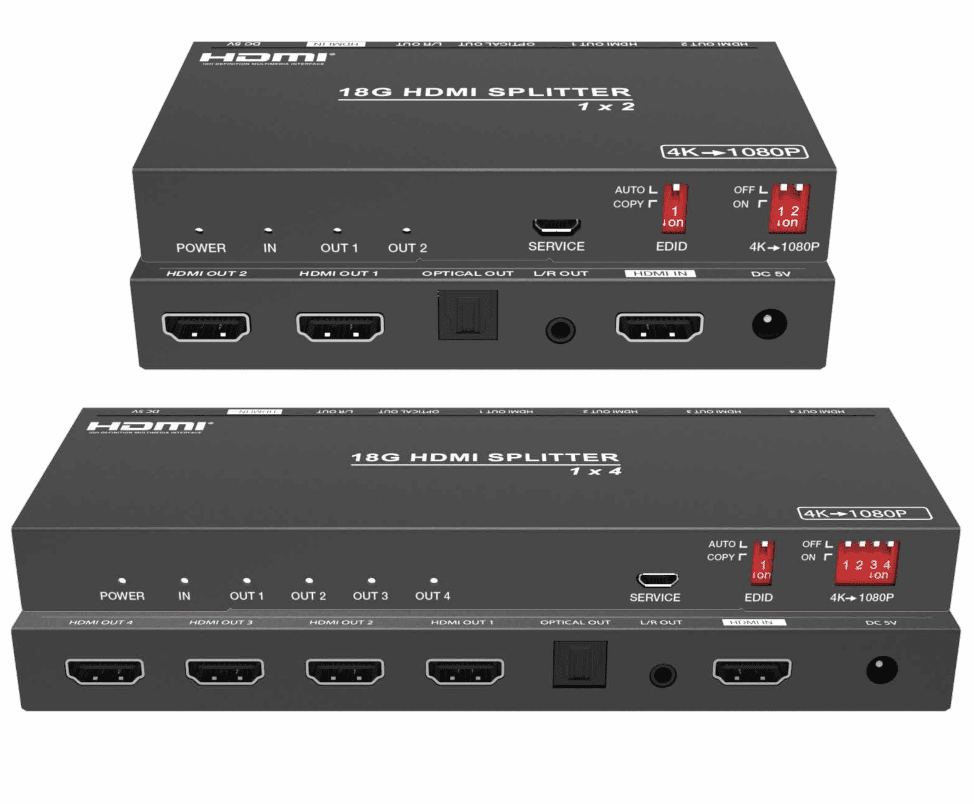

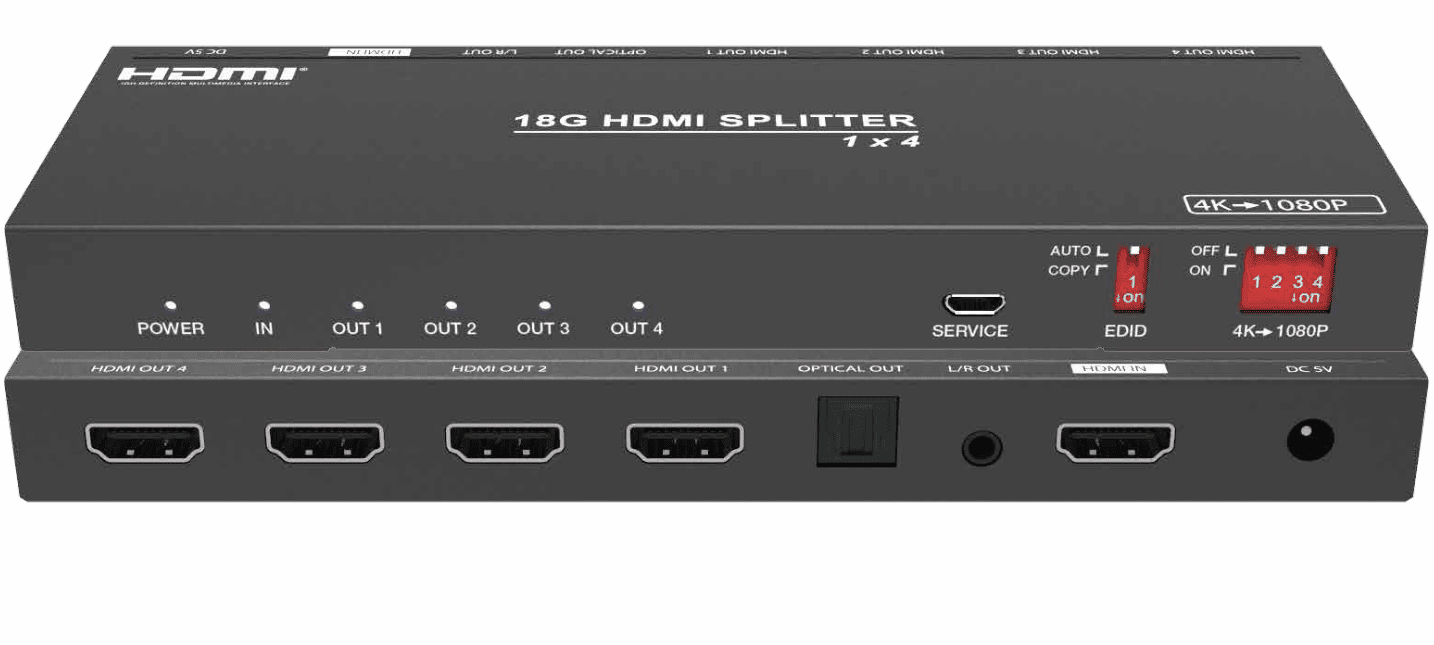

1×2,1×4 HDMI 4K60 Splitter with Audio De-embedded & Downscale
Features
HDCP 2.2 compliant
18Gbps video bandwidth
Video resolution up to 4K@60Hz, as specified in HDMI 2.0b
HDR, HDR10, HDR10+, Dolby Vision pass through
LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Digital and analog audio de-embedded
4k->1080p downscale
Built-in Equalizer, Retiming and Driver
EDID management
