2026 4K60Hz 4×4 Seamless Matrix with Video Wall Controller,Multiview,PIP
4K60 HDMI 2.0 HDCP2.2 18Gbps Seamless Matrix Switch with Video Wall splicing modes: 1×2;1×3;1×4; 2×2;3×1;2×1, 4×1, Multiview, PIP, Rotate at Any Degree,Web Gui Control, Audio Analog, Spdif Audio Matrix
| Weight | 3500 g |
|---|---|
| Dimensions | 44 × 27.4 × 4.4 cm |
| HDMI Version | HDMI 2.0 |
| Resolution | Up to 4K2K@60Hz RGB/YCBCR 4:4:4 18Gbps |
| HDCP | HDCP 2.2/1.4 |
| Video wall splicing modes | 1×2;1×3, 2×2; 4×1; 1×4; 3×1 9 different built-in modes in Preset |
| Audio | Analog audio in/ out, SPDIF/Coaxial audio extraction,Audio Matrix, to switch embedded/ HDMI audio for output independently |
| Videowall rotation | from 0 to 360° (in every 15° manner) |
| Control | via Panel button, IR Remote, RS232, GUI/TCP/IP |
| Multi-Viewer Mode: | Display 4 videos on the same screen and support 12 different built-in modes in Preset |
Detailes About 2026 4K60Hz 4×4 Seamless Matrix with Video Wall Controller,Multiview,PIP
Overview

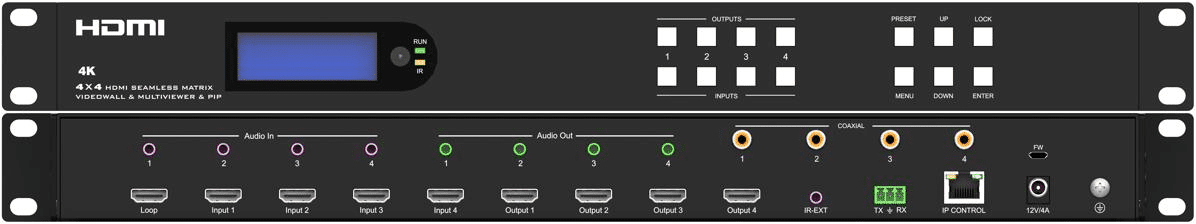

HDMI 2.0 4X4 Seamless Matrix with Video Wall and Multi-Viewer Mode supports 4K@60Hz 4:4:4 18Gbps. This Matrix has 4 HDMI Inputs & 4
Outputs plus one HDMI Loop out.Supports Audio Matrix, audio embedded & extraction, and Wide-Band IR-EXT to control matrix.
1U Compact in size for easy plug & play installation. Matrix can be controlled via the front panel, IR, RS-232 command, Telnet, Web GUI, TCP/ UDP/ IP.
Features:
4×4 HDMI 2.0 Seamless Matrix
Supports 4 ports HDMI Input, 4 ports HDMI Output, 1 HDMI Loop out
Supports resolution up to 4K@60HZ YUV4:4:4 8bit, bandwidth 18Gbps
Seamless Matrix Mode: 4 in 4 out seamless switch with no delay and no signal loss
Video Wall Mode: 9 different built-in modes in Preset(1×3/ 1×4/ 2×2 etc.)
Multi-Viewer Mode: Display 4 videos on the same screen and support 12 different built-in modes in Preset
Supports Analog audio in/ out, SPDIF/Coaxial audio extraction
Supports Audio Matrix, to switch embedded/ HDMI audio for output independently
Supports EDID management
Supports Videowall rotation from 0 to 360° (in every 15° manner)
HDCP 2.2/ 1.4 compliant
Control via Panel button, IR Remote, RS232, GUI/TCP/IP
Specification(Matrix)
Video Input Connectors: 4x HDMI Type A, 19-pin, female
Video Output Connectors: 4x HDMI Type A, 19-pin, female
Audio Input Connectors: 4x 3.5mm stereo jack
Audio Output Connectors: 4x 3.5mm stereo jack & 4x SPDIF/ Coaxial out
RS-232 Serial Port: 1x 3pin Phoenix terminal plug
TCP/IP Control: 1x RJ45, female
IR-EXT Port: 1x 3.5mm mono jack
Power Supply: DC 12V/4A
Casing Materia: Iron
Product Dimensions: L438x W220x H44mm
1x 12V/4A DC power adapter
1x Remote controller
1x IR-EXT cables
1x USB for user manual & Command list
1x 3Pin Phoenix terminal plug
It empowers users to display up to 4 video sources simultaneously on a single screen. This offers a selection of default and customizable layout presets. This feature enables content layering, allowing users to adjust bezel frame width and color to suit their preferences.
