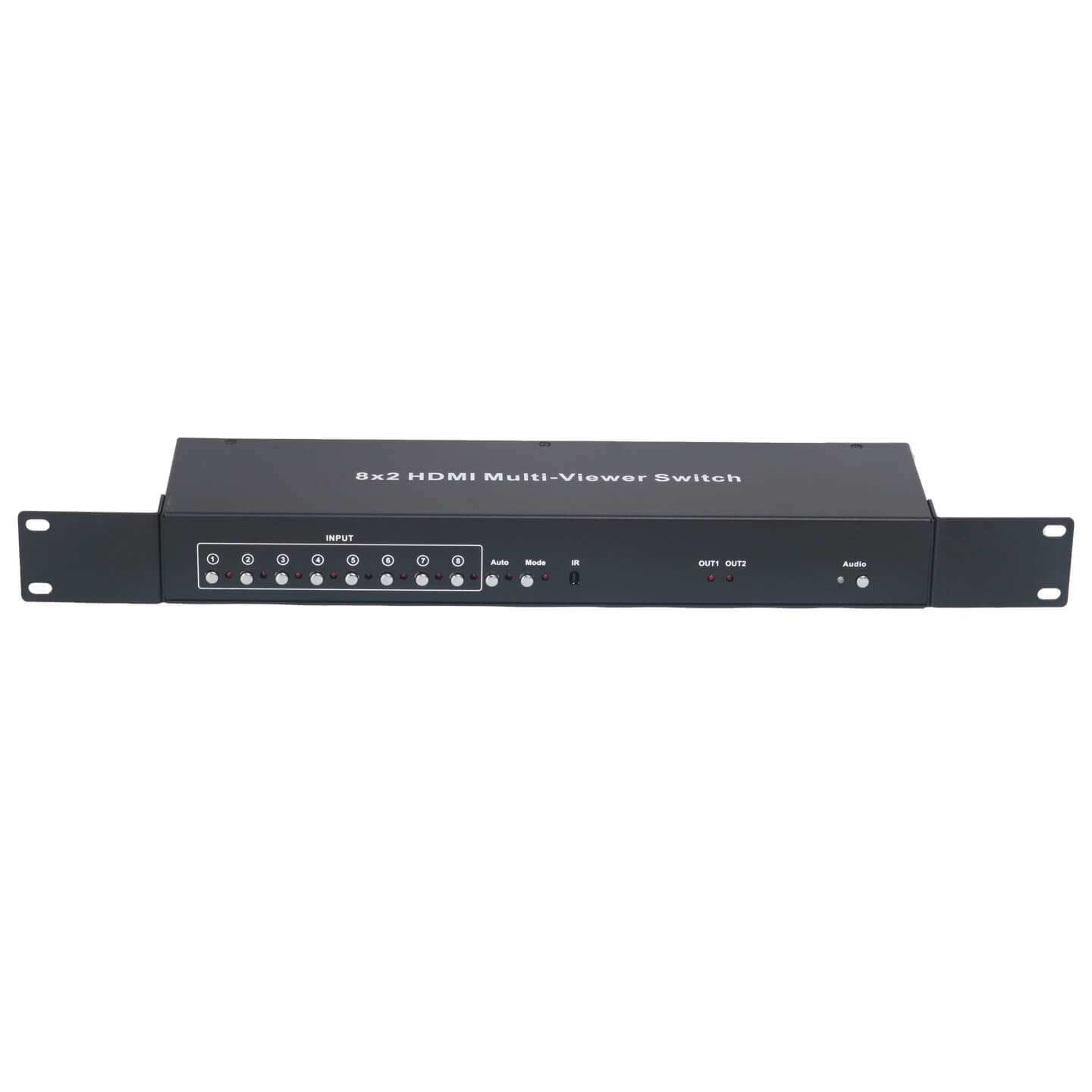

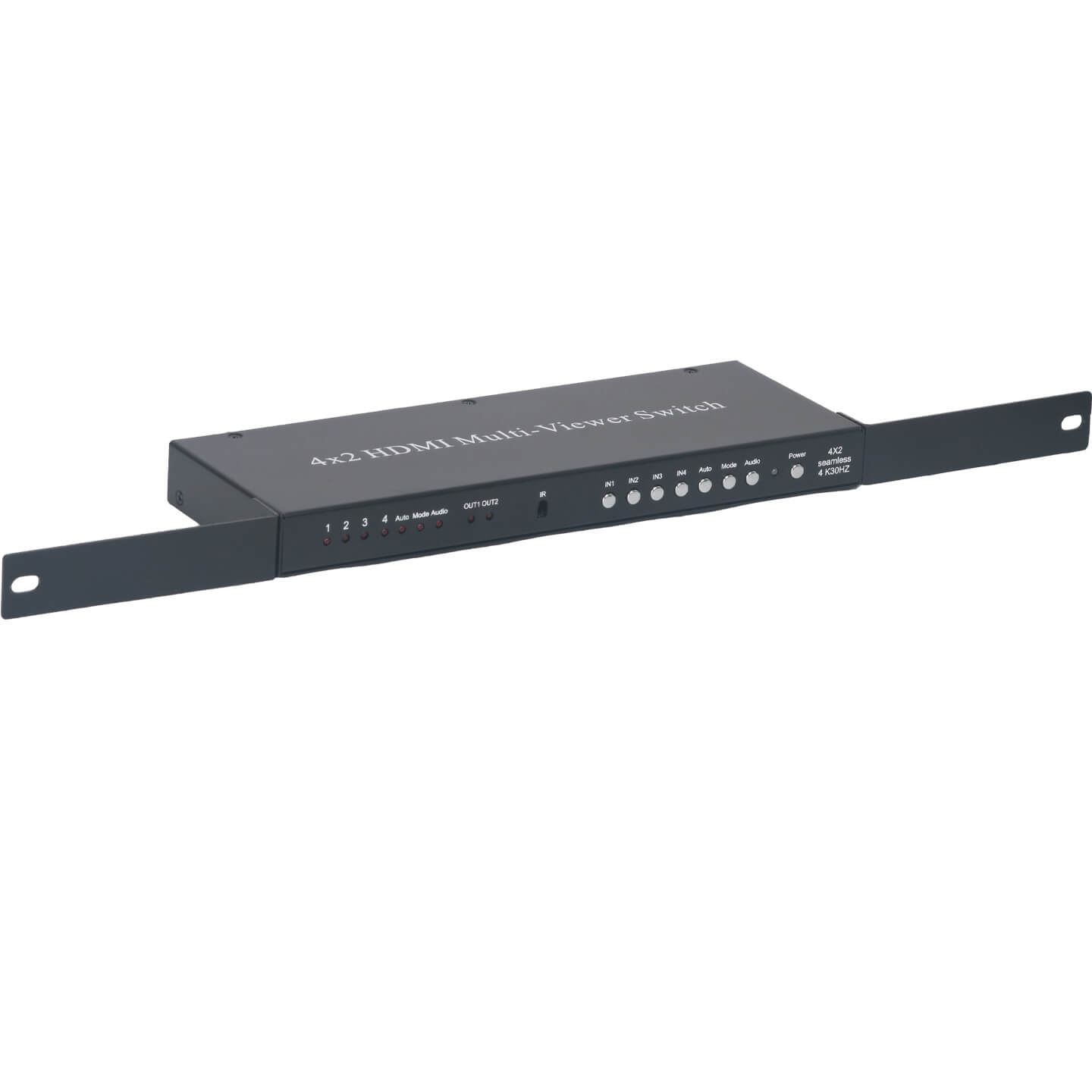

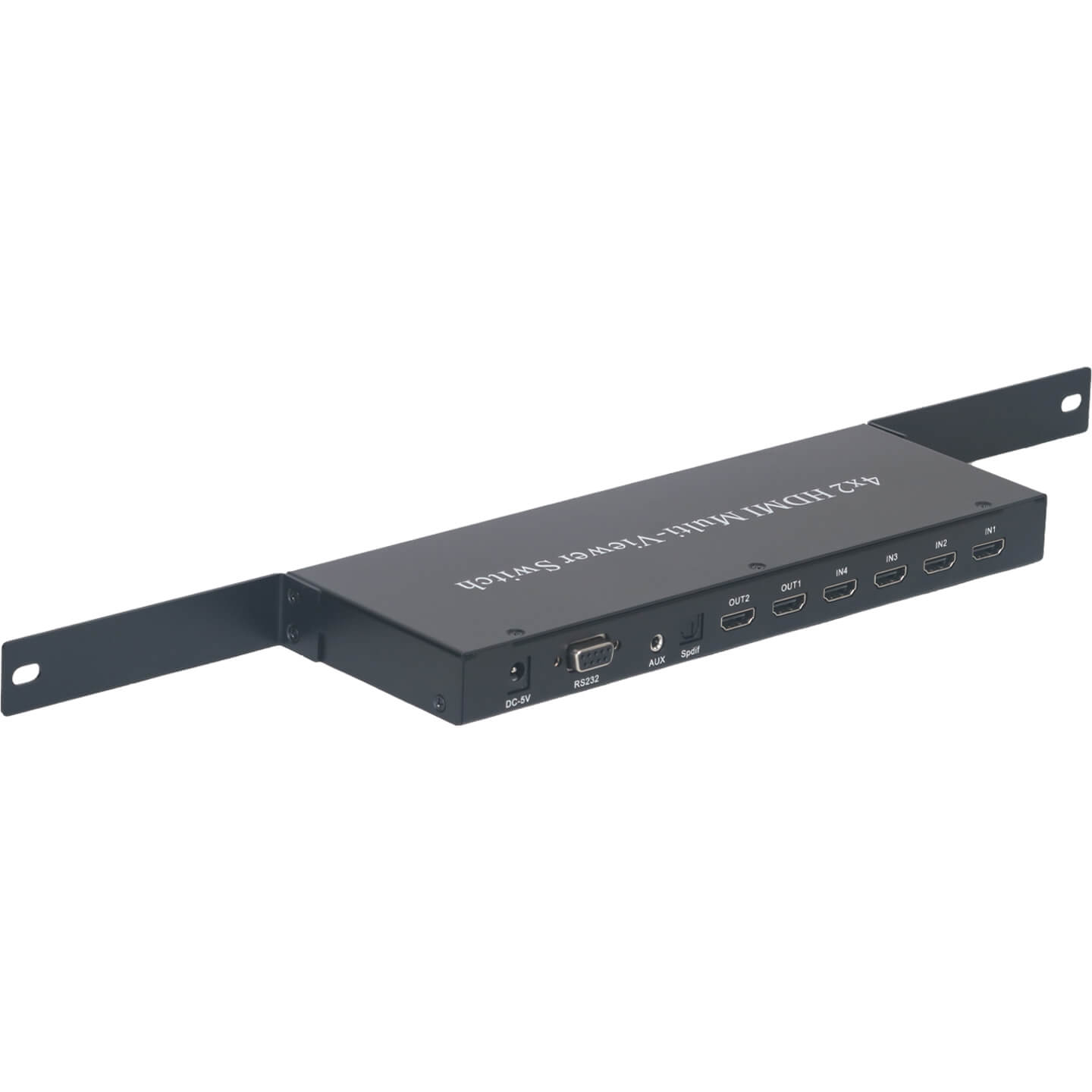

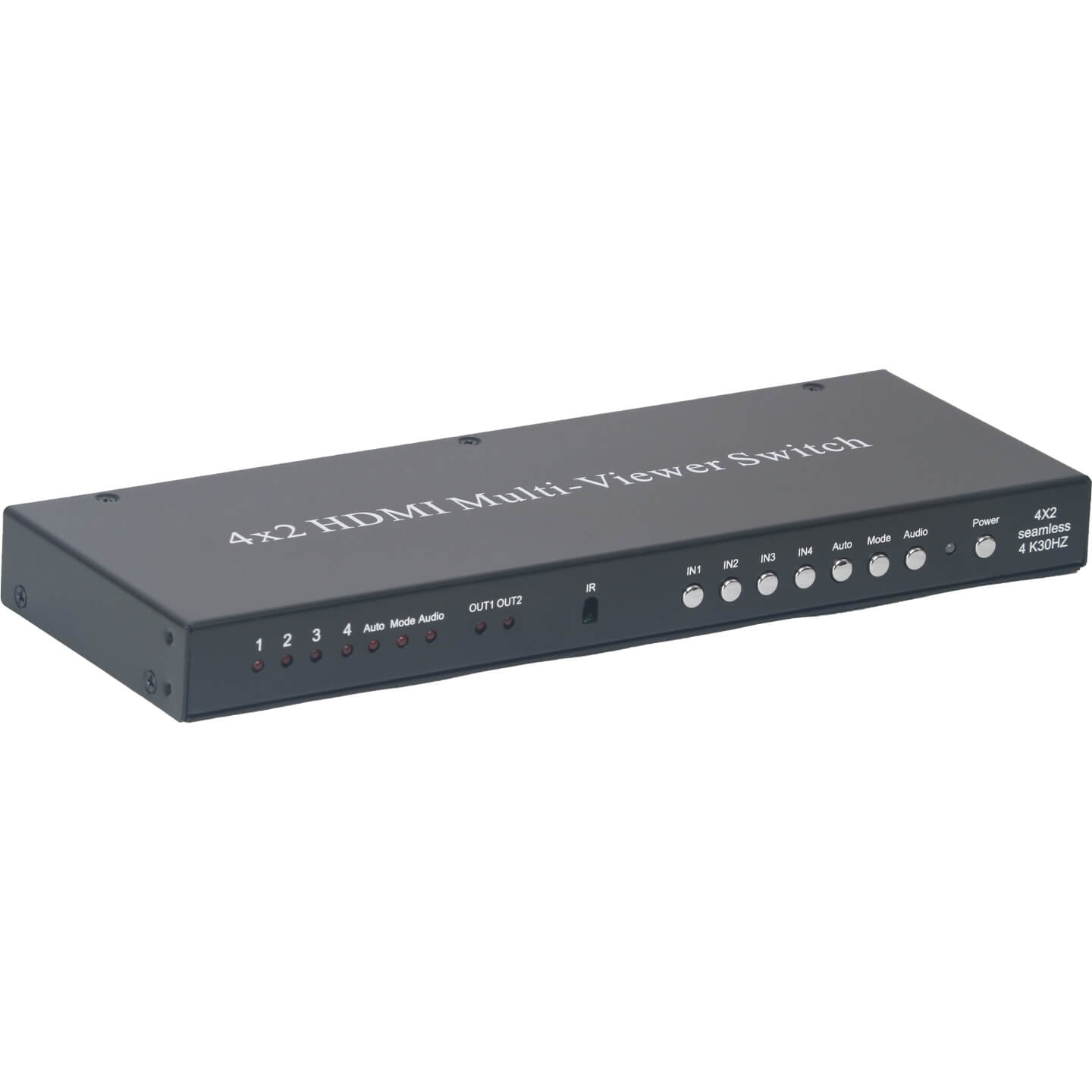

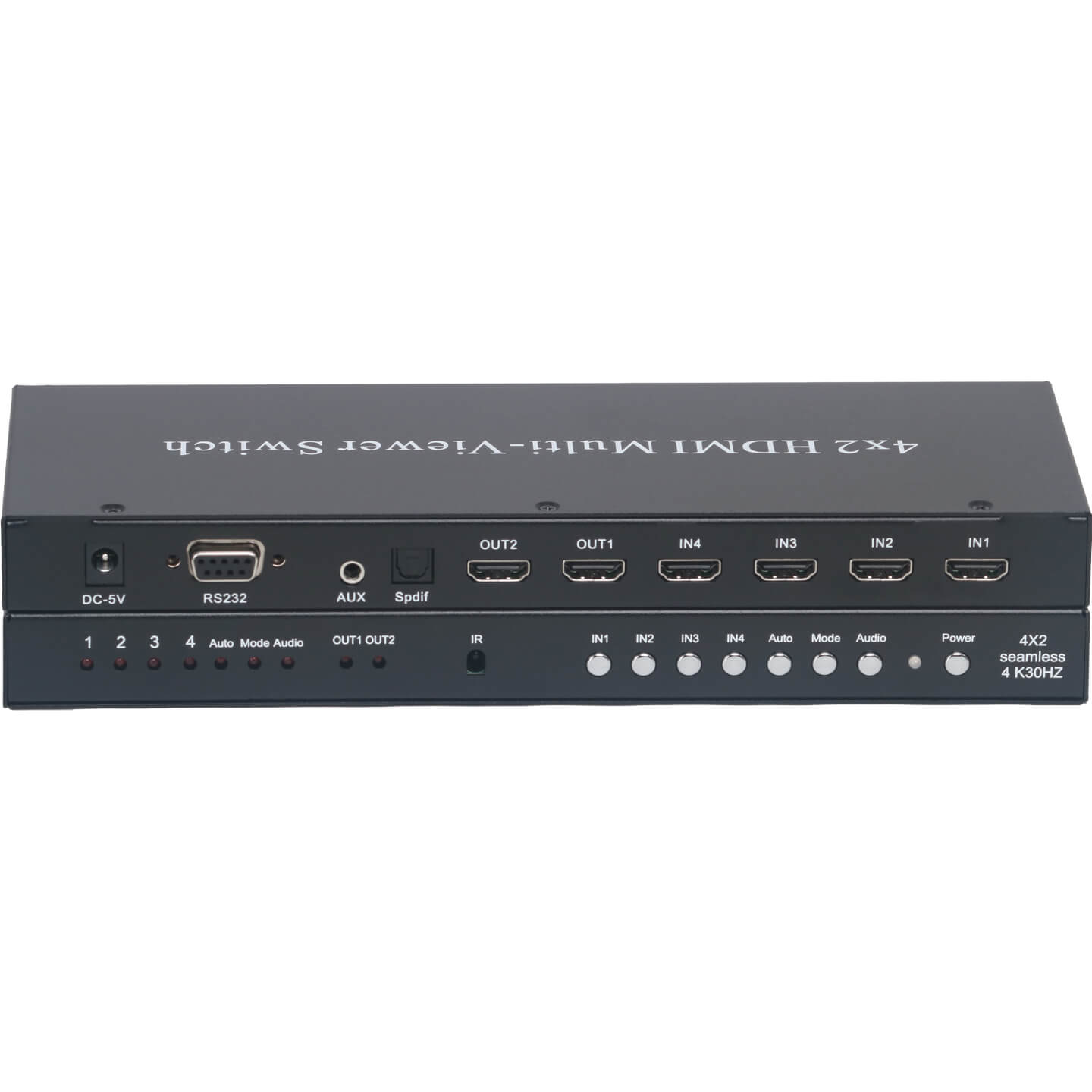

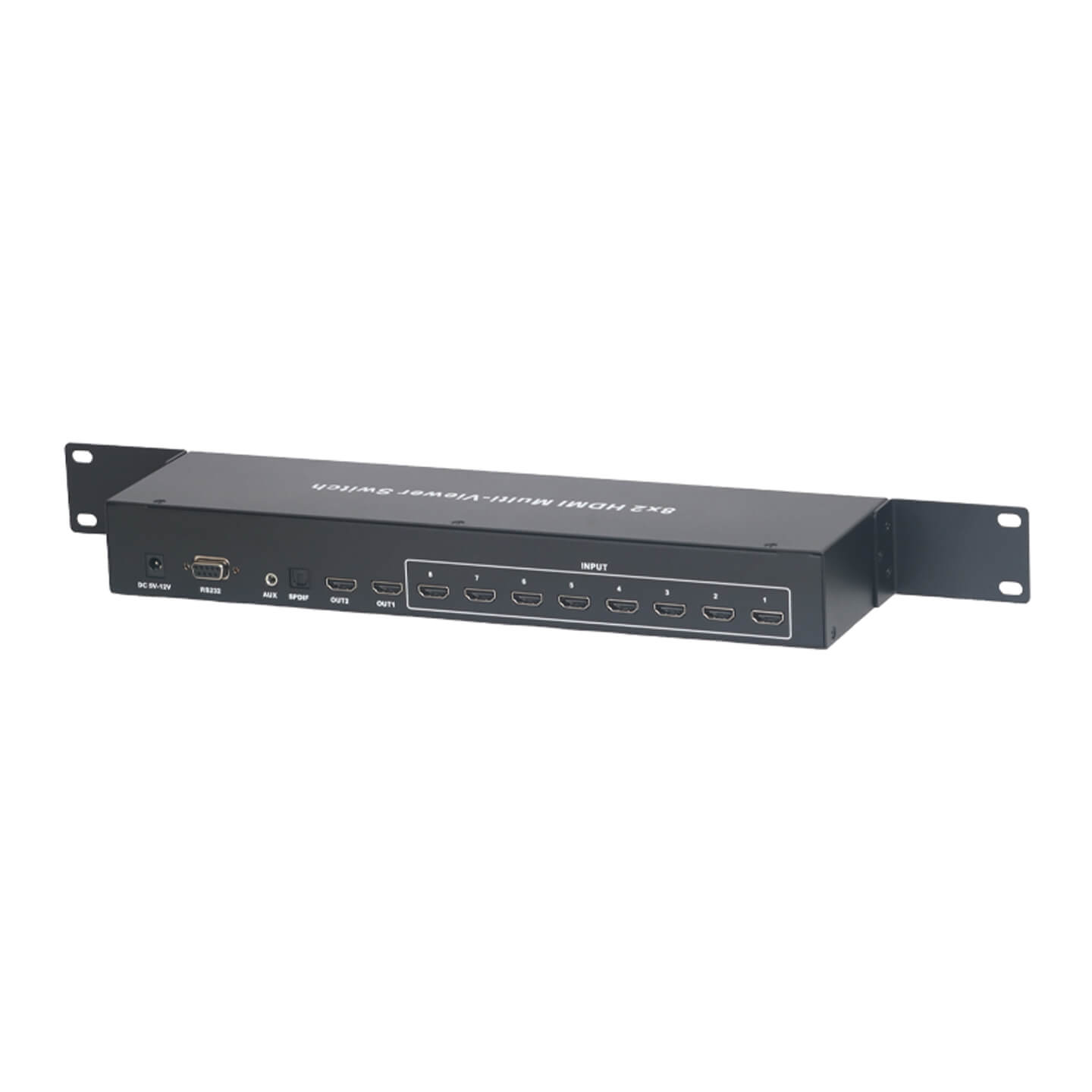

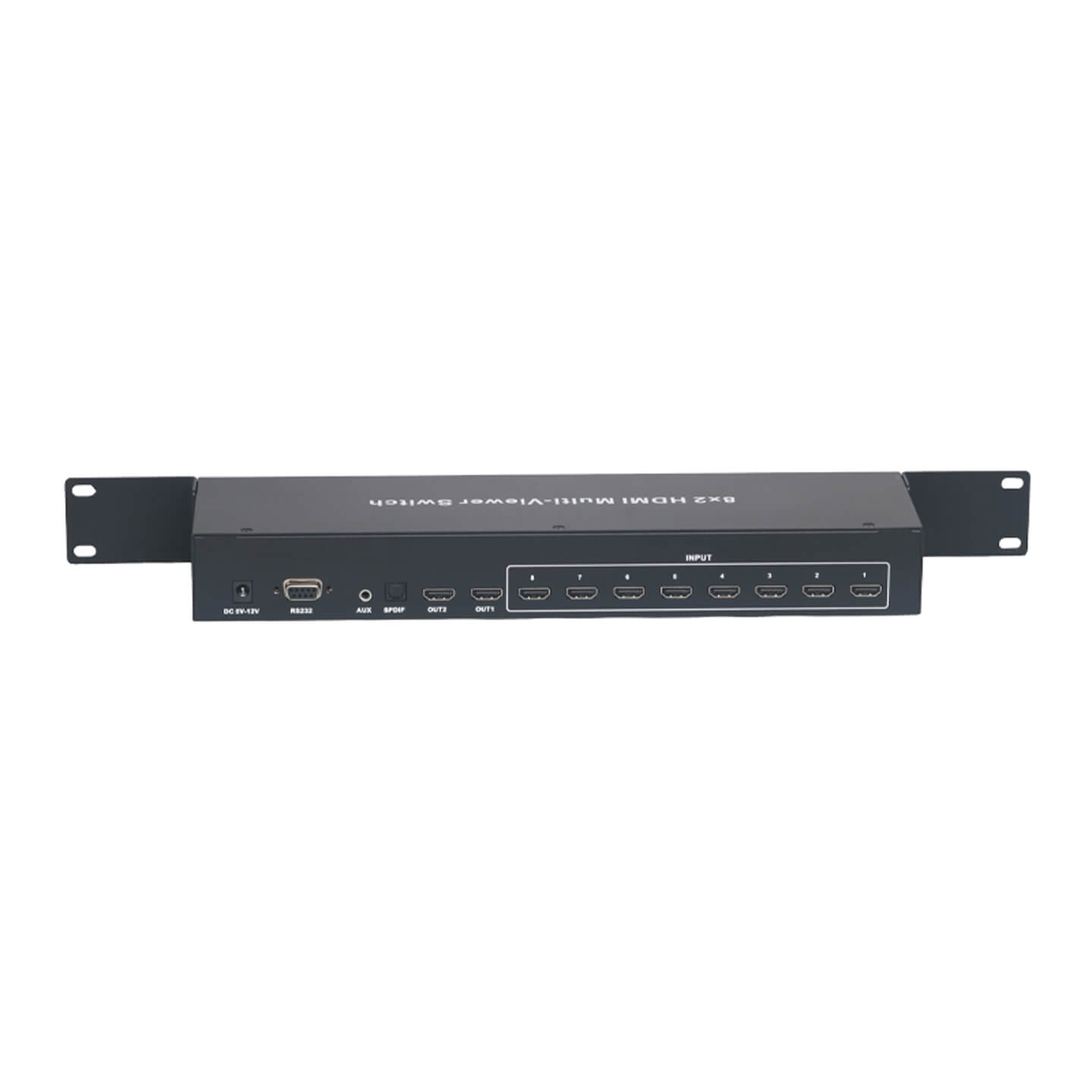

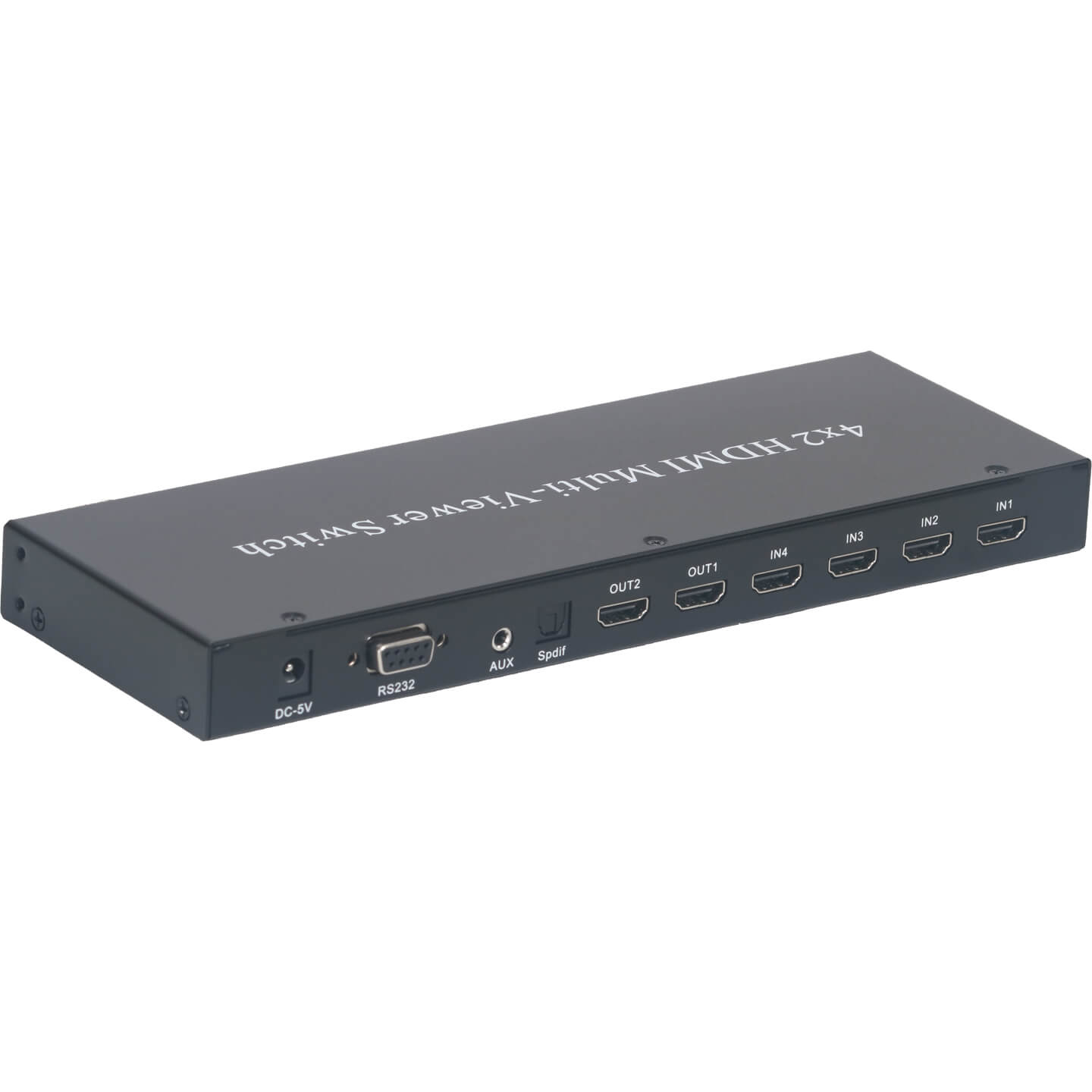

Professional 1U Rackmout 4K30Hz HDMI 4Input or 8Input, 2 Output Switch with RS232 Control,Seamless Switching with no black screen while switch, Multiviewer
4k30hz 3840*2160@30Hz HDMI 4×1 ,8×1 Seamless switching Switcher,Support IR remote control,Buttom control, RS232 Control,HDCP 1.4,Multiview modes
| Weight | 600 g |
|---|---|
| Dimensions | 26 × 9.3 × 2.5 cm |
| HDMI Version | 1.4 ,HDCP 1.4 |
| Resolution | 4K30Hz,Output 3840 x 2160 @30Hz,1920 x 1080@60Hz,2560×1400@60hz,2560×1600@60hz; |
| Cable distance | 4k30Hz≤15M AWG26 HDMI standard cable |
| Control | RS232,front button, IR Remote controller |
| Operational temperature | 0 to 40 °C |
| Max bandwidth | 3.40 Gbps ,340 MHz |
| Audio | Support Stereo 3.5 headphone output and optical fiber audio output |
Detailes About Professional 1U Rackmout 4K30Hz HDMI 4Input or 8Input, 2 Output Switch with RS232 Control,Seamless Switching with no black screen while switch, Multiviewer

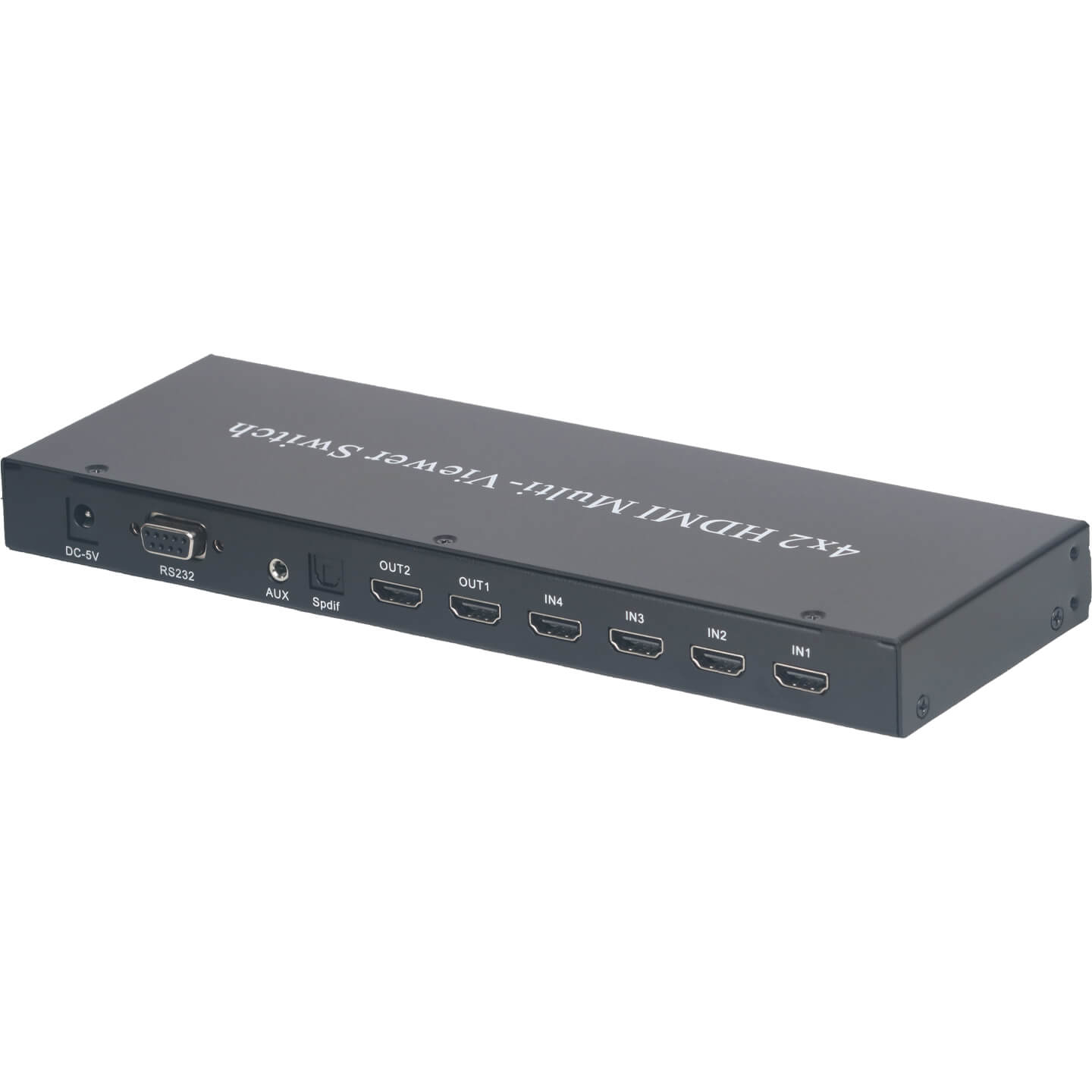

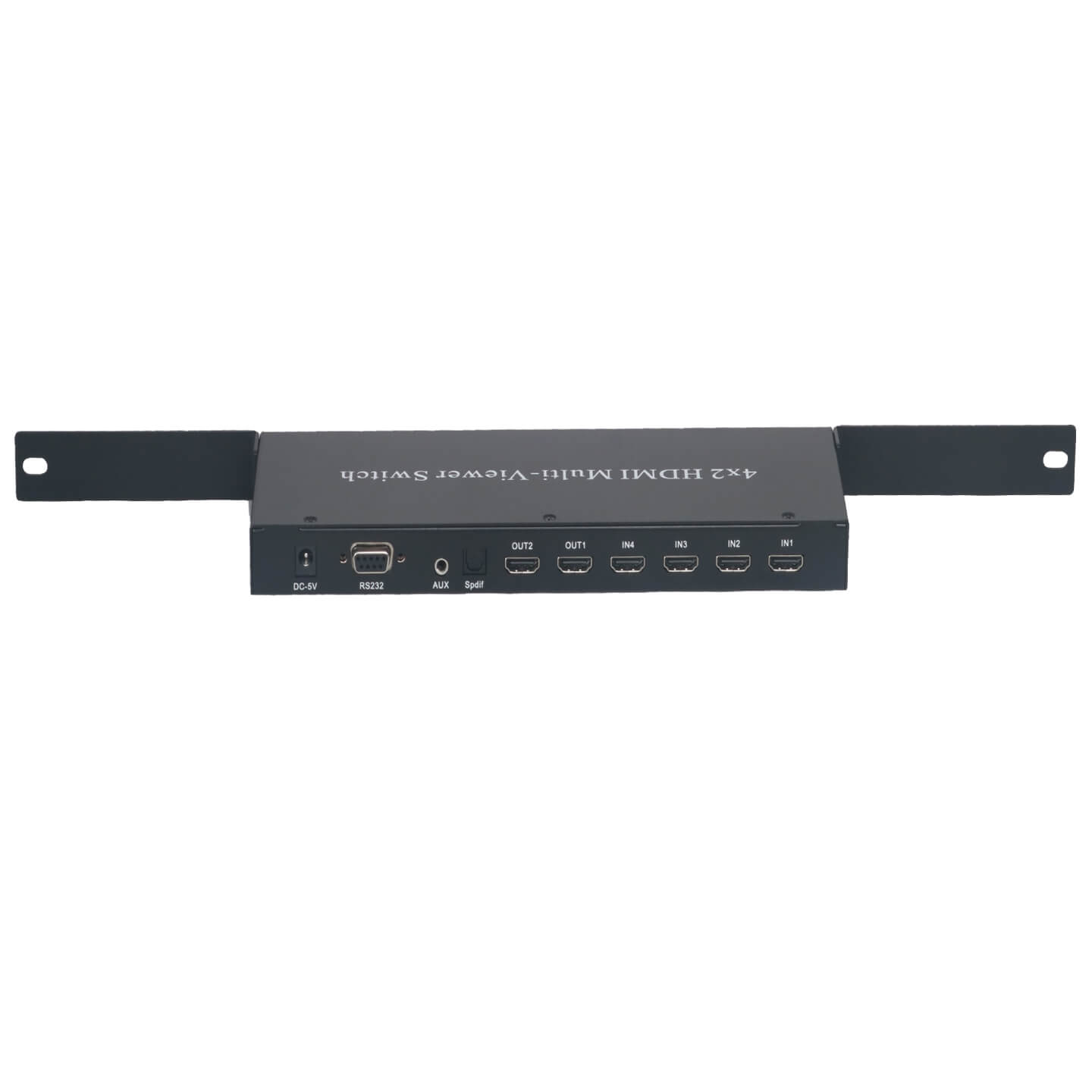

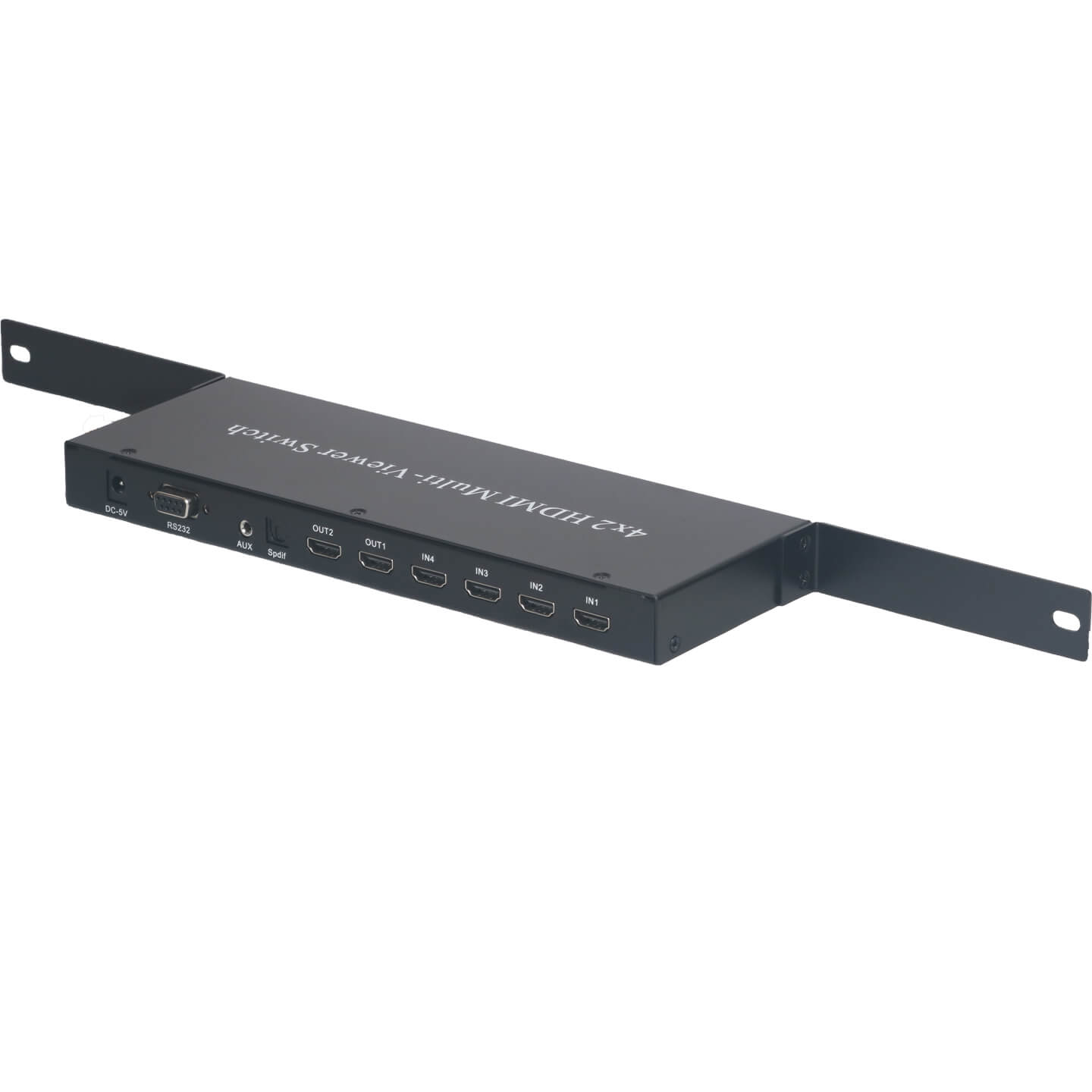

4K30Hz HDMI Switch 4/8 in 2 Out with IR Remote + Rack Mount Ears + RS232,AUX,SPDIF, Supports HDCP1.4 ,HDMI Loop output
4/8 port HDMI Seamless switching distributor and 2 port HDMI output with Spdif+3.5aux audio Extractor. Support HDMI 1.4 ,3D, deep, 4K30HZ, HDCP 1.4
This model is a 4K HDMI Seamless Video and Audio Switcher. Four /Eight HDMI signal sources can be connected to two HDMI display devices for synchronous display. Support 3840 x 2160 @30Hz. The audio and video switching function features an automatic round-robin switching mode. The convenience of automatic signal switching. It can provide single-screen or multi-screen modes. Support seamless switch between four /eight HDMI signals. Multi screens mode is required, which can be freely adjusted to the desired mode.
FEATURES

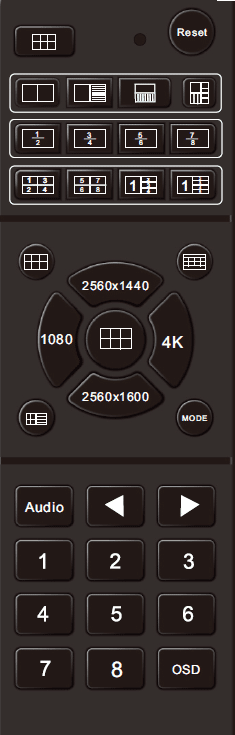

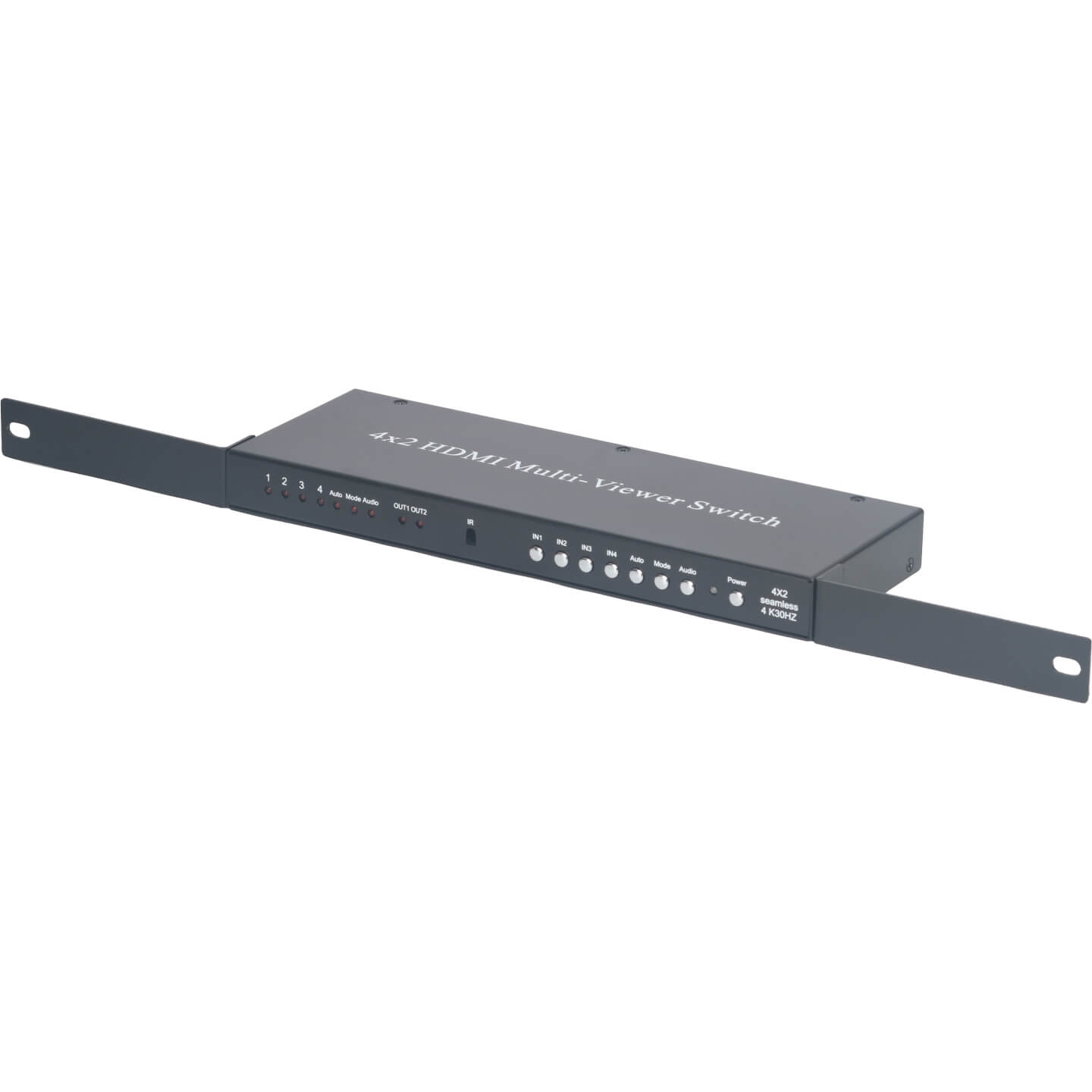

- Supports 3 control modes:Panel buttons, remote control, RS-232 serial port.
- Plug and play, 1U dual headphone rack design.
- Switching in line with current trends for instant signal transmission,Easy to operate.
- This machine is suitable for various application environments. Such as home theaters, conference rooms, trade shows, shopping centers, financial centers, banks, subway surveillance, and so on.
Packing list :
1x HDMI 4×2 multi-viewer (8×2 ), 1x Remote control, 1x 5V/ 2A (5V 3A 8×2) power adapter, 1x User manual
Specification (4×2)
- Support 4HDMI inputs, 2 HDMI outputs；
- Support stereo 3.5 headphone output and optical fiber audio output;
- Input and output cable distance:4k30Hz≤15M AWG26 HDMI standard cable;
- Max bandwidth：40 Gbps ,340 MHz;
- Input resolution：HDMI 1.4; HDCP 1.4,the highest support 4k30Hz;
- Output resolution：3840 x 2160 @30Hz，1920 x 1080@60Hz，2560×1400@60hz,2560×1600@60hz;
- Max working current :500MA,
- Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A or 5V2A;
- Operating temperature range：0 – 40°C;Storage temperature：-15 – 55°C;Humidity;0 – 80% RH, No condensation.
- Shell material:metal; Host weight:600g;
- Dimension (L x W x H)： 26 x 9.3 x 2.5cm
Multiviewer mode 4×2

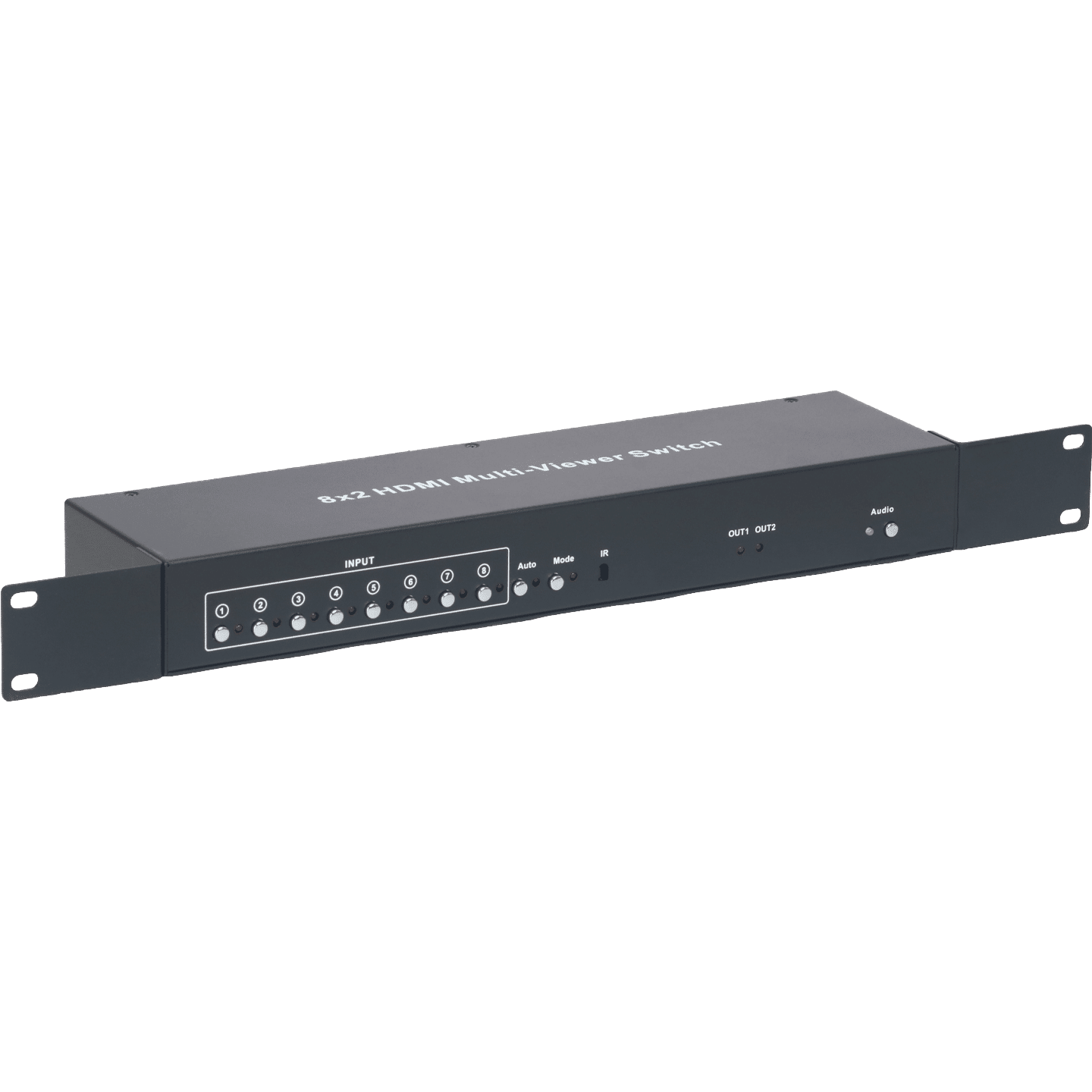

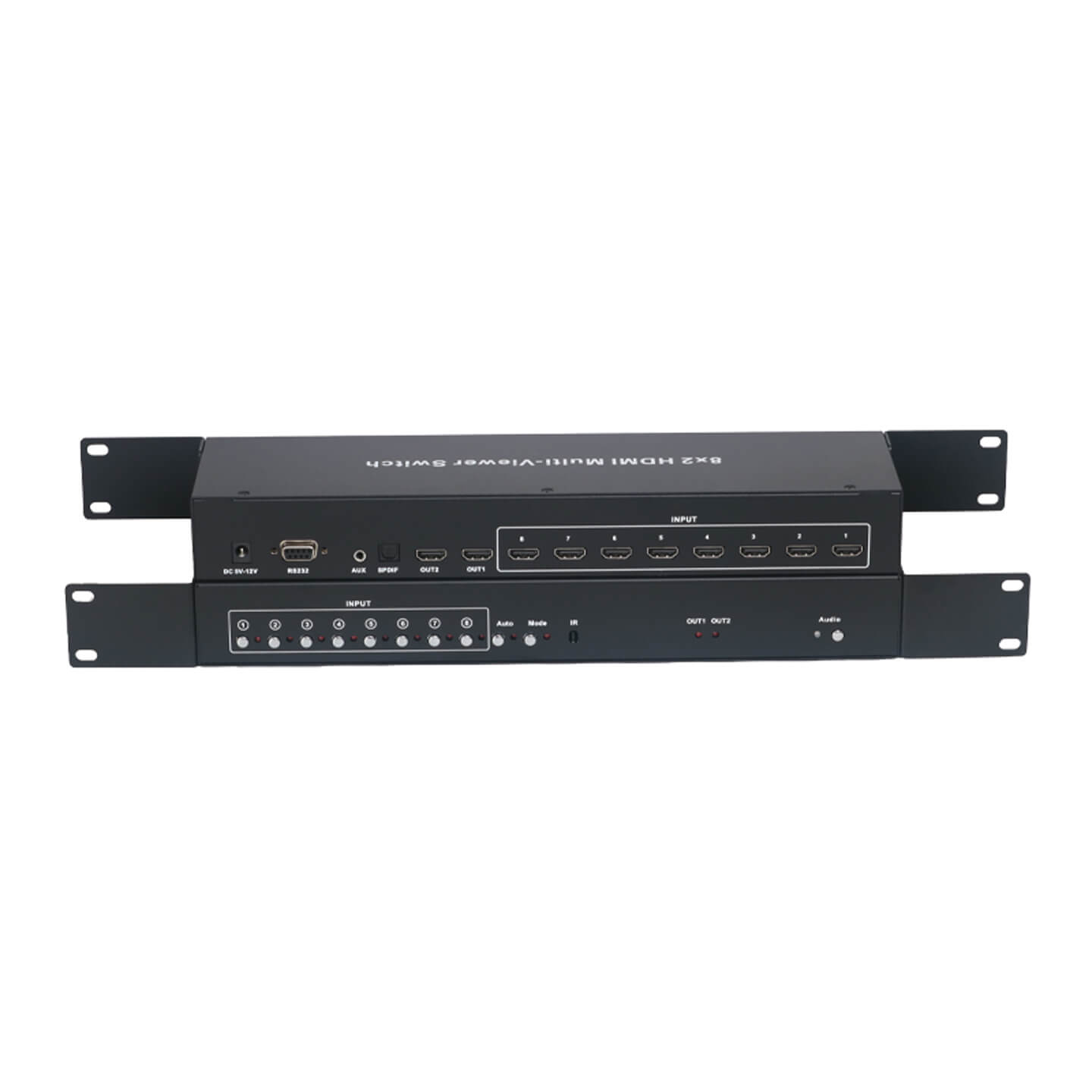

8×2
