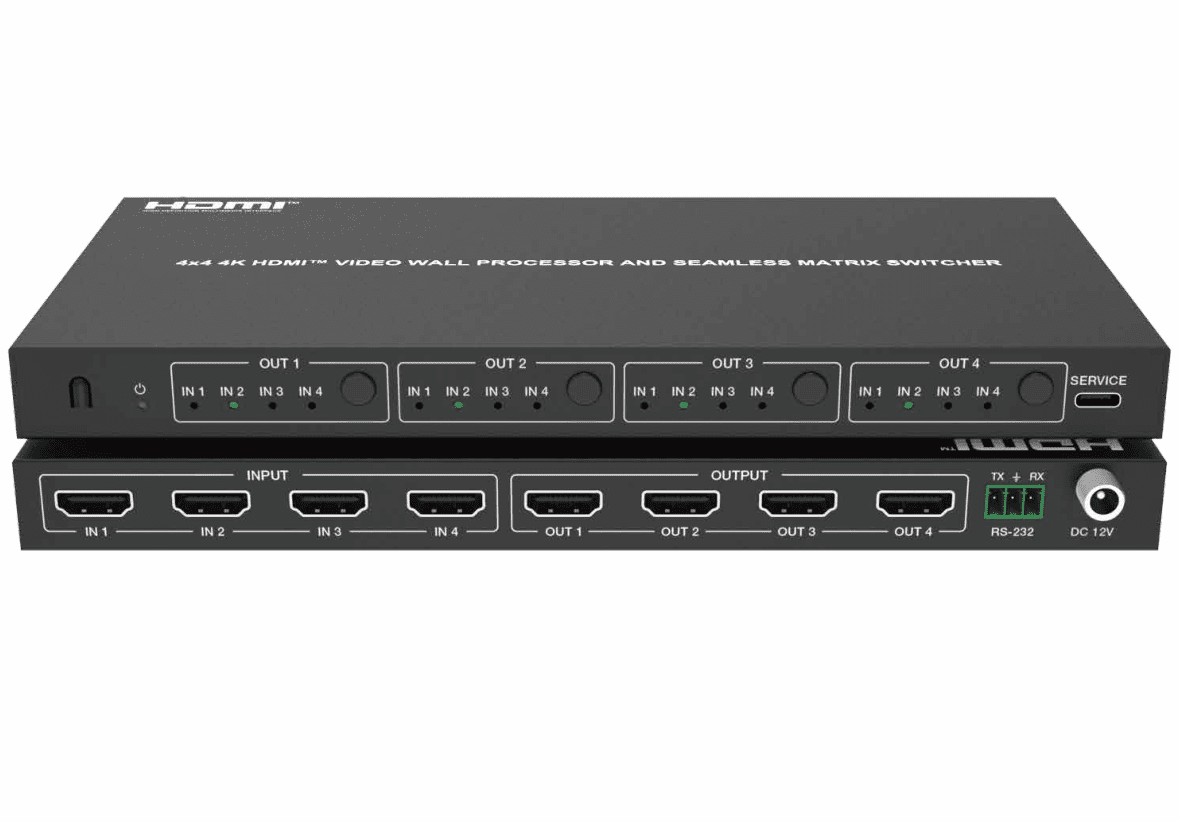

New 4K30hz 4×4 Seamless HDMI Matrix Video Wall Controller Big Screen Display
4K30Hz 4×4 Enjoy large screen Seamless Matrix switch
| Weight | 508 g |
|---|---|
| Dimensions | 22 × 10.5 × 1.9 cm |
| HDMI Version | hdmi 1.4b |
| Resolution | 4k30hz 10.2Gbps Video bandwidth |
| HDCP | HDCP 1.4 |
| Markets | Hospitality, Residential, Corporate, Education, Venues, Government, Retail |
| RS232 Control | Support |
| Transmission distance | 4K30 5m/16ft (HDMI cable) |
Detailes About New 4K30hz 4×4 Seamless HDMI Matrix Video Wall Controller Big Screen Display
4K30hz 4×4 Seamless Video Wall Controller

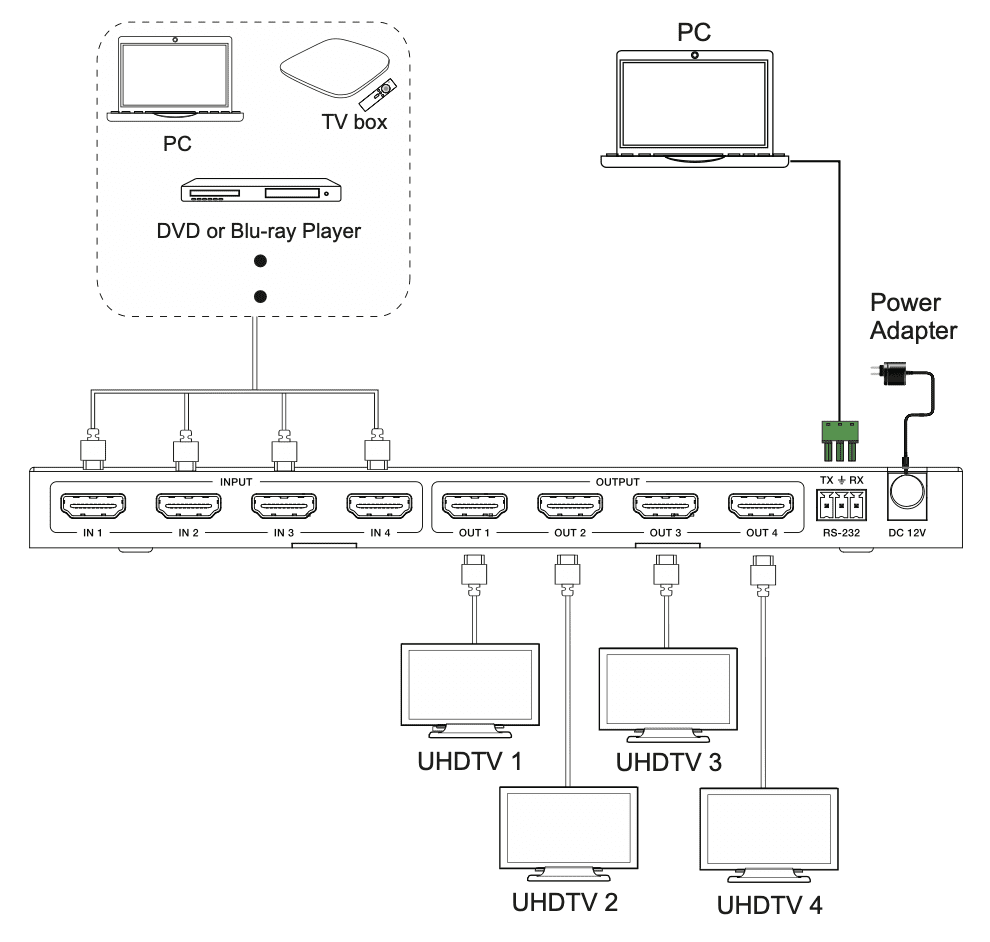

This is a 4×4 seamless matrix switcher that can also be used as a video wall processor. In switcher mode, it can display any of the 4 HDMI inputs on any of the 4 HDMI output displays.In video wall mode,it divides one display across 2 to 4 devices,creating a super display of multiple screens.
This product is HDCP compliant,and supports resolution up to 4K2K@30
HDMI output resolution can be upscaled/downscaled to 1080P/720P/1920*1200/4k30
The product can be controlled via the front panel buttons,IR remote and RS232 commands.
Widely used in varous occassionas such as demonstration,video conference,multimedia teaching etc.

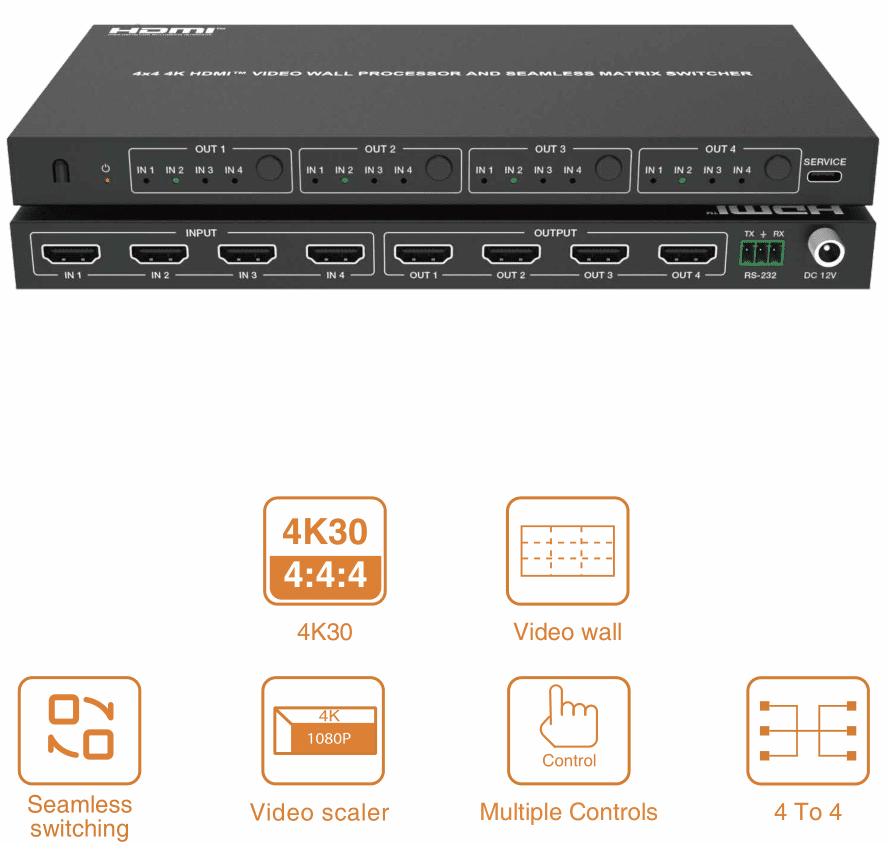

Features
HDCP 1.4 compliant
10.2Gbps video bandwidth
Input resolutions support up to 4K@30Hz, as specified in HDMI 1.4b
Output resolutions can be upscaled/downscaled to 1080P/720P/1920*1200/4K30
Features 2 operational modes:
– 4×4 Matrix (seamless switch)
– Video wall (2×2, 4×1 or 1×4 etc configuration)
Seamless video switching ensures no switching delay and pictures loss during transitions
Video wall mode and output image mirror function
LPCM, DD, DD+, DTS audio channel
Control via front panel buttons, IR remote, RS-232
Video Wall Modes
IR Remote
