4K 8×8 Seamless HDMI Matrix Video Wall Controller Big Screen Display
4K60Hz 8×8 Enjoy large screen HDMI 2.0 Matrix
| Weight | 5000 g |
|---|---|
| Dimensions | 43 × 30 × 4.4 cm |
| HDMI Version | hdmi2.0 |
| Resolution | 4k60hz 4:4:4 |
| HDCP | HDCP2.2 |
| Markets | Hospitality, Residential, Corporate, Education, Venues, Government, Retail |
| RS232 Control | Support |
| TCP/IP Control | Support |
Detailes About 4K 8×8 Seamless HDMI Matrix Video Wall Controller Big Screen Display

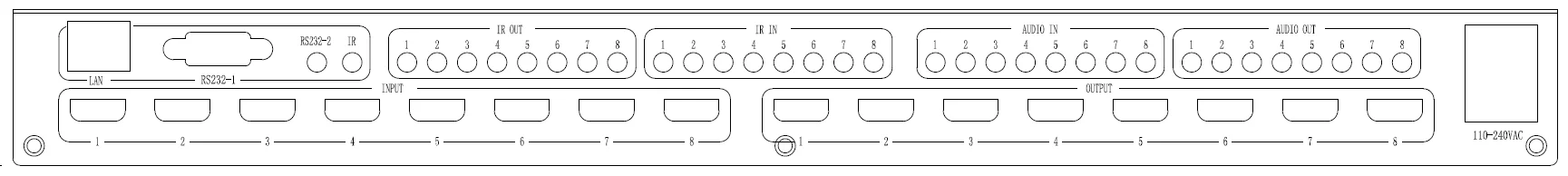

4K 8X8 hdmi matrix video wall -seamless Switching Ultra HD 4k@60hz 444 HDR switcher IR control Audio Extract 4X2 video wall
The 18Gbps 8×8 seamless UHD Matrix can connect 8 HDMI sources to 8 HDMI displays. Supported video resolution is up to 4K60 4:4:4. The product supports IR matrix, and IR matrix routing follows the video routing.
Audio extract and insert are supported. The product supports one or more video wall with RS232 command.
Features
1)Support HDMI 2.0/HDCP 2.2
2)Support seamless switching
3)Support IR matrix
4)Support HDMI audio extract
5)Support external LR audio insert on HDMI stream
6)Support EDID management
7)HDMI video output resolution: 3840×2160@60, 3840×2160@30,1920×1080@60,1280×720@60, 1920×1200@60,1360×768@60,1280×1024@60, 1024×768@60
8)Front panel,RS232,TCP/IP (LAN 10M/100M) control
Package Contents
1 x 8×8 seamless UHD Matrix
1 x AC Power Cord
1 x Matrix IR Remote
4 x IR Receiver cable (1.5 meters)
4 x IR Blaster cable (1.5 meters)
1× CAT6 cable
1× USB to RS232 Cable
1× User Manual
SPECIFICATION
| Technical | |
| HDMI Compliance | HDMI2.0 |
| HDCP Compliance | HDCP2.2 |
| Bandwidth | 18Gbps |
| Video Resolution | |
| Input | 800×600@60Hz,1024×768@60Hz,
1280×768@60Hz,1280×800@60Hz, 1280×1024@60Hz,1360×768@60Hz, 1366×768@60Hz,1400×1050@60Hz, 1440×900@60Hz,1600×1200@60Hz, 1680×1050@60Hz, 1920×1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p, 3840×2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096×2160@24Hz/25Hz/30Hz/50Hz/60Hz. |
| Output | 1920×1080@60Hz, 3840×2160@30Hz,
3840×2160@60Hz, 1280×720@60Hz, 1024×768@60Hz, 1360×768@60Hz, 1600×1200@60Hz, 1920×1200@60Hz |
| HDMI Amplitude | T.M.D.S +/- 0.4Vpp |
| Differential impedance | 100±15ohm |
| ESD Protection | Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| RS232/Ethernet Control | |
| Baud rate and protocol | Baud rate: 9600, data bit: 8, stop bit: 1, no parity checking |
| Ethernet | IE10.0+, HTML5 |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 430mm (L) X 300mm (W) X 44mm (H) |
| Weight | 5kg |
| Power Supply | AC 110 – 240V |
| Power Consumption | 100W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 70°C / -4°F ~ 158°F |
| Relative Humidity | 10%~50% RH (non-condensing) |
| Item | Description |
| LCD Panel | Displays the current video selections |
| COM | Control commands indicator |
| IR | IR signal indicator |
| POWER | Power LED |
| LOCK | Front panel lock/unlock |
| OUTPUT | Output selection buttons 1~8 |
| INPUT | Input selection buttons 1~8 |
| ALL | Set all outputs to the next input selection |
| RES | Set the output scaler resolution |
| EDID | Set the EDID options for the next input selection |
| NEXT | Select the next available option |
| SAVE | Save the current matrix setting as a preset |
| RECALL | Set the matrix setting from a saved preset |
| CLEAR | Cancel the current command function |
| ENTER | Set the displayed option |
LAN(10M/100M), RS232 are for PC control
Analog Audio IN/OUT ports are bond with corresponding HDMI ports .
For example, if INPUT HDMI 1 signal is DVI, matrix will use analog AUDIO IN 1 as HDMI 1 audio source
Note, Analog AUDIO IN is only available when the corresponding video input is DVI signal.
Analog AUDIO OUT will always output the same audio content with HDMI OUTPUT ,Analog Audio IN/OUT connection
IR IN and IR OUT
IR IN/OUT is for remote control routing, and followed with video routing,
For example, if input HDMI m is routed to output HDMI n1 and n2 ports, then IR IN n1 and n2 ports will be routed to IR OUT m port.
