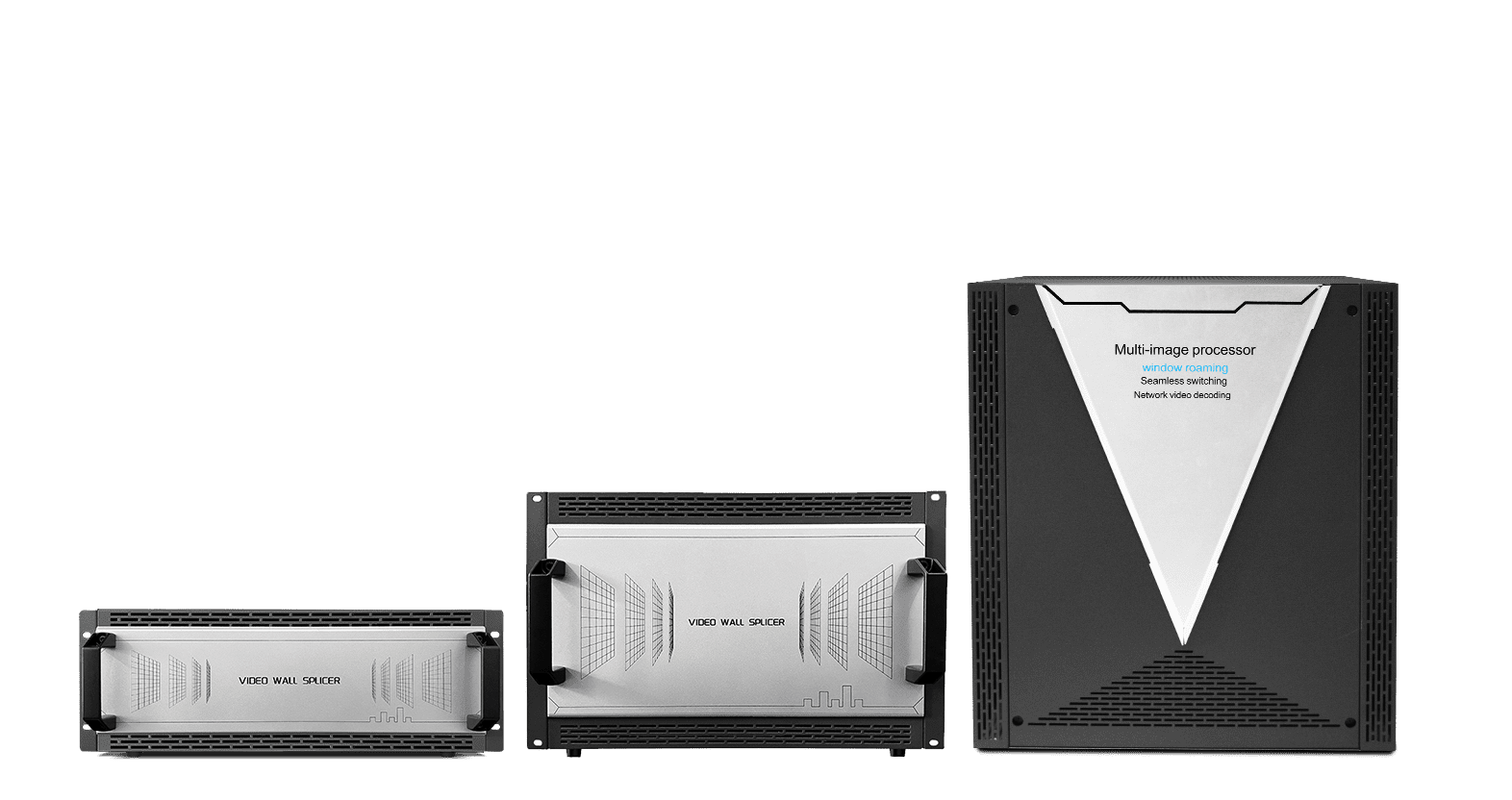

4K 8K LED Video Wall Splicing Processor Seamless Switching 8 Layers with IP Decoding,FPGA+DSP 3U-24U
Modular LED LCD Video Stitching Processor,FPGA Array + DSP high speed image processing,seamless hardware,AI voice control,IPC decoding,Tablet/phone Wireless screen casting
| Weight | 15000 g |
|---|---|
| Dimensions | 48 × 35 × 27 cm |
| HDMI Version | 4K6f0Hz 3840×2160@60Hz,8K30hz 7680×2160@30hz ,EDID |
| Port | HDMI,SDI,DVI,DP,VGA,IPC,BNC,Wirelss casting RJ45 port, |
| Wirelss BYOD | 4-9 Phone or PC wirelss casting via RJ45 port |
| Metal box | 2U 8X12, 3U 16×20,6U 36×36,12U 72×72,24U 144×144, Support max 260W sending box 144 pieces |
| Solution | FPGA+DSP hardware or A8 dual-core processor, 800Mhz 64bit embedded processor |
| MTBF | >50000 Hours |
| Dante audio | support Dante audio dual channel input and output |
Detailes About 4K 8K LED Video Wall Splicing Processor Seamless Switching 8 Layers with IP Decoding,FPGA+DSP 3U-24U
Features:
Cell phone APP support voice semantic understanding voice control
IP Decoding Service Card: Support 36 divisions for a single network port ,max support 72 ways video decoding. decode 2 way,4k 8way 500W/400W/300W/ ,18way 720p,72way D1 simutanueously. Transfer each camera video on the screen at any window position.
Pre-monitoring back to the display business card
Wireless screen casting business card
Support 4K60Hz input,point to point,no stretching,no distortion,EDID pass through,up to 7690×1080 resolution

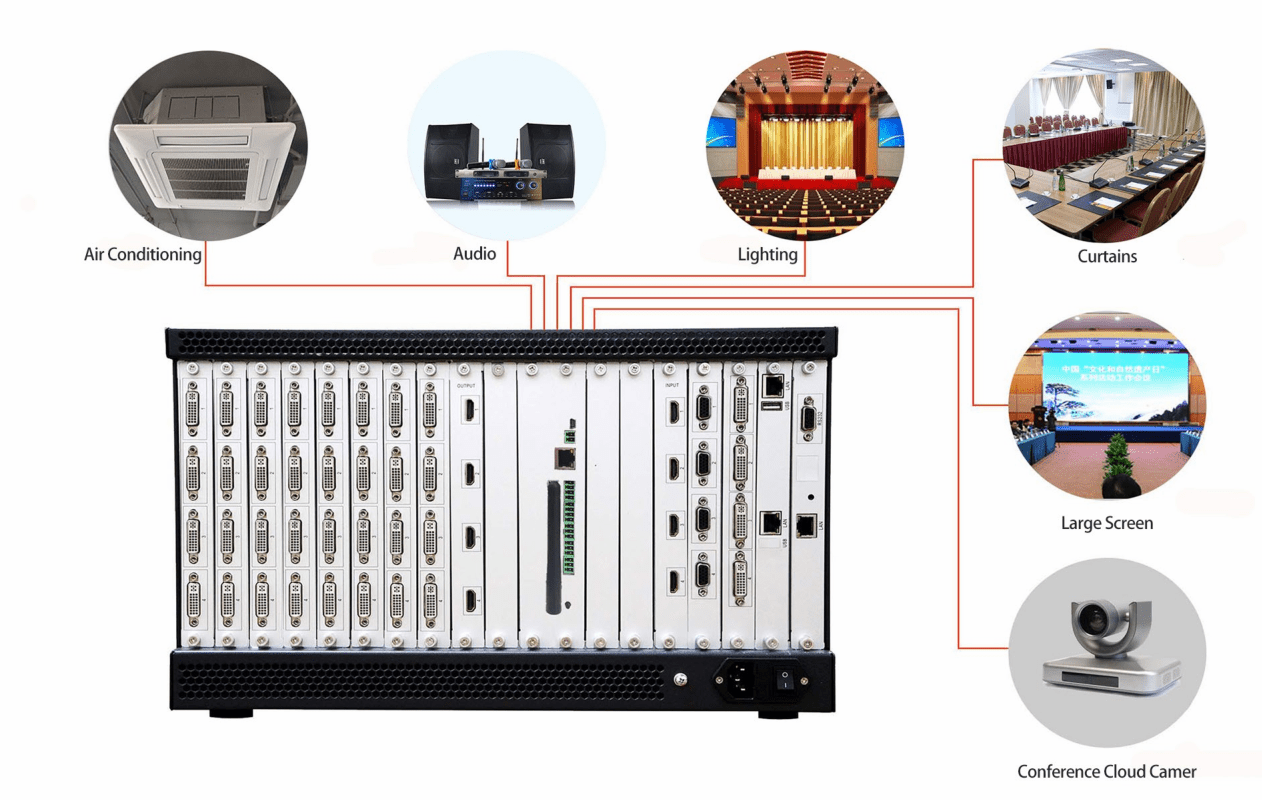

Support integrated built-in central control system
Specification
LED Video Splicing Process
