40G SMPTE ST 2110 4X12G SDI Bi-directional Uncompressed Video Converter,SDI Over IP
New Five video capture and five output channels, connecting to the 2110 IP broadcast system via an QSFP (40G) port interface,POE
| Weight | 800 g |
|---|---|
| Dimensions | 29 × 18 × 5 cm |
| ST2110 encoding capabilities | Support up to 4 channels of 4K60 (8BIT) main streams or 3 channels of 4K60 (10bit) +1 channel of 4k30 10bit main stream.Support one channel of 4k60 10bit main stream+backup stream, support 2 channels of 4k50 10bit main stream+backup stream. |
| ST2110 decoding capabilities | Support up to 2 channels of 4k60 10bit ,with selectable 1 channel main/backup stream switching, or 4 channels of 4k30 10bit, or 8 channels of 1080p 10bit, or 16 channels of 1080p30 10bit. |
| SDI standards | SMPTE 292M,296M,424M,425M,A-level,SMPTE 2081/2081 |
| Audio sampling | 48Khz,24bit |
| color accuracy | 8bit,10bit YUV 4:2:2 |
| Color space | REC601,709,2020 |
| SMPTE 2110-20 Uncompressed | IGMP v2/v3 |
| SMPTE 2110-21 Traffic shaping | Sending Narrow,Receiving Narrow, Wide synchronous,asynchronous |
| SMPTE 2110-30 PCM | Sampling rate 48khz,24bit |
| NMOS IS-04 Discovery and registration | v1.3.2 through mDNS/DNS-SD P2P |
| NMOS IS-05 Connection management | v1.1.2 |
| NMOS BCP-002-01 | Natural grouping |
| NMOS BCP-004-01 | Receiver function |
| With own software | Web control |
Detailes About 40G SMPTE ST 2110 4X12G SDI Bi-directional Uncompressed Video Converter,SDI Over IP
SMPTE ST2110 SDI over IP Uncompressed bi-directional converter
Bi-Directional 12G SDI: Converts between 12G SDI and ST2110 IP with minimal latency and high quality.
Five Channels: Supports five video capture and output channels for efficient content processing.
High-Quality Aluminum Alloy: Built for durability and reliability in professional broadcasting environments.
Advanced Features: Includes bi-directional 12G-SDI ports and 4K@60Hz 4:2:2 capabilities for top-notch performance.
Overview

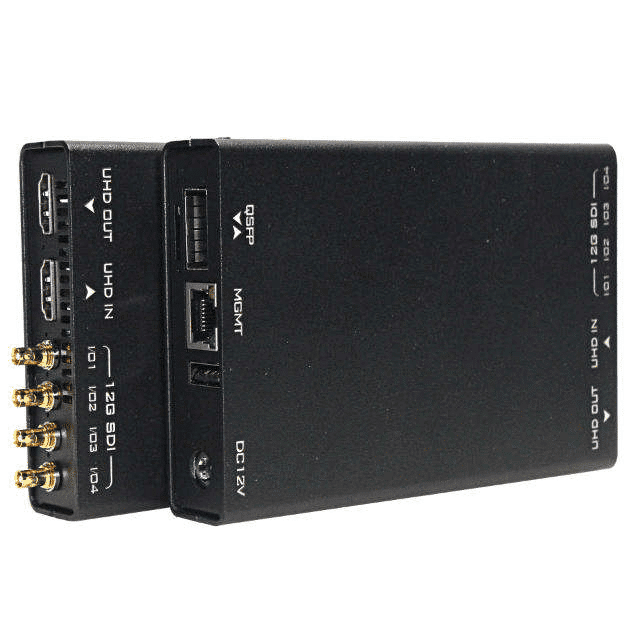

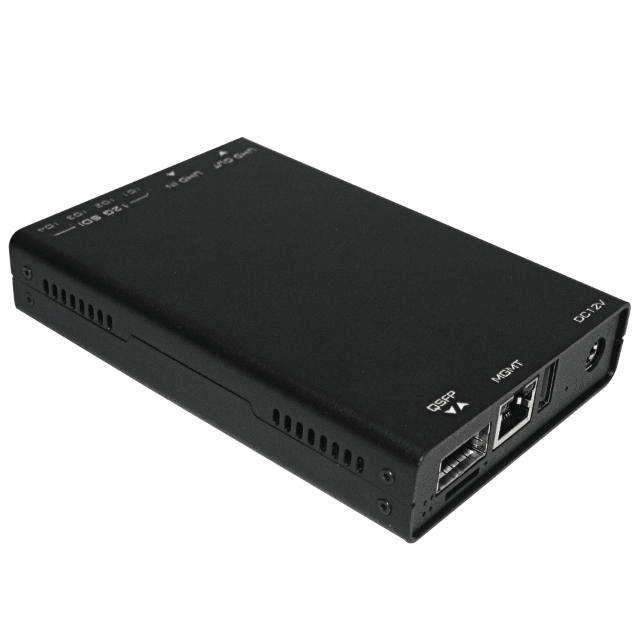

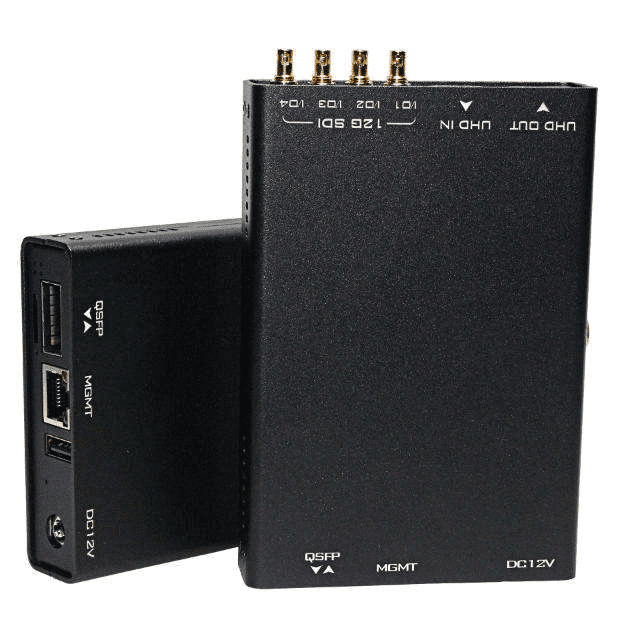

40G ST2110 /4X12 G SDI Bi-directional uncompressed video converter supports five video capture channels and five video output channels,which can be captured and output to the SMPTE ST 2110 IP playout system via an QSFP (40Gb ethernet)port.

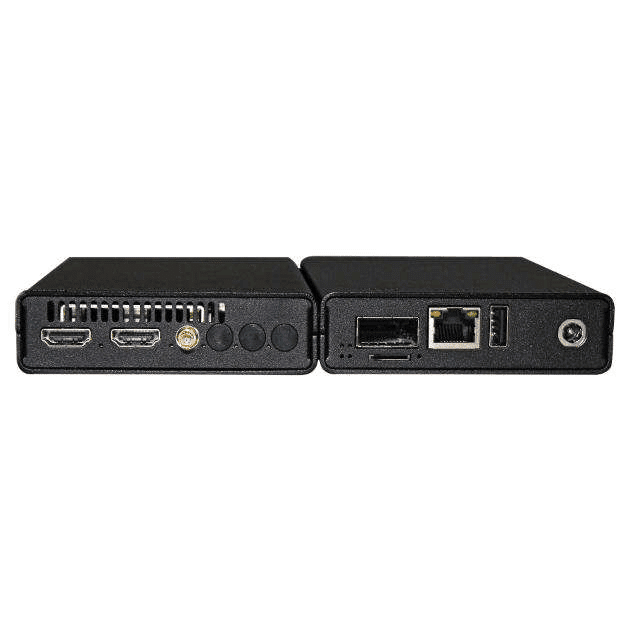

It is specifically designed for processing extremely high-quality video, Equipped with multi-rate interfaces,the converter support 720p,1080i,1080p,and 2160p video formats. The converter board features four bi-directional 12G-SDI ports, one HDMI RX port, one HDMI TX port,and one QSFP (40Gb ethernet)port, with optional power over ethernet(POE) support. Compatible with ST 2110-20/30/40 streaming formats,it offers uncompressed video transmission with ultra-low signal conversion latency,making it ideal for integration into live IP broadcast production environments. An optional license adds ST 2110 encoding and decoding for IP Streaming,support up to 16HD or 4 UHD Channels per converter board.This provides an economical and reliable IP live production system for remote productions even when network bandwidth is limited.
Features

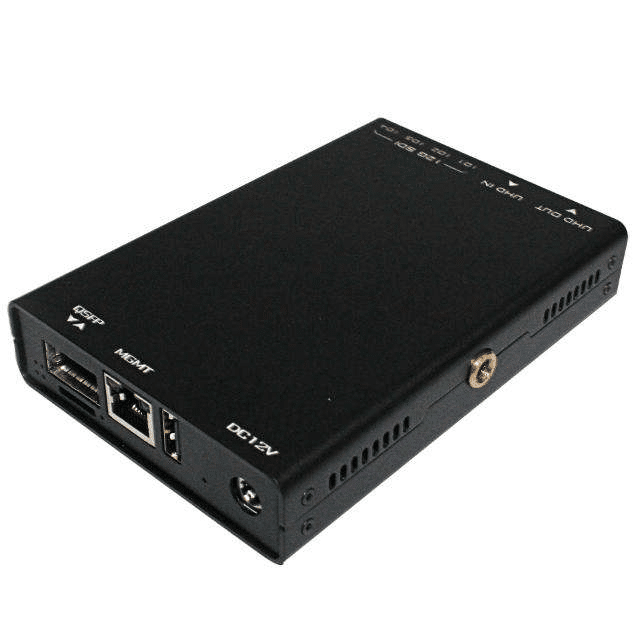

1.The network uses QSFP (40G ethernet). For 10G applications, a dedicated QSFP to SFP adapter or a 40G to 10G DAC cable can be used.It’s recommend to connect the QSFP interface directly to an external device,otherwise compatibility may be impaired.
2.The network management is 100M,with optional POE power.
3.The USB and power connectors are removable,allowing the power supply to be connected using an internal connector.

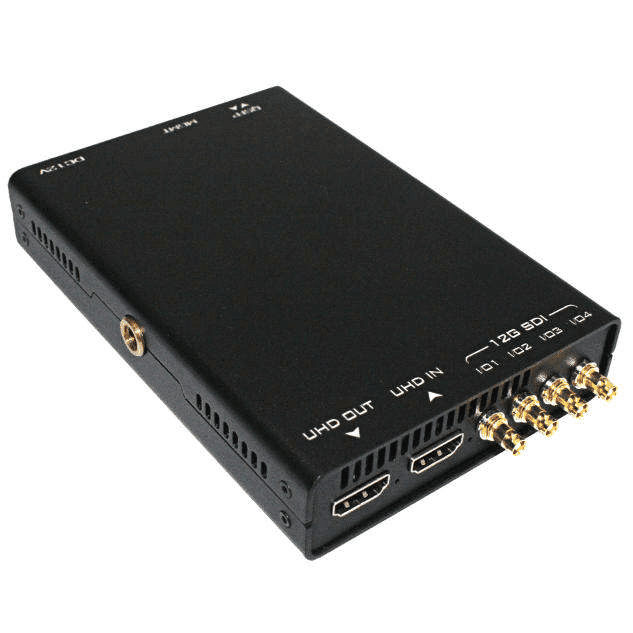

4.Four bidirectional SDI ports are available,each suitable for your needs.The SDI interface is mini BNC,convertible to SMA/SMB or other internal connectors.
5.One HDMI input and One HDMI output are available,suitable for your needs.The HDMI port uses a standard connector and can be converted to a 20 pin FPC for convenient internal connections.
6.ST2110 encoding capabilities: support up to 4 channels of 4K60 (8BIT) main streams or 3 channels of 4K60 (10bit) +1 channel of 4k30 10bit main stream.Support one channel of 4k60 10bit main stream+backup stream, support 2 channels of 4k50 10bit main stream+backup stream.
7.ST2110 decoding capabilities: support up to 2 channels of 4k60 10bit ,with selectable 1 channel main/backup stream switching, or 4 channels of 4k30 10bit, or 8 channels of 1080p 10bit, or 16 channels of 1080p30 10bit.
Specification

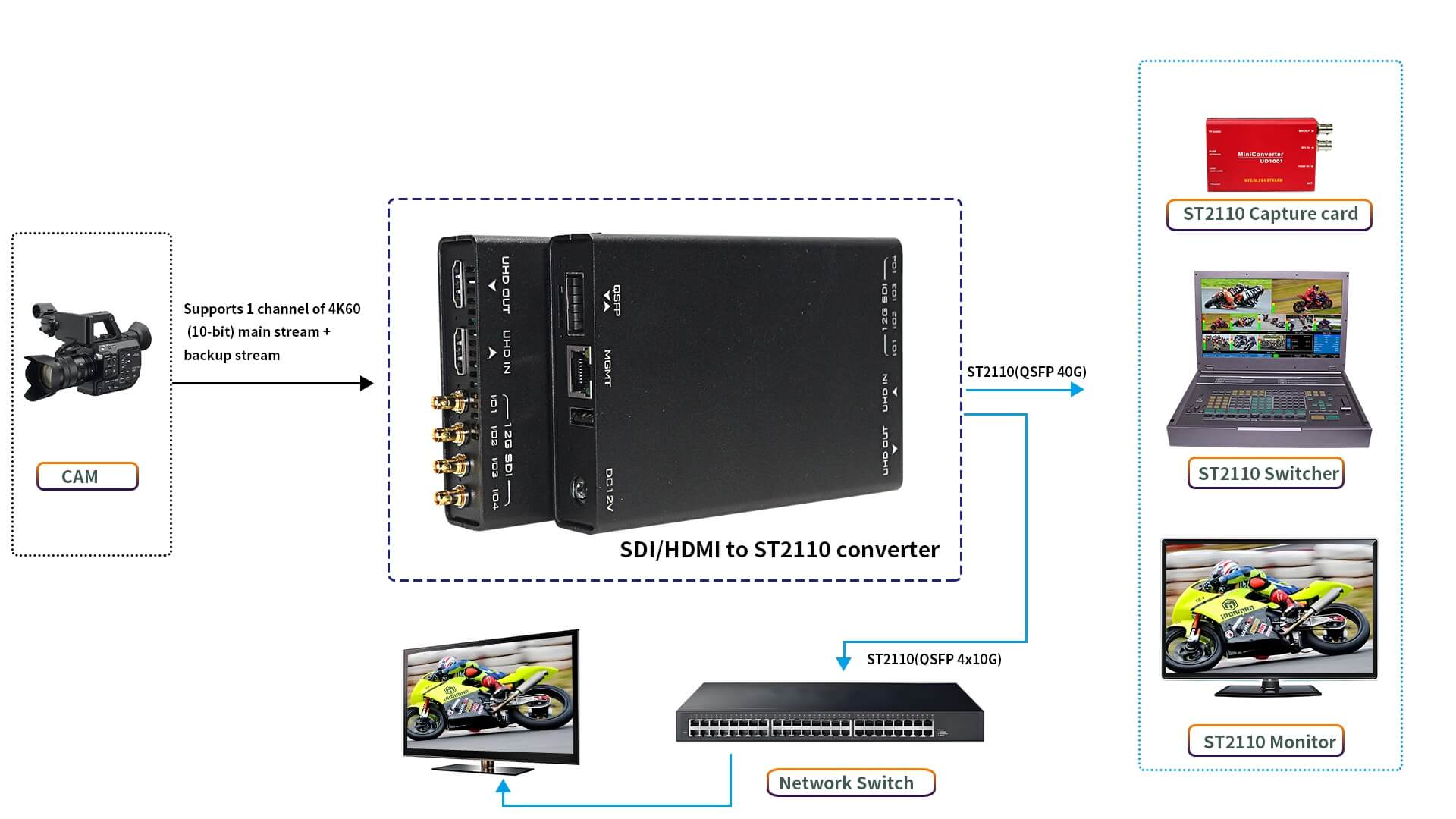

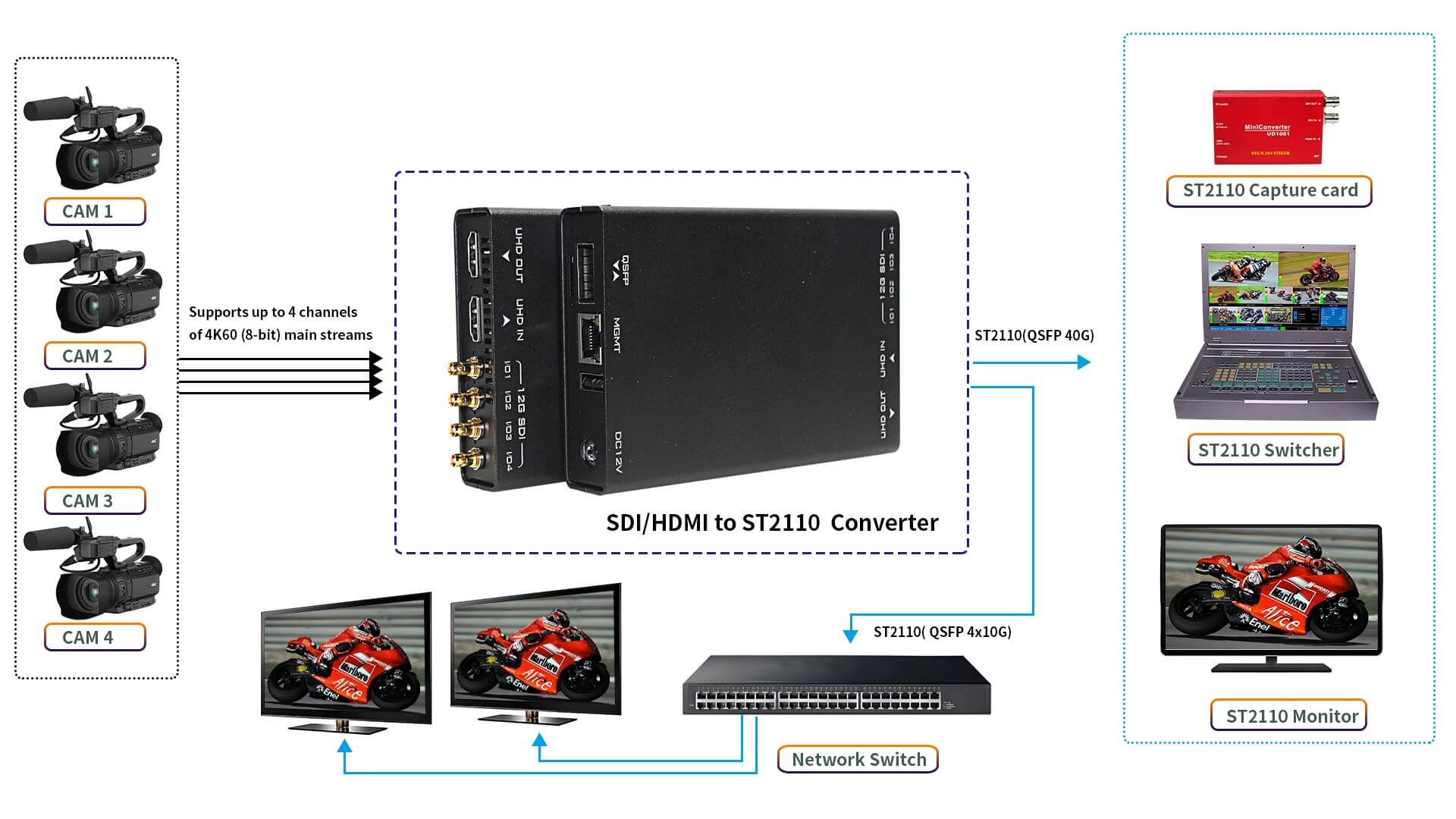

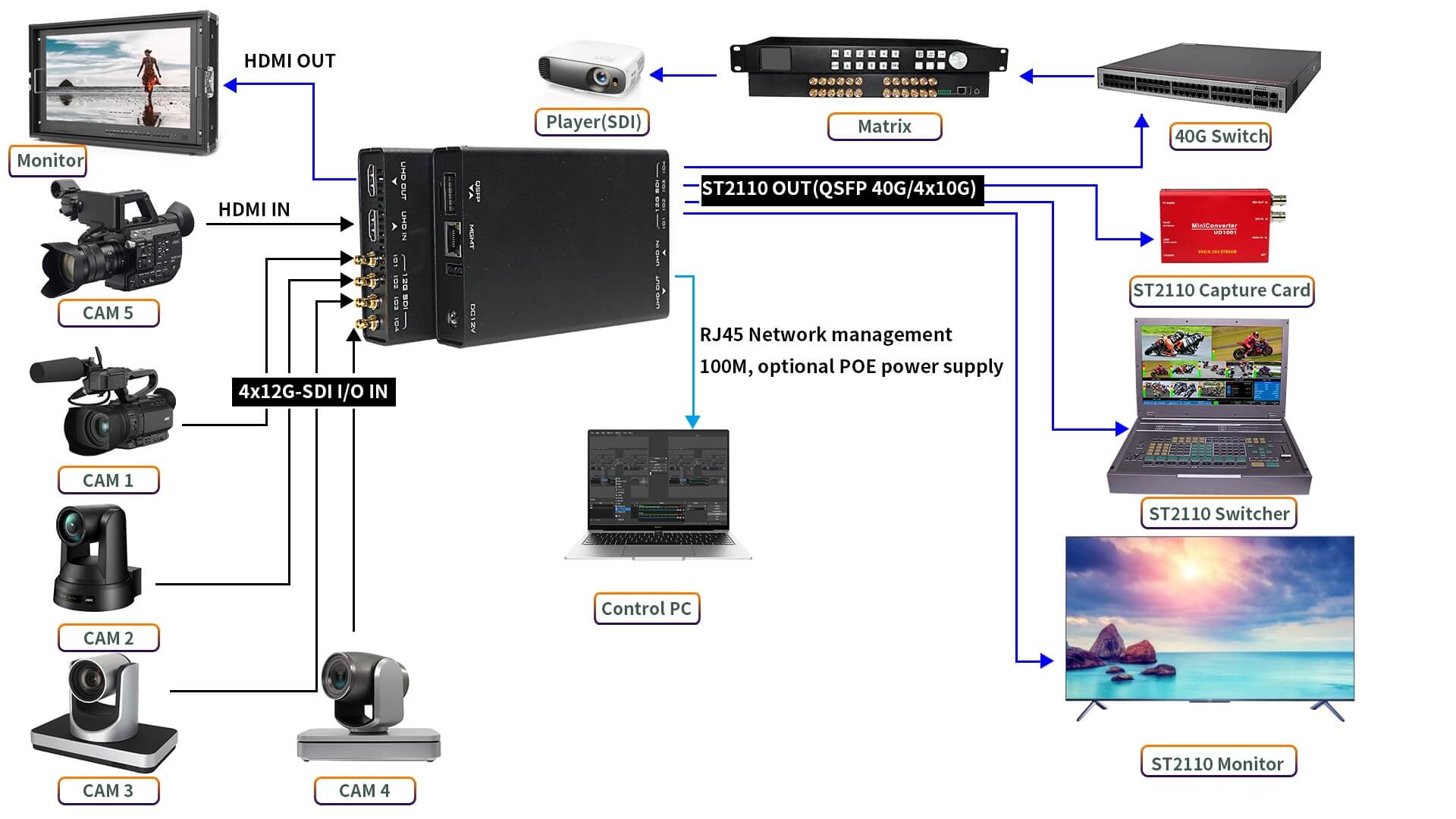

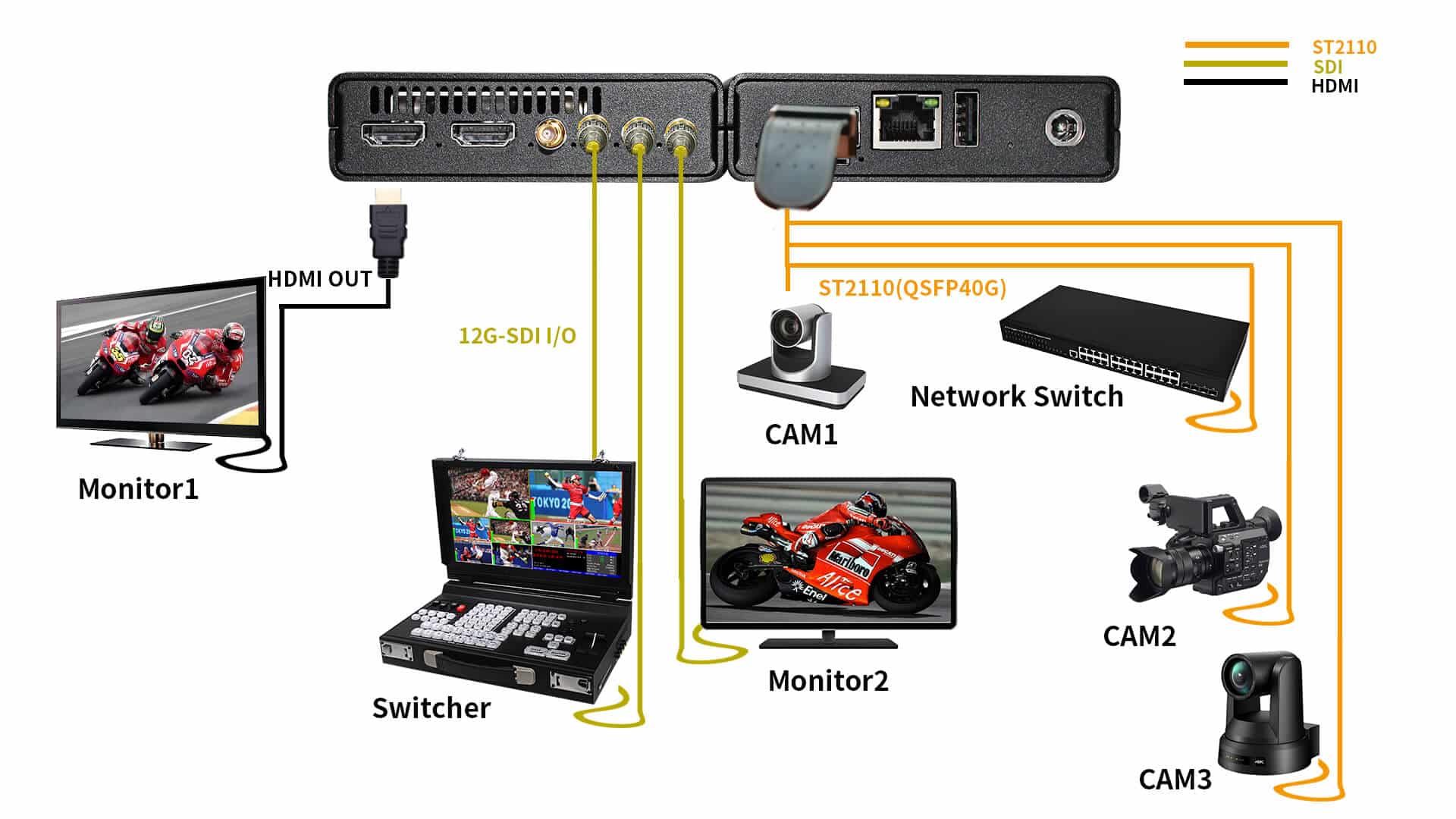

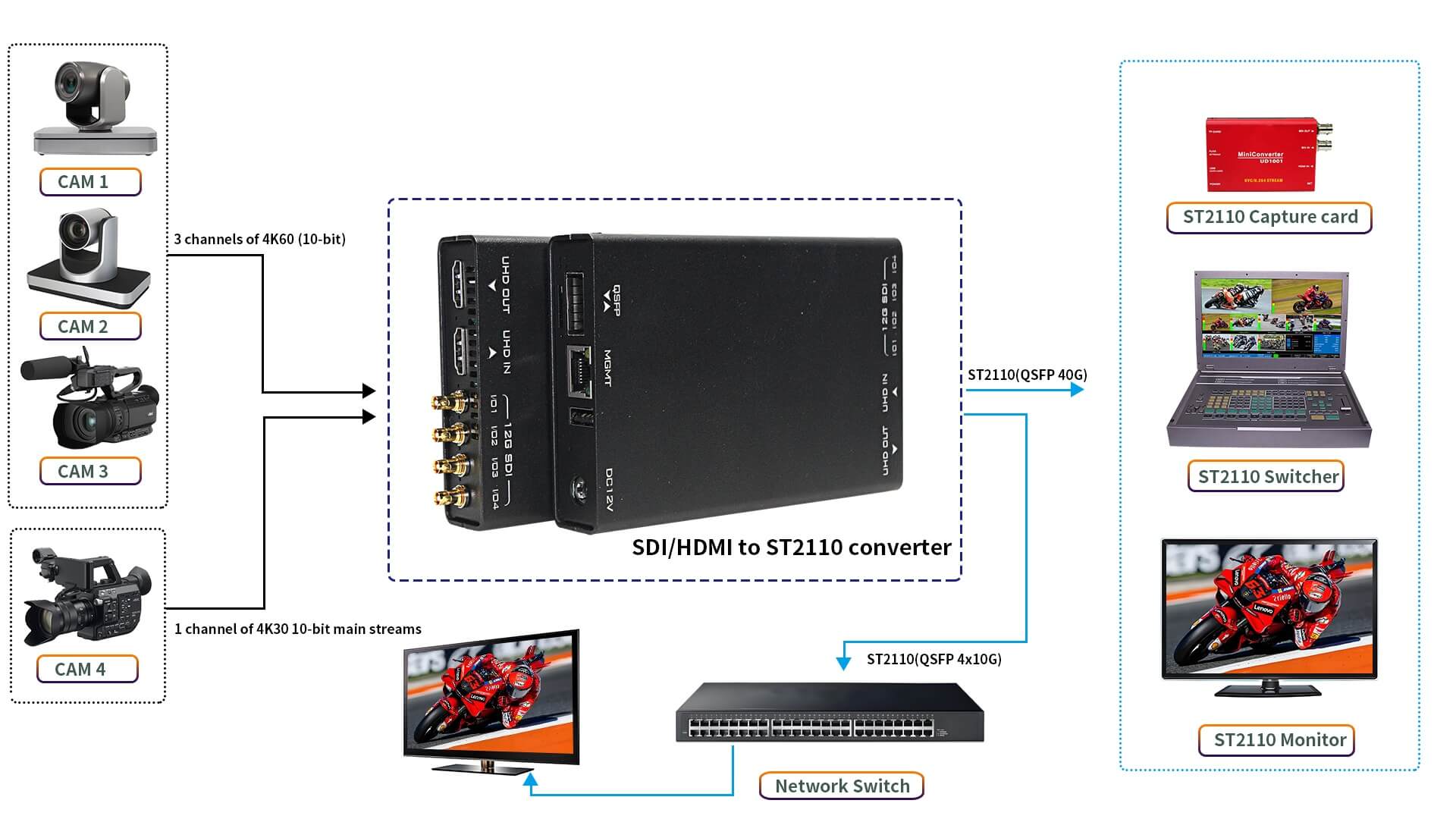

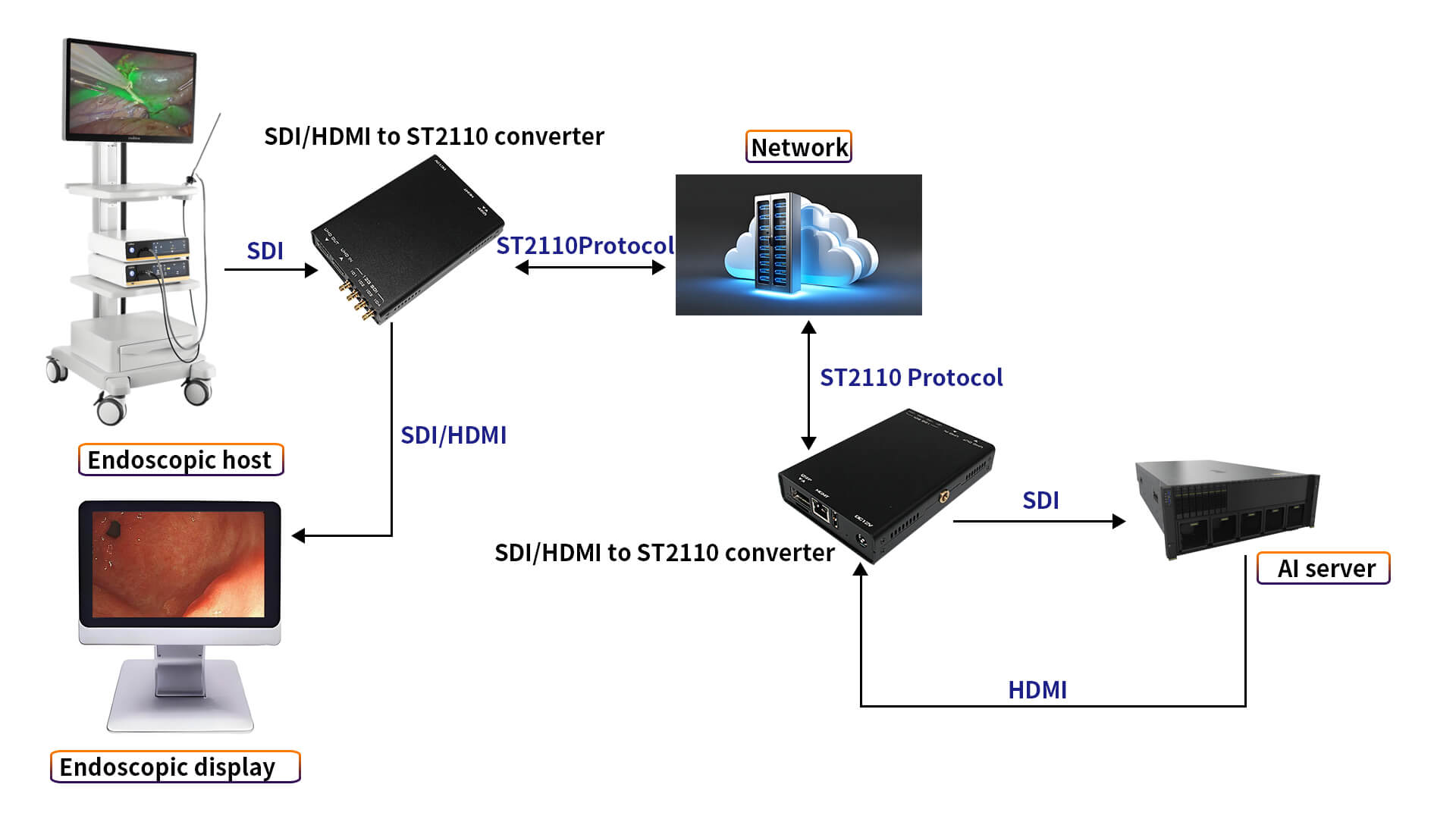

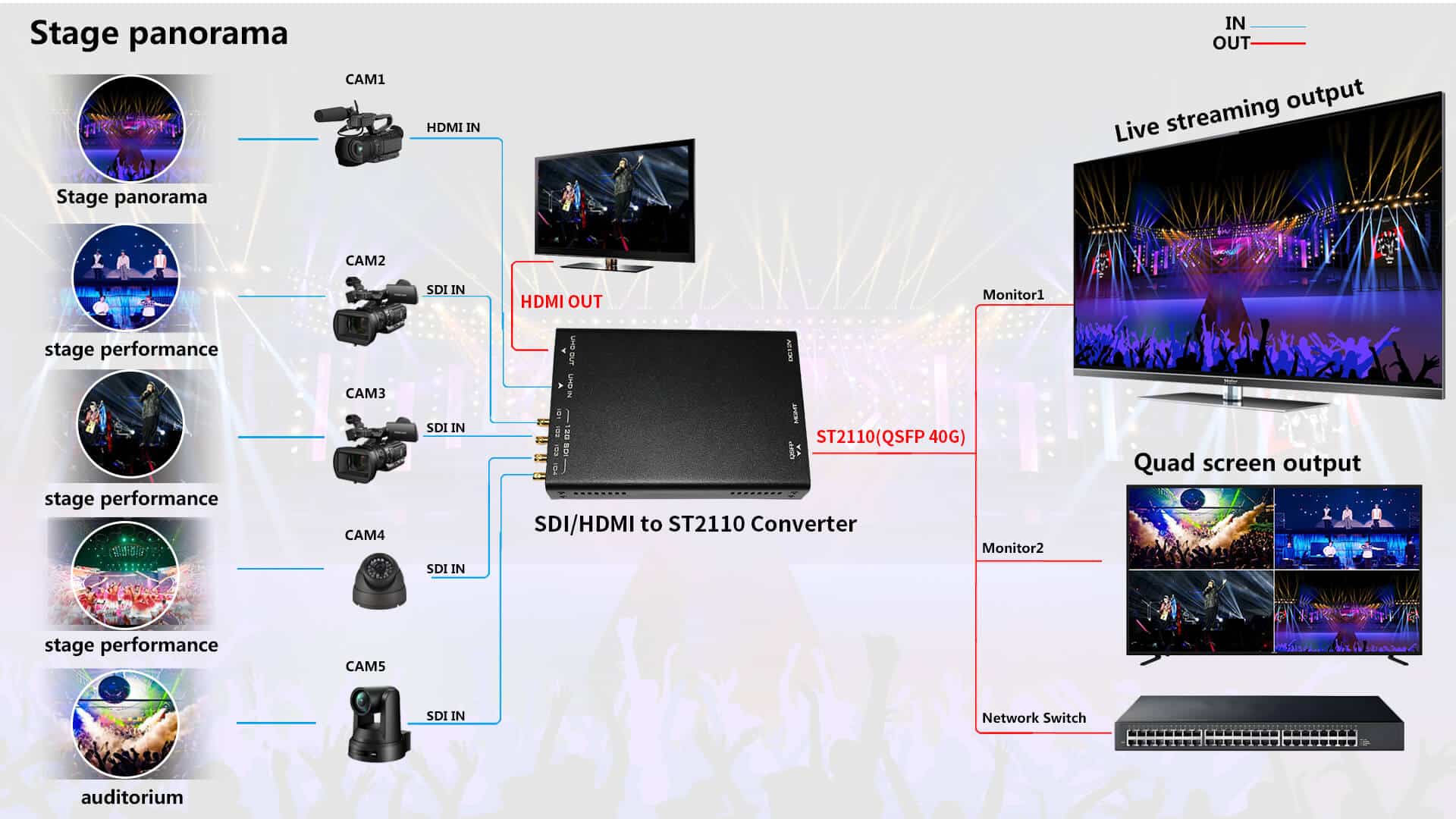

Application 1: SDI/HDMI to ST2110 PTP application

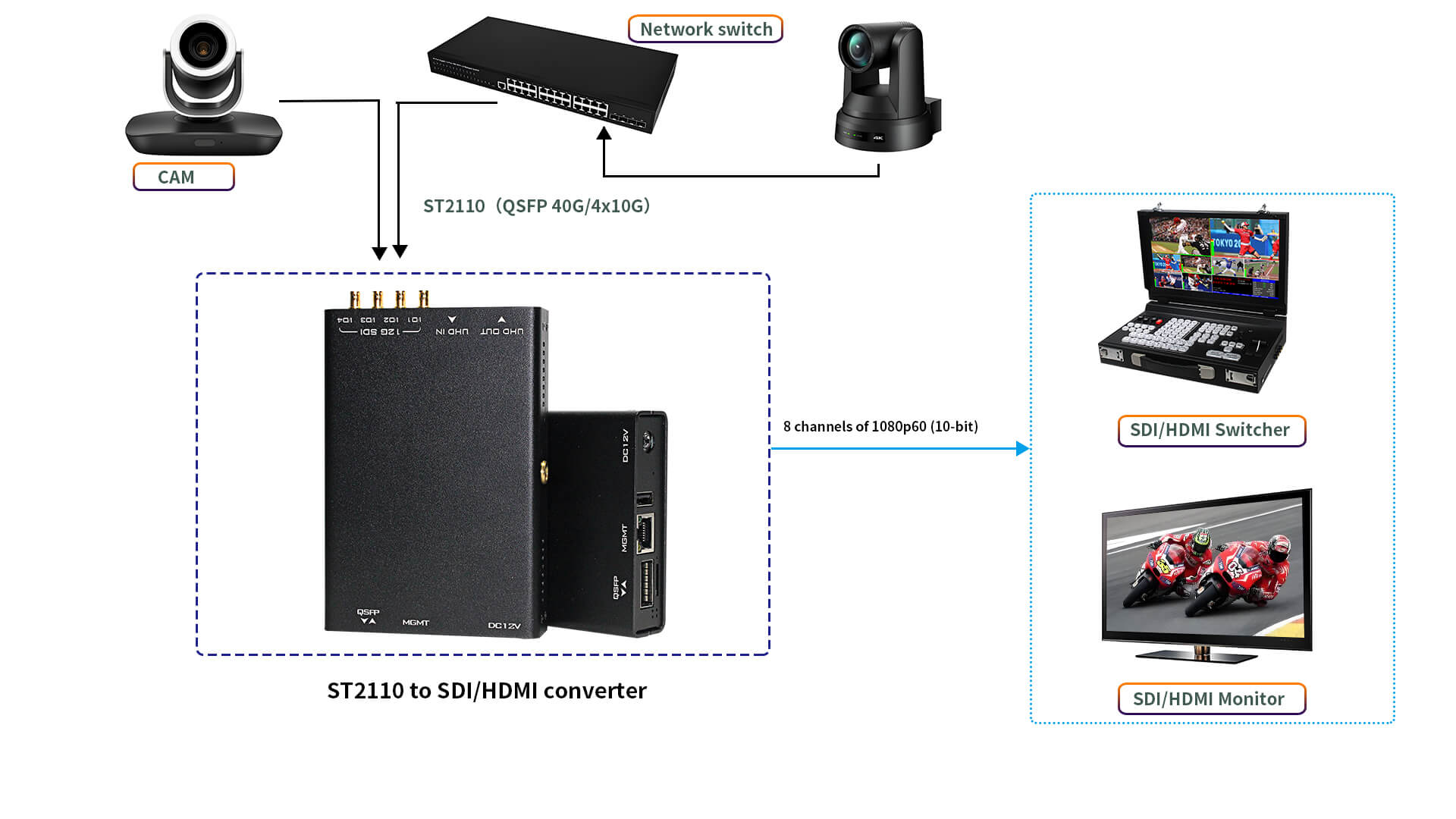

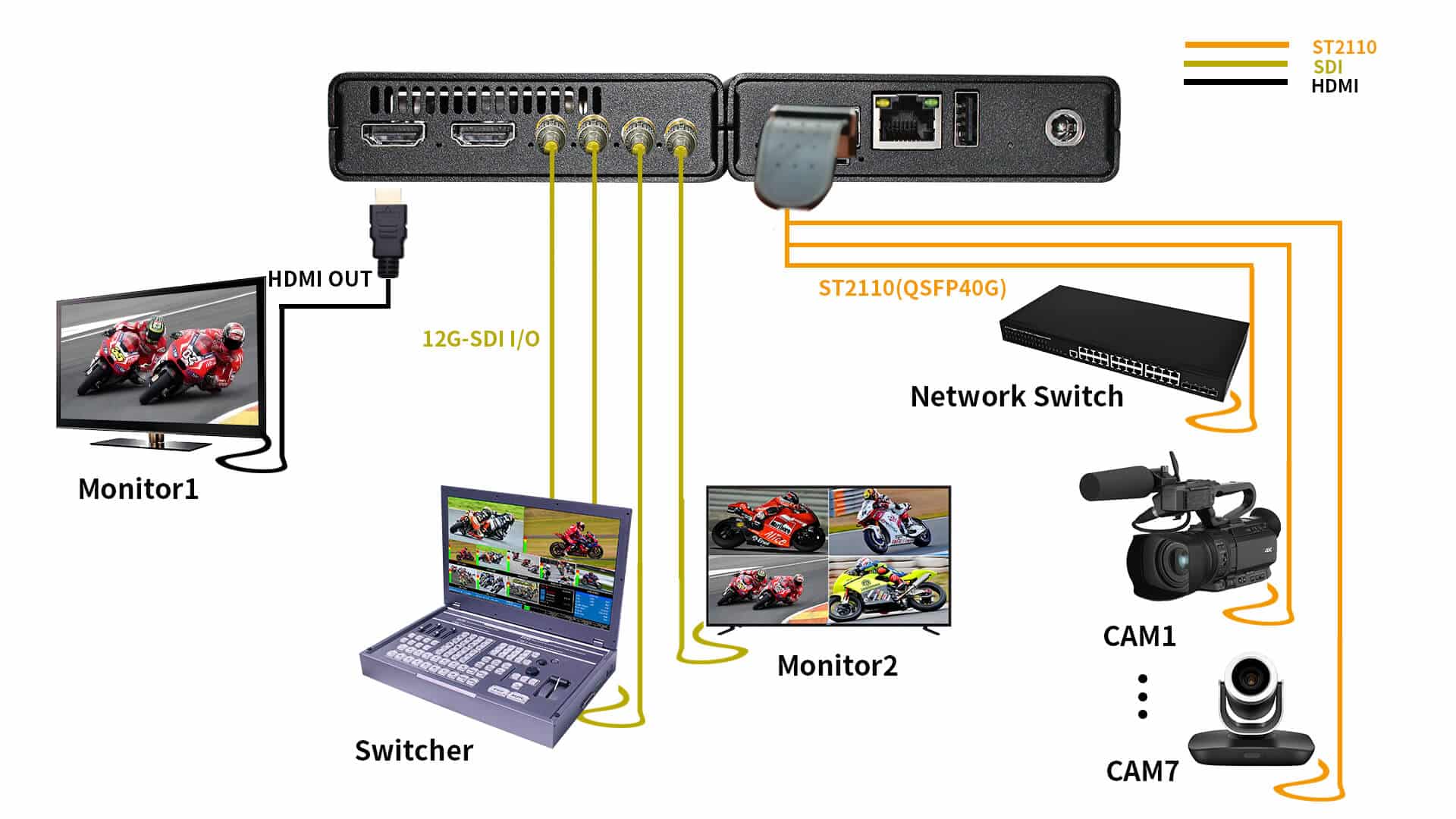

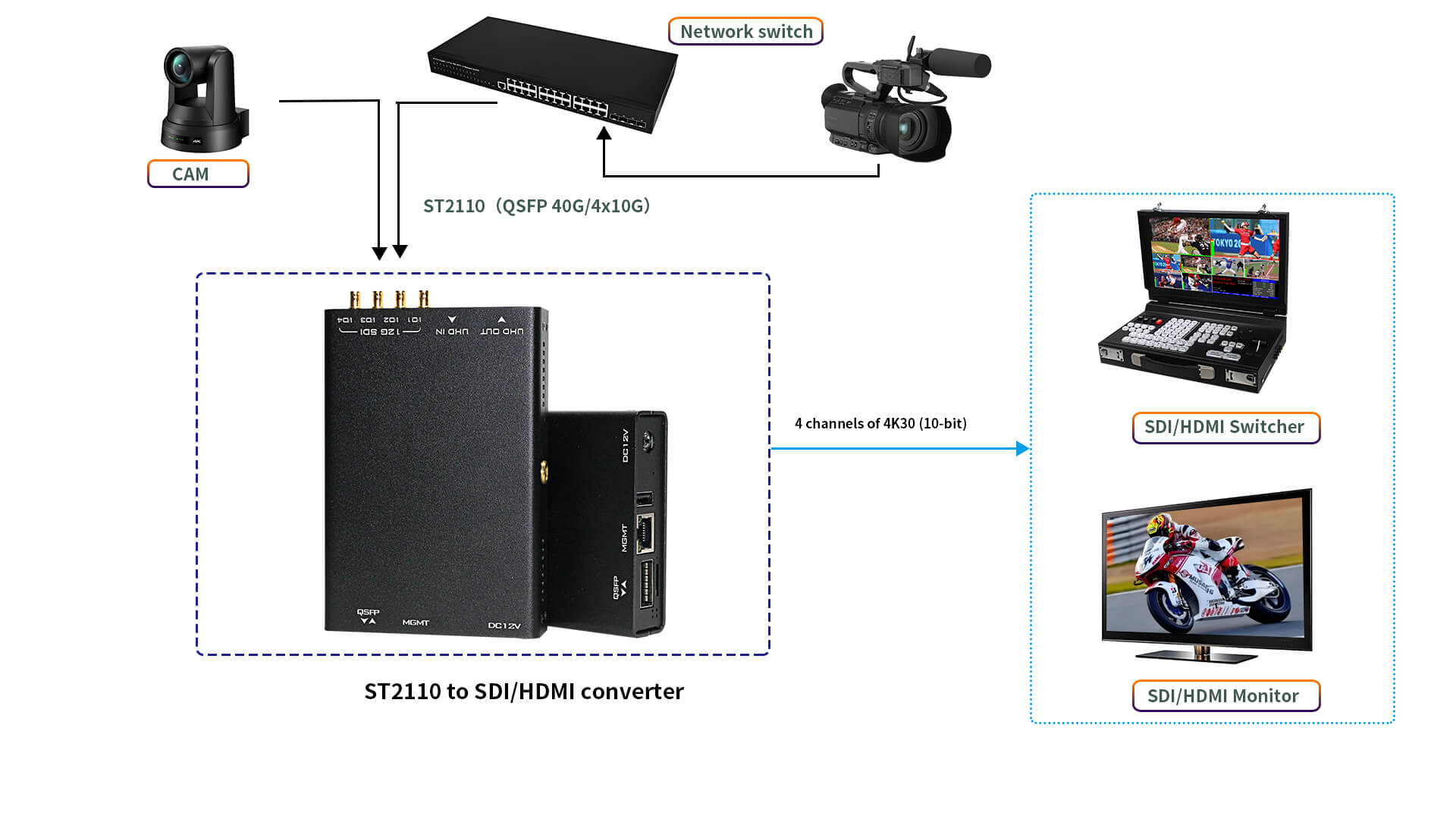

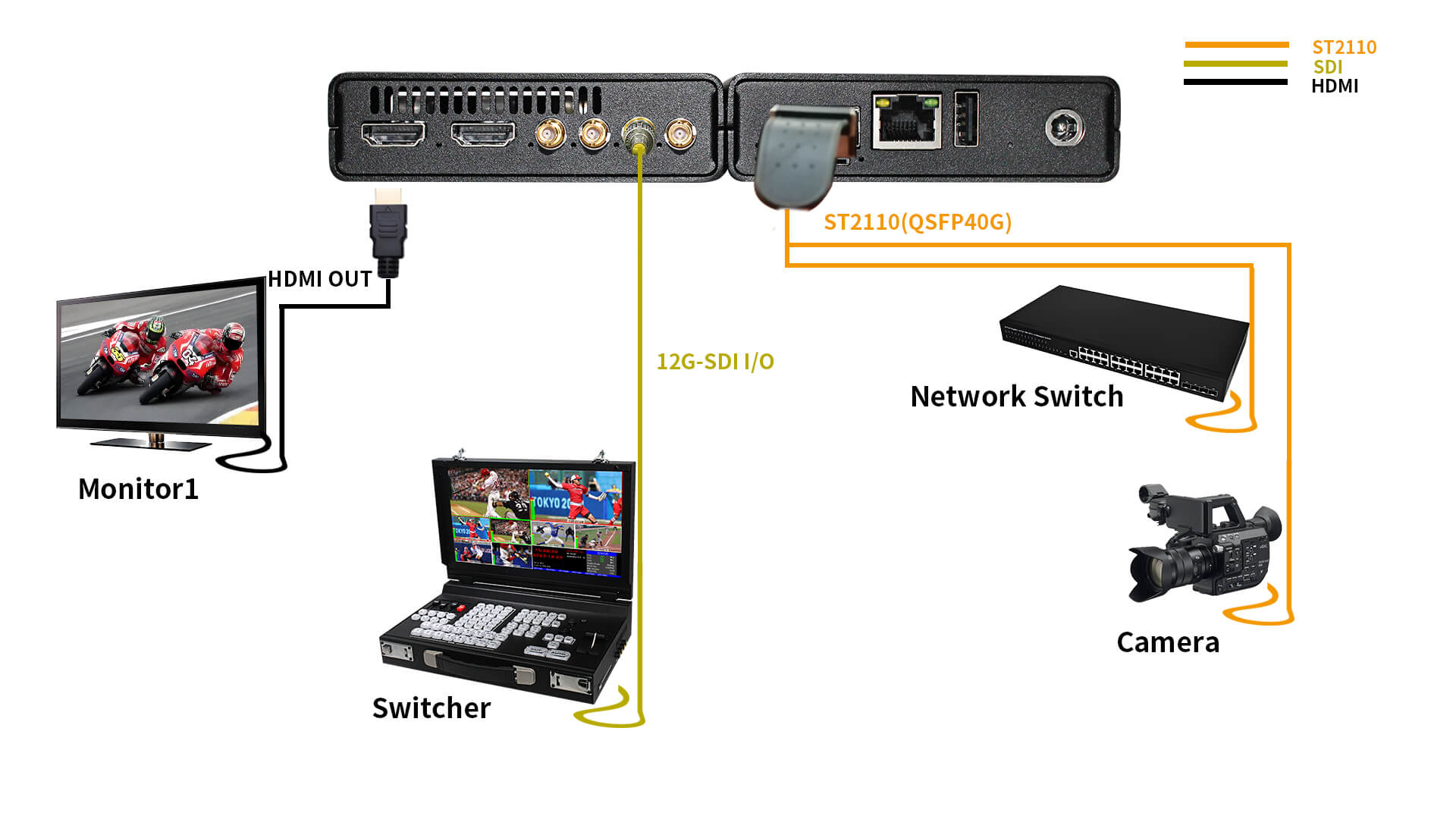

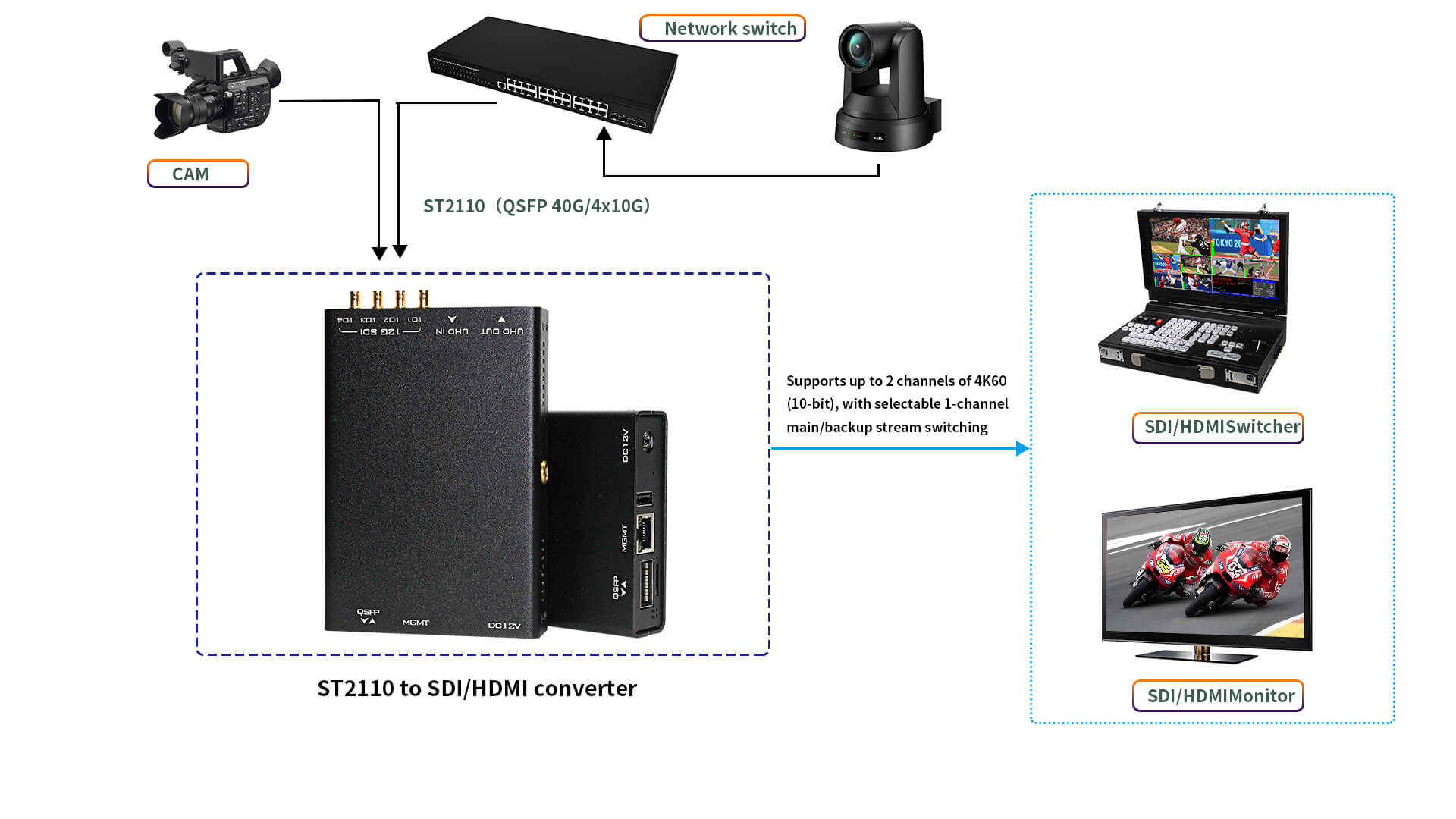

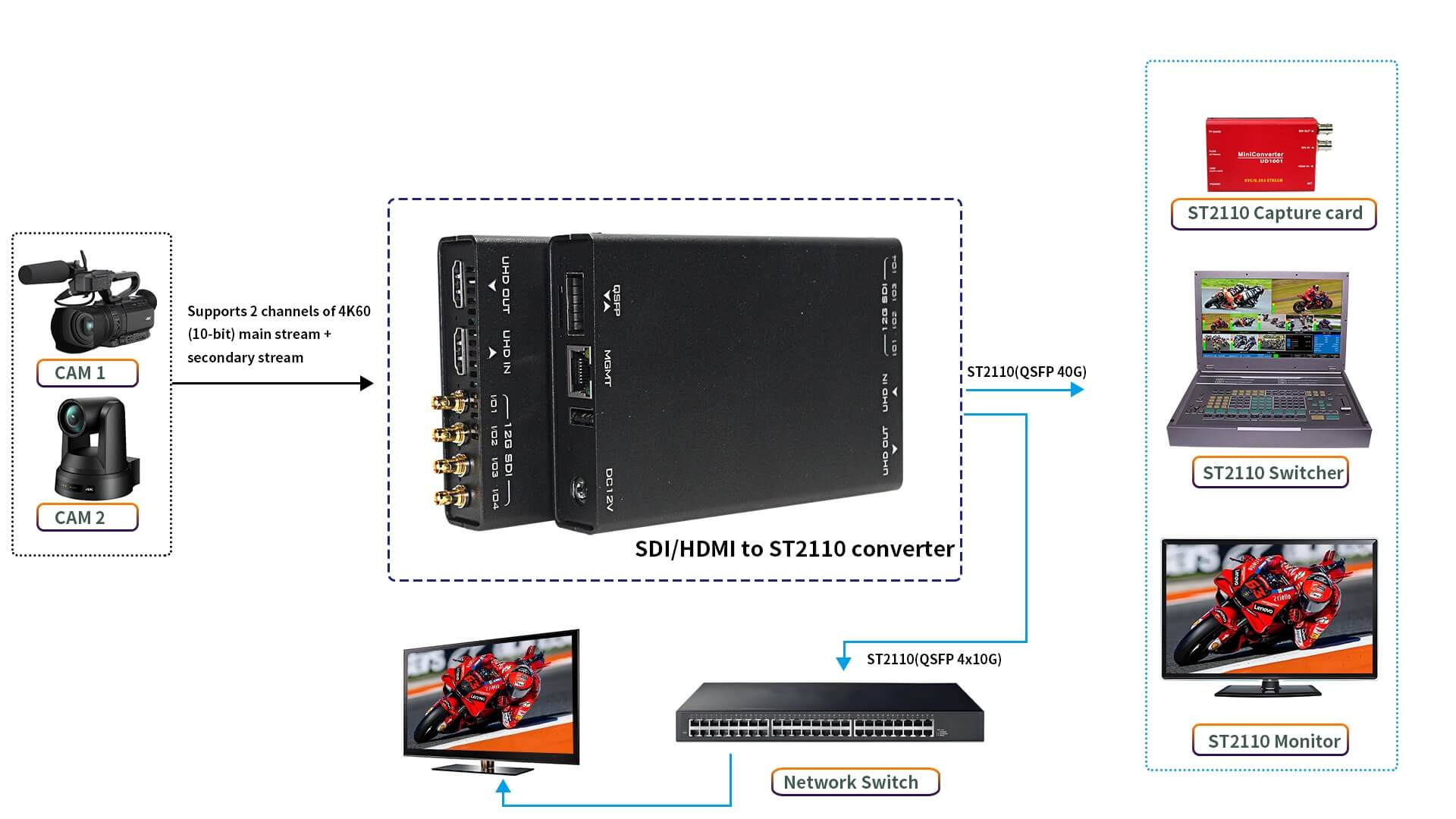

Application 2: ST2110 to SDI/HDMI PTP application

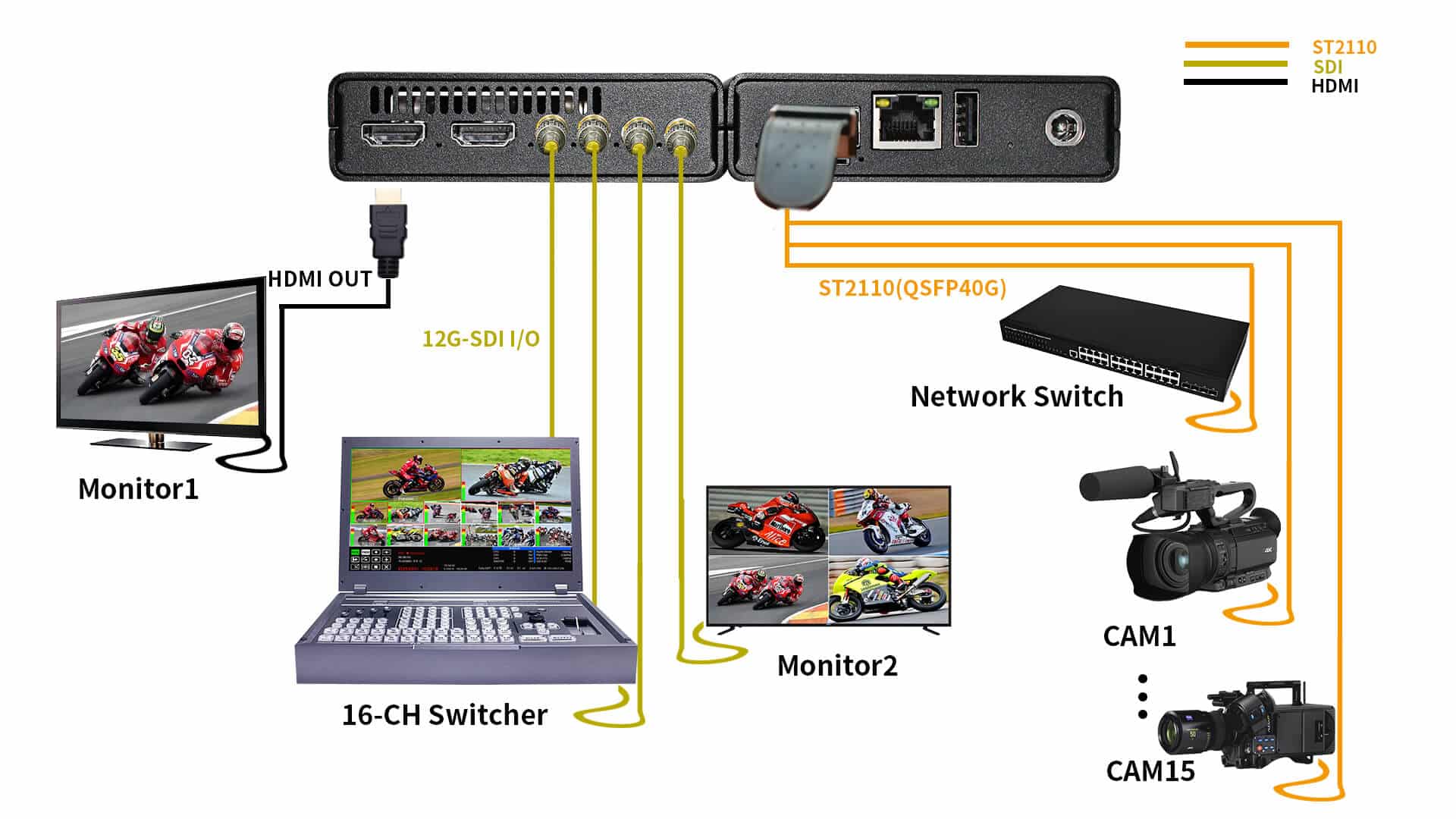

Support 16channel 1080p30 10bit
Support 4 channel 4k30 10bit

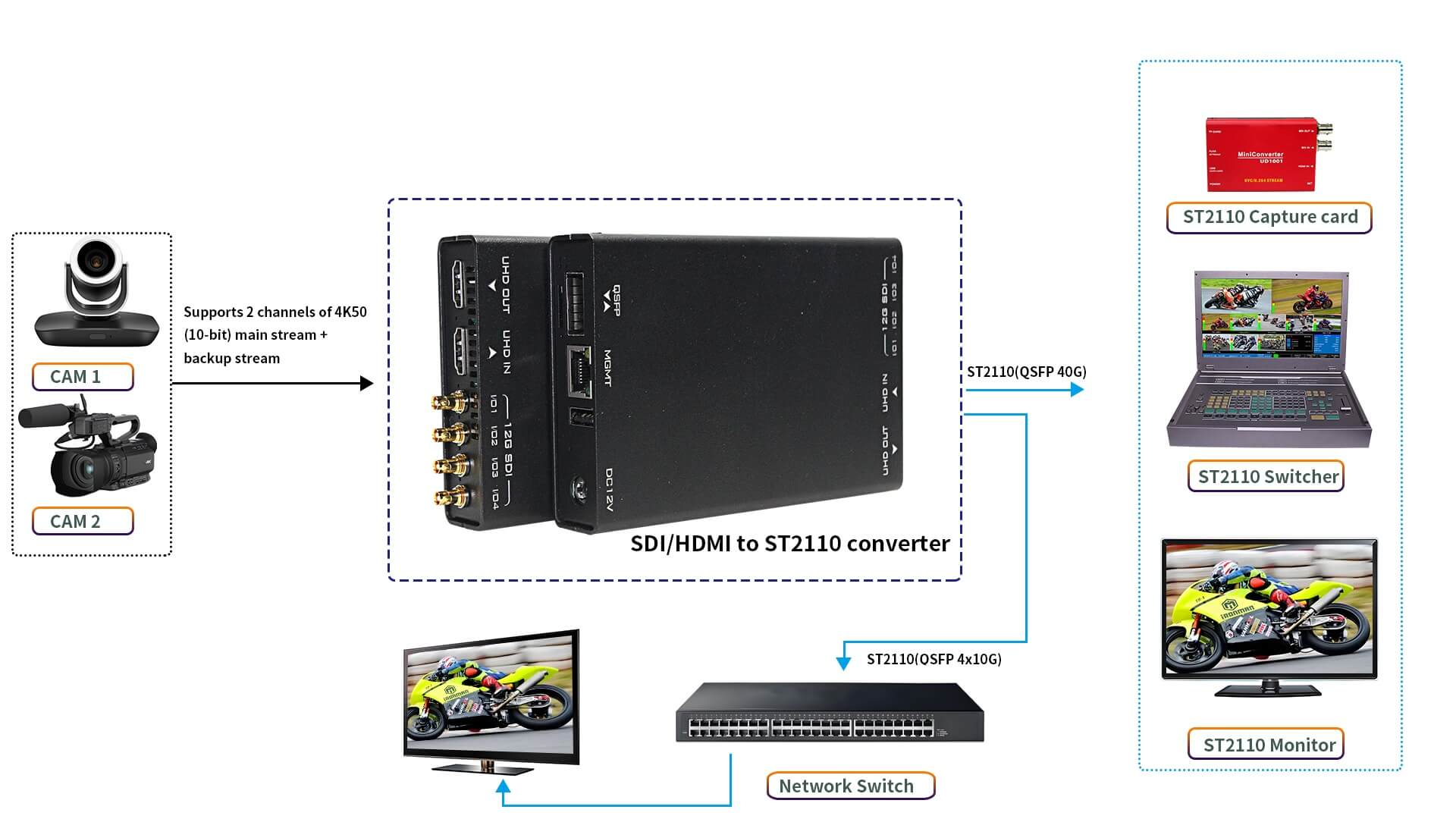

Support up to 2 channels of 4k60 10bit,and can select 1 channel main /backup stream switching

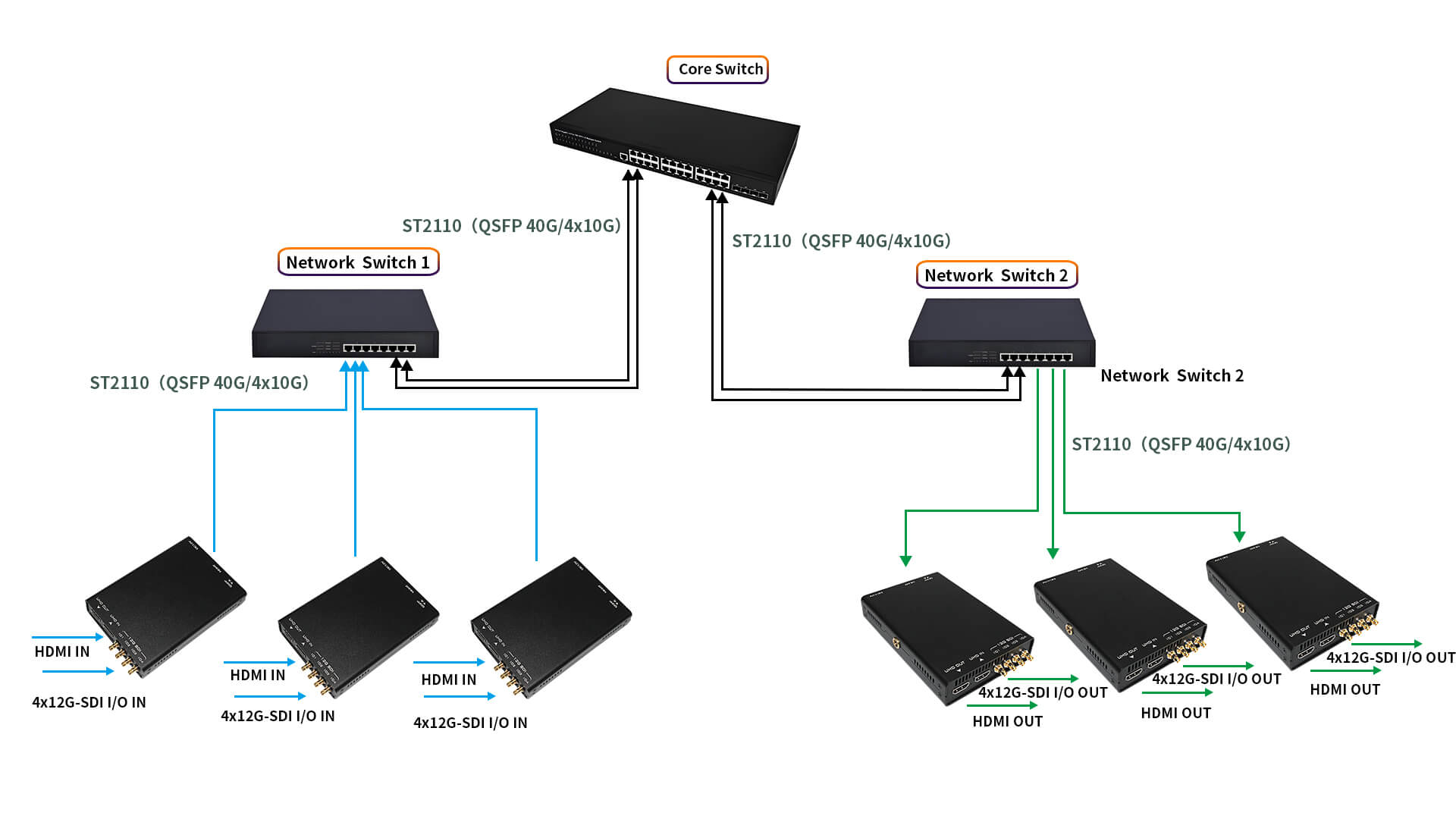

Application 3 Switch network connection
This solution has high system integration, simple install and construction,easy operation and flexible functions. used for high quality video transmission,support 10bit video processing and accurately restoring every pixel of the original SDI signal,ensuring broadcast grade image quality from the source to the terminal.
