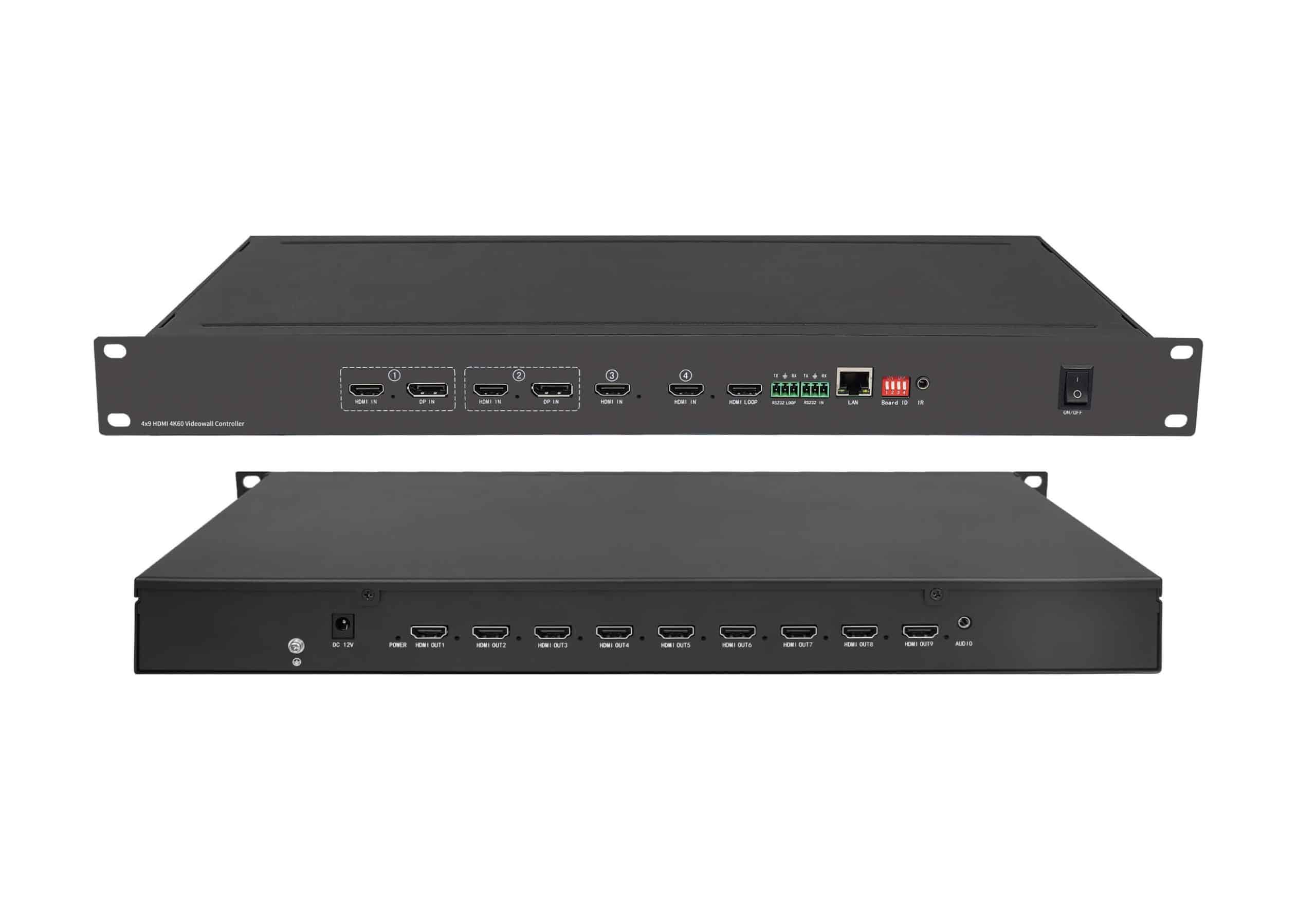

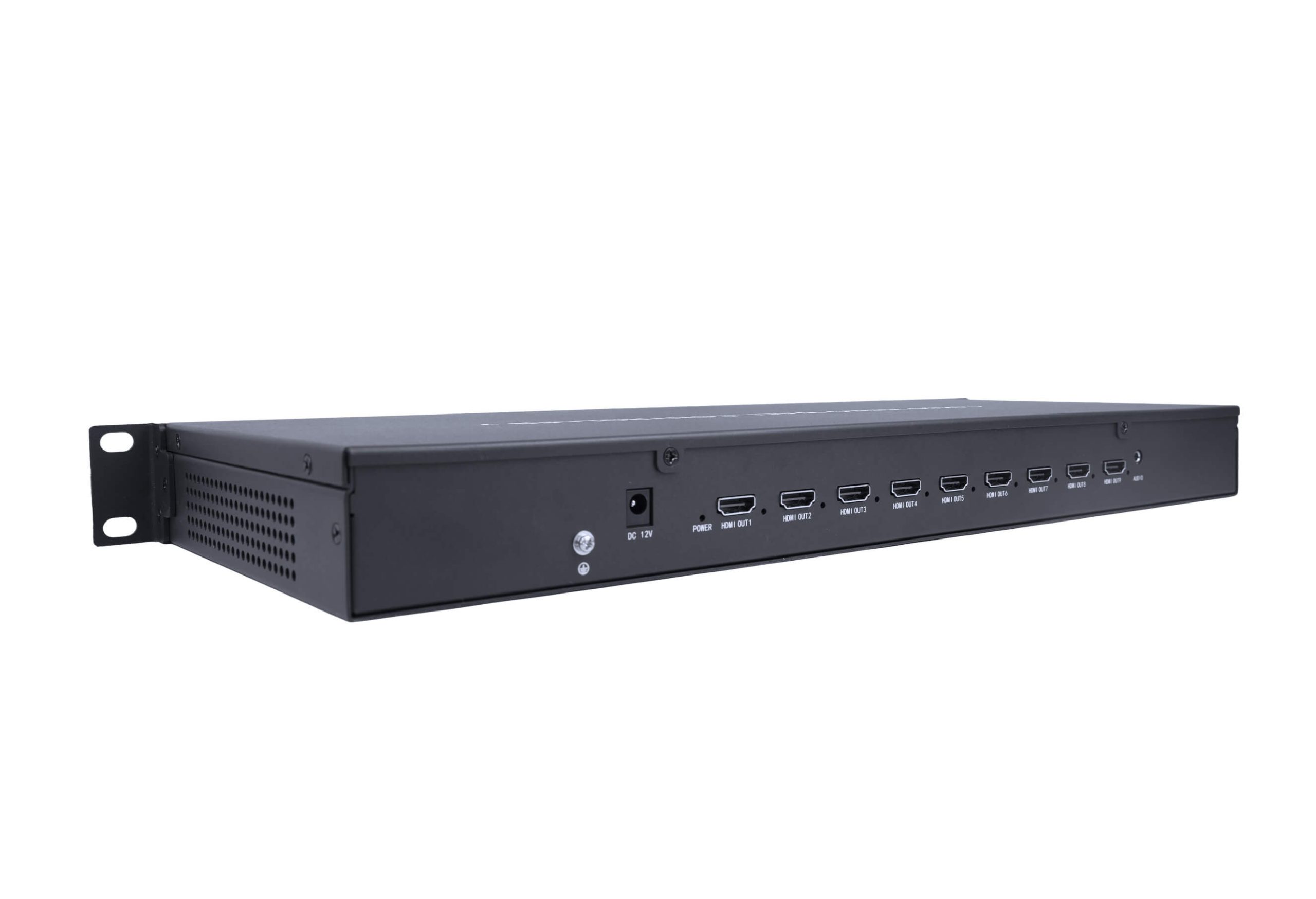

Video Wall Controller 4×9 3×3 3×4 3×5 3×6 Input and Output Rotation 4k LCD LED FPGA Chip
4K60hz VideoWall Controller with Audio, horizontal screen 1×1 to 1×9; vertical screen 9×1 to 1×1; or mosaic type: 2×2, 2×3, 3×3, 2×4, 4×2… etc
| Weight | 3700 g |
|---|---|

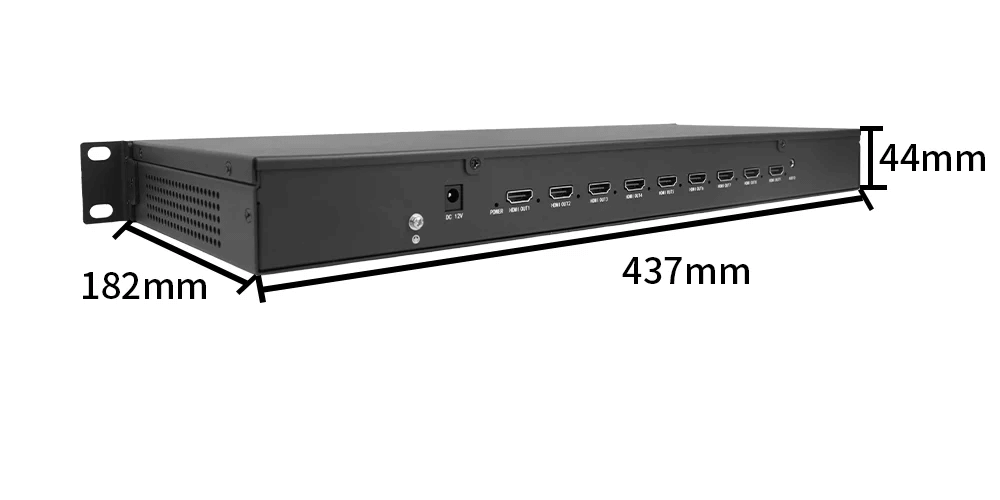

| Dimensions | 44 × 18 × 4.5 cm |
| HDMI Version | 4K60hz 18Gbps |
| Splicing mode | More than 16 modes: horizontal screen 1×1…1×9; vertical screen 9×1…1×1; field type: 2×2, 2×3, 3×3, 2×4, 4×2… |
| Rotation | 90°, 180°, 270° |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
| Functions | With screen freezing function and screen mirroring function,gamma mode and panel gamma mode |
| Audio | Audio output supports HDMI OUT1 or ALL ON or ALL OFF |
Detailes About Video Wall Controller 4×9 3×3 3×4 3×5 3×6 Input and Output Rotation 4k LCD LED FPGA Chip
Overview
4K60 video processor HDMI switcher
☞Supports 4 channels of 4K*2K@60 input,each input port burns different resolutions,and supports EDID management;
☞Supports multi-window control,can realize various functions such as POP tile mode,PIP overlay mode,arbitrary picture overlay,roaming,cross-screen,zoom,etc;

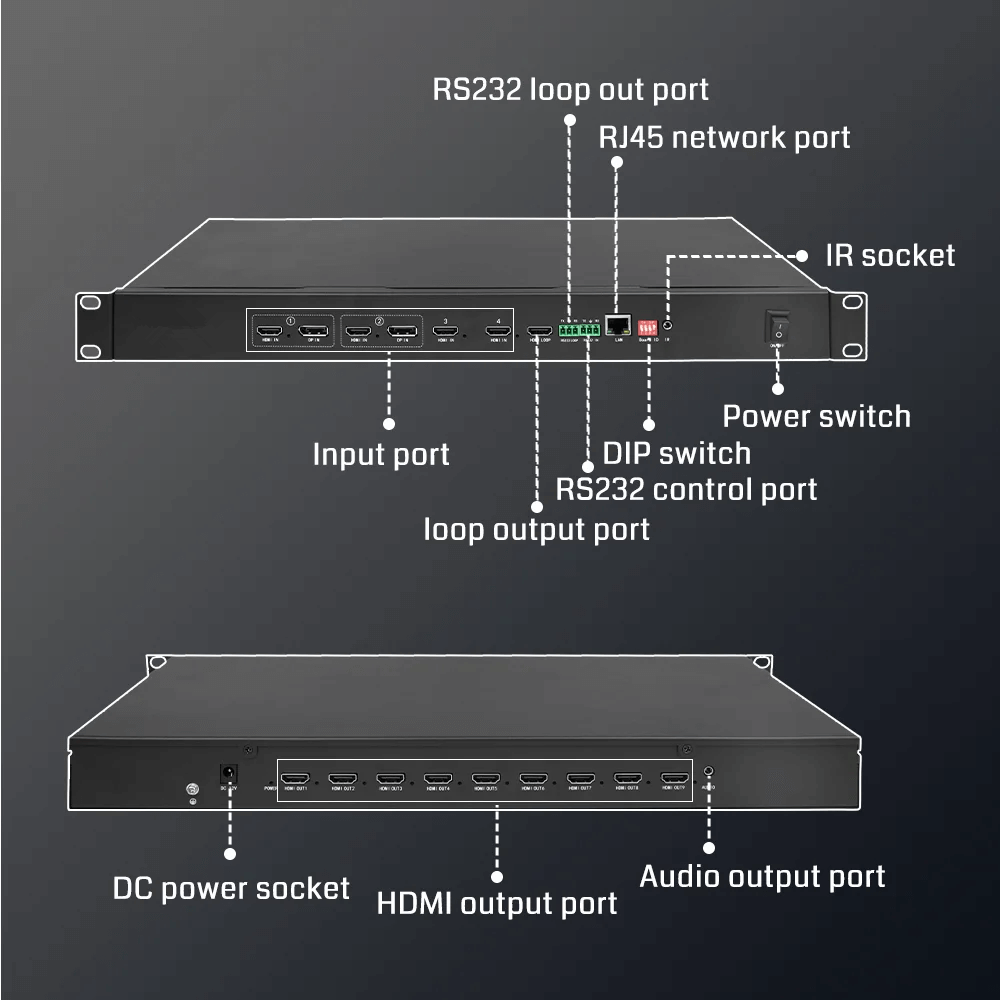

☞Flexible control (infrared remote control, RS232 serial port control,TCP/IP control methods);
☞One key to switch the signal source，Supports seamless real-time switching of signals;
☞Supports 16 splicing modes such as horizontal screen,vertical screen,etc;

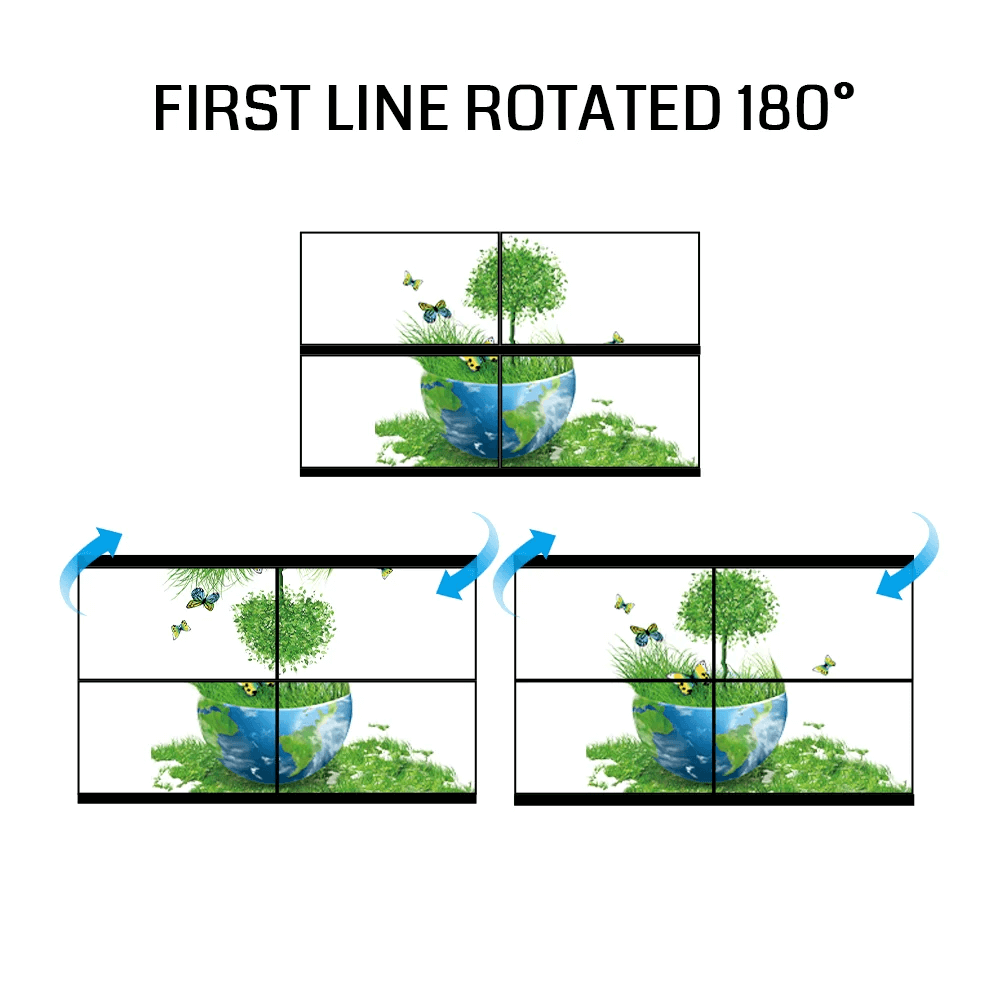

☞Support DHCP，Support input can be rotated 90°,180°,270°,and the first line of output can be rotated 180°;
☞Supports image effect color,saturation and other parameter adjustment functions;
☞Audio separation (3.5mm audio port) + audio follow out;
☞With screen freezing function and screen mirroring function,gamma mode and panel.
Typical application

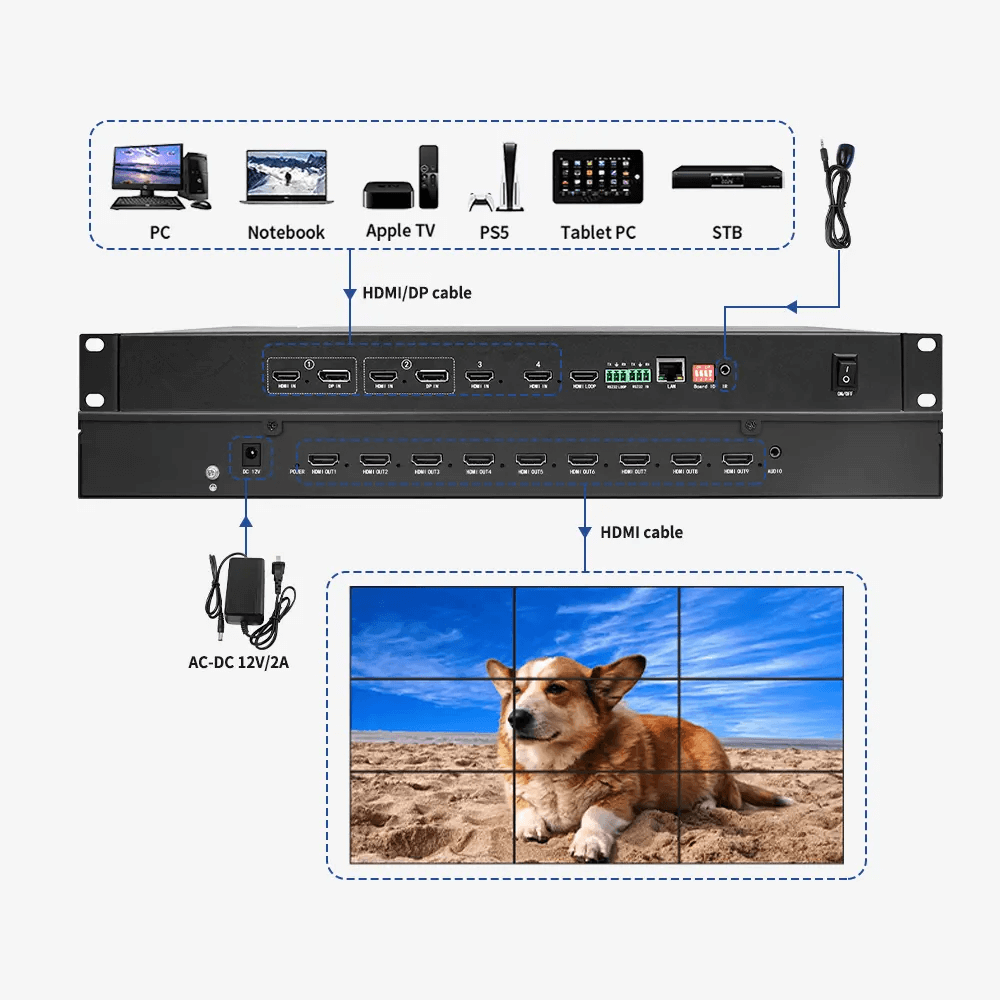

Mainly used in ultra-high-definition video surveillance,ultra-large screen walls,large advertising screens in stores,large exhibition screens and other industry applications.
Features:
Below is the PC Control Operation video for your reference.
