8K60 100Meter HDBaset Extender with 4 USB 2.0 on Receiver end, POC,EDID, HDR10,HDCP2.3

This is a high-performance, long-reach HDBaseT extender, which can transmit HDMI™, bidirectional IR, bidirectional RS-232 and USB 2.0 signal to a long distance up to 100m/328ft over CAT5e/6 cable. Video resolution is up to 8K@60Hz. It converts the HDMI™ signal to standard HDBaseT signal, and transmits it via LAN cable. It can easily control the source device or display device from the remote end through CEC and bi-directional IR signal pass- through function. It supports EDID management (COPY TV/STD) and PoC function.
The Extender can be widely used in other fields such as video conference system, multimedia signal broadcasting, HDMI™ signal extension, etc.

Features

HDCP 2.3 Compliant
Max Video Resolution: 8K@60Hz 4:2:0, 4K@144Hz 4:4:4; Compliant with HDMI™ 2.1 Specifications
Max Video Bandwidth Support: 48Gbps (FRL) and 18Gbps (TMDS)
Transmission Distance: Up to 100 meters via CAT5e/6 cable
Supports VRR, ALLM, QMS, QFT, SBTM
Supports USB 2.0 Signal Transmission
Supports Bi-directional IR and RS-232 Control Signals, as well as CEC Pass-through
Audio Formats: LPCM, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Resolution, DTS-HD Master Audio, DTS:X
Receiver Supports Audio De-embedding
Supports EDID Management
Supports HDR10, HDR10+, Dolby Vision, and HLG Signal Pass-through
Supports Bi-directional PoC (Power over Cable)
Compact Design for Flexible and Convenient Installation

Packing list include:

① 1× 8K60 HDMI™ over HDBaseT Extender (Transmitter)
② 1× 8K60 HDMI™ over HDBaseT Extender (Receiver)
③ 1× 24V/1A Locking Power Supply
④ 1× USB Cable (USB-A to USB-B)
⑤ 1× IR Blaster Cable (1.5m)
⑥ 1× IR Wideband Receiver Cable (1.5m)
⑦ 2× 3-pin 3.5mm Phoenix Connector
⑧ 4× Mounting Ear
⑨ 8× Machine Screw (KM3*6)
⑩ 1× User Manual

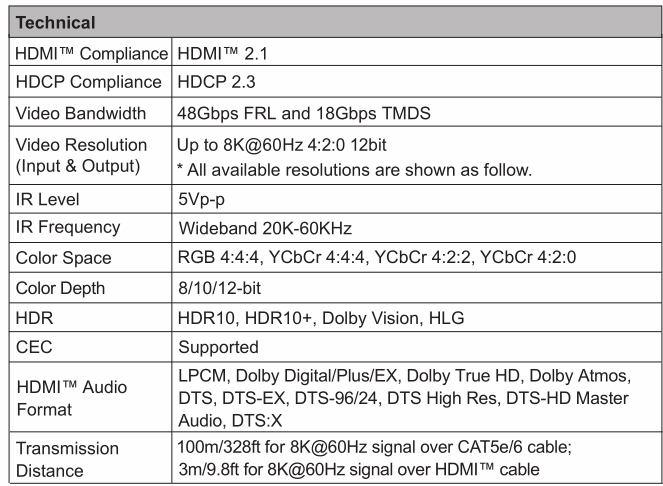

Specification

All available input/output resolutions:
640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59),
720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50),1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60),
1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25),
1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 3840x2160p100Hz(2160p100), 3840x2160p120Hz(2160p120),
3840x2160p144Hz(2160p144), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz, 4096x2160p100Hz, 4096x2160p120Hz, 4096x2160p144Hz, 5120x2160p50Hz, 5120x2160p60Hz, 7680x4320p23.98Hz, 7680x4320p24Hz, 7680x4320p25Hz, 7680x4320p29.97Hz, 7680x4320p30Hz, 7680x4320p50Hz, 7680x4320p60Hz

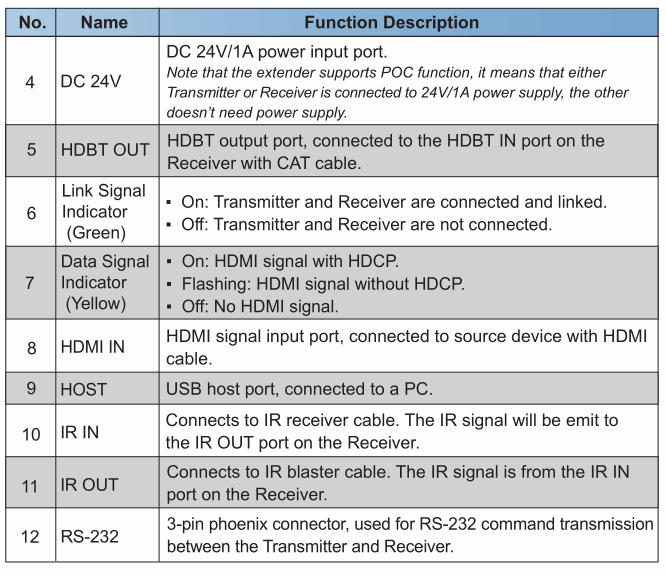

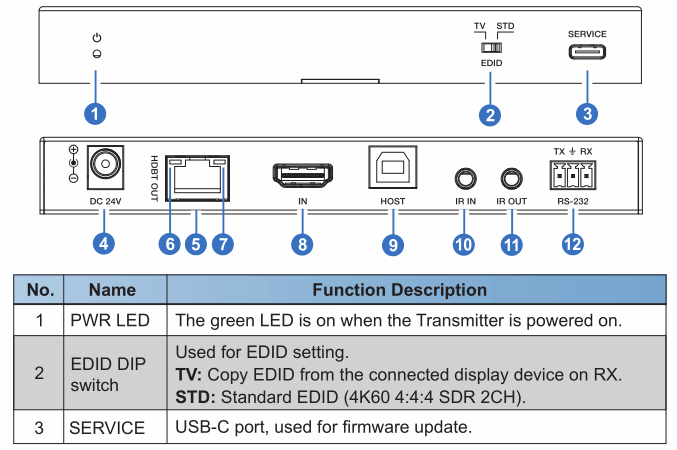

Transmitter Interface

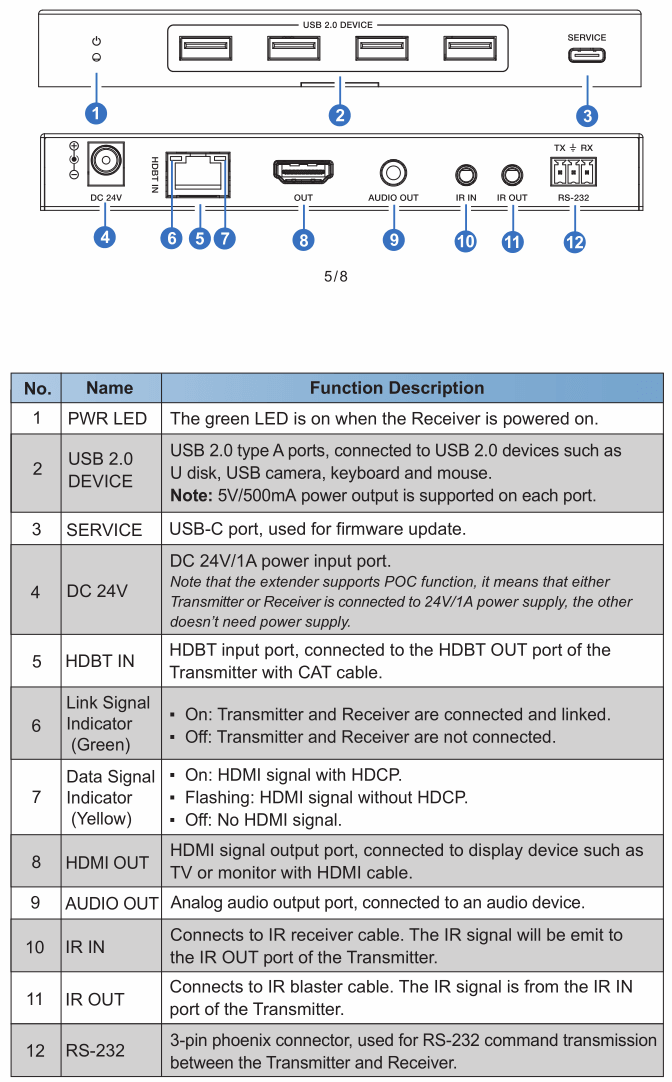

Receiver Interface

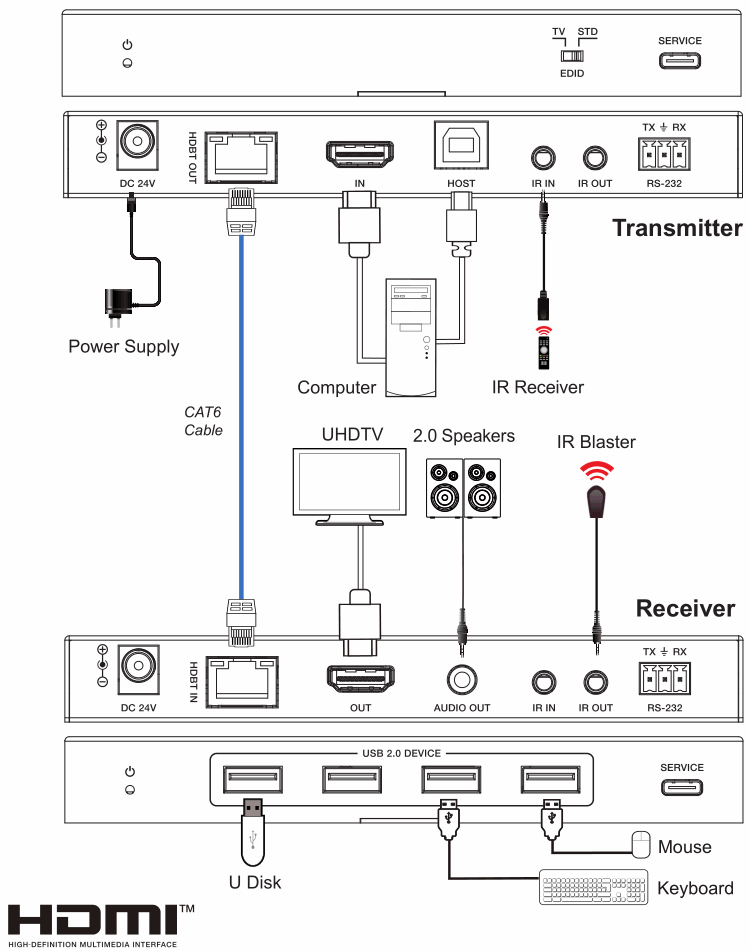

Diagram

4K60 100Meter HDBaset Extender with 4 USB 2.0 on Receiver end, POC,EDID, HDR10,HDCP2.3

Features

Supports HDCP 2.3 / 2.2 / 1.x protocols
Video Bandwidth: 18Gbps
Supports video resolutions up to 4K@60Hz (4:4:4), compliant with HDMI™ 2.0b standards
Transmission distance of up to 100 meters (328 feet) over CAT5e/6 cables
Supports USB 2.0 signal transmission
Supports bi-directional IR control, as well as RS-232 and CEC signal pass-through
Audio Formats: LPCM, Dolby Digital / Plus / EX, Dolby TrueHD,
Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DTS:X
Receiver supports audio de-embedding
Supports EDID management
Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
Supports bi-directional PoC (Power over Cable) functionality
Compact design for flexible and convenient installation

4K60 100Meter HDBaset DP Extender with 4 USB 2.0 on Receiver end, POC,EDID, HDR10,HDCP2.3

4K60 100Meter HDBaset USB-C Extender with 4 USB 2.0 on Receiver end, POC,EDID, HDR10,HDCP2.3

Features

Compliant with VESA DisplayPort 1.4a standards; supports Alt Mode (DP Alt Mode)
Supports HDCP 2.3 / 2.2 / 1.x protocols
Supports HBR3 / HBR2 / HBR / RBR (8.1 / 5.4 / 2.7 / 1.62 Gbps)
Supports video resolutions up to 4K2K@50/60Hz (4:4:4)
Transmission distance of up to 100 meters over CAT5e/6 cables
Supports USB 2.0 signal transmission, as well as bi-directional IR and RS-232 signal pass-through
Audio formats: LPCM, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby
Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master
Audio, DTS:X
Receiver unit supports audio de-embedding
Supports EDID management
Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
Supports bi-directional PoC (Power over Cable) functionality
Compact design for flexible and convenient installation
