HDMI 4K60Hz JPEG2000 AV over IP by One Cat6 100M KVM Control Video Wall 9×9

JPEG2000 4K60hz  AV over IP 10GbE with Video Wall Processing 9×9, AV Matrix with keyboard and mouse control,Zero Latency,Multiviewer 25 TVs



Additional information

Weight 1000 g
Dimensions 20.4 × 10 × 2.2 cm
HDMI Version

HDMI 2.0b

HDCP

HDCP2.2 18Gbps

Video Compression Standard

JPEG2000 Technology
All in one AVoverIP

Video Network Bandwidth

1G

Video Resolution

Input Up to 4K@60Hz 4:4:4,Output 4k30 4:4:4

Resolution / Cable Length

HDMI Cable IN/Out
4K60Hz 16ft/5M
4K30Hz 32ft/10M
1080P60 50ft/15M

Transmission Distance

100m (CAT6A/7) / 70m (CAT6)

Detailes About HDMI 4K60Hz JPEG2000 AV over IP by One Cat6 100M KVM Control Video Wall 9×9

hdmi 4k jpeg2000 av over ip by one cat6 100m kvm control

Introduction

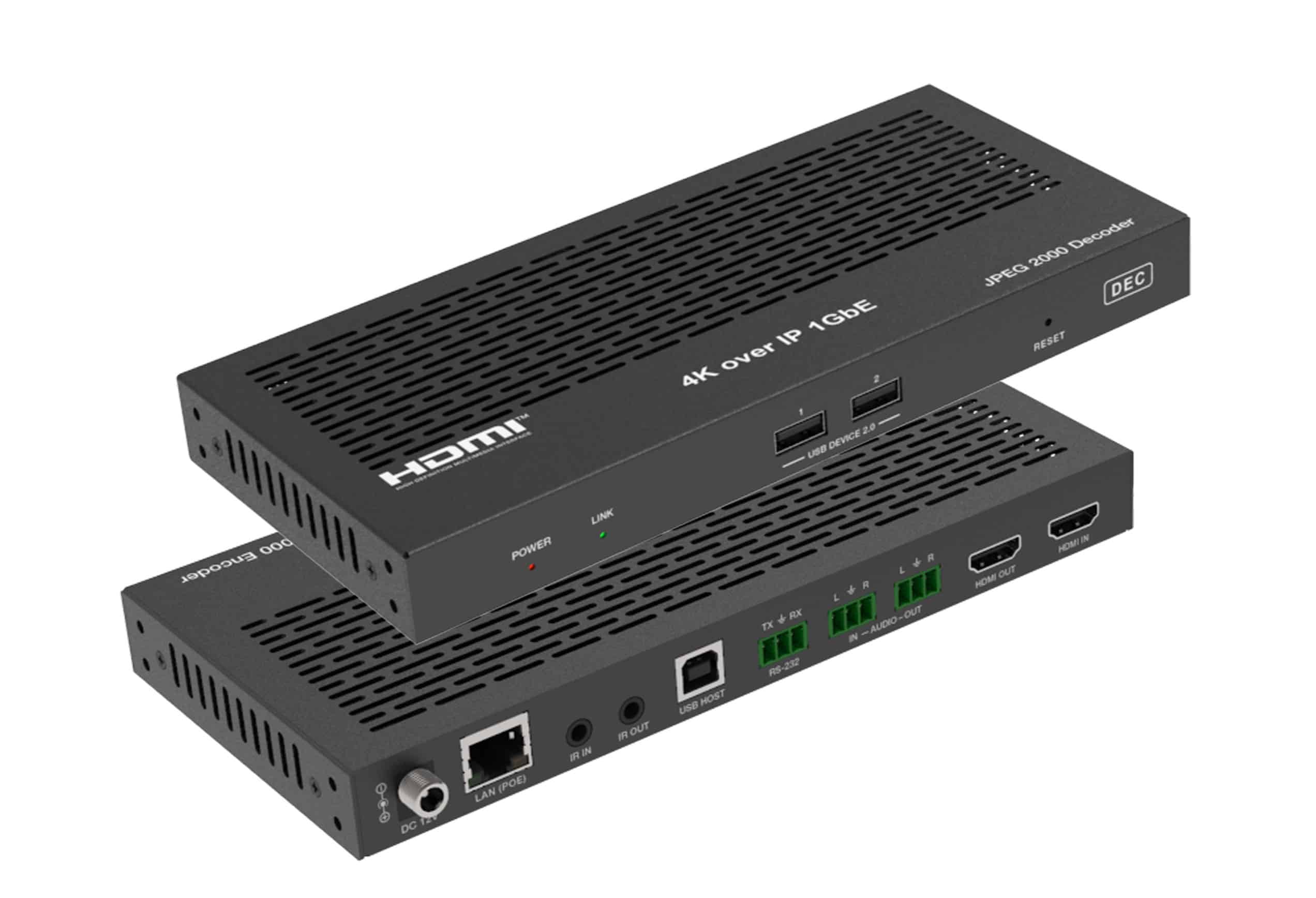

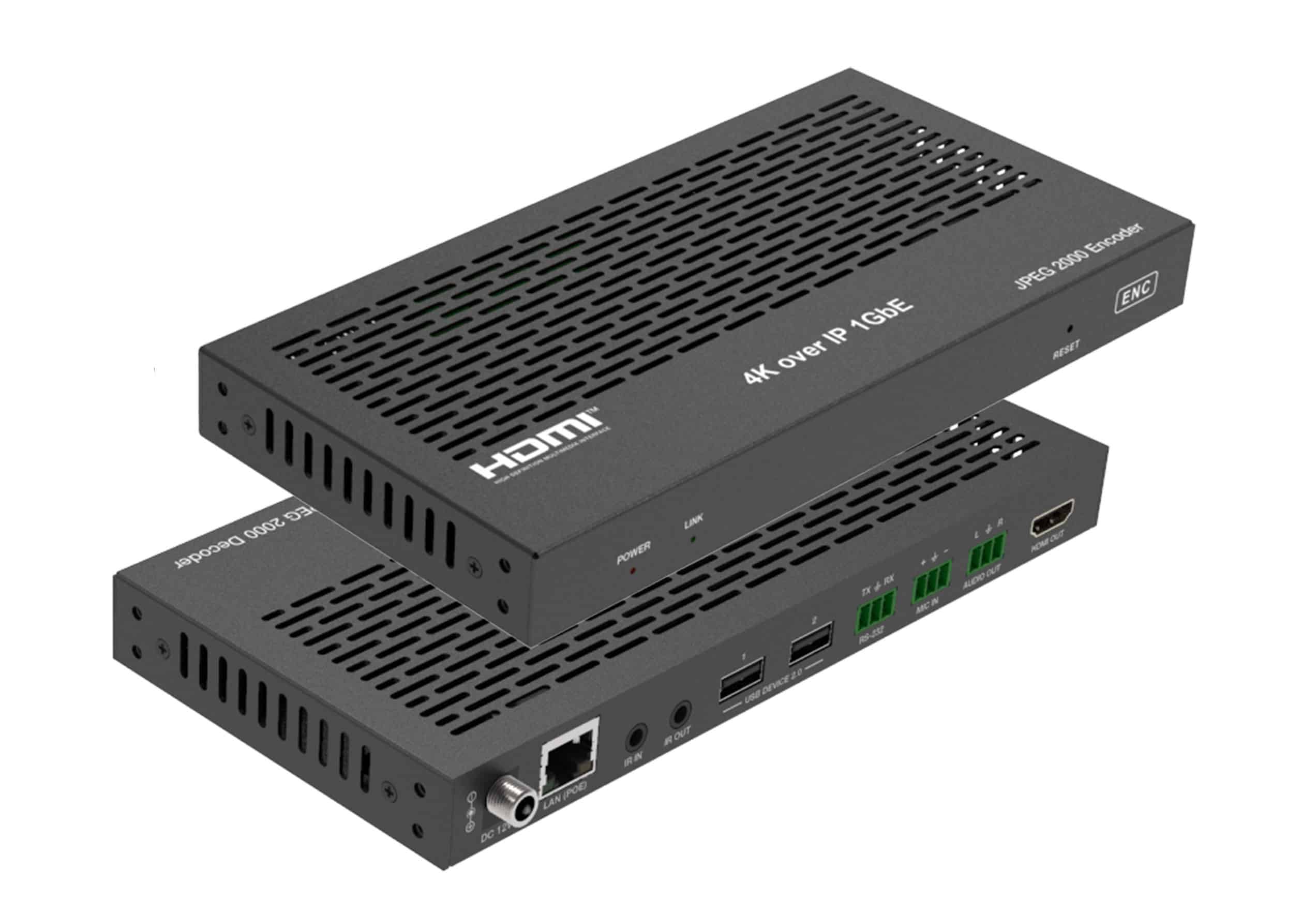

This product is based on JPEG2000 technology. Encoder input supports up to 4K60, audio embedding or audio out. Decoder output supports up to 4K30, audio extracting or audio in transmitted to Encoder audio out (only for point-to-point direct connection).

The product supports USB2.0/KVM, 1G Ethernet, bidirectional RS-232, two-way IR control and POE function. Guest mode control of RS-232, IR, CEC supported. Built-in secondary H.265 stream which supports plenty API commands to achieve flexible configurations is useful for 3rd party control Apps to preview video content.

As the H.265 stream can be accessed in a different domain from JPEG2000 main stream via tagged its LAN ID, this makes it possible to isolate the network systems of main stream which works in Video LAN and secondary stream which works in Control LAN.

The system is based on Linux for software development, provides flexible
control methods, that are based on the intelligent networking of 1G Ethernet Switch.



Features

☆ HDMI 2.0b, HDCP 2.2 compliant
☆ Support 18Gbps video bandwidth
☆ Input supports up to 4K60 4:4:4, output supports 4K30 4:4:4
☆ Transmit video, audio, IR , RS-232, CEC and USB signals over Ethernet
☆ Support unicast and multicast functions
☆ Support point-to-point, video matrix and video wall functions (video wall supports up to 9×9)
☆ Intelligent video wall class management
☆ JPEG2000 Main Stream and standard H.265 codec Secondary Stream (SS)
☆ Support Secondary Stream VLAN ID and parameters configuration
☆ Support 1G Ethernet Switch, router and hub device transmission
☆ Support POE function
☆ Flexible control through Web GUI/TCP/RS-232/IR and third-party controller
☆ HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res,DTS-HD Master, DTS:X
☆ Smart networking design for easy and flexible installation.

Widely used in offices, huddle rooms, conference rooms, or as content contribution (trunking) between locations.



Connection:

One to One Application

hdmi 4k60hz jpeg2000 av over ip by one cat6 100m kvm control video wall 9x9



One to Many application



hdmi 4k60hz jpeg2000 av over ip by one cat6 100m kvm control video wall 9x9

Many to One Applicaiton



hdmi 4k60hz jpeg2000 av over ip by one cat6 100m kvm control video wall 9x9

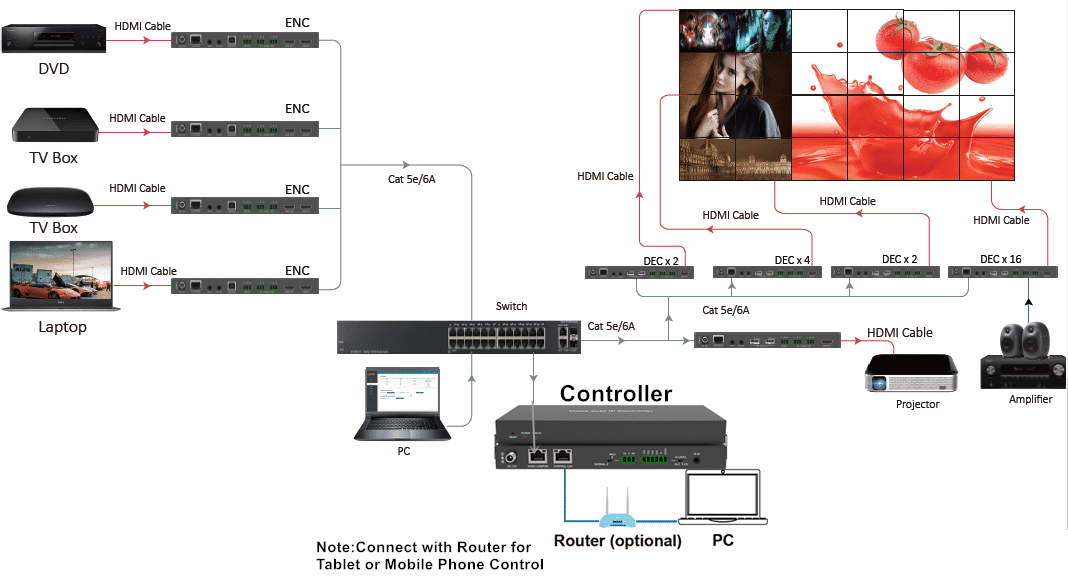

Many to Many Application with Controller



hdmi 4k60hz jpeg2000 av over ip by one cat6 100m kvm control video wall 9x9
