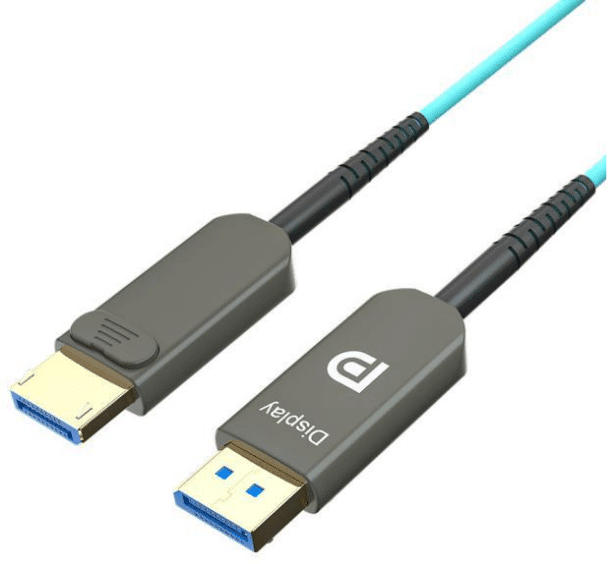

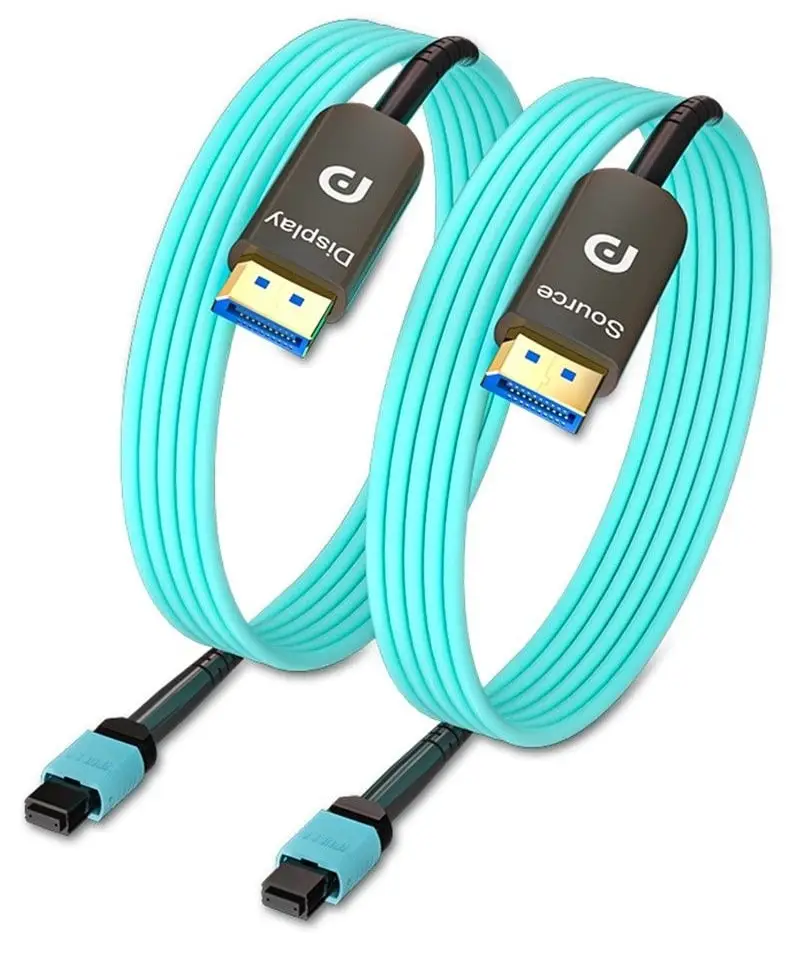

8K DisplayPort 1.4 to MPO Fiber Terminals/Ends

(4K/8K fiber optic HDMI 2.0/2.1 cable/DVI/Displayport 1.4/USB 3.1 connections)

100% Pure Fiber, No Copper, Zero latency, No Loss, Uncompressed long distance Transmission



DP1.4 8K Full Fiber AOC can solve the problems of limited transmission distance and weak electromagnetic interference resistance of traditional DP cables.

To achieve a bandwidth of up to 32.4Gbps. Full- Fiber DP1.4 AOC may support 8K60Hz, 4K144Hz and 8K120Hz frame rate when DP Sink device has DSC capability and Decoding enabling.

Full fiber design makes the cable very light and flexible compare with standard Copper cable or Hybrid fiber cable.

DP Full Fiber AOC is mainly used for high- definition audio and video transmission between devices with DP interfaces such as computers and high-definition televisions, as well as applications in complex electromagnetic environments such as medical equipment.

Features:

850nm VCSEL, PIN, lens platform.

DP1.4 8K@30Hz 4:4:4 and full bandwidth of 32.4Gbps.

Support AUX/HPD/HDCP2.2.

Low power consumption (Vol 3.3V): Source~500mW, Display~500mW.

A variety of AOC cable lengths are available, Middle MPO Jumper supports up to 300m.

The outer cover of the optical cable can be upgraded to armor.

Plug and Play.

Excellent EMI/RFI protection.

This product can be paired with the Pulling-Eye kit for convenient and reliable pipeline wiring

Specifications:

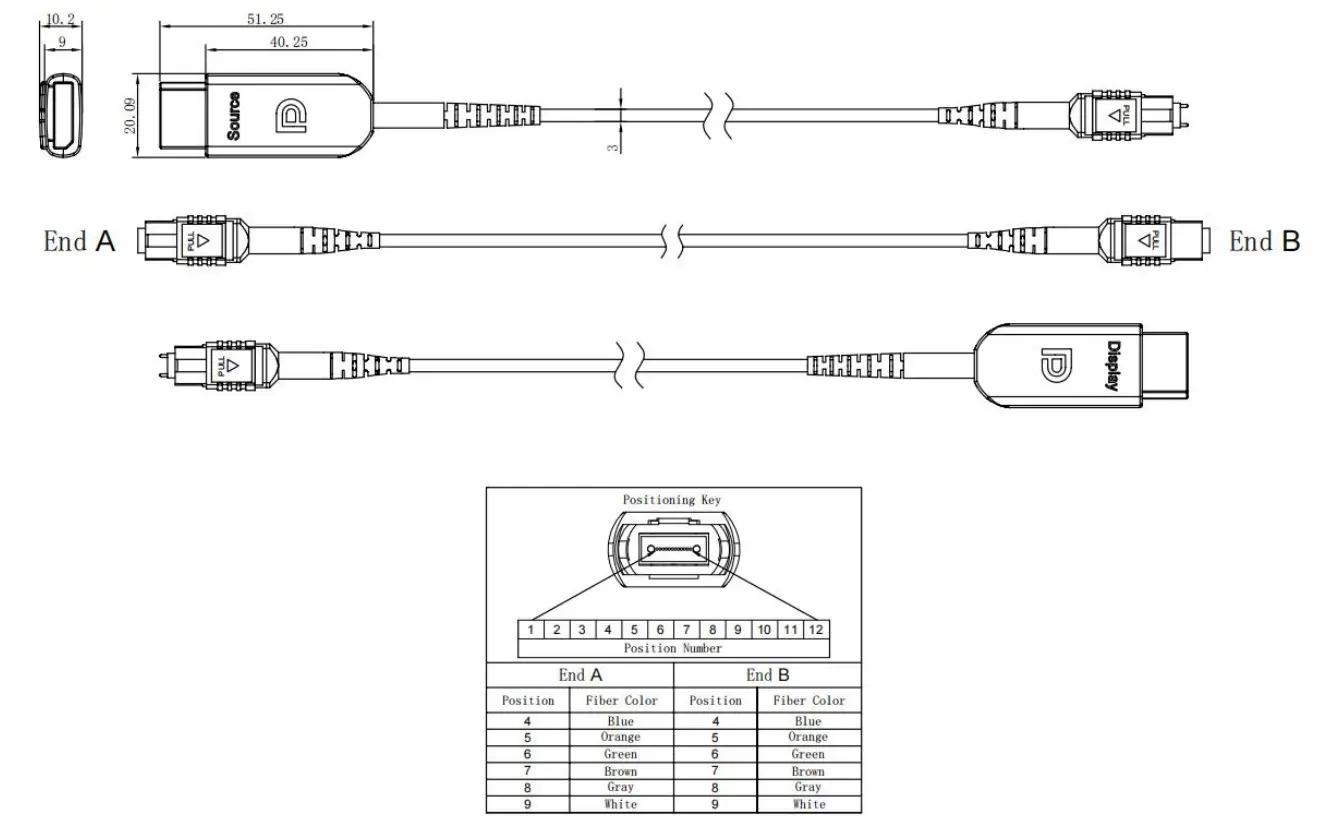

Connector: Type(s) DisplayPort Full Size Connector

Contacts Gold plated Contacts

Cable OD 3.0mm

Jacket Material LSZH/PVC/TPE

Environment: Storage Temp -40 to 85℃ Operating Temp -20 to 70℃

EMI/EMC: FCC Class B,CISPR 32

HANDLING AND CARE CAUTION:

Optical energy is contained within cable and housings, do not cut optical cable. Viewing the cut fiber ends, especially with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) may pose an eye hazard.

This product is classified as a Class 1 Laser product in accordance with IEC60825- 1:1993+A1+A2 and complies with 21CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice N0. 50, dated 24-Jun-2007.

Use or modification of this device other than those specified herein may result in hazardous radiation. To meet laser safety requirements the cable shall be used within environmental specifications.

Tampering with or modifying the device will result in voiding of the product warranty.

INVISIBLE LASER RADIATION CLASS 1 LASER PRODUCT 840-860nm, 700uW

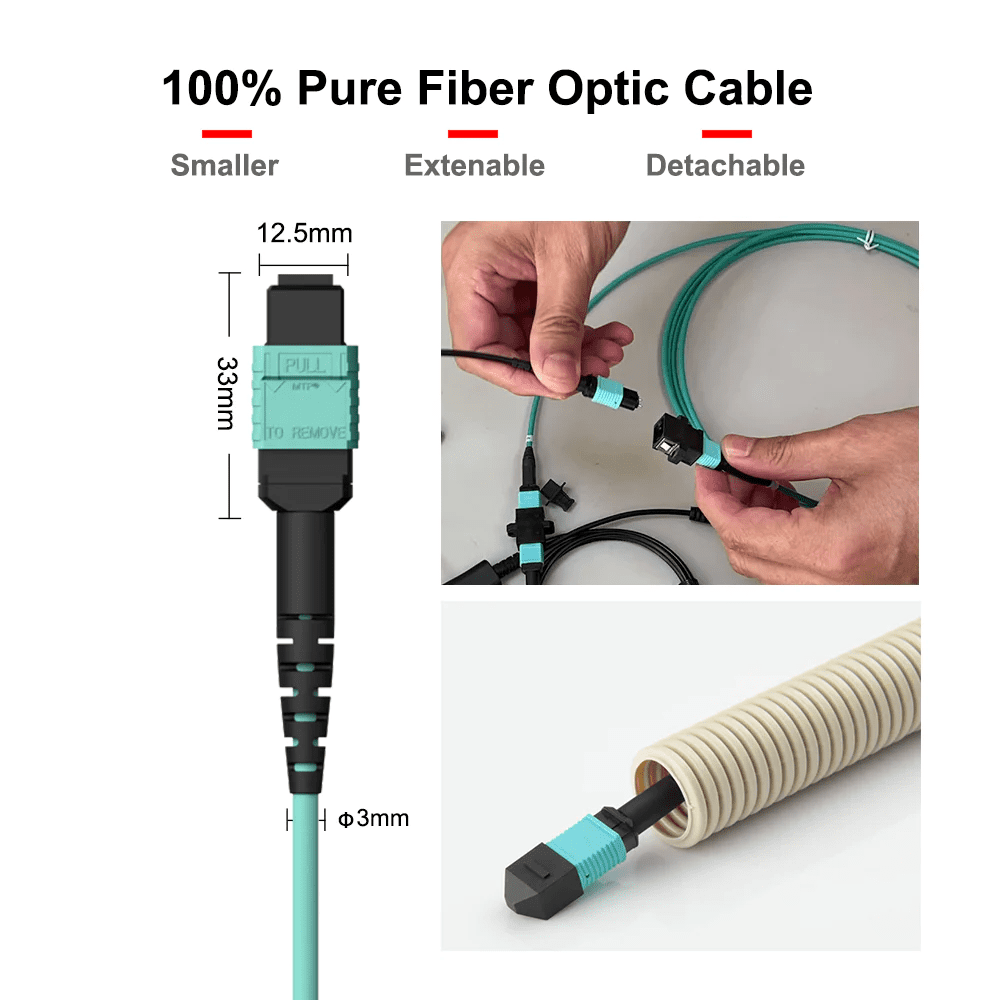

What is MPO Connector?
Multi-fiber push on connectors, or MPOs for short, are fiber connectors comprised of multiple optical fibers. While defined as an array connector having more than 2 fibers, MPO connectors are typically available with 8, 12 or 24 fibers for common data center and LAN applications. Other fiber counts are available such as 32, 48, 60 or even 72 fibers, but these are typically used for specialty super high-density multi-fiber arrays in large scale optical switches.

Why choose MPO pure fiber optical cable solutions for your HDMI/DVI/Displayport/USB connections?

Compared with hybrid optical AOC cables, New pure fiber cables have significant advantages as below:

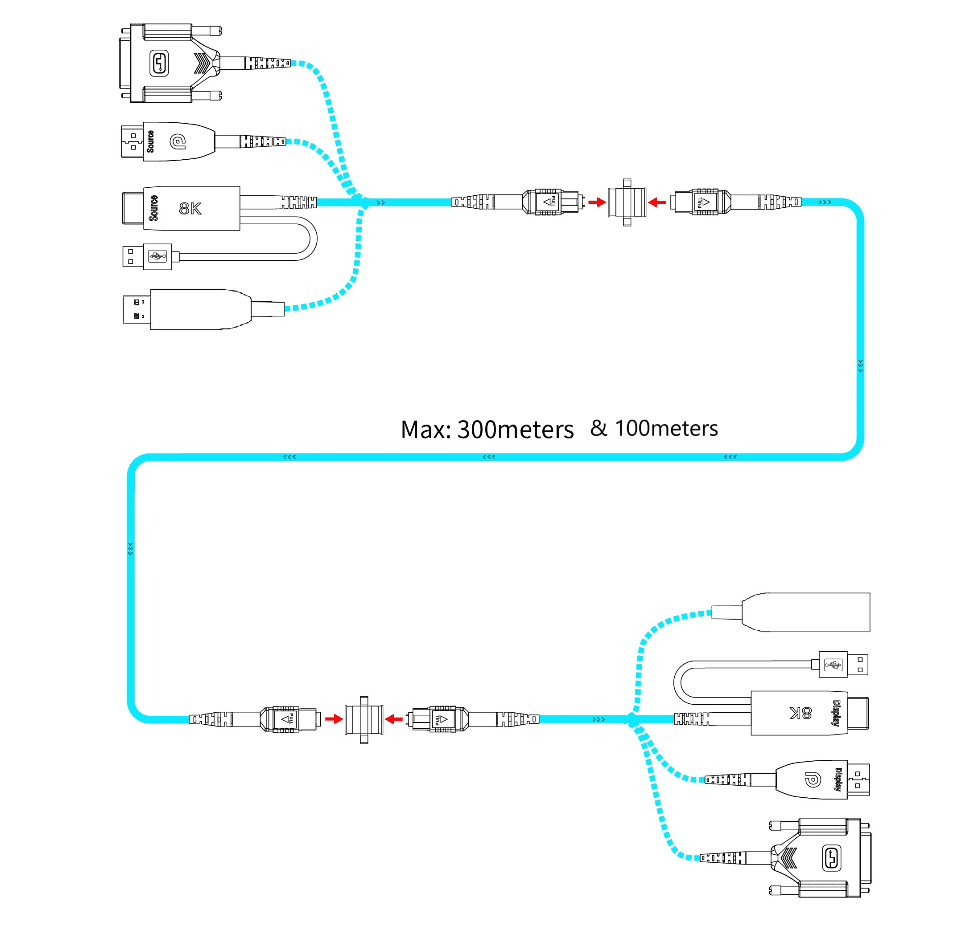

• One multi-fiber OM3 fiber cable with 4x MPO connectors for many different Pigtails MPO cable and pigtails are separate
• You can change and connect with HDMI, DP, USB, DVI. etc up to 20 different Pigtails anytime
• No fixed direction they are bi-directional Pigtails are separate and you can change the “Source” and “Display” anytime
• Easily upgrade to the next generation. If you need new HDMI  version, just change the Pigtail Extra long length up to 1000ft using OM3 fiber
• The pure fiber cable support 8K@60Hz
• Best for Home Theater Systems or Smart TV or Projectors or Gaming
• Integrated TV streaming Gaming Ultra Ethernet with full control
• Connects 4K 8K Smart-TVs and Projectors at Full Distance with Perfect Original Uncompressed Sound & Video Quality
