Analog Audio Microphone

Introduction

This is a desktop microphone with analog interface, XLR analog output interface, powered by 12~52V phantom power.

Built-in high-performance embedded CPU, faster processing speed, refined structural design, all-metal microphone pole design, exquisite surface treatment, fully reflecting the exquisite craftsmanship of modern industry.

High-fidelity, high-sensitivity microphone, super-cardioid pickup effect, high-quality pickup guarantee, the best pickup distance of 40-80CM, and 40-80CM with a charged “hot swap” function, short-circuit protection function and physical on/off switch for microphone.

Specification

Dante Square Pole Microphone

Pickup Head	14mm condenser gold-plated film microphone head
Directional Characteristics	Supercardioid
Frequency Response	20Hz-20kHz;125(-6dB)-14kHz(-3dB)
Sensitivity	-34dB±2dB
Signal-to-Noise Ratio	70dB,1KHz
Maximum Sound Pressure Level	110dB(3%T.H.D.@1kHz,0dBSPL=2x10Pa)
Equivalent Noise Level	<25dBSPL(A)
Overload Harmonic Distortion	<1%
Power Supply	48V phantom power
Maximum Power Consumption	<1.5W
Microphone Size	232x37x25mm
Chassis Size	149x94x55mm

Dante Gooseneck Microphone

Directional Characteristics	Supercardioid
Frequency Response	100Hz-16kHz
Sensitivity	-40dB
Signal-to-Noise Ratio	65dB,1KHz
Maximum Sound Pressure Level	110dB(3%T.H.D.@1kHz,0dBSPL=2x10Pa)
Equivalent Noise Level	<25dBSPL(A)
Overload Harmonic Distortion	<1%
Power Supply	48V phantom power
Maximum Power Consumption	<1.5W
Microphone Size	42cm
Chassis Size	149x94x55mm

Dante Gooseneck Microphone Interface

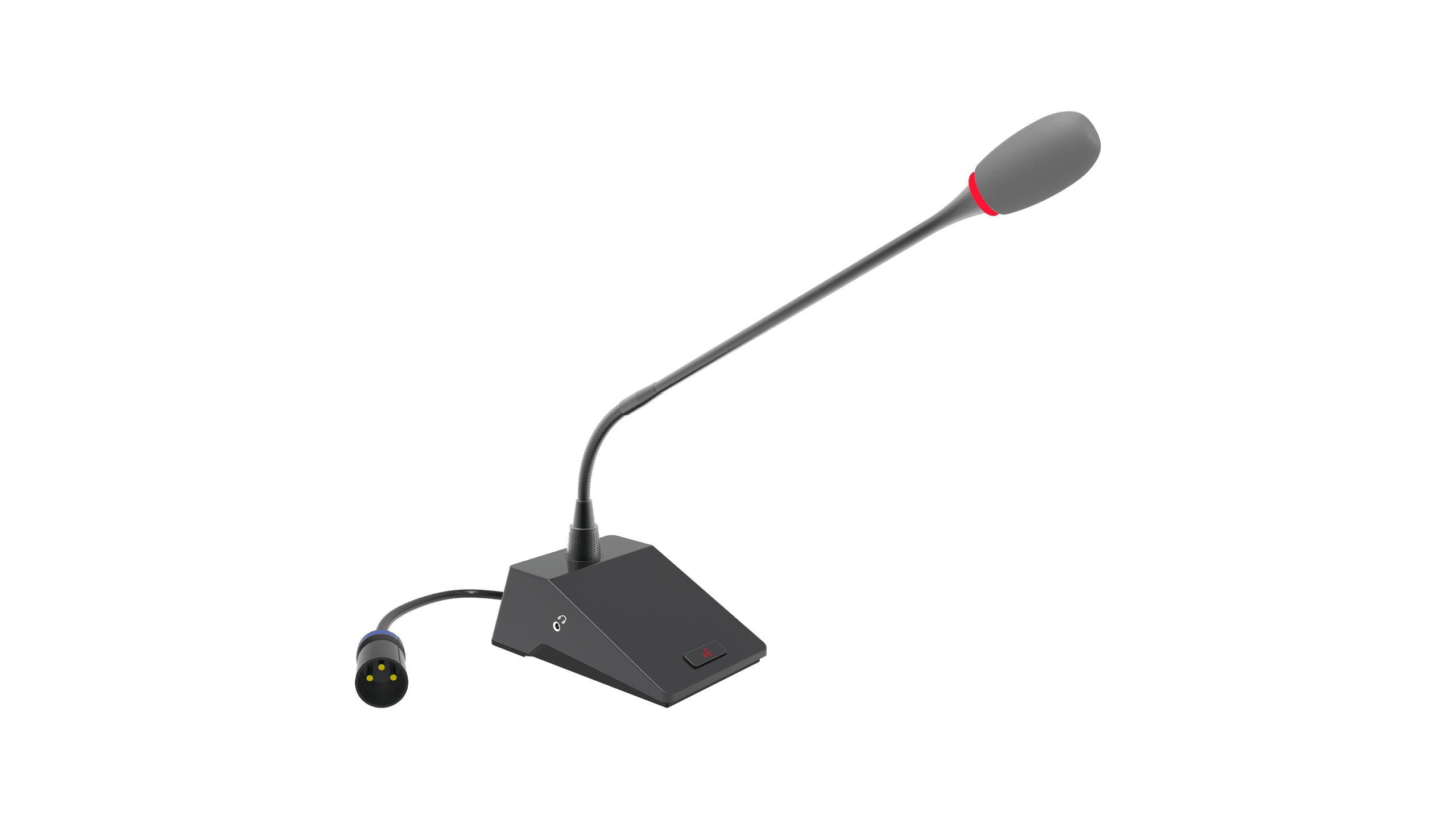

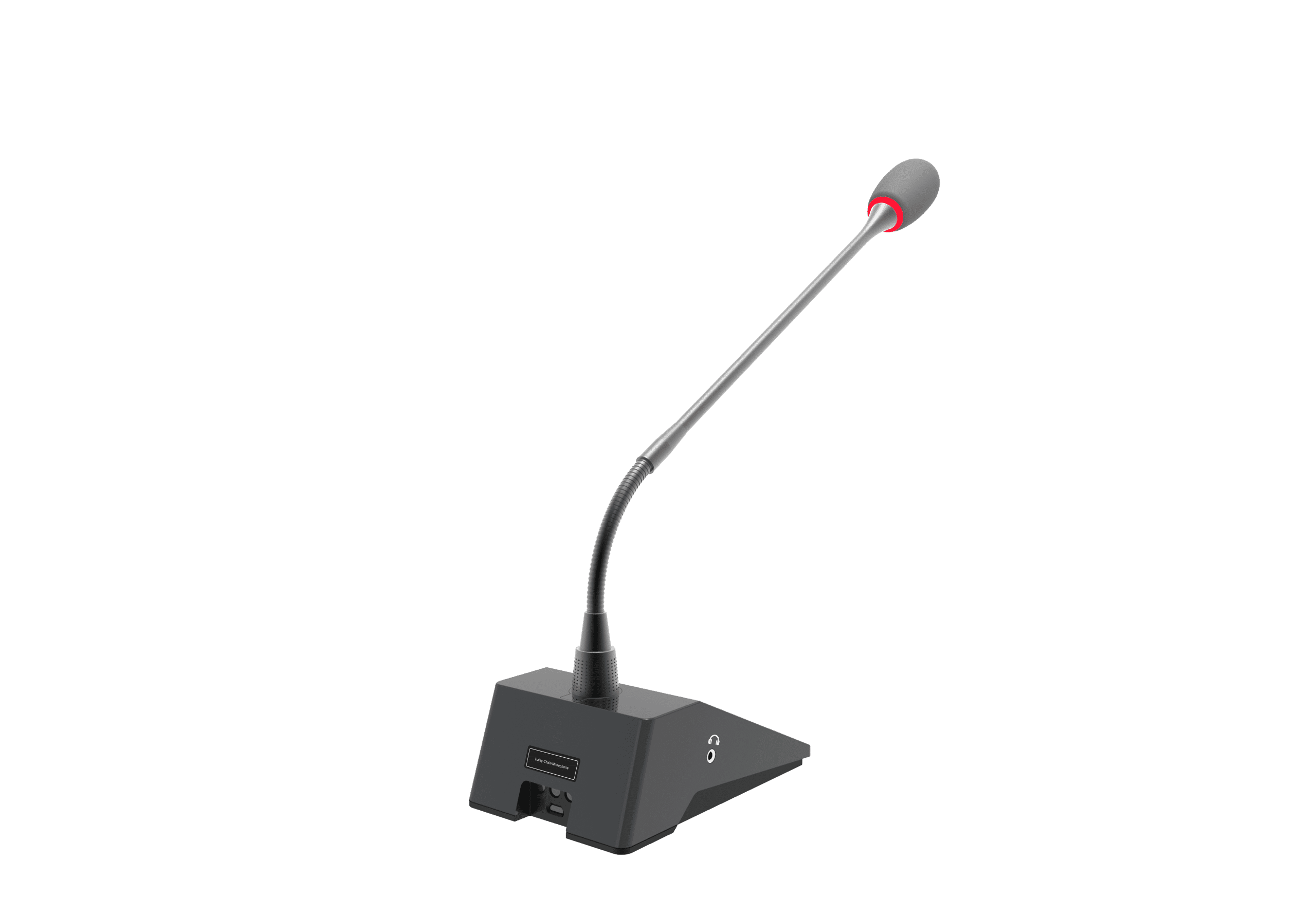

Device Interface



① Microphone head: Used for picking up sound;

② Indicator light: Long light indicates that the microphone is on; no light indicates that the microphone is off;

③ Key switch: Turn on or off the microphone;

④ XLR analog output connector, via 12~52V phantom power supply.

Connecting the device correctly

Phantom power: Turn on phantom power in the access host or access processor, via matrix mixing

Use

After connecting the power, press the switch button, the red indicator light is on, then start to pick up the sound, then press the light off to enter the mute state, realize to turn on or off the microphone.

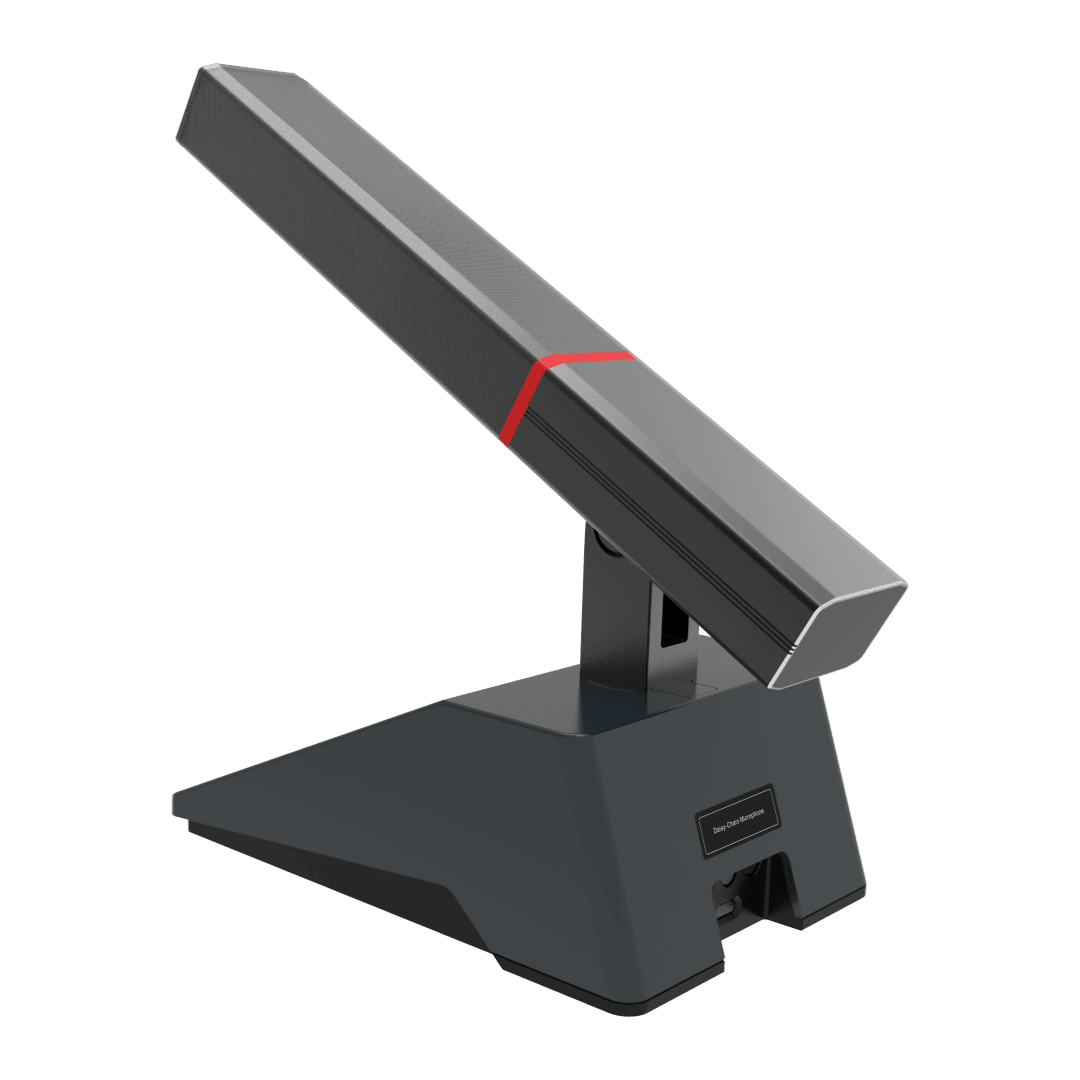

Analog Square Pole Microphone

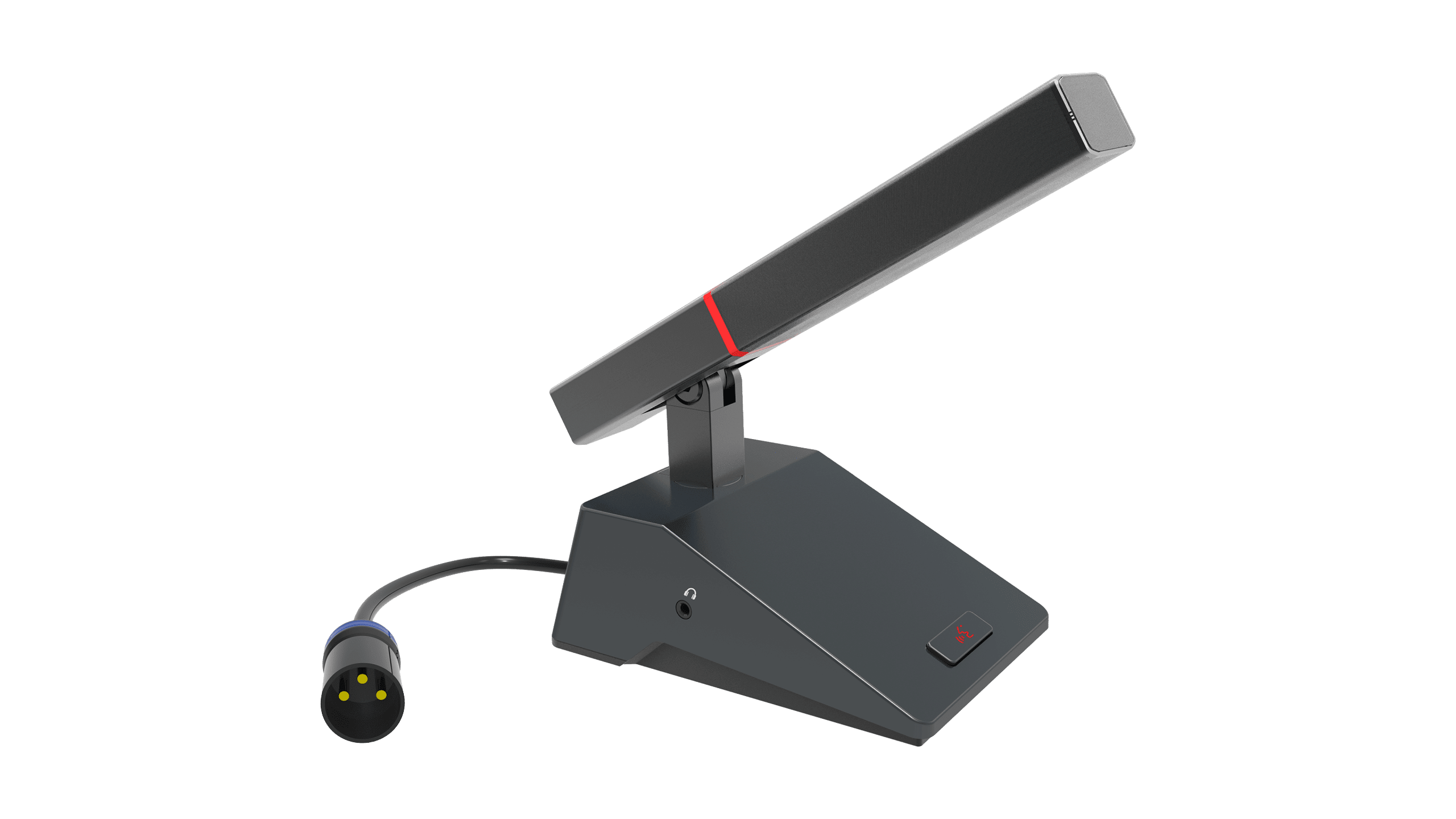

Interface

① Microphone head: Used for picking up sound;

② Key switch: Turn on or off the microphone;

③ Indicator light: Long light indicates that the microphone is on; no light indicates that the microphone is off;

④ XLR analog output connector, via 12~52V phantom power supply.

When connect the Analog microphone with DSP processor, our DPS processor support Camera Tracking.

While the microphone connect with the DSP, it need use the convert cable below
