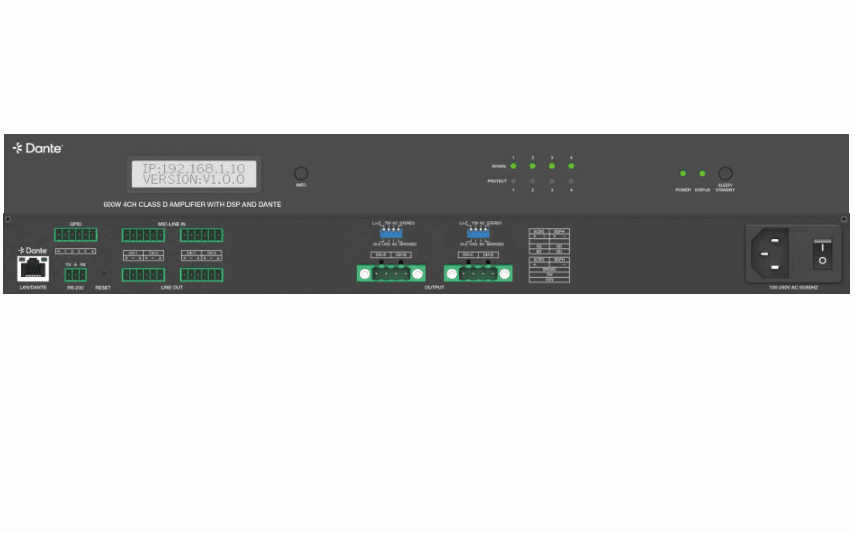

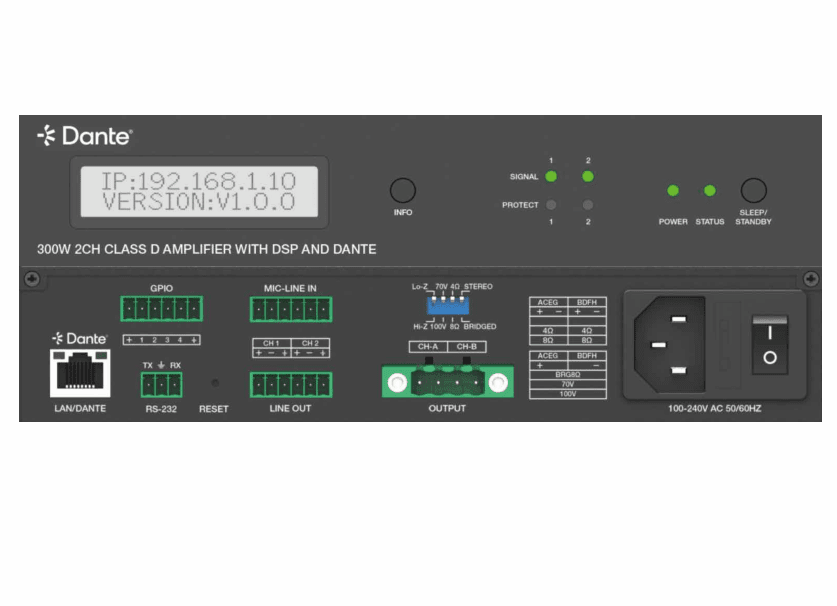

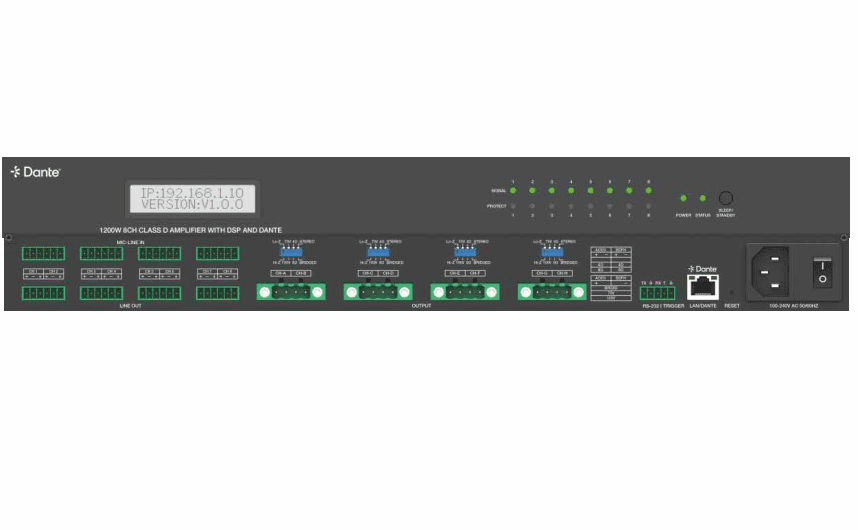

Dante 2/4/8Ch 150W Class D Amplifier with DSP and Dante,2X2,4X4,8X8
Newest Class D Dante Amplifier 2/4/8 Channel 150W with DSP and Dante,Control Via Web GUI or Dante controller,300W, 600w, 1200w Dante Amplifier
| Weight | 1880 g |
|---|---|
| Dimensions | 24 × 21 × 4.4 cm |
| Input | Dante Network audio input |
| Output | Dante Network audio output |
| Output power | DC power supply: 150W@70V/100V |
| Power | 100-240V AC , 50/60Hz |
| Control | Web GUI or Dante Controller |
Detailes About Dante 2/4/8Ch 150W Class D Amplifier with DSP and Dante,2X2,4X4,8X8
2/4/8 Channel 2x150W 300W, 4x150W 600W,8x150W 1200W Class D Amplifier with DSP DANTE
Features
Control Method: Full DSP configuration is possible via the HDA-PAxDP amplifier’s Web GUI or Dante Controller.
Dante Network Audio: Supports 2×2 channels,4X4,8X8
Equipped with 2/4/8 microphone/line analog inputs, 2×2/4X4/8X8 line analog outputs, and speaker outputs.
Input DSP processing includes: gain control / phantom power (+48V) / expander / sensitivity adjustment / 8-band parametric EQ.
Output DSP processing includes: gain control / 8-band parametric EQ / limiter / FIR filter / automatic compression / delay.
Matrix mixing function supports flexible combination of local inputs, Dante inputs/outputs, and speaker outputs to achieve arbitrary signal routing and mixing, meeting application needs in different scenarios.
Supports manual switching between 4Ω/8Ω low-impedance mode, bridged mode, and 70V/100V constant voltage mode.
Features multiple protection mechanisms: overvoltage, overcurrent, and overtemperature protection.
Supports standby/ Sleep mode and dynamic wake-up from standby
Power supply: 100–240V AC, 50/60Hz
