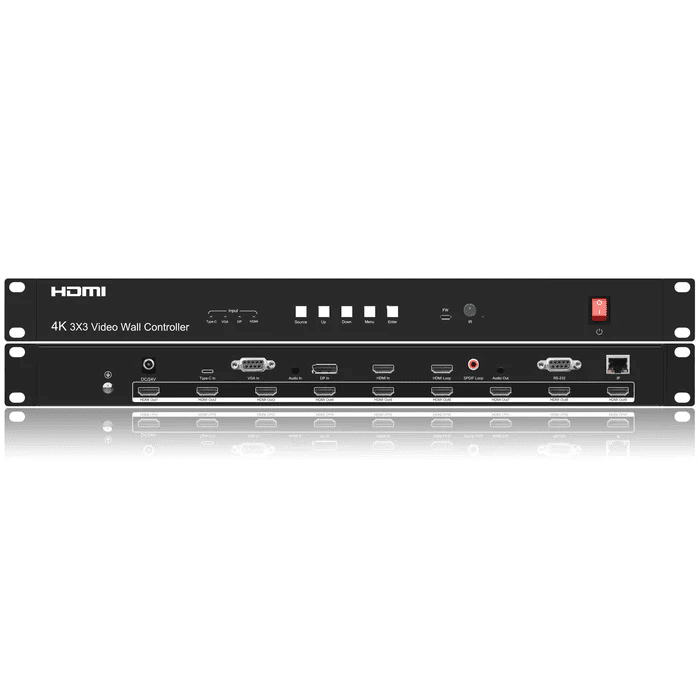

Cascade 4K30Hz 3×3 Video Wall Controller with USB-C input,10×10 VideoWall
Video Wall splicing modes: 1×1;1×3;1×4; 2×2; 2×3; 2×4; 3×1; 3×2; 3×3; 4×1; 4×2; 4×3-1; 4×3-2; 3×4-1; 3×4-2; 4×4-1; 4×4-2,
4×3; 4×4; 5×5; 6×6; etc. Max 10×10, 180° rotation
| Weight | 3500 g |
|---|---|
| Dimensions | 44 × 27.4 × 4.4 cm |
| HDMI Version | HDMI 1.4 |
| Resolution | Up to 4K2K@30Hz RGB/YCBCR 4:4:4 |
| HDCP | HDCP 2.2/1.4 |
| Video wall splicing modes | 1×1; 2×2; 4×1; 1×4; 3×2-1; 3×2-2; 4×2-1; 4×2-2; 4×3-1; 4×3-2; 4×3-3, |
| Video Format supported | Ultra HD TV/FHDTV: 4k@30hz/1080p |
| Audio Format supported | LPCM 16bit,24bit,44.1KHz/48KHz |
| Input Ports | 1xUSB TYPE-C, 1x DP, 1xVGA, 1xHDMI |
| Rotation | 180°,convenient for ceiling installation |
Detailes About Cascade 4K30Hz 3×3 Video Wall Controller with USB-C input,10×10 VideoWall
Overview
It is 4K videowall controller which create a 3×3 videwall from one of four sources: Type-C, VGA, DP & HDMI. Cascading up to max 10×10 videowall. It support resolution up to 4K@30HZ and Audio extraction.
Features:
- 1x Type-c/VGA/DP/HDMI input to split 9x HDMI Outputs
- Support resolution up to 4K30HZ 4:4:4 with 2 default EDID options: 4K &1080p
- Support 4K 3×3 video wall, cascading to create 3×4,4×5, 5X6,and max 10×10 video wall
- Support HDCP2.2/1.4 compliant
- Support panel button; IR remote; RS232 command and Web GUI to control
- Support SPDIF and Analog audio extraction
- Support third-party platform control via RS232 port or Lan
- 1U Design for 19″ rack mount integration – mounting kit included
Specifications
Operating Temperature Range: 0 to +40°C (32 to +104°F)
Operating Humidity Range:5 to 90 % RH (no condensation)
Input Video Signal:0.5-1.0 volts p-p
Input DDC Signal:5 volts p-p (TTL)
Video Format Supported: Ultra HD TV/FHDTV:4K@30hz/1080P
Audio Format Supported: LPCM 16bit ,24bit,44.1KHz/48KHz
Input ports:1xHDMI, 1xUSB TYPE-C, 1xDP,1xVGA

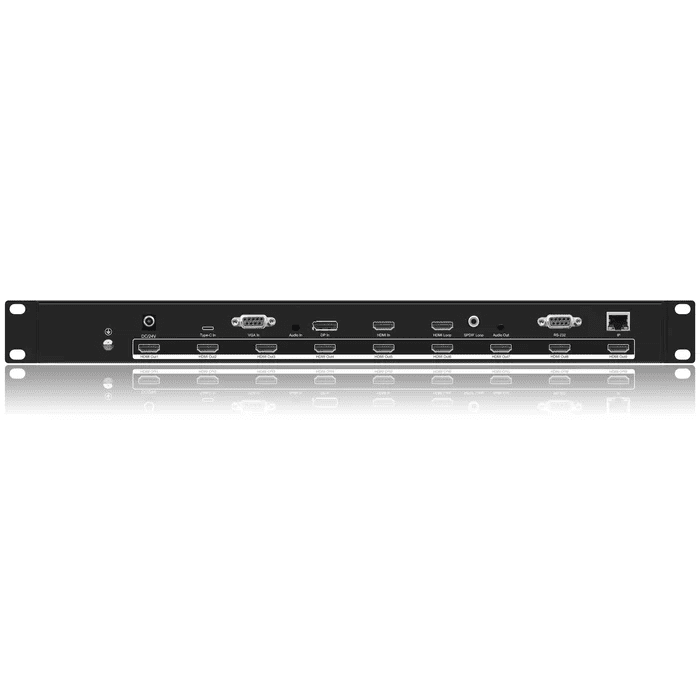

Output ports: 9xHDMI.1xHDMI Loop out
Splitter mode: 1×9 HDMI Splitter
Video wall modes: 1×1;1×3;1×4; 2×2; 2×3; 2×4; 3×1; 3×2; 3×3; 4×1; 4×2;
4×3-1; 4×3-2; 3×4-1; 3×4-2; 4×4-1; 4×4-2
Cascade video wall modes: 4×3; 4×4; 5×5; 6×6; and so on, max 10×10 video wall
Control Way: Panel contro; Web GUI; Remote control; RS232 control
Power consumption: 33watts(Maximun)
Dimension (mm): L438XW274XH44 mm
Weight: 3500g
PACKING CONTENTS
1) Main Unit: HDMI 3X3 4K Video Wall Controller
2) 1x Power supply 24V2A
3) 6x Screws, 2x detachable mounting ears
4) 1x CD(Including User manual, RS232 command list)
5) 1x Remote controller
6) 1x USB cable (for firmware update)
Front
