Introduction

This 4K@60 H.264/H.265 transceiver is an All-In-One AV over IP solution that supports 4:4:4 encoding and decoding for true color restoration. It supports fiber and copper, and supportsautomatic switching between two options, the copper has a higher priority. This product provides highest-quality and ultra-low latency audio/video extension over a standard 1G Network Switch, and the transmission distance is up to 328ft/100m. It supports seamless switching, video wall, multiview and KVM seat management functions. Flexible transceiver design (one box can be set to encoder or decoder) is much convenient in a real installation site and inventory control.

In encoder mode, it supports one HDMI™ 2.0 input and one HDMI™ loop out, with analog audio embedding/de-embedding function. In decoder mode, it supports one HDMI™ 2.0 decoding output, with analog audio de-embedding function. The encoder supports H.264 video preview stream.

The system is based on Linux for software development, providing flexible control methods. The best digital audio and video processing management solution is created using tech- nologies such as audio and video processing, networking, visualization and centralized control, and full network distribution. It is committed to quickly establish a high-performance, reliable and easy-to-use visualization application platform for users. Based on distributed interconnection, a comprehensive visualization solution is built that integrates audio and video comprehensive management, matrix switching, splicing and fusion, window roaming, KVM collaborative management, PoE power supply application.

Features

☆ HDCP 2.2 compliant
☆ Support video resolution up to 4K60Hz (4:4:4), 18Gbps video bandwidth, as specified in HDMI™ 2.0b
☆ Audio formats support LPCM 2.0CH 48kHz
☆ 4:4:4 encoding and decoding for true color restoration
☆ Integrated design of encoder and decoder, supporting fiber and copper
☆ Support window roaming function: a unit as decoder can process up to 36 signals, enabling arbitrary windowing, roaming, overlaying, and splicing

☆ KVM seat management (one-to-one & one-to-many), supporting one person manages multiple PCs
☆ Universal H.264/265 protocol, supporting IPC access and seamless integration with security camera products
☆ Support high definition background image (both video and picture are available), as well as multi-screen splicing display
☆ Support scrolling subtitles and character overlay
☆ Support point-to-point signal extension
☆ Support signal distribution, multicast mode, matrix and video wall functions over a 1G Network Switch
☆ Support user rights management
☆ Flexible control via KVM, APP and Control Server (CTL500H or SVR9300AX2/AX3/AX5)
☆ Standard PoE supported (802.3at Class 3, PD mode)
☆ Encoder supports HDMI™ local loop out
☆ Encoder supports audio embedding and de-embedding function

Packing list

① 1x H.264/H.265 4K60 4:4:4 AV over IP Transceiver
② 2x 6pin-3.81mm Phoenix Connector (male)
③ 1x 3pin-3.81mm Phoenix Connector (male)
④ 1x 12V/2.5A Locking Power Supply
⑤ 2x Mounting Ear
⑥ 4x Machine Screw (M3*4)
⑦ 1x User Manual

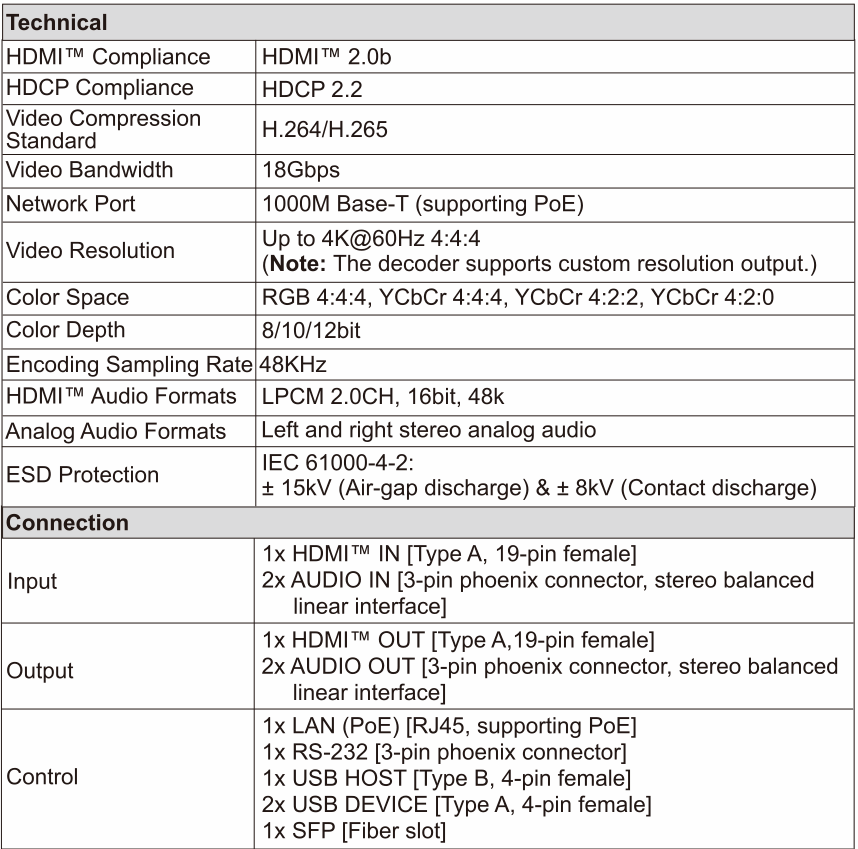

Specification

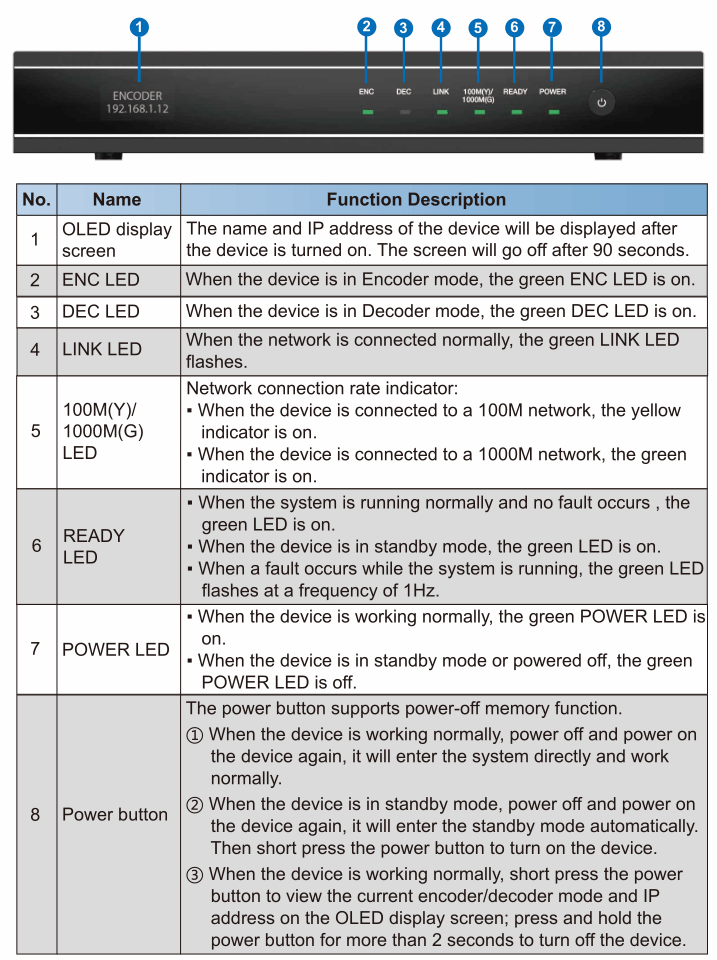

Front Interface

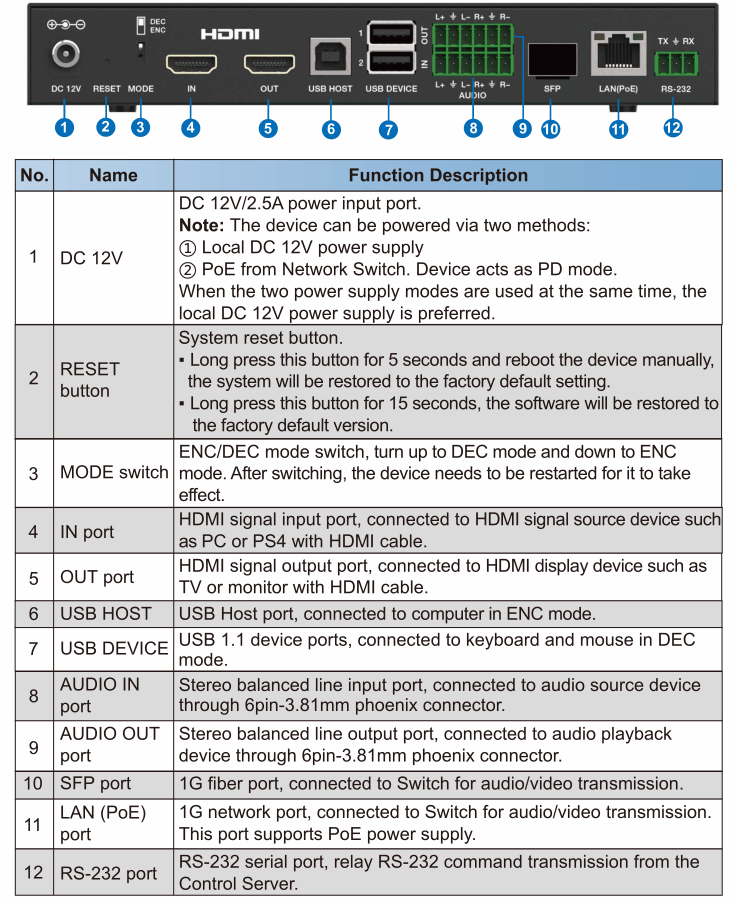

Rear interface



SVLC Pull Streaming Operation Guide

This transceiver supports playing MainStream/Substream on computer through the software such as VLC media player, the operation steps are as following.
Step 1: Connect the transceiver (in encoder mode) with a PC, HDMI source device and power supply. The connection diagram is shown as below.



Step 2: View the IP address of the transceiver (in encoder mode) on the OLED screen on the front panel.
Step 3: Set the PC’s IP address to be in the same network segment as the IP address of the transceiver (in Encoder mode).
Step 4: Open the VLC media player on PC. Please see the following icon (VLC Media Player)

Step 5: Click “Media > Open Network Stream”

Step 6: Enter a MainStream or SubStream network URL, then click “Play” button.

On the VLC media player, you can check the settings of Secondary Main Stream or Sub Stream. Select “Tools>Codec information”, or tap the shortcut key “Ctrl+J”, to view the Stream information (such as the current codec and resolution), as shown in the figure below.

Connection:



Seamless integration of H.264/265 encoding and decoding for security camera

KVM Collaborative Management

Multi-level User Rights Management

Diagram

Controller Box for AV OVER IP System, central control

Connection Diagram

Controller Features

ARM Cortex-A55 2GHz CPU, Linux OS
Built-in Web GUI for easily system setup and management
Intuitive ‘drag & drop’ source selection with video preview
Supports APP and CLOUD Access Management Control
Advanced signal management for AV, RS-232 and USB routing
2x 1G RJ45 LAN to bridge existing network to video over IP network
External devices control via IO with 5V, 12V level configurable
Easy to integrate with the 3rd party major control system brands
Control API via RS-232 and TCP/IP
Security managements
PoE (802.3at PD device) or local 12V power supply

For this AVOIP System, Support iPad control, Support control over LAN , Support KVM control at operator desk and entire Video wall,Audio of any selected input source can be hear from management console decoder speaker.

Support LED Video Wall management software:  support preconfigure various display layouts and access them at any time with a simple click or schedule/timer based.

Support display multiple sources anywhere on video wall in any size.All input sources should be in freely scalable/mobable/PIP/PBP/full screen.

Support multiple clients/consoles to control the wall layouts

support share layouts b/w available different combination of cabinets on same network as well as preview of sources on the workstation.

Support user to display multiple sources(both local and remote )up to any size and anywhere on the display walls (both local & remote)

Support creat and save layouts and launch them as and when desired.

The display wall and sources (both local&remote) support controlled from remote PC through LAN with or without the use of KVM/encoder-decoder hardware.

Support display of Alarms.

Support save and load desktop layouts from local or remote machines.

Support all the layouts can be scheduled as per user convince.support audio launch of layouts according to specified time event by user.

Support creat layouts comprising of display content of workstations,HDMI inputs,Web sources,URLs configured as sources. Layouts can be pre-configured or changed in real time can be pre-configured or changed in real time.

Support the capabilities of interacting (monitoring & control) with various applications on different network through the single operator workstation. It can be launch layouts,change layouts in real time using touch device.
