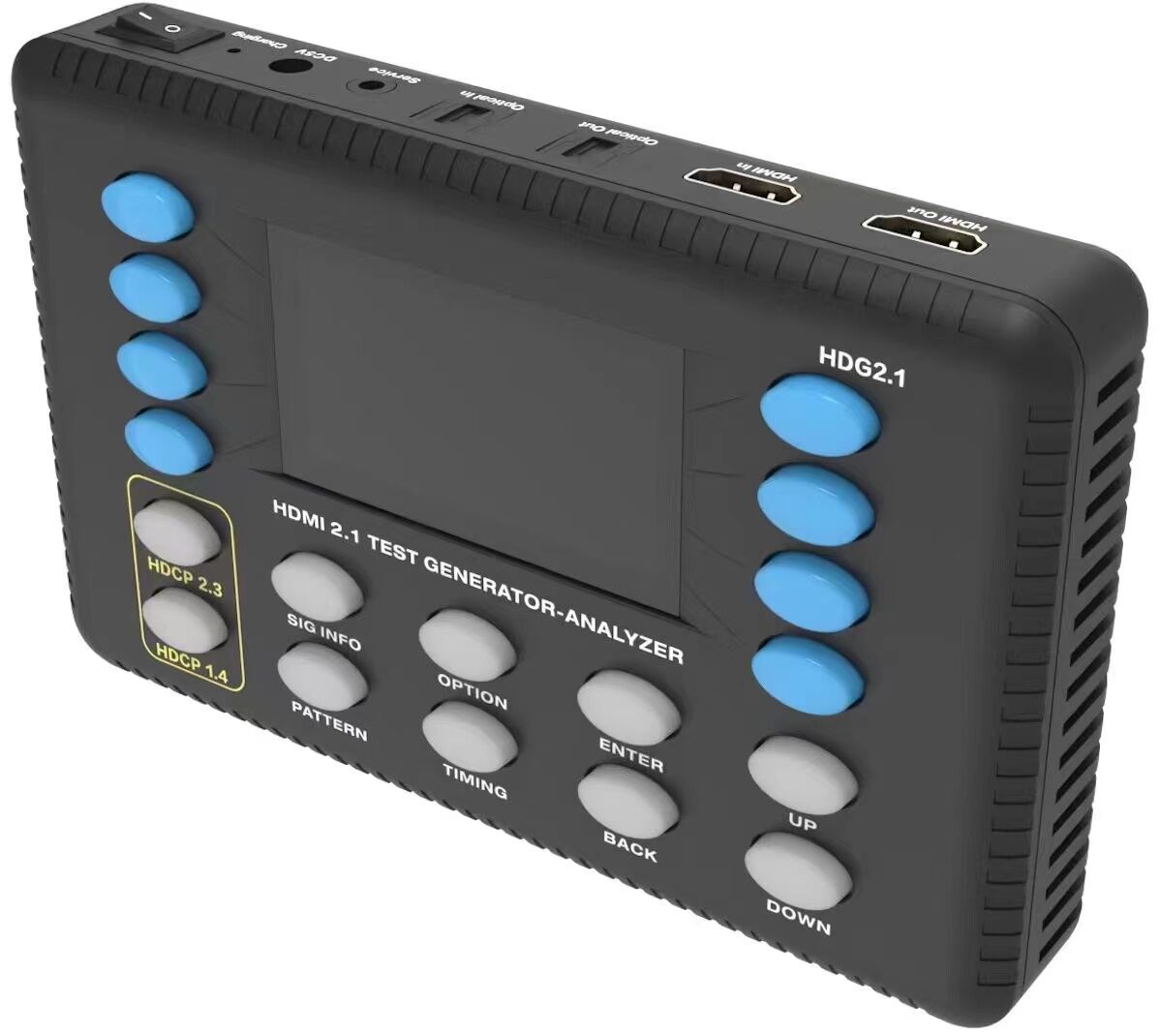

1080P FHD/4K UHD/8K HDMI 2.1 48GBPS Signal Test Generator and Analyzer
HDMI 2.1 Test Generator-Analyzer HDCP2.3
| Weight | 800 g |
|---|---|
| Dimensions | 15 × 10 × 3 cm |
| HDMI Version | 8K60,4K120 48Gbps,4K60hz 18Gbps |
| HDCP | 2.3 |
| Video resolution | 8K60 10bit 4:2:0, 8K30 4:4:4, & 4K2K 120Hz |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 1080P FHD/4K UHD/8K HDMI 2.1 48GBPS Signal Test Generator and Analyzer
Introduction
The HDMI 2.1 Test Generator-Analyzer is designed for the AV integration market to confirm HDMI 2.1 and HDCP 2.3 system at 48Gbps Level. It can generate and analyze HDMI signal for any HDMI systems to make it easy for system integration, project installation and debugging, cable manufactories, even for engineering and test laboratory.
Features
☆ Support resolution up to 8K@50/60Hz 4:2:0 10-bit and 40Gbps video bandwidth, as specified in HDMI 2.1
☆ Up to 64 video resolutions and 33 patterns
☆ Color space: RGB/YCbCr444/YCbCr422/YCbCr420
☆ Color depth: 8/10/12-bit ☆ Built-in HDR test function in HDMI 2.1
☆ HDMI audio source can be from the internal audio or external S/PDIF input audio
☆ The internal audio signal supports LPCM 2CH format, 48kHz sample rate and 16bits width
☆ Support HDCP 2.3/1.4 encryption verification pass or fail indication
☆ With EDID Read/Write functionality
☆ Support analyzing Timing/Format/Info frame/HDCP of HDMI input signal
☆ Support CEC control

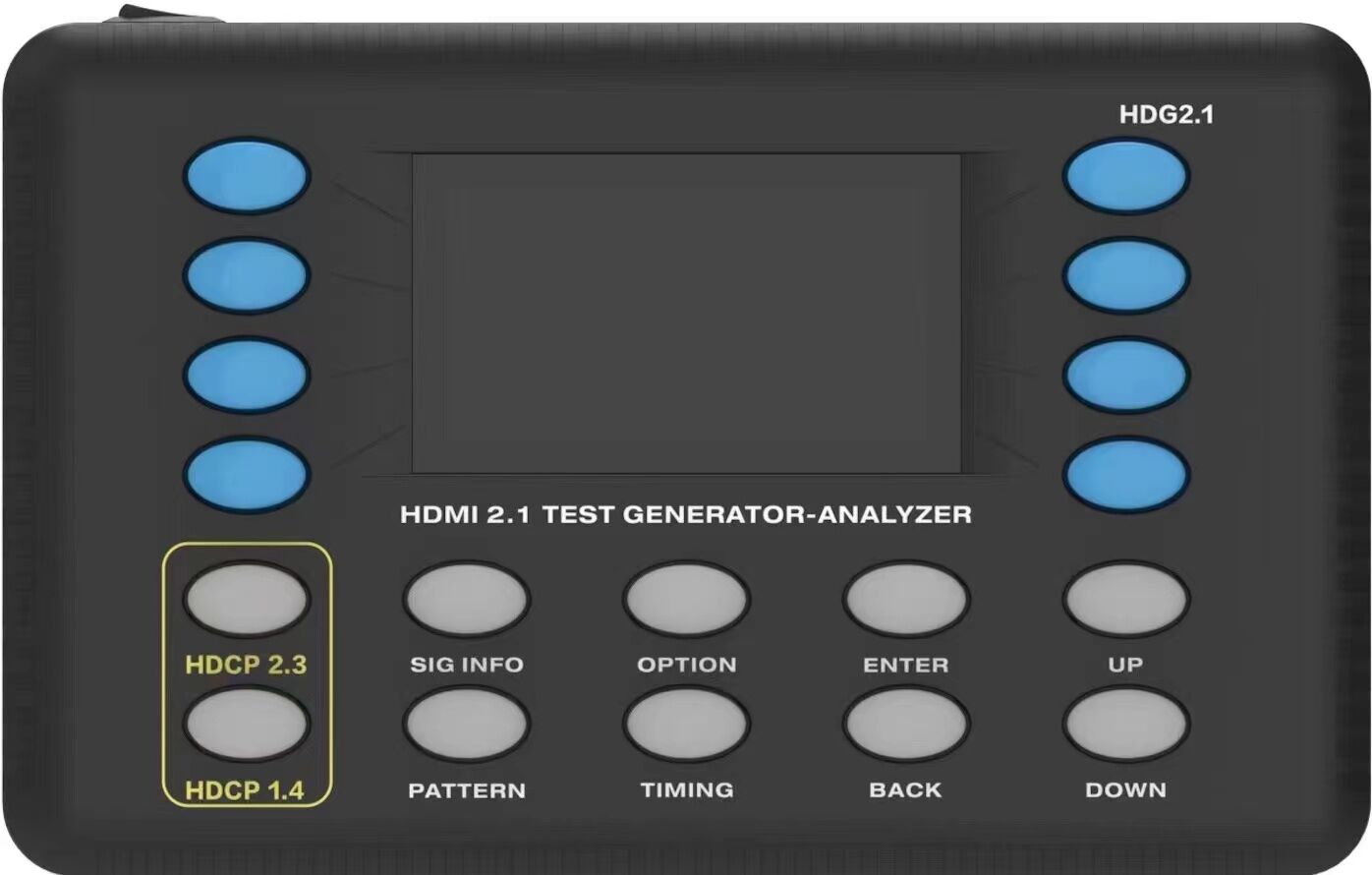

☆ Control via front panel buttons
☆ Portable design, built-in lithium battery of 2910mAh
Package Contents
1 x HDMI 2.1 Test Generator and Analyzer
1 x 3.5mm to DB9 (Female) serial cable adapter (1 meter length)
1 x 5V/2A Power Adaptor
1 x User Manual
Below is the HDMI2.0 photo and testing for your reference.
