4K Magical Splicing processor,Any Angle for Four Screens

VideoWallProcessor for Any angles ,support third party Control and Central control

Additional information

Weight 1800 g
Dimensions 25 × 12 × 4 cm
Interface

1xHDMI Input 4K60HZ 2.0 , 4XHDMI Output Version 1.3
Audio in & Out,4XUSB,LAN port for Central control

Application

commercial display (splicing, LED), Advertising media, bar,catering, entertainment, culture and tourism, exhibition and display industries

Control

RS232/RS485/TTL

Window layout

Any window opening*30,overlay,roaming

Package list

1 Processor, 1 power adapter, 1 Lan cable

Detailes About 4K Magical Splicing processor,Any Angle for Four Screens

4K60 PIP Creative Screen Irregular Splicing LCD LED Video Wall Controller



Creative Irregular Splicing Video Processor 4K playback control, splicing (point-to-point, shaped), opening Window (multi-window scene any layout switching), 10 layers superimposed, roaming, slicing, edge effects and other functions in one Magic control splicer

4k magical splicing processor,any angle for four screens

Features

☞4 screens in any angle, any shape splicing

☞Support normal splicing,For example, 1×4, 4×1, 2×2 and so on

☞Support 4k60 (3840×2160@60Hz) video decoding,Built-in 64G memory, storage material

☞Support multi-layer material overlay, material picture-in-picture(PIP), up to 10 layers of material overlay.

☞Support RS232/RS485/TTL multiple control protocols and interfaces

☞Support network screen display monitor function,scrolling subtitle function

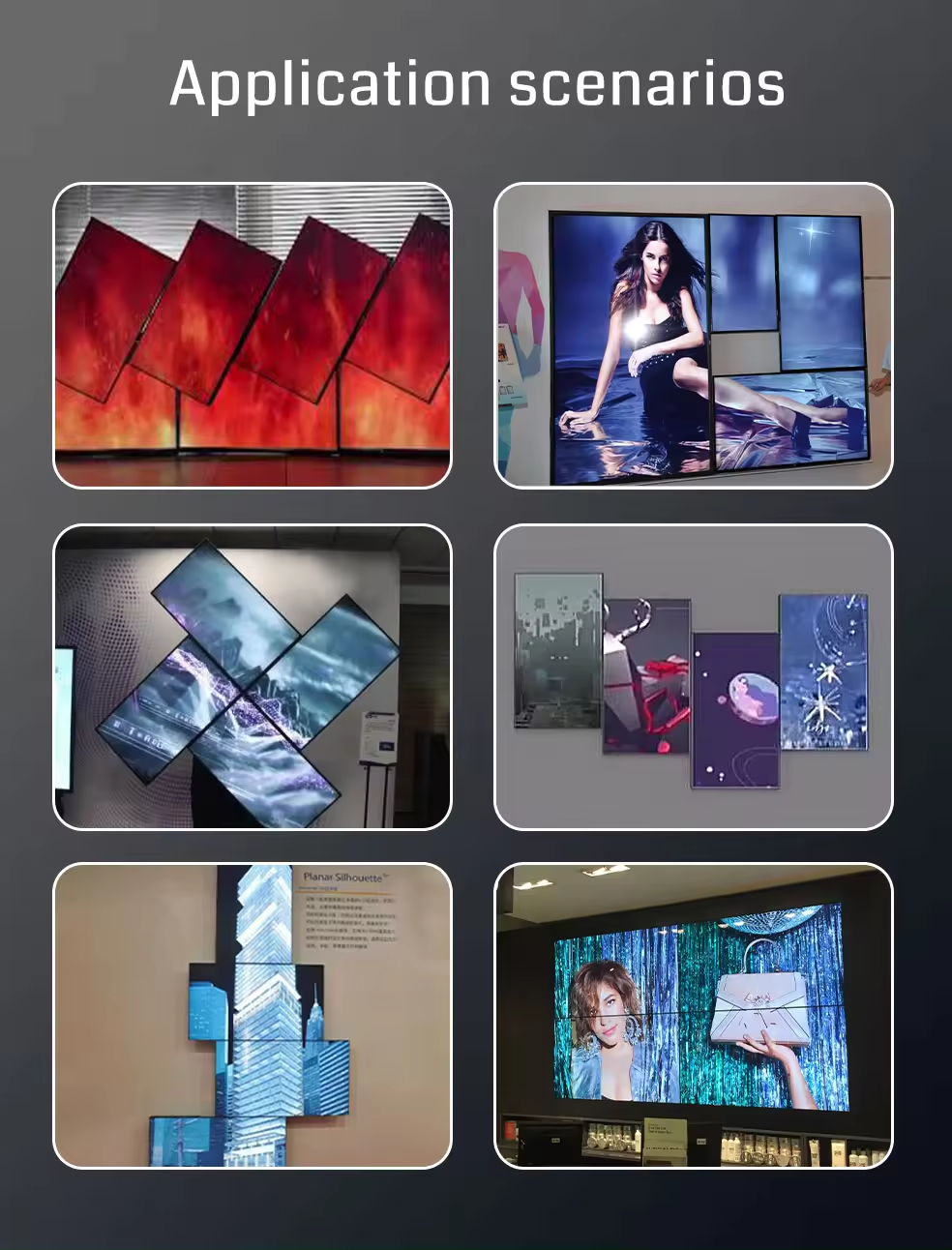

☞Support edge effects function (edge indentation, blur degree, matte degree, zoom, mirror) Application Scenarios Suitable for a variety of audio and video applications, such as commercial display (splicing, LED), Advertising media, bar,catering, entertainment, culture and tourism, exhibition and display industries

4k magical splicing processor,any angle for four screens

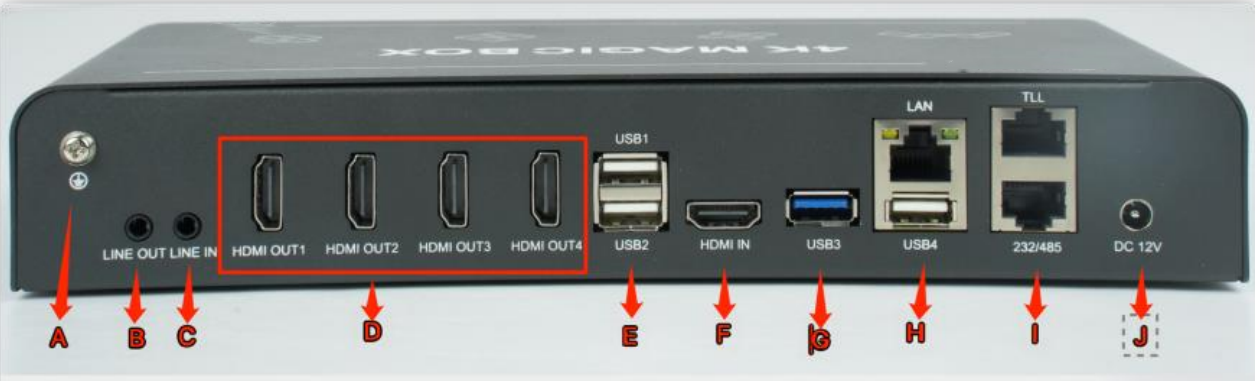

Interface

4k magical splicing processor,any angle for four screens





A: Ground screws

B: 3.5mm audio input

C: 3.5mm audio output

D: 4xHDMI OUT

E: 2xUSB2.0

F: 1xHDMI2.0 Collect input

G: USB3.0

H: LAN network port, used for PC connection control; 1 xusb2. 0

I: TTL/RS232/RS485 serial port

J: 12V2A power supply interface

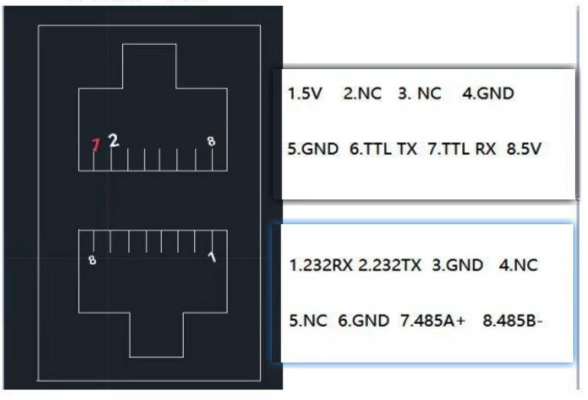

RS232/RS485/TTL wiring sequence:

4k magical splicing processor,any angle for four screens





Specification

Product Name
4K Creative Special-shaped Splicing Processor
Input Line length
4K60:5m

1080P:10m
Output Line length
1080P:10m
Audio
3.5mm audio separation interface
Control method
PC computer
Window layout
Any window opening*10,overlay,roaming
Material management
Video and picture playback control
Operating temperature
≤60℃
Power supply
DC12V2A
Power consumption
≤14W
Product Size
440mm*160mm*45mm
Product Weight
1.8KG
Packing list
Equipment *1power supply *1
network cable *1
certificate *1
warranty card *1
Certification
CE,FCC,ROHS
Support
ODM,OEM



4k magical splicing processor,any angle for four screens 4k magical splicing processor,any angle for four screens

4k magical splicing processor,any angle for four screens
