8K Magical Splicing processor,Any Angle for 15 Screens
4K60 15Screens PIP Artistic Video Wall Irregular Splicing Video Wall Controller
| Weight | 2000 g |
|---|---|
| Dimensions | 54 × 29 × 11 cm |
| Interface | 1xHDMI Input 4K60HZ 2.0 , 1x DP 1.2, USB-C |
| Application | commercial display (splicing, LED), Advertising media, bar,catering, entertainment, culture and tourism, exhibition and display industries |
| Control | RS232/RS485/TTL |
| Window layout | Any window opening*30,overlay,roaming |
| Package list | 1 x : Programmable Control Panel ,1 x Power Adapter (12V DC) |
| Video Decoding | Support 8k60 (7680x4320P60Hz) video decoding (corresponding to 16x1080P60 video decoding) |
Detailes About 8K Magical Splicing processor,Any Angle for 15 Screens
7680×4320@60Hz PIP Point to Point Art Video Wall LCD LED Video Processor

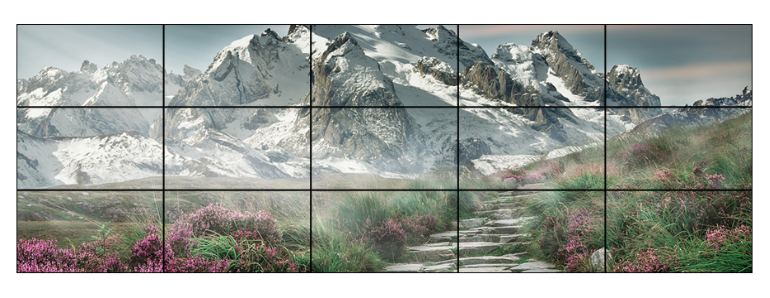

15 Screen box is a magic control splicer that combines 8K/4K/2K playback control, splicing (point-to-point, shaped), windowing (multi-window scene switching in any layout), layer overlay, roaming, slicing, edge effects and other functions, and it is suitable for a variety of audio-video applications, such as commercial displays (splicing, LEDs), advertising and media, bars, restaurants, entertainment, Culture and tourism, exhibition display and other industries.
Features

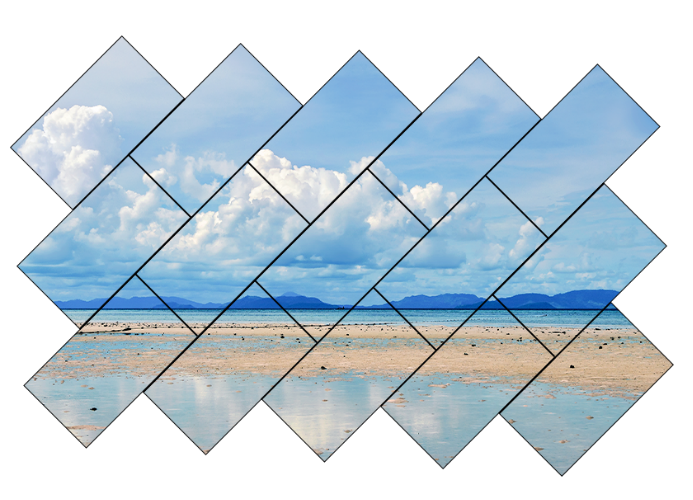

15 Any angle and shape splicing within the screen
1 road HDMI2.0 or DP1.2a capture input, 15 road HDMI1.3 output
Support 8k60 (7680x4320P60Hz) video decoding (corresponding to 16x1080P60 video decoding)
Built-in 64G memory to store material
Fast second cut video files
Clip slicing function, clip screen arbitrary editing selection
Support multi-layer material overlay, material picture-in-picture
Support output blind insertion
Supports RS232/RS485/TTL multiple control protocols and interfaces (serial port command custom/learning function)
Supports external USB flash drive copy + playback function (up to 1 USB flash drive)
Support network cast screen back monitoring function
Built-in 8 players, support playback 6 different videos and 2 groups of different pictures at the same time
Supports scrolling subtitle function
Support edge effects function (edge indentation, blur degree, matte degree, zoom, mirror)
Interface

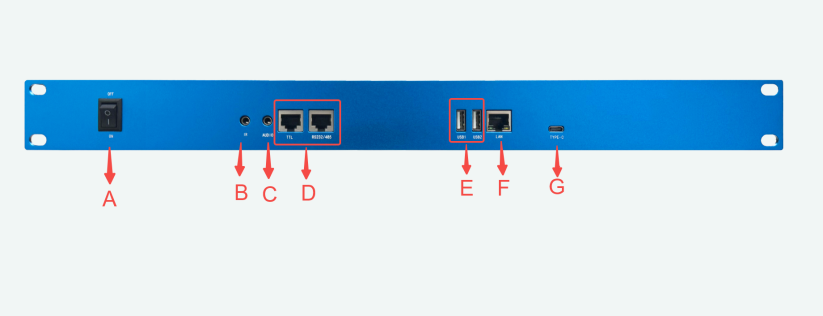

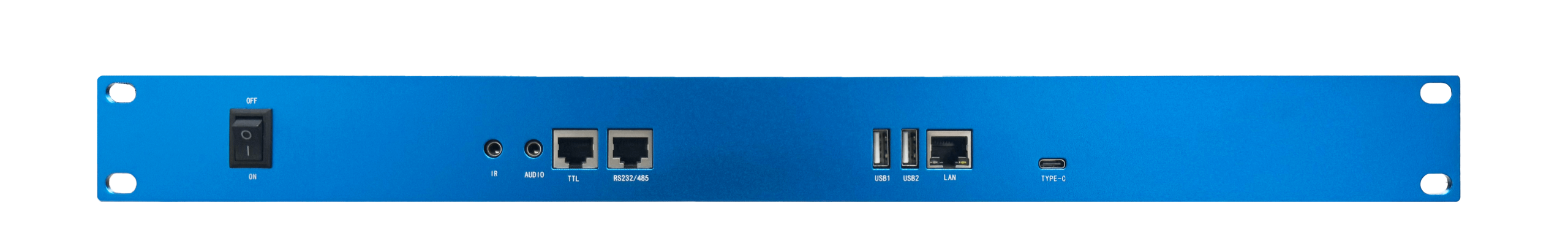

A: Power switch
B: IR input
C: 3.5mm audio output
D: TTL/RS232/RS485 serial port (serial protocol control port)
E: 2xUSB2.0 (U disk recognition only supports simultaneous recognition of a single)
F: LAN network port (host computer connection control)
G: TYPE C port (ADB debugging port)

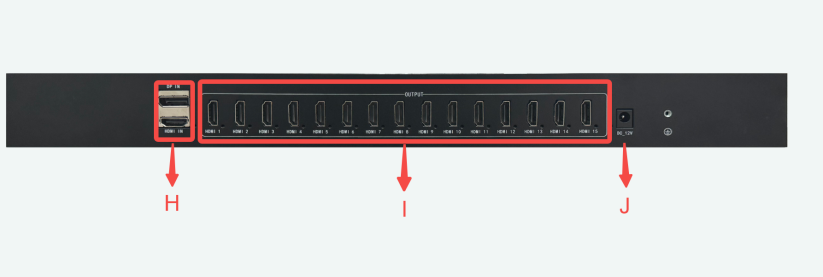

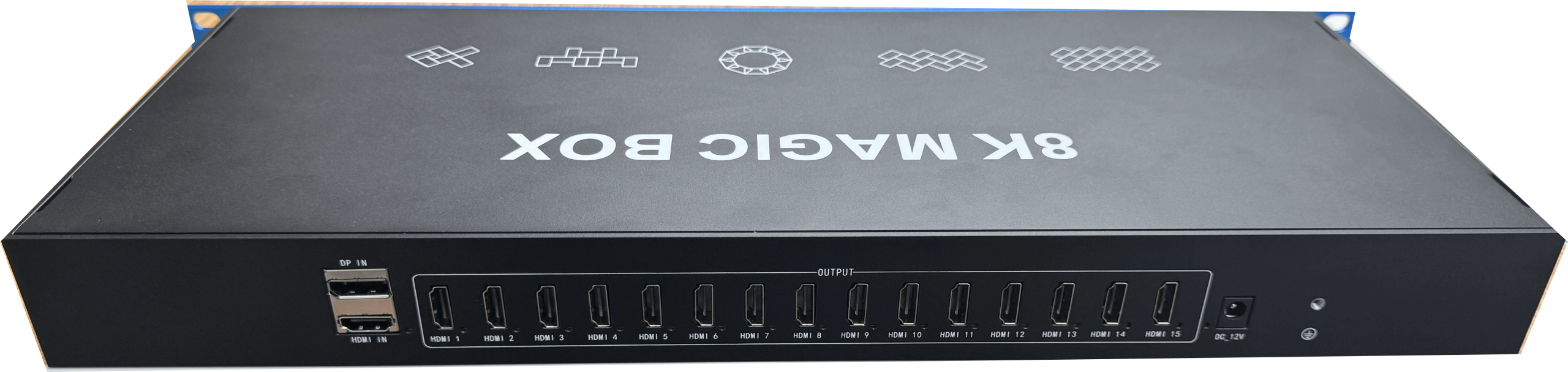

H: HDMI 2.0 / DP 1.2a capture input
I: 15 * HDMI OUT output
J: Power input (DC 12V 5A)
RS232/RS485/TTL wiring sequence:

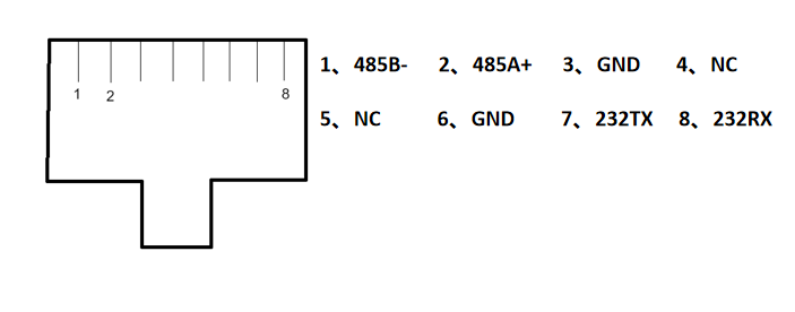

RS232/RS485 Wire Sequence：

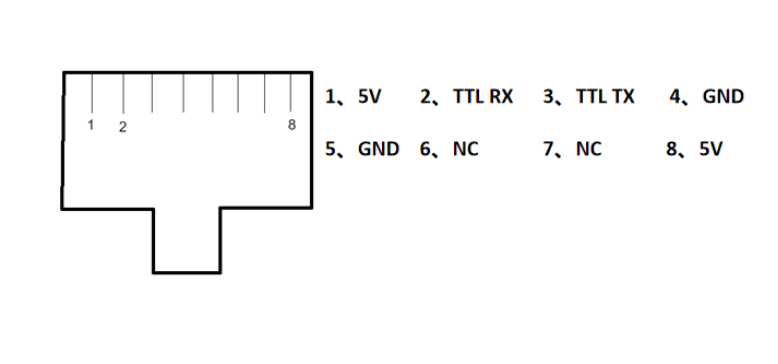

Hardware ATTL Line Sequence：
Specification
| Input | Connector | 1xHDMI2.0 / 1xDP 1.2a |
| Cable length | 4K60：5m；1080P60：10m | |
| Output | Interface | 15xHDMI1.3 |
| Cable Length | 1080P60：15m | |
| Audio | 3.5mm audio splitter connector | |
| Others | Control Mode | PC Upper / Serial Protocol |
| Control Protocol | RS232/RS485/TTL | |
| Alien Adjustment | Support | |
| Window Layout | Arbitrary windowing, overlay, roaming | |
| Material Management | Video, picture broadcast control | |
| Memory | 64G | |
| Power supply | DC 12V 5A | |
| Power Consumption | ≤28W | |
| Operating Temperature | ≤60℃ | |
| Specifications | Product Dimensions (not counting panel length) | LxWxH: 440mm x 180mm x 45mm |
| Package Size | LxWxH: 540mm x 290mm x 110mm | |
| Case Material | Aluminium | |
| Weight | 2KG | |
| Accessory List | 12V5A power supply*1, network cable*1, certificate of conformity*1, warranty card*1 | |
| After-sales service | Warranty 3 years |
