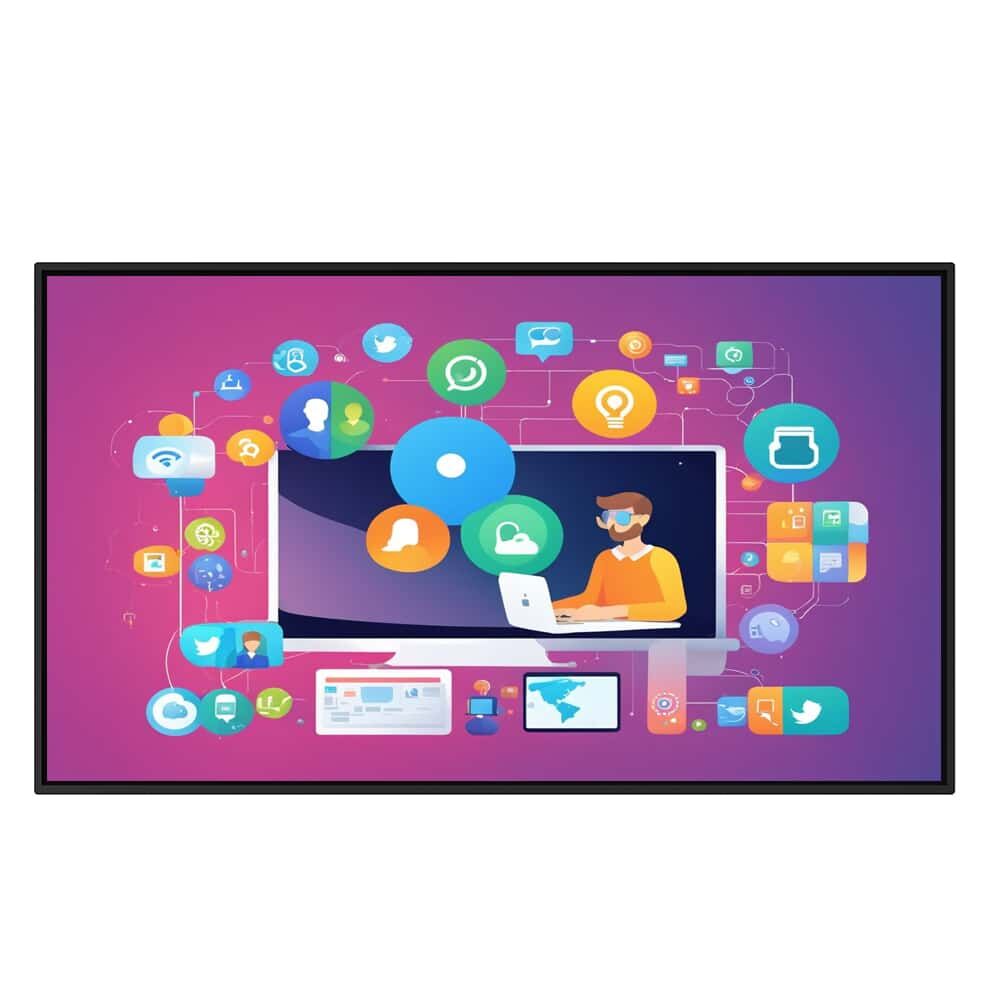

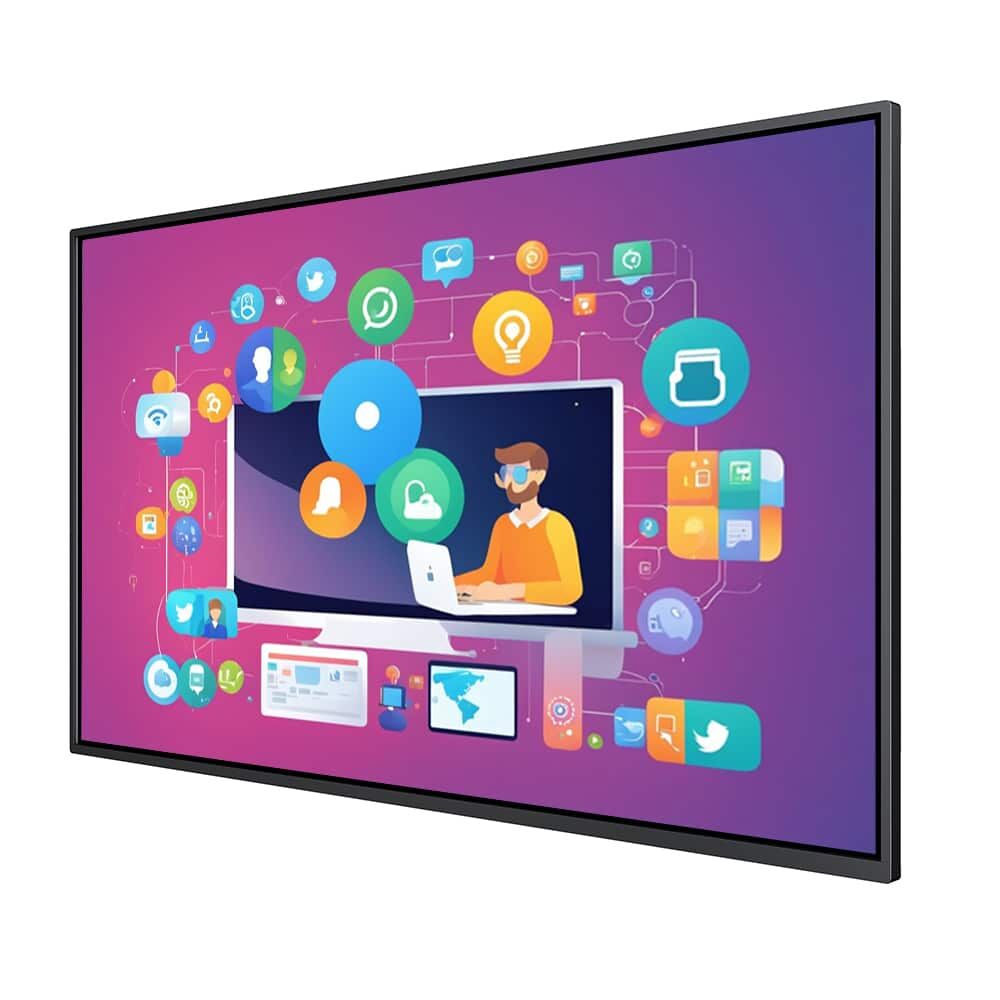

75 inch Wall Mounted 4K Smart TV with or without touch screen
65 inch 75 inch LCD Screen,Smart TV Display ,4K with Android System
| Weight | 52000 g |
|---|---|
| Dimensions | 170.5 × 98.5 × 12 cm |
| Resolution | 3840×2160 |
| Brightness | 350 nits |
| Viewing angel | 178° |
| Contrast ratio | 3000:1 |
| Android System | 9.0 |
| Roch chip | Quad-core A55 |
| Markets | *Real estate business display industry *Video conferencing industry |
Detailes About 75 inch Wall Mounted 4K Smart TV with or without touch screen
Windows & Android Smart TV DISPLAY
Display Specification:
Diagonal size : 75″
Touch Type : No touch screen
Resolution :4K – 3840*2160
Color :16.7M
Brightness : 350 nits
Viewing Angel :178°
Response time : 8 ms
Fresh Frequency :60 Hz
Contrast ratio : 3000:1
Screen protection : Temperred glass on the surface – Anti-glare need extra cost .
Language :English , Chinese
Color : Black color with silver edge , Black color with golden edge
Android Specification:
O.S : Android 9.0
Roch chip : Quad-core A55
RAM: 2G
ROM: 16G
Interface: USB x 2, HDMI In x1, RJ45 x1
Power: Max power consumption:≤ 230 W
Standby :≤ 0.5W
75inch Panel size:
Overall Size : 1704.6*985.2 MM
Display Area size : 1649*927.1 MM 【HxV】
Packing size /Carton box : 179.6*19.4*111.7 CM
N.W. 52 KG
G.W. 64 KG
**If need wooden case packing , above info is not accurat
LCD screen drawing
Application
*Real estate business display industry
*Video conferencing industry
*Internet cafe display industry
*Touch teaching industry
*Public display industry
Precautions in Handling,Installing,and Maintaining a Digital Information Display (DID)
Installation Precautions
Trouble Shooting
Warning
Don’t use the Alignment Brackets if you are mounting your LCD video wall with POP out mounting brackets.
Doing so can lead to damage to your LCD monitor.
