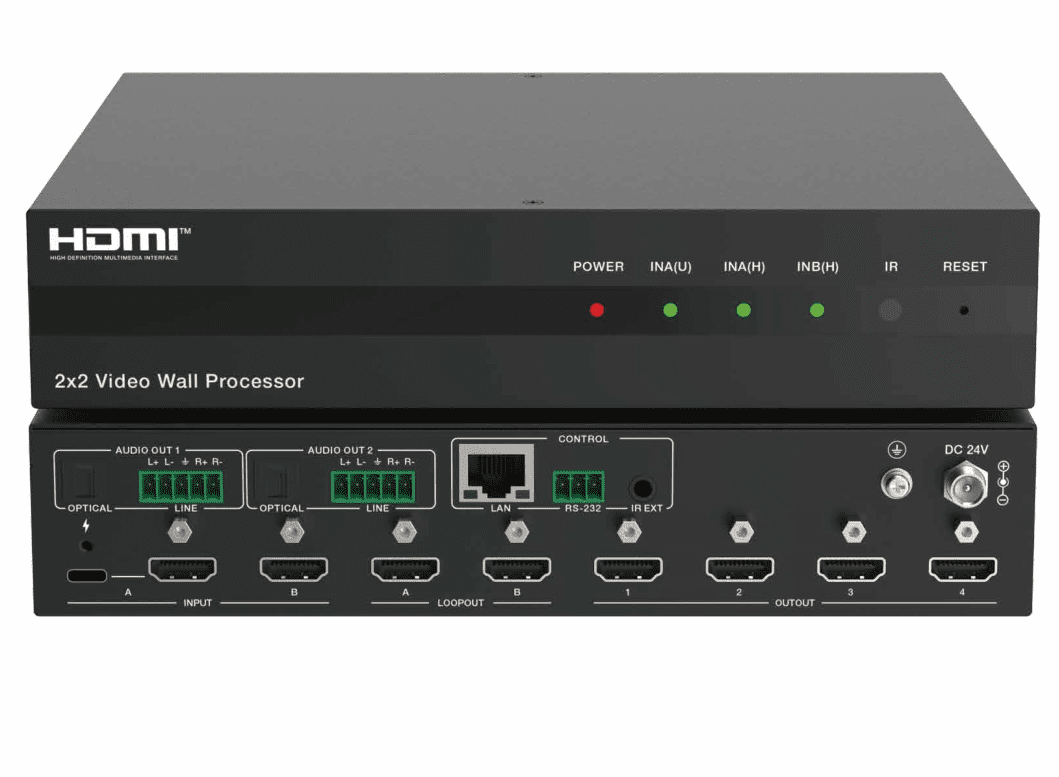

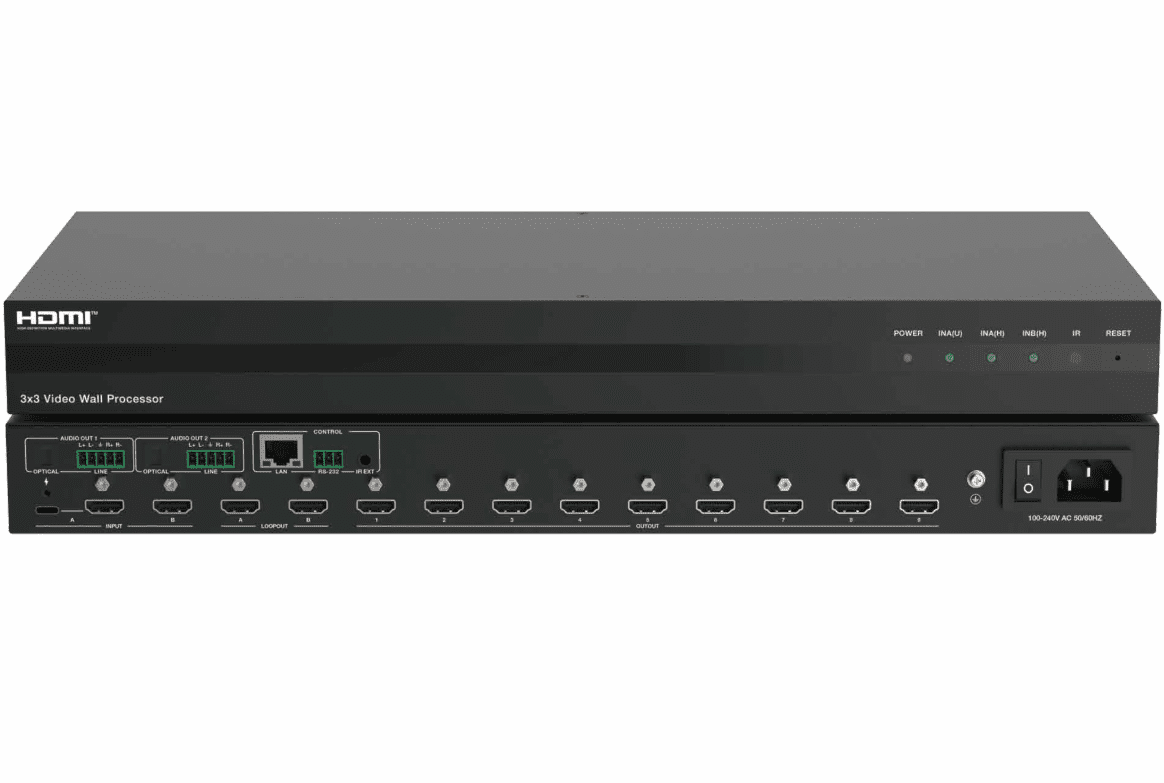

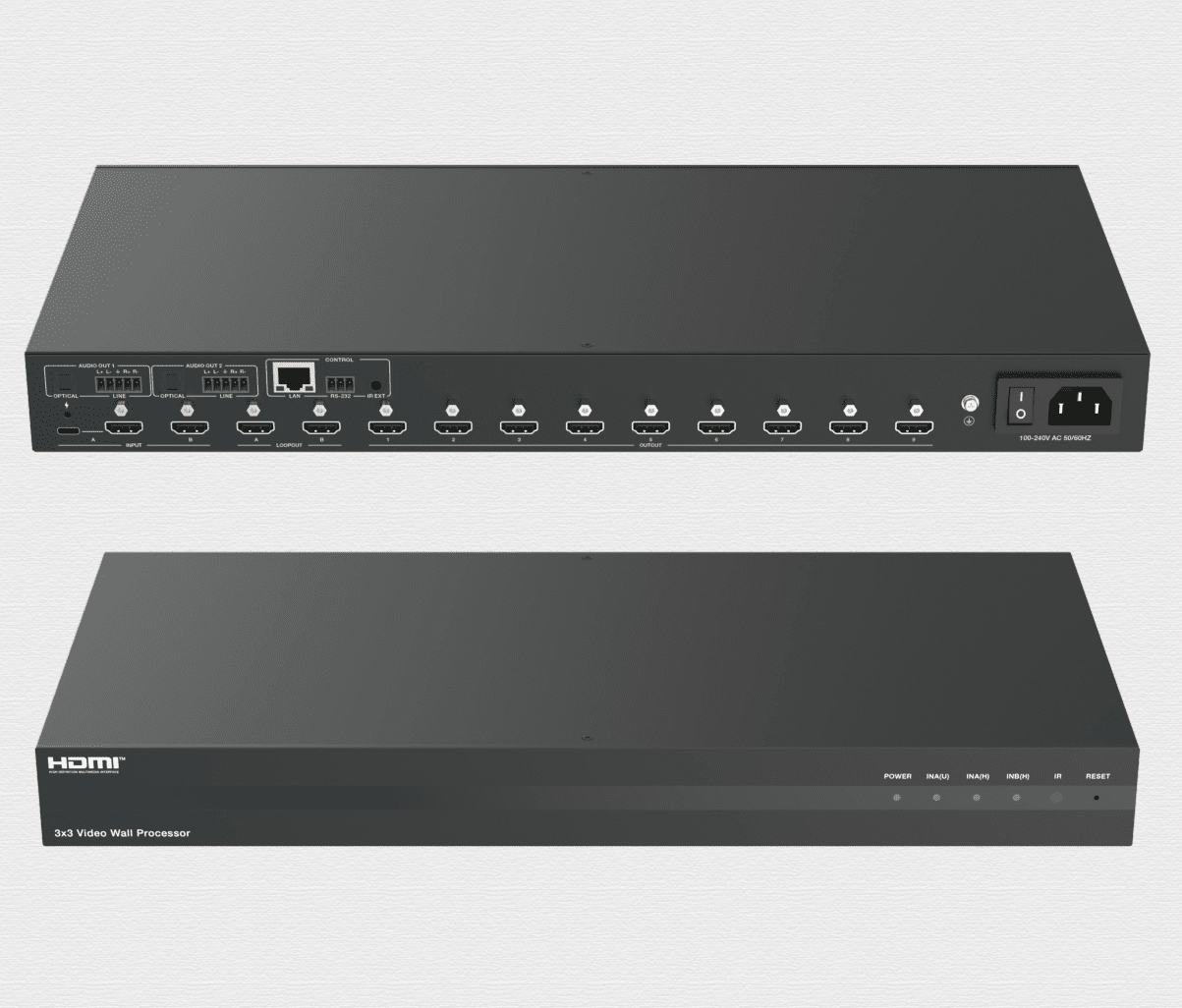

4K60HZ HDMI 2.0 2×2,2×4,2×9,2×11 HDMI Ultra HD Video Wall Processor
18Gbps HDMI2.0 4K60Hz 2×4,2×9 Video wall Processor, Bezel adjustment,Any degree rotation,IR, RS-232, TCP/IP and Web GUI control
| Weight | 550 g |
|---|---|
| Dimensions | 22 × 9 × 3 cm |
| HDMI Version | 2.0b |
| Resolution | 4K2K@60Hz 4:4:4, 18Gbps |
| HDCP | HDCP2.3 |
| USB-C | USB-C with DP Alt mode up to 4K60Hz 4:4:4 (DP 1.4a, HDCP 2.3), and 60 watts charging |
| Control | IR, RS-232, TCP/IP and Web GUI control |
| Audio | Digital and analog audio de-embedded with gain control |
| HDMI Port | Two inputs with two independent loop outs for cascading |
| Video Wall | Supports PIP mode on video wall |
| Rotation | Bezel adjustment,Any degree rotation |
Detailes About 4K60HZ HDMI 2.0 2×2,2×4,2×9,2×11 HDMI Ultra HD Video Wall Processor
18Gbps HDMI 2.0 2X4 Video wall Processor
2×4 video wall processor with USB-C/HDMI inputs
HDMI 2.0b, HDCP 2.3, up to 4K60@4:4:4
USB-C with DP Alt mode up to 4K60Hz 4:4:4 (DP 1.4a, HDCP 2.3), and 60 watts charging
Two inputs with two independent loop outs for cascading
16 fixed video wall layouts and up to 8 customized layouts
Bezel adjustment
Any degree rotation
Digital and analog audio de-embedded with gain control
CEC source and display control
IR, RS-232, TCP/IP and Web GUI control
Features
2×9 video wall processor with USB-C/HDMI inputs
HDMI 2.0b, HDCP 2.3, up to 4K60@4:4:4
USB-C with DP Alt mode up to 4K60Hz 4:4:4 (DP 1.4a, HDCP 2.3), and 60 watts charging
Two inputs with two independent loop outs for cascading
Supports PIP mode on video wall
16 fixed video wall layouts and up to 8 customized layouts
Bezel adjustment
Any degree rotation
Digital and analog audio de-embedded with gain control
CEC source and display control
IR, RS-232, TCP/IP and Web GUI control
