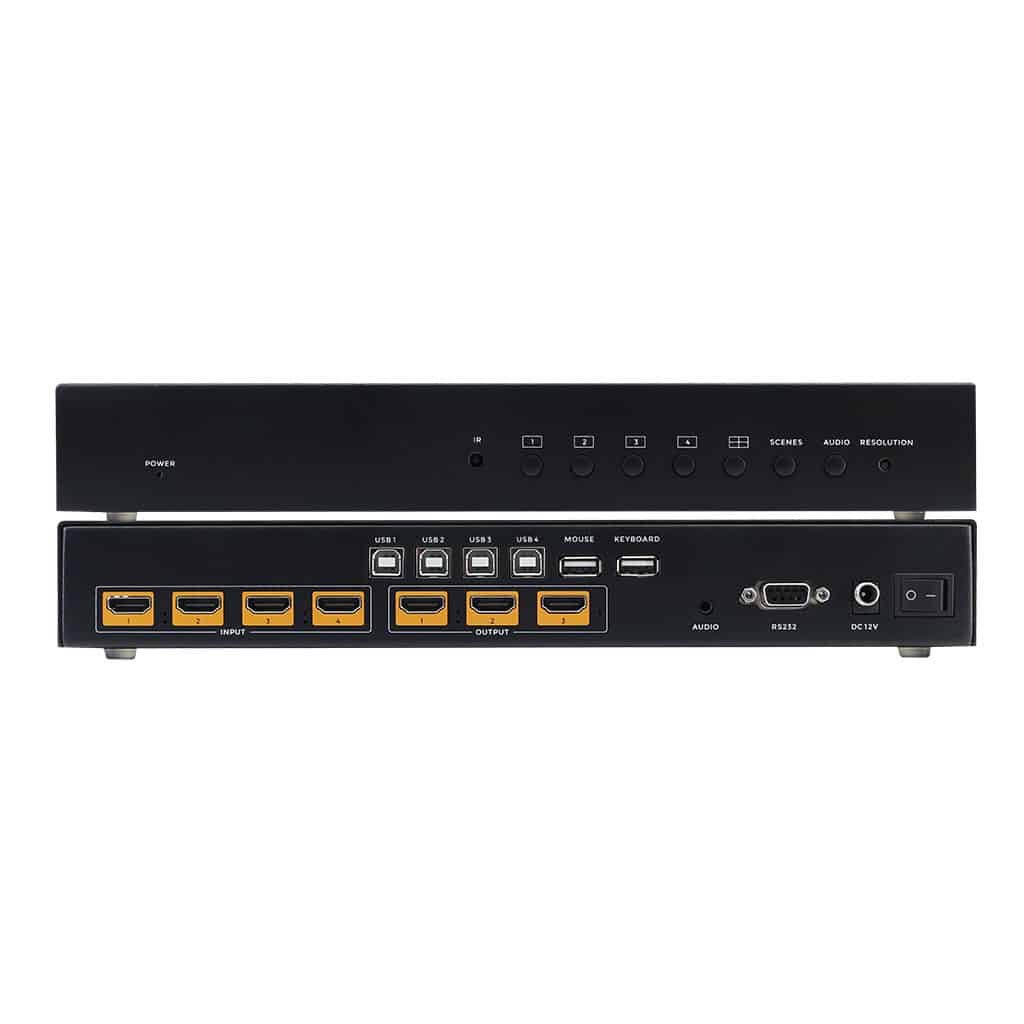

4K60Hz 4×3 Seamless Multiview with KVM and RS232 IR Remote control
4K60hz Presentation System 4×3 seamless switcher with multiviewer , RS232 Control,Audio Out,No black screen while switching,No tearing screen.
| Weight | 2550 g |
|---|---|
| Dimensions | 31.5 × 12.5 × 4.4 cm |
| HDMI Version | HDMI 2.0 |
| Resolution | up to 3840×2160@60hz |
| Audio | Analog Audio,RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0 |
| IR | function same as button switch, fast switching |
| Multiview | Multiview Seamless switching |
| Inputs and output | In: 4x 2.0 HDMI™ |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 4K60Hz 4×3 Seamless Multiview with KVM and RS232 IR Remote control
4K60 4X3 Seamless Matrix Switcher with Multiviewer
Support IR Remote controller,RS232 Third party control
Introduction
It is a 4K-KVM multi-view split switch. A professional video processing and control device that can simultaneously display multiple high-definition images in multi-window mode on ultra-high-definition resolution UHDTV flat-panel TVs, projections and other display devices. information. The screen splitter adopts a pure hardware structure design, without an operating system. The entire system runs completely closed and does not require a computer or startup software.
It is very simple, has high stability, and the output graphics quality is good. The stability is much higher than that of the WINDOWS-based operating system. The “computer + board” method and the traditional controller based on embedded structural design and embedded special operating system can work immediately after power-on and have high stability.
The ultra-high-definition picture split switch can accept 4-channel HD2.0 standard high-definition signals, and adjust and transform the input signals in terms of window size, image ratio, etc. according to user requirements, and finally outputs a unified format HD2.0 interface signal. The 4K-KVM multi-screen split switch does not require any system or WEB and other control software.

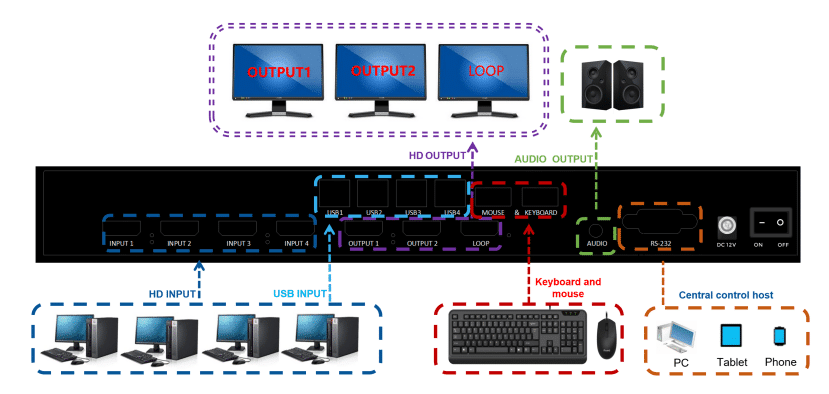

It can quickly switch all signals using only the mouse and keyboard, realize independent scaling of each window, and the input and output resolutions can reach the 4K@60 standard. . Users can choose a single screen with 4 pictures to display simultaneously to control the window size and mouse and keyboard operations of 4 computers. They can also choose to operate dual screens with dual pictures for separate display. At the same time, there is also a loop-through for point-to-point loop-out display of the input signal source.
- Support 4 channels of HD 2.0 signal input;
- Support 3 channels of HD 2.0 signal output;
- Supports 4 channels of computer USB/BM input and 2 channels of USB/AM mouse and keyboard input ;
- Supports 11 conventional resolution outputs, such as 2160P@60, DCI 4K@60, 1920X1200@60, 1080P@60, etc.;
- Supports dual-screen simultaneous display of 4 windows, 3 windows, 2 windows, single window and other window combination modes ;
- Supports multiple window combination modes such as dual-screen display with 2 windows and single window ;
- Supports controlling window size, PIP transparency, signal source switching, etc. through mouse and keyboard;
- Supports simultaneous operation of 4 computers through a set of mouse and keyboard ;
- Support panel switching signal full screen, 4 pictures, 2 pictures, etc.;
- Supports panel, infrared, control scene mode, audio output and video loop-out switching;
- Support panel loop to change output resolution;
